G.A. Murdock

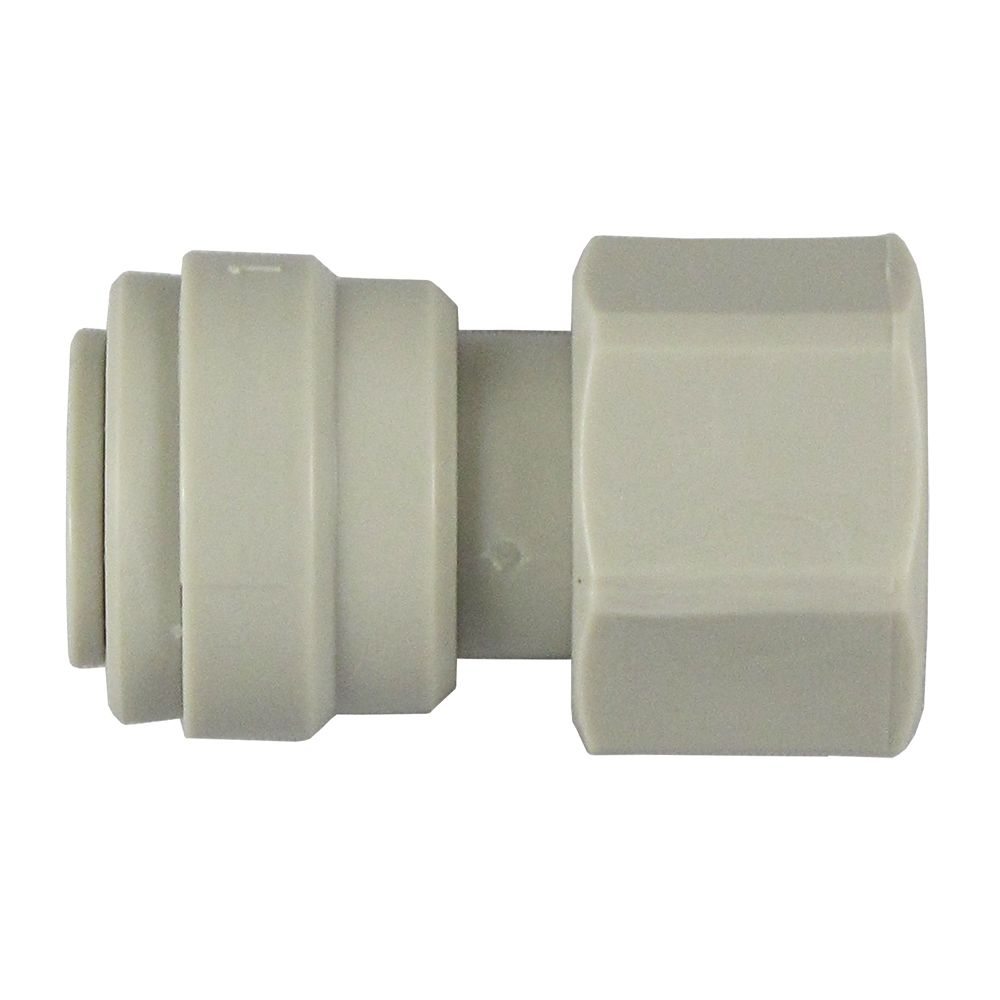

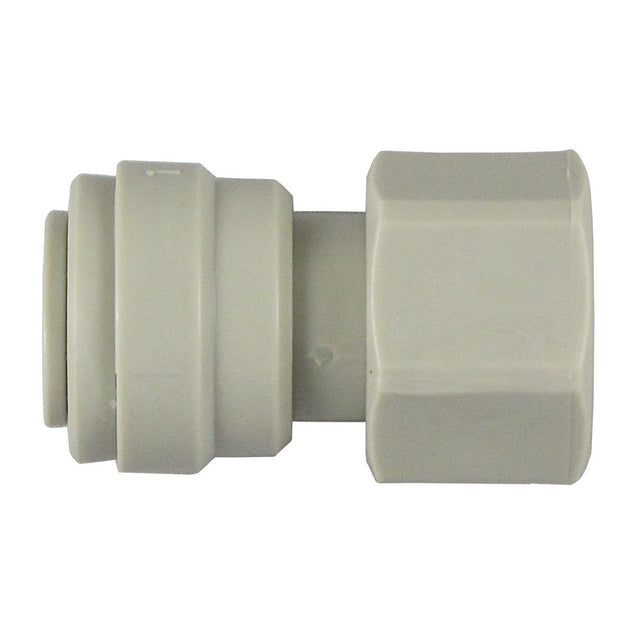

Female Flare Connector - 1/4 Tube x 9/16 Flare

Part Number: U0420906

In Stock

out of stock

In Stock

$5.33

1/4" Quick Connect x 9/16" Female Flare Connector is suitable for use with coffee, brewing, and vending machine applications.

Features:
  • Push in technology allows quick disconnects
  • No tools required




Weight & Dimensions

Weight (lbs)

0.03

Details

Application

Water, Beverage

Body Material

Polypropylene

Inlet/Outlet Connection

9/16" Flare

Max Pressure (Psi)

150

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

33

Mounting Options

Thread

Push-In Size

1/4" OD

Seal Material

EPDM

Size

9/16"

Color / Finish

white

Connection Type

Flare

Sub-Type

Female Adapter

Type

Adapter

Warranty & Certifications

Certifications

NSF 58; NSF 372



1/4" Quick Connect x 9/16" Female Flare Connector is suitable for use with coffee, brewing, and vending machine applications.
