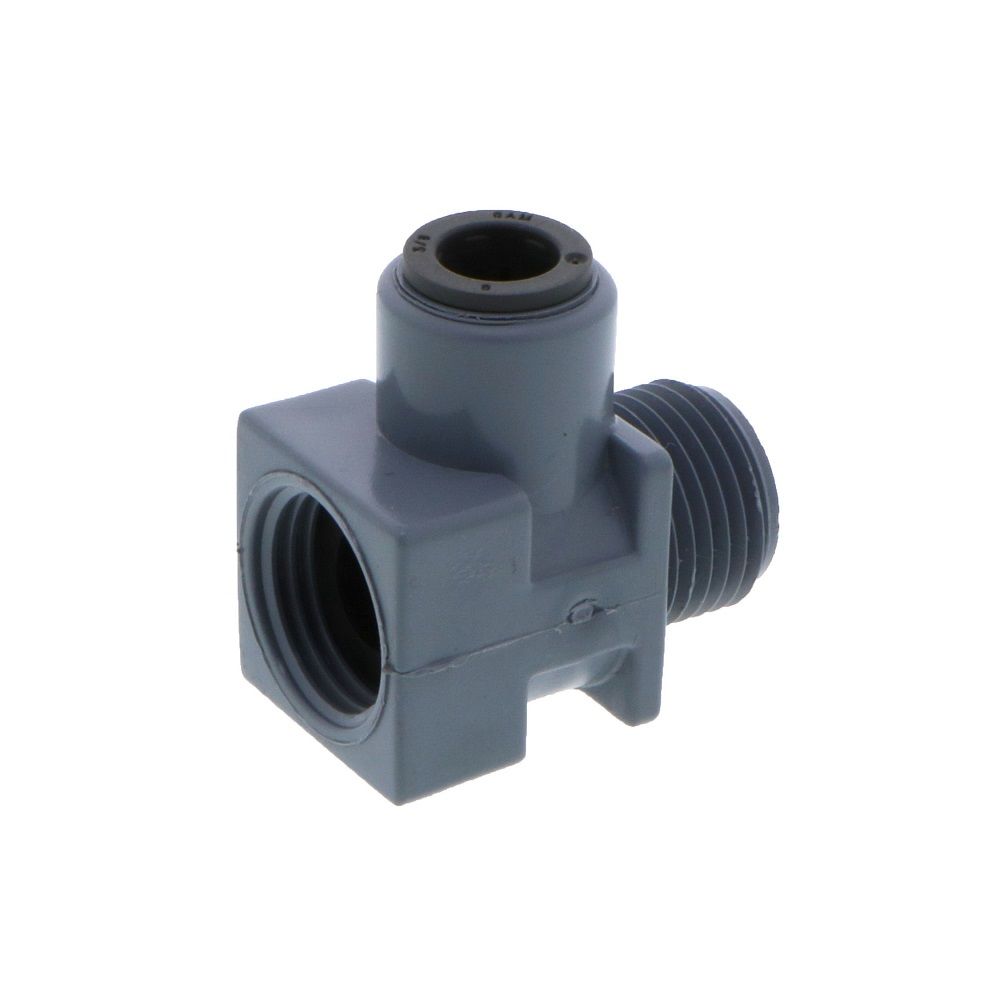

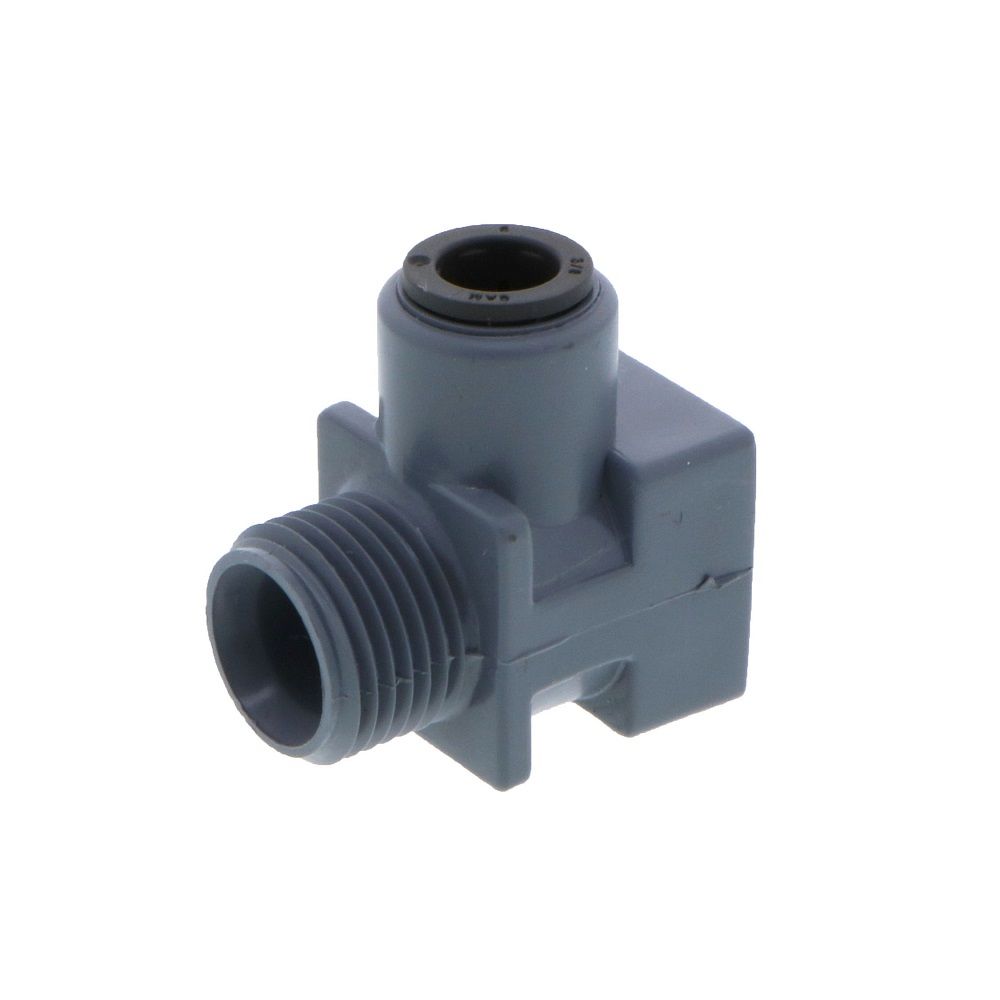

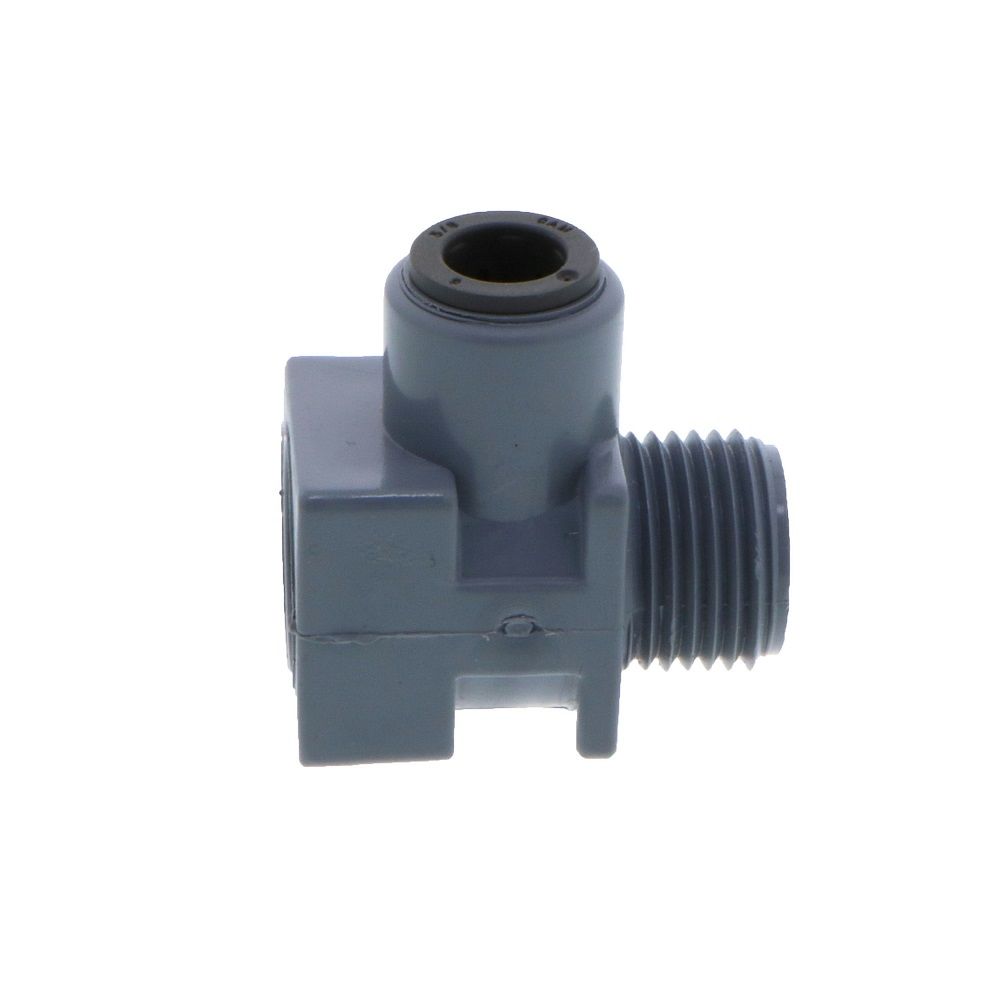

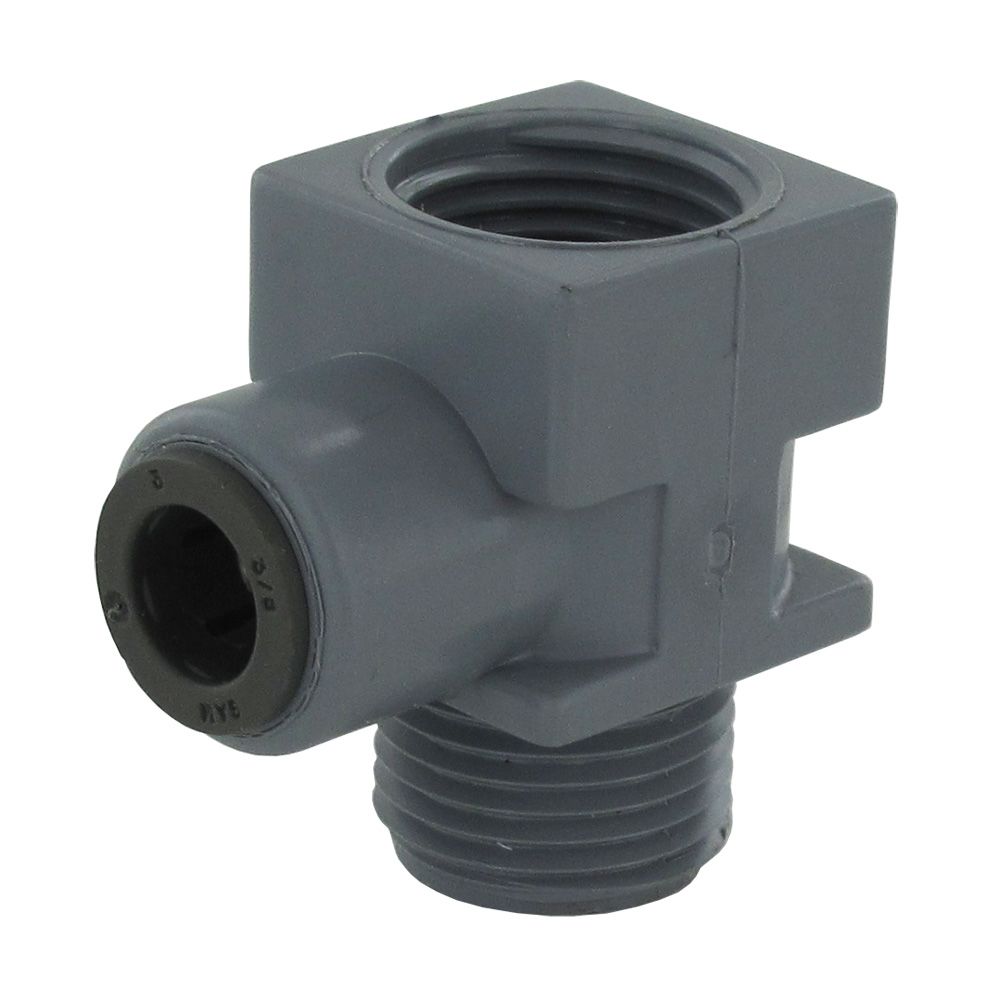

The EZ Faucet Adapter is an NSF approved PVC fitting that is designed to connect any water system to the existing sink faucet supply line. This faucet adapter features 1/2" male and female compression threads with 3/8" push-in for the side port. The H0830625 adapts to corrugated, braided, plastic, and stainless steel supply tubing.
Features:
- Material: NSF approved PVC
- Operating Pressure: 0-150 psi
- Temperature: 33-140°F (1-60°C)
- Outlet: 3/8" JG Speedfit push-in fitting on side port
- Threads: 1/2" Male Compression & 1/2" Female Compression
Weight & Dimensions
Weight (lbs) | 0.15 |
Details
Application | Water Supply |
Body Material | PVC |
Color / Finish | Gray |
Inlet/Outlet Connection | 1/2" MPT; 1/2" FPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
O-Rings | Polyethylene |
Push-In Size | 3/8" OD |
Size | 1/2" |
Warranty & Certifications
Certifications | NSF 14 |
Warranty | 1 Year |
The EZ Faucet Adapter is an NSF approved PVC fitting that is designed to connect any water system to the existing sink faucet supply line. This faucet adapter features 1/2" male and female compression threads with 3/8" push-in for the side port. The H0830625 adapts to corrugated, braided, plastic, and stainless steel supply tubing.
Features:
- Material: NSF approved PVC
- Operating Pressure: 0-150 psi
- Temperature: 33-140°F (1-60°C)
- Outlet: 3/8" JG Speedfit push-in fitting on side port
- Threads: 1/2" Male Compression & 1/2" Female Compression
Weight & Dimensions
Weight (lbs) | 0.15 |
Details
Application | Water Supply |
Body Material | PVC |
Color / Finish | Gray |
Inlet/Outlet Connection | 1/2" MPT; 1/2" FPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
O-Rings | Polyethylene |
Push-In Size | 3/8" OD |
Size | 1/2" |
Warranty & Certifications
Certifications | NSF 14 |
Warranty | 1 Year |
