G.A. Murdock

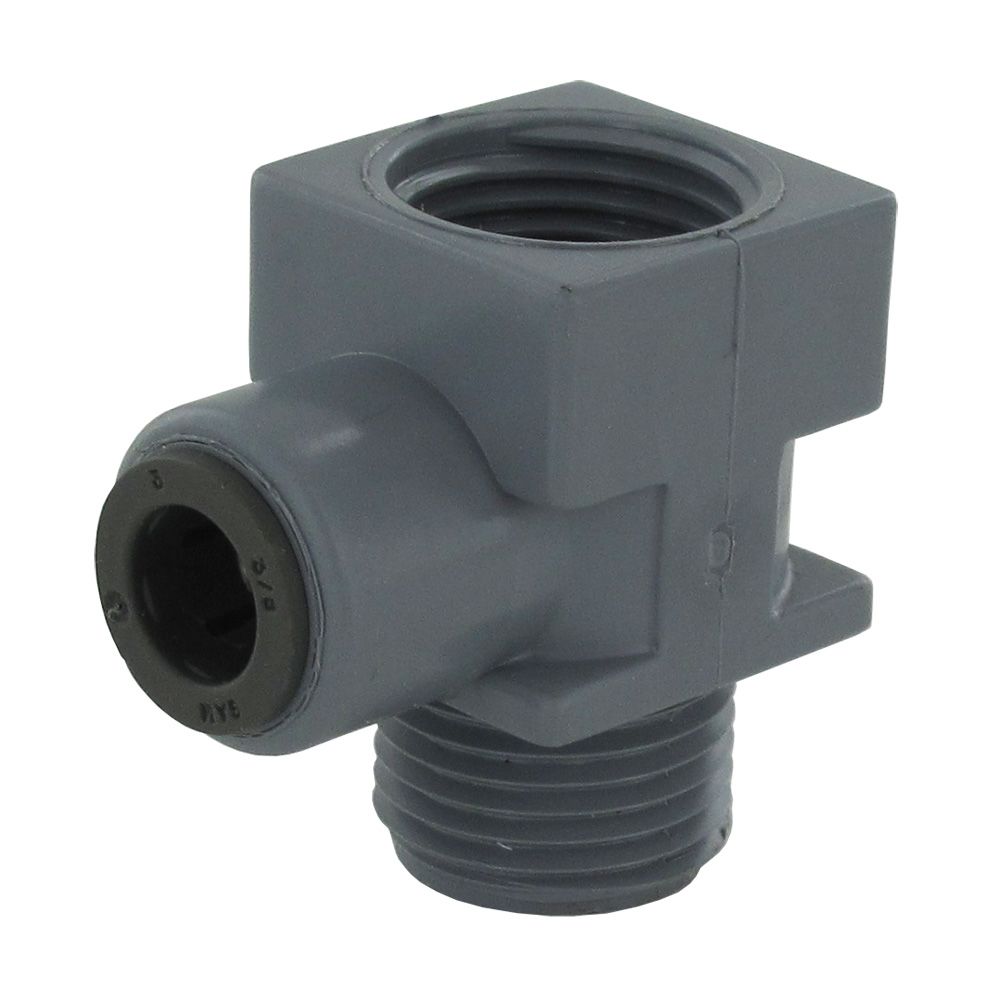

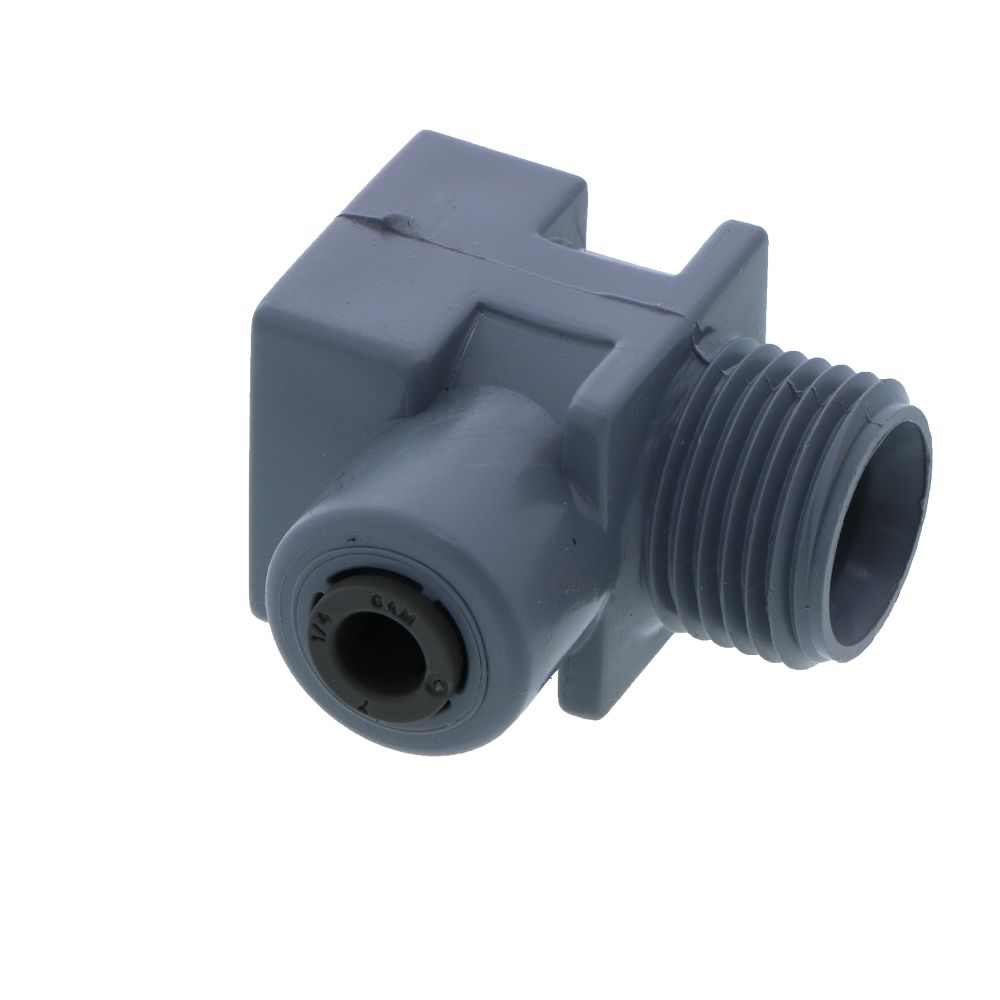

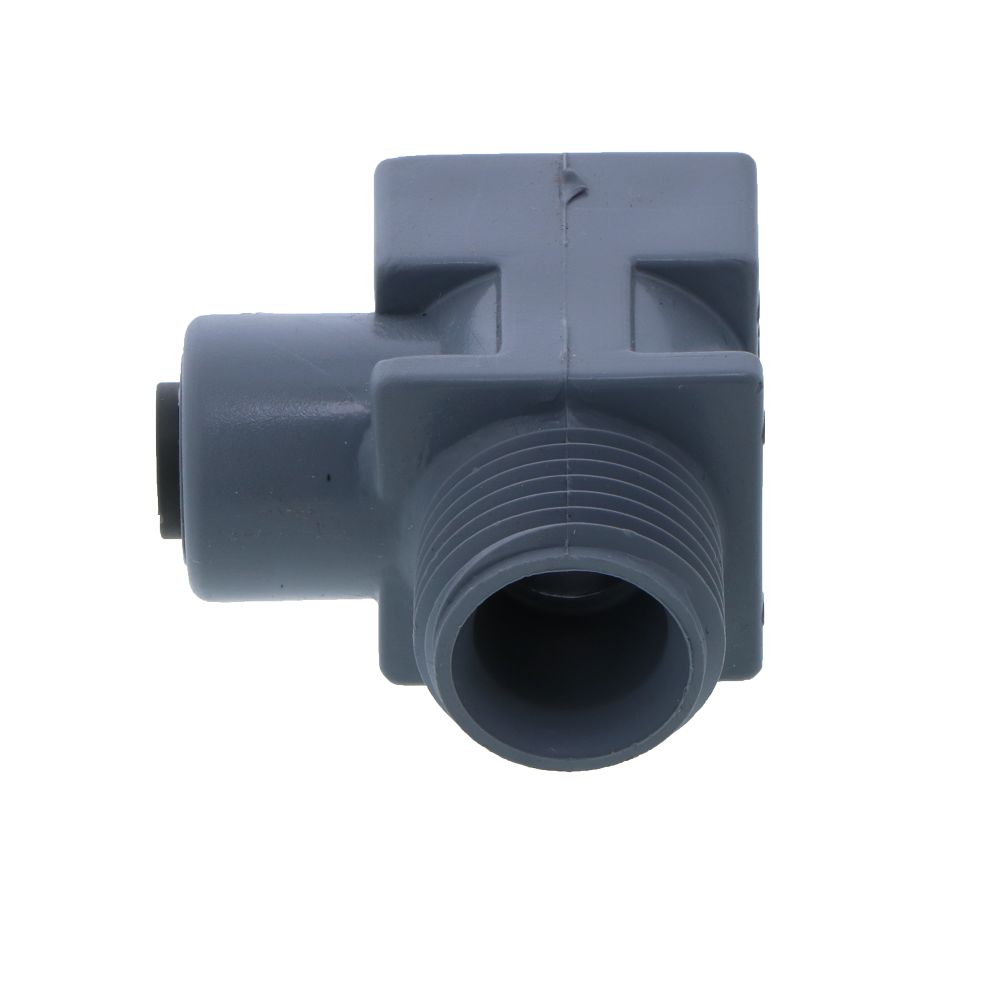

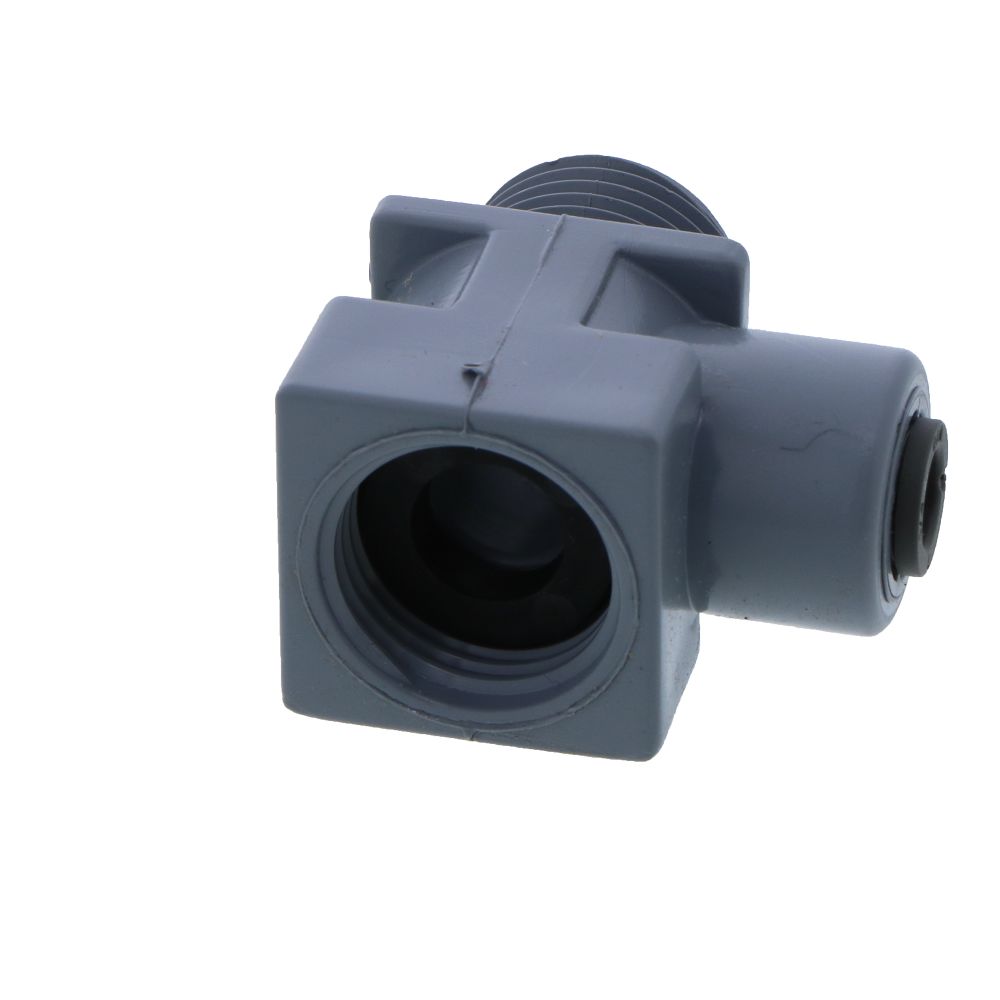

EZ Faucet Adapter - 1/4" Push In Side

Part Number: H0830425

In Stock

out of stock

In Stock

$5.14 Regular price

The EZ Faucet Adapter is an NSF approved PVC fitting that is designed to connect any water system to the existing sink faucet supply line. This faucet adapter features 1/2" male and female compression threads with 1/4" push-in for the side port. The H0830625 adapts to corrugated, braided, plastic, and stainless steel supply tubing.

Features:
  • Material: NSF approved PVC
  • Operating Pressure: 0-150 psi
  • Temperature: 33-140°F (1-60°C)
  • Outlet: 1/4" JG Speedfit push-in fitting on side port
  • Threads: 1/2" Male Compression & 1/2" Female Compression




Weight & Dimensions

Height (inches)

1.75

Length (inches)

1.75

Weight (lbs)

0.003125

Width (inches)

1

Details

Application

Water Supply

Body Material

PVC

Color / Finish

Gray

Inlet/Outlet Connection

1/2" MPT; 1/2" FPT

Max Pressure (Psi)

150

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

33

O-Rings

Polyethylene

Push-In Size

1/4" OD

Size

1/2"

Warranty & Certifications

Certifications

NSF 14

Warranty

1 Year


EZ




The EZ Faucet Adapter is an NSF approved PVC fitting that is designed to connect any water system to the existing sink faucet supply line. This faucet adapter features 1/2" male and female compression threads with 1/4" push-in for the side port. The H0830625 adapts to corrugated, braided, plastic, and stainless steel supply tubing.

Features:
  • Material: NSF approved PVC
  • Operating Pressure: 0-150 psi
  • Temperature: 33-140°F (1-60°C)
  • Outlet: 1/4" JG Speedfit push-in fitting on side port
  • Threads: 1/2" Male Compression & 1/2" Female Compression



Weight & Dimensions

Height (inches)

1.75

Length (inches)

1.75

Weight (lbs)

0.003125

Width (inches)

1

Details

Application

Water Supply

Body Material

PVC

Color / Finish

Gray

Inlet/Outlet Connection

1/2" MPT; 1/2" FPT

Max Pressure (Psi)

150

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

33

O-Rings

Polyethylene

Push-In Size

1/4" OD

Size

1/2"

Warranty & Certifications

Certifications

NSF 14

Warranty

1 Year
