G.A. Murdock

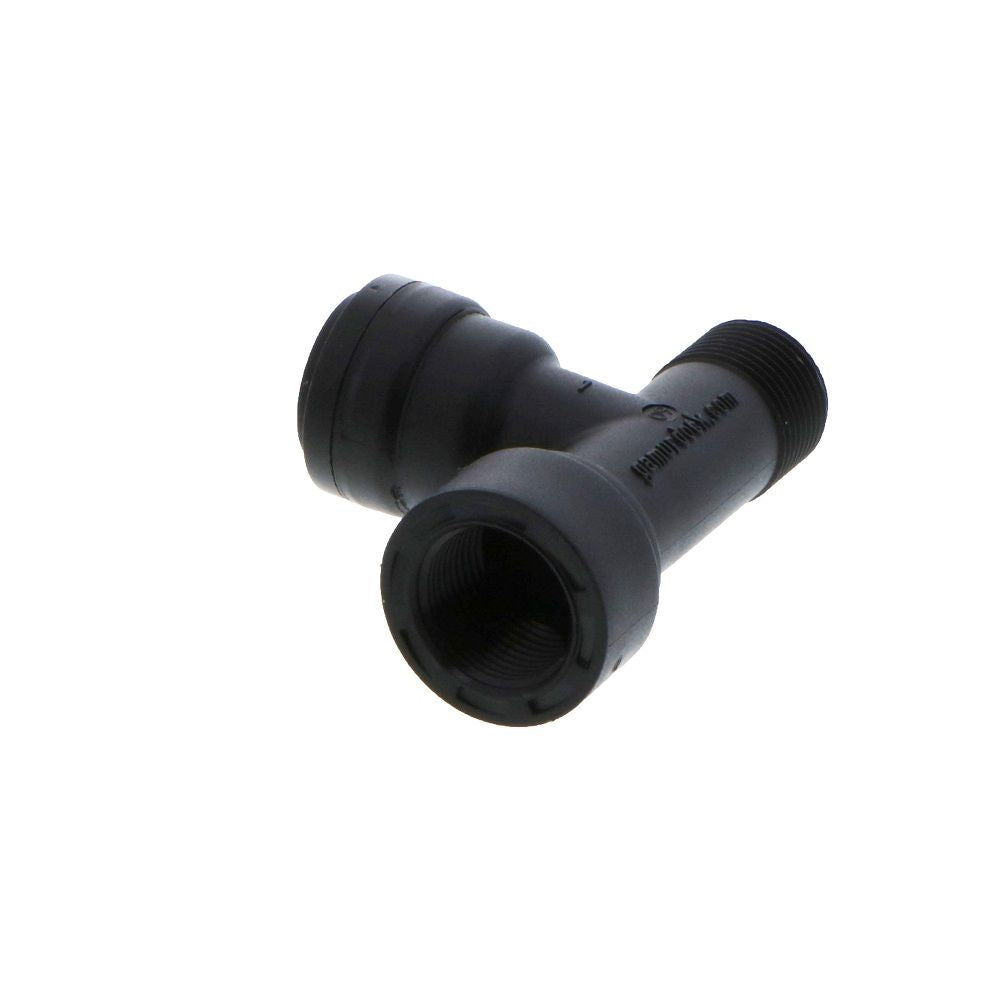

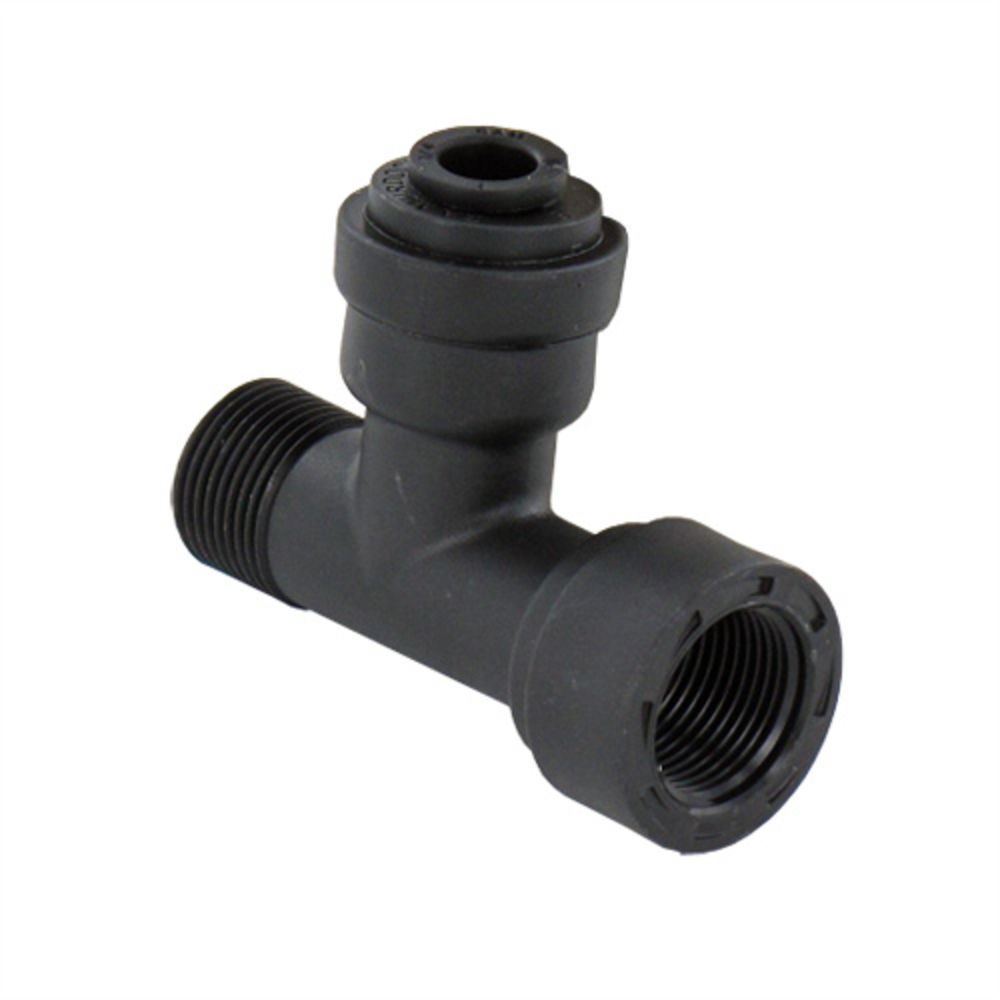

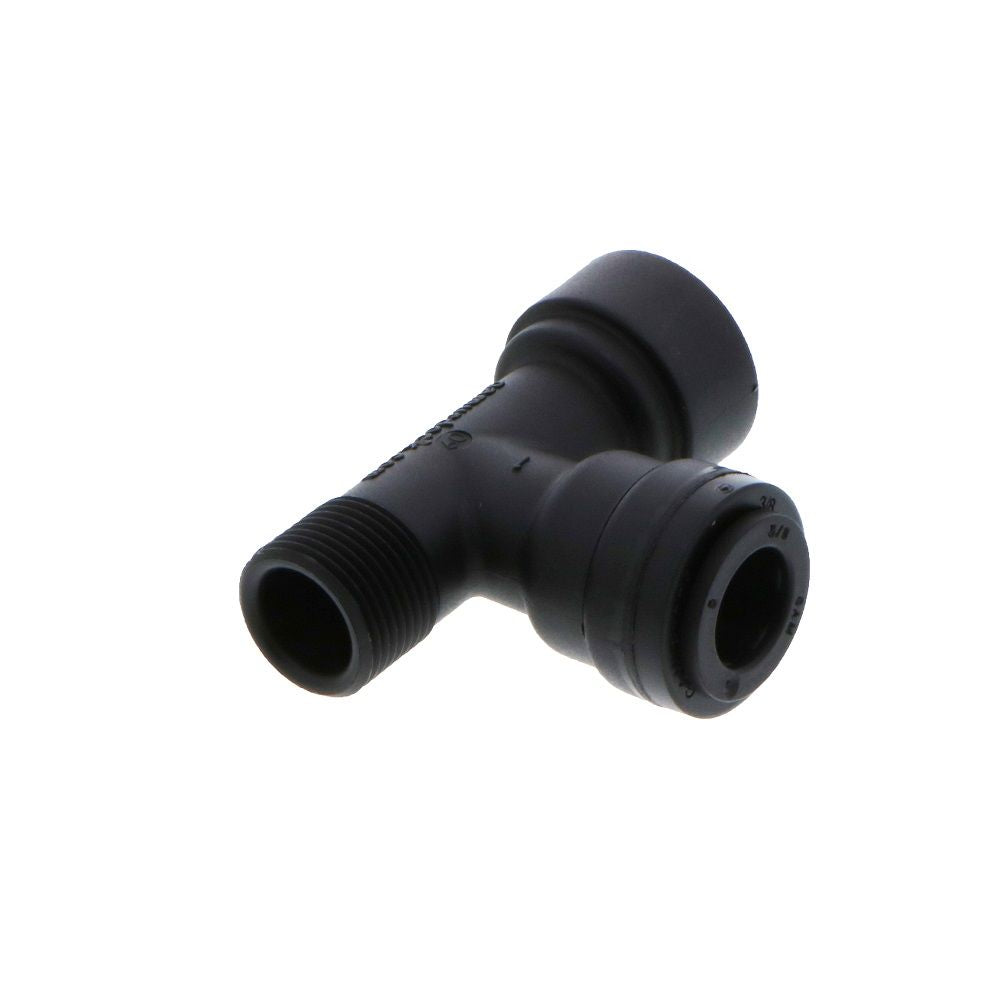

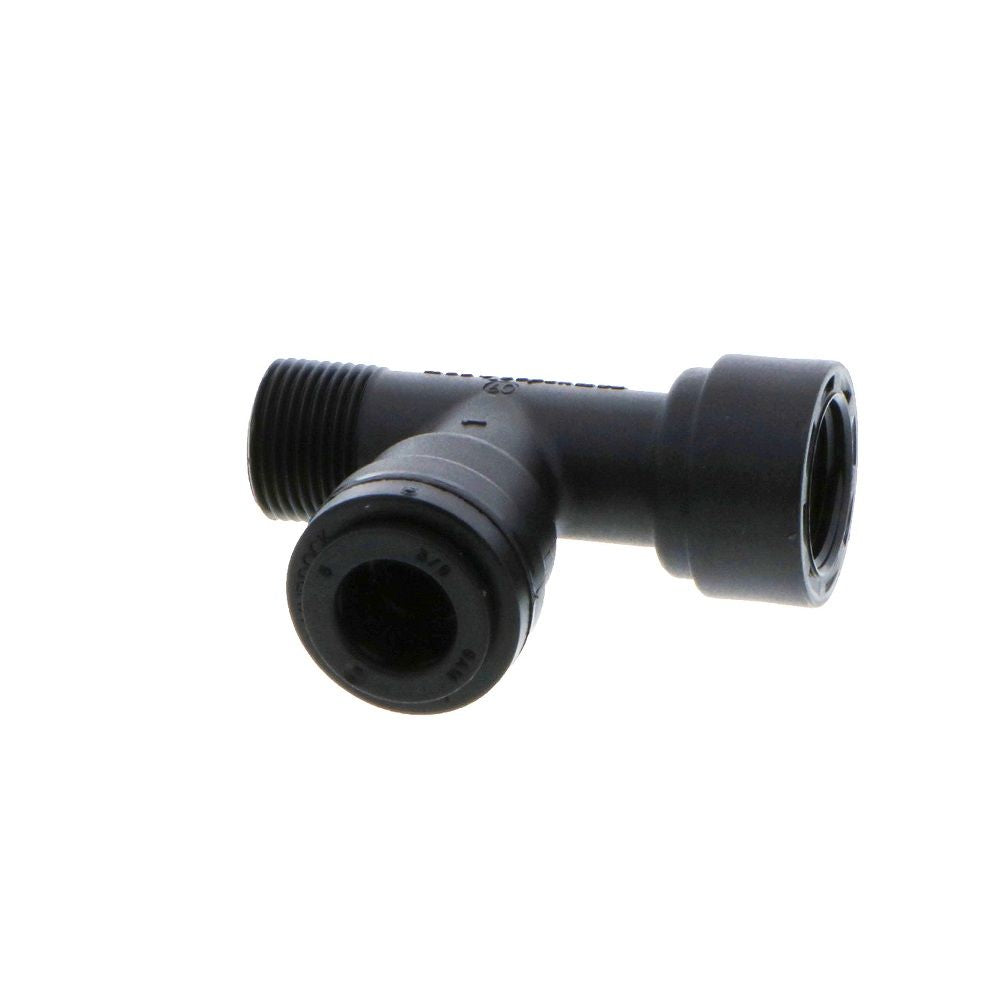

EZ Angle Stop Adapter - 3/8" Push In Side

Part Number: H0630626

In Stock

out of stock

In Stock

Closeout sale item with limited availability.

$6.64

EZ Angle Stop Adapter H0630626 are the simplest way to connect any water-using appliance from POU Water Filters, Reverse Osmosis Systems, Refrigerator Icemakers, OCS equipment, etc. The Plastic EZ Angle Stop Adapter simply connects between the existing 3/8" Angle Stop Valve and the Flexible Supply Tube.

Specifications:
  • Materials: chemical and corrosion resistant Polypropylene
  • Temperature: 33º - 140ºF(1º-60ºC)
  • Connection: 3/8" Male and Female Compression Threads with 1/4" or 3/8" Push-In fitting on side port.




Weight & Dimensions

Height (inches)

1.38

Length (inches)

1.88

Weight (lbs)

0.000625

Width (inches)

0.75

Details

Application

Water Supply, Reverse Osmosi, Ice Makers

Body Material

Polypropylene

Inlet/Outlet Connection

3/8" MPT, 3/8" FPT

Max Pressure (Psi)

150

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

33

O-Rings

Polyethylene

Push-In Size

3/8" OD, 1/4" OD

Size

3/8"

Color / Finish

Black

Connection Type

Male (MPT), Female (FPT)



EZ Angle Stop Adapter H0630626 are the simplest way to connect any water-using appliance from POU Water Filters, Reverse Osmosis Systems, Refrigerator Icemakers, OCS equipment, etc. The Plastic EZ Angle Stop Adapter simply connects between the existing 3/8" Angle Stop Valve and the Flexible Supply Tube.

Specifications:
  • Materials: chemical and corrosion resistant Polypropylene
  • Temperature: 33º - 140ºF(1º-60ºC)
  • Connection: 3/8" Male and Female Compression Threads with 1/4" or 3/8" Push-In fitting on side port.



NOTE: Closeout sale item with limited availability.

Weight & Dimensions

Height (inches)

1.38

Length (inches)

1.88

Weight (lbs)

0.000625

Width (inches)

0.75

Details

Application

Water Supply, Reverse Osmosi, Ice Makers

Body Material

Polypropylene

Inlet/Outlet Connection

3/8" MPT, 3/8" FPT

Max Pressure (Psi)

150

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

33

O-Rings

Polyethylene

Push-In Size

3/8" OD, 1/4" OD

Size

3/8"

Color / Finish

Black

Connection Type

Male (MPT), Female (FPT)

Reviews
