G.A. Murdock

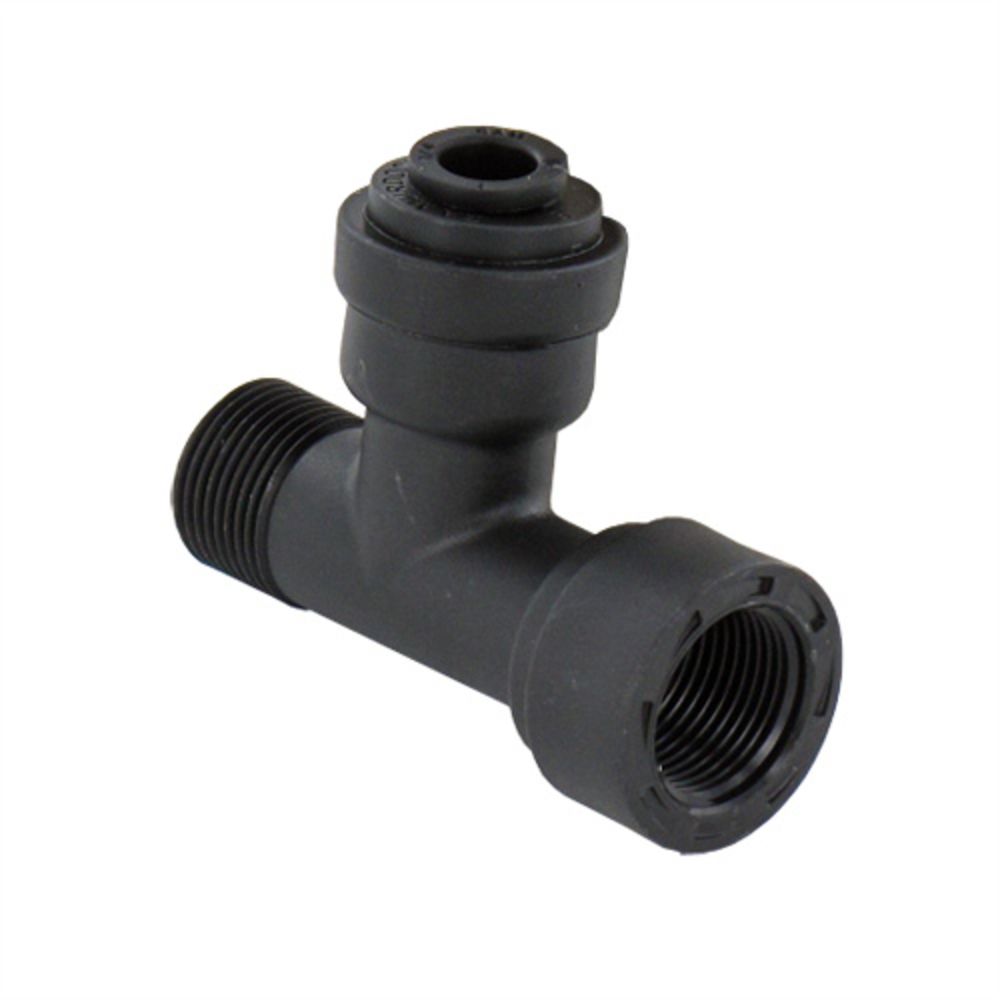

EZ Angle Stop Adapter - 1/4" Push In Side

Part Number: H0630426

In Stock

out of stock

In Stock

$4.48 Regular price

The EZ Angle Stop Adapters are the simplest way to connect any water-using appliance from POU Water Filters, Reverse Osmosis Systems, Refrigerator Icemakers, OCS equipment, etc. The Plastic EZ Angle Stop Adapter simply connects between the existing 3/8" Angle Stop Valve and the Flexible Supply Tube.

Specifications:
  • Materials:  chemical and corrosion resistant Polypropylene
  • Temperature:  33º - 140ºF(1º-60ºC)
  • Connection:  3/8" Male and Female Compression Threads with 1/4" or 3/8" Push-In fitting on side port.




Weight & Dimensions

Height (inches)

0.75

Length (inches)

1.88

Weight (lbs)

0.000625

Width (inches)

1.5

Details

Application

Water Supply; Reverse Osmosi; Ice Makers

Body Material

Polypropylene

Color / Finish

Black

Inlet/Outlet Connection

3/8" MPT; 3/8" FPT

Max Pressure (Psi)

150

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

33

O-Rings

Polyethylene

Push-In Size

1/4" OD; 3/8" OD

Size

3/8"



The EZ Angle Stop Adapters are the simplest way to connect any water-using appliance from POU Water Filters, Reverse Osmosis Systems, Refrigerator Icemakers, OCS equipment, etc. The Plastic EZ Angle Stop Adapter simply connects between the existing 3/8" Angle Stop Valve and the Flexible Supply Tube.

Specifications:
  • Materials:  chemical and corrosion resistant Polypropylene
  • Temperature:  33º - 140ºF(1º-60ºC)
  • Connection:  3/8" Male and Female Compression Threads with 1/4" or 3/8" Push-In fitting on side port.



Weight & Dimensions

Height (inches)

0.75

Length (inches)

1.88

Weight (lbs)

0.000625

Width (inches)

1.5

Details

Application

Water Supply; Reverse Osmosi; Ice Makers

Body Material

Polypropylene

Color / Finish

Black

Inlet/Outlet Connection

3/8" MPT; 3/8" FPT

Max Pressure (Psi)

150

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

33

O-Rings

Polyethylene

Push-In Size

1/4" OD; 3/8" OD

Size

3/8"
