Industrial Test Systems

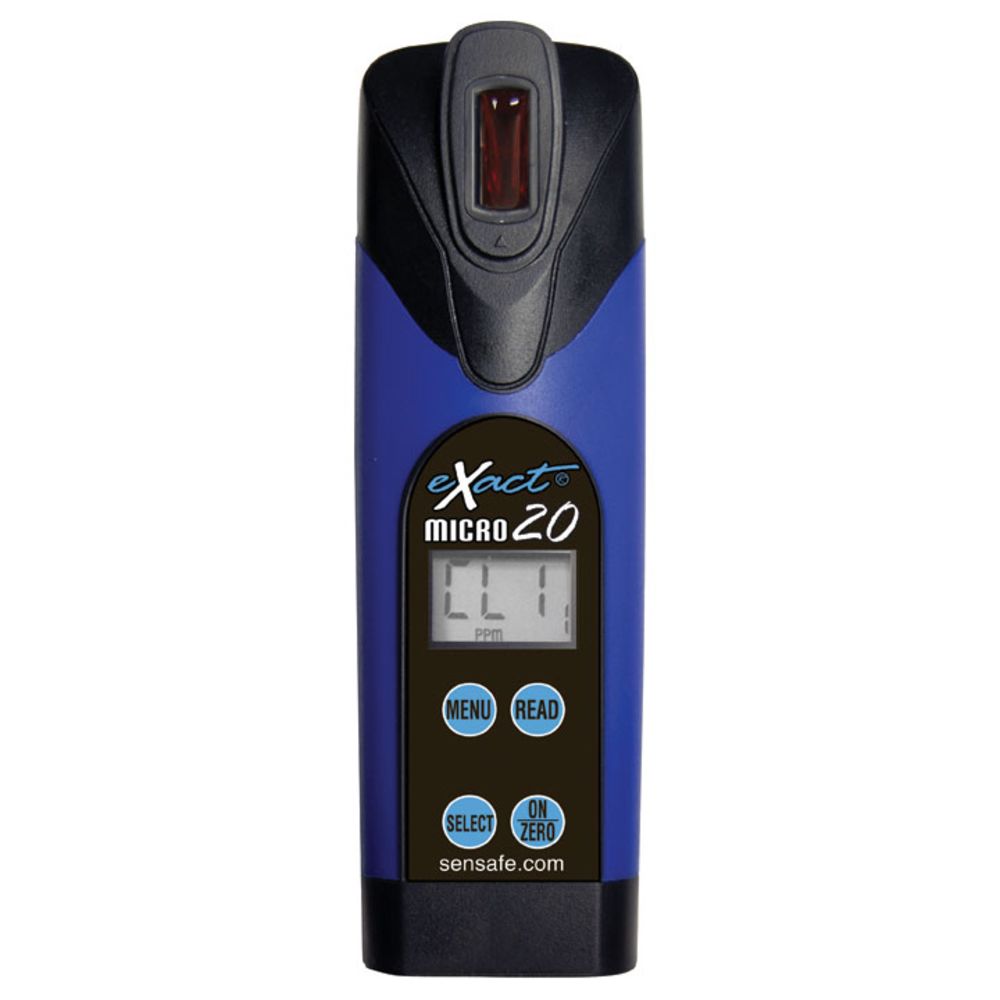

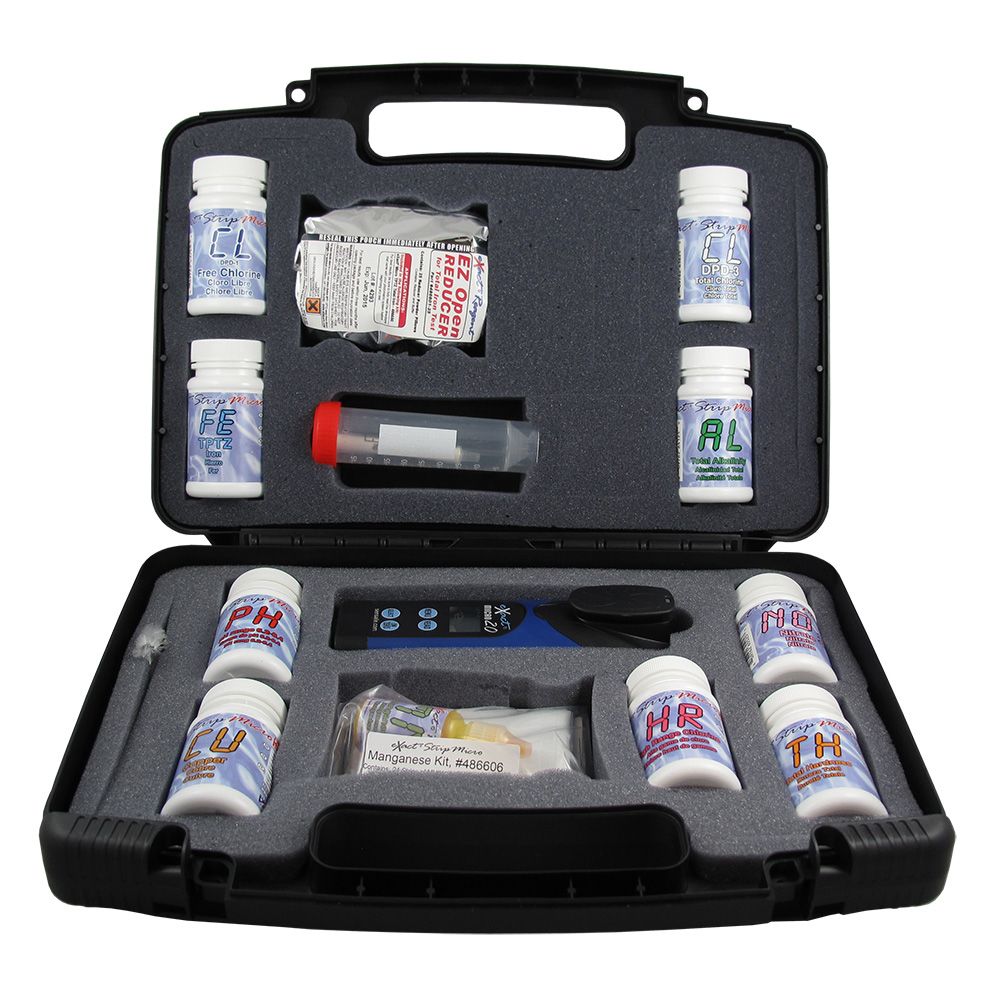

eXact Micro 20 Well Driller Kit Advanced Photometer System

Part Number: 486700-WD

Alt. Part Number: 486691-WD

In Stock

out of stock

In Stock

$465.08


The eXact Micro 20 dual wavelength (525 nm or 638 nm) photometer tests over 30 water quality parameters with lab-quality accuracy at minimal cost. It features a narrow band wavelength filter for improved accuracy; long-life LEDs and a built-in cell for ultra-performance.
Features:
  • Reagent delivery system delivers reagents safely without the need to count drops or crush tablets
  • Dual wavelength photometer
  • Uses the same 525nm and 638nm reagents as other eXact photometers
  • 0.01 pm accuracy
  • Built-in, permanent 4 mL cell
  • 1080 test memory; saves last 20 tests per menu
  • Uses EZ-3 simplified testing method; just fill, dip and read
  • No-slip grip housing
  • Lightweight, waterproof meter will float if dropped in water
  • Easy to read LCD display
  • Meter will automatically calibrate
  • CE certification
  • 2 year warranty

NOTE: The eXact Micro 7+ Well Driller Kit (part # 486691-WD) has been discontinued and has been replaced by the eXact Micro 20 Well Driller Kit (part # 486700-WD).

eXact Micro 20 Digital Well Driller Kit Statistics:
  • Measurement method: photometric
  • Light source: LED with precision filter
  • Wavelength: 525 nm and 638 nm
  • Display: 3-digit LCD with annunciators
  • Resolution: up to 0.01 ppm (mg/L)
  • Sample required: 4 ml (0.13 oz)
  • Operating temperature range: 0 - 50°C (32° - 122°F)
  • Waterproof rating: exceeds IP67
  • Instrument dimensions: (2" x 1.2" x 6.6")
  • Instrument weight: 4.7 oz (6.4 oz with batteries installed)
  • Power supply: (4) AAA batteries (not included)
  • Battery life: >2000 tests with alkaline batteries

Parameter Detection Range Qty
eXact Strip Micro DPD-1 (Free Chlorine) 0 - 5 ppm 25
eXact Strip Micro DPD-3 (Total Chlorine) 0 - 5 ppm 25
eXact Strip Micro pH 5.5 - 8.8 25
eXact Strip Micro Total Hardness 4 - 300 ppm 25
eXact Strip Micro Total Alkalinity 1 - 320 ppm 25
eXact Strip Micro Copper 0 - 11 ppm 25
eXact Strip Micro Total Iron, TPTZ 0.04 - 8 ppm 25
eXact Strip Micro Manganese 0.02 - 1.5 ppm 25
eXact Strip Micro Nitrate 0.12 - 30 ppm 25
eXact Strip Micro High Range Chlorine 0.3 - 300 ppm 25


Details

Accuracy

0.01 pm Percent


eXact

eXact





The eXact Micro 20 dual wavelength (525 nm or 638 nm) photometer tests over 30 water quality parameters with lab-quality accuracy at minimal cost. It features a narrow band wavelength filter for improved accuracy; long-life LEDs and a built-in cell for ultra-performance.
Features:
  • Reagent delivery system delivers reagents safely without the need to count drops or crush tablets
  • Dual wavelength photometer
  • Uses the same 525nm and 638nm reagents as other eXact photometers
  • 0.01 pm accuracy
  • Built-in, permanent 4 mL cell
  • 1080 test memory; saves last 20 tests per menu
  • Uses EZ-3 simplified testing method; just fill, dip and read
  • No-slip grip housing
  • Lightweight, waterproof meter will float if dropped in water
  • Easy to read LCD display
  • Meter will automatically calibrate
  • CE certification
  • 2 year warranty

NOTE: The eXact Micro 7+ Well Driller Kit (part # 486691-WD) has been discontinued and has been replaced by the eXact Micro 20 Well Driller Kit (part # 486700-WD).

eXact Micro 20 Digital Well Driller Kit Statistics:
  • Measurement method: photometric
  • Light source: LED with precision filter
  • Wavelength: 525 nm and 638 nm
  • Display: 3-digit LCD with annunciators
  • Resolution: up to 0.01 ppm (mg/L)
  • Sample required: 4 ml (0.13 oz)
  • Operating temperature range: 0 - 50°C (32° - 122°F)
  • Waterproof rating: exceeds IP67
  • Instrument dimensions: (2" x 1.2" x 6.6")
  • Instrument weight: 4.7 oz (6.4 oz with batteries installed)
  • Power supply: (4) AAA batteries (not included)
  • Battery life: >2000 tests with alkaline batteries

Parameter Detection Range Qty
eXact Strip Micro DPD-1 (Free Chlorine) 0 - 5 ppm 25
eXact Strip Micro DPD-3 (Total Chlorine) 0 - 5 ppm 25
eXact Strip Micro pH 5.5 - 8.8 25
eXact Strip Micro Total Hardness 4 - 300 ppm 25
eXact Strip Micro Total Alkalinity 1 - 320 ppm 25
eXact Strip Micro Copper 0 - 11 ppm 25
eXact Strip Micro Total Iron, TPTZ 0.04 - 8 ppm 25
eXact Strip Micro Manganese 0.02 - 1.5 ppm 25
eXact Strip Micro Nitrate 0.12 - 30 ppm 25
eXact Strip Micro High Range Chlorine 0.3 - 300 ppm 25

Details

Accuracy

0.01 pm Percent
