Everpure

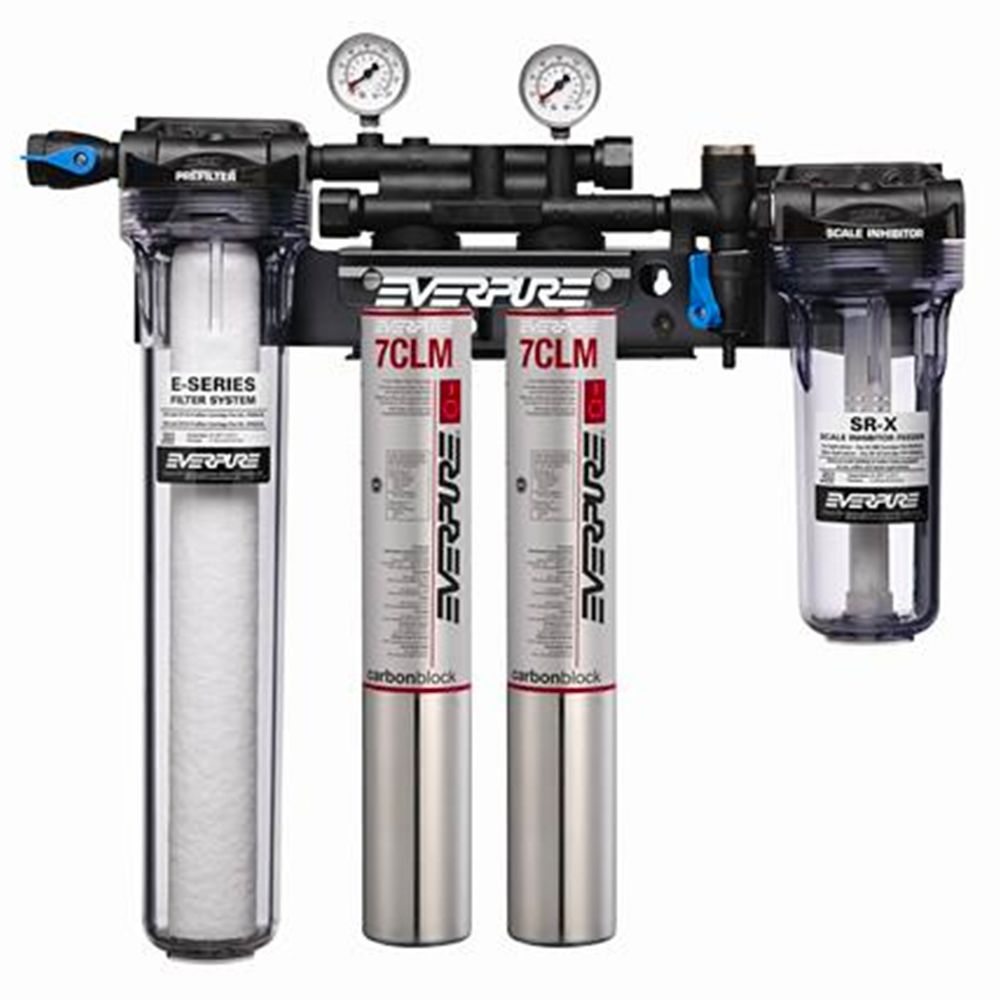

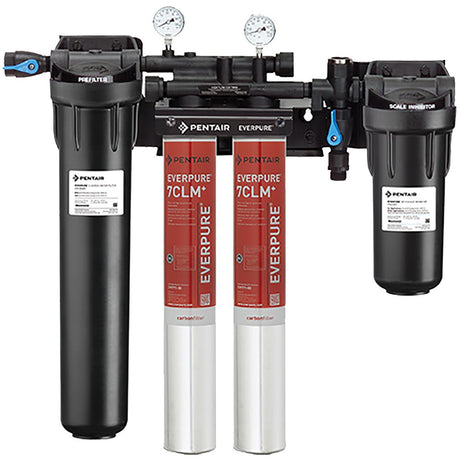

Everpure High Flow CSR Twin-7CLM+ Chloramine Reduction Filter System

Part Number: EV9771-32

Alt. Part Number: EV977132, EV9329-52

In Stock

out of stock

In Stock

$669.00


The Everpure High Flow CSR Twin-7CLM+ Chloramine Reduction Filter System is a high capacity system designed to supply safe, clean water to your fountain dispensers, coffee makers and ice machines, and increase efficiency. This system will effectively reduce contaminants such as chlorine, chloramines, and odors in your water, improving the quality, flavor, and overall appearance of your soda machine beverages and drinking water. The advanced filter blend allows this system to reduce the build-up of sediment dramatically, saving you money on maintenance costs, and extending the life of your equipment.
Features and Specifications

Features:
  • Manifold features water shut-off, flushing valve, inlet and outlet pressure gauges.
  • A specialized carbon formulation maximizes the volume of activated carbon to provide a combination of optimal chloramines reduction with improved product life in a single cartridge.
  • The 20" pre-filter cartridge reduces dirt and particulate in your water, thus increasing the efficiency of the entire system.
  • SR-X with SS-IMF cartridge inhibits scale buildup in ice machines and coffee maker systems.
  • To maximize filtration capabilities, the flow rate operates at a different pace depending on the sediment to chloramine reduction ratio.
  • Swapping out cartridges is quick, easy, and sanitary, because none of the internal filter parts are exposed during routine handling.
  • To ensure that even the smallest of contaminants can't slip through the filter, this system has a low micron rating of 5.
  • This single system provides water to high flow fountain dispensers, coffee makers and ice machines.
Specifications:
  • Rated Capacity: 15,000 gallons @ 3.34 gpm; 19,000 gallons @ 2.66 gpm; 25,200 gallons @ 2.00 gpm
  • Pressure Requirements: 10 - 125 psi (0.7 – 8.6 bar), non-shock
  • Temperature: 35 - 100°F
  • Electrical Connection: None required
  • Certifications: NSF/ANSI Standard 42 - Aesthetic effects
  • Reduction: Taste & odor, chlorine, chloramines, particulate
  • Micron Rating: 5 microns
  • Service Flow Rate: 2-3.34 gpm
  • Applications: Fountain beverage dispensers, ice machine, & coffee maker applications


Weight & Dimensions

Approx Height (Inches)

25.6 Inches

Approx Width (Inches)

25.8 Inches

Approx Depth

6.9 Inches

Details

Application

Coffee System, Fountain Beverage System, Ice Filtration System, Sediment Prefiltration

Capacity

15,000-25,200 Gallons

Flow Rate

2.00-3.34 Gallons Per Minute

Micron Rating (Nominal)

5 Micron

Operating Pressure Range

10-125 PSI

Operating Temperature Range

35-100 Degrees Fahrenheit

Origin

USA

Contaminants Reduced

Chlorine, Bad Taste, Bad Odors, Sediment, Chloramine, Scale Inhibitor

Warranty & Certifications

Certifications

NSF/ANSI 42


Everpure





The Everpure High Flow CSR Twin-7CLM+ Chloramine Reduction Filter System is a high capacity system designed to supply safe, clean water to your fountain dispensers, coffee makers and ice machines, and increase efficiency. This system will effectively reduce contaminants such as chlorine, chloramines, and odors in your water, improving the quality, flavor, and overall appearance of your soda machine beverages and drinking water. The advanced filter blend allows this system to reduce the build-up of sediment dramatically, saving you money on maintenance costs, and extending the life of your equipment.
Features and Specifications

Features:
  • Manifold features water shut-off, flushing valve, inlet and outlet pressure gauges.
  • A specialized carbon formulation maximizes the volume of activated carbon to provide a combination of optimal chloramines reduction with improved product life in a single cartridge.
  • The 20" pre-filter cartridge reduces dirt and particulate in your water, thus increasing the efficiency of the entire system.
  • SR-X with SS-IMF cartridge inhibits scale buildup in ice machines and coffee maker systems.
  • To maximize filtration capabilities, the flow rate operates at a different pace depending on the sediment to chloramine reduction ratio.
  • Swapping out cartridges is quick, easy, and sanitary, because none of the internal filter parts are exposed during routine handling.
  • To ensure that even the smallest of contaminants can't slip through the filter, this system has a low micron rating of 5.
  • This single system provides water to high flow fountain dispensers, coffee makers and ice machines.
Specifications:
  • Rated Capacity: 15,000 gallons @ 3.34 gpm; 19,000 gallons @ 2.66 gpm; 25,200 gallons @ 2.00 gpm
  • Pressure Requirements: 10 - 125 psi (0.7 – 8.6 bar), non-shock
  • Temperature: 35 - 100°F
  • Electrical Connection: None required
  • Certifications: NSF/ANSI Standard 42 - Aesthetic effects
  • Reduction: Taste & odor, chlorine, chloramines, particulate
  • Micron Rating: 5 microns
  • Service Flow Rate: 2-3.34 gpm
  • Applications: Fountain beverage dispensers, ice machine, & coffee maker applications

Weight & Dimensions

Approx Height (Inches)

25.6 Inches

Approx Width (Inches)

25.8 Inches

Approx Depth

6.9 Inches

Details

Application

Coffee System, Fountain Beverage System, Ice Filtration System, Sediment Prefiltration

Capacity

15,000-25,200 Gallons

Flow Rate

2.00-3.34 Gallons Per Minute

Micron Rating (Nominal)

5 Micron

Operating Pressure Range

10-125 PSI

Operating Temperature Range

35-100 Degrees Fahrenheit

Origin

USA

Contaminants Reduced

Chlorine, Bad Taste, Bad Odors, Sediment, Chloramine, Scale Inhibitor

Warranty & Certifications

Certifications

NSF/ANSI 42
