Everpure Commercial

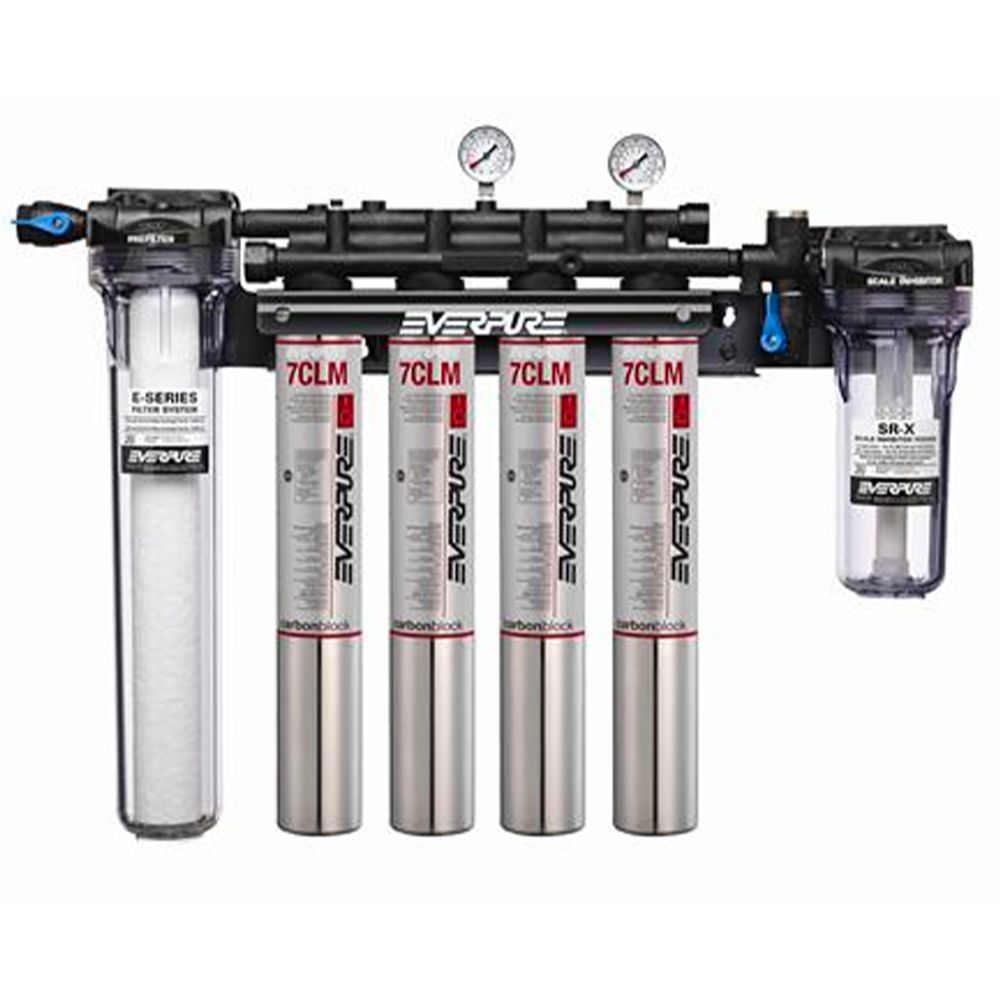

Everpure High Flow CSR Quad 7CLM Chloramine Reduction Filter System
This item is discontinued. We recommend the Everpure High Flow CSR Quad-7CLM PLUS Chloramine Reduction Filter System as a substitute.
Features:
- Manifold features water shut-off, flushing valve, inlet and outlet pressure gauges.
- A specialized carbon formulation maximizes the volume of activated carbon to provide a combination of optimal chloramines reduction with improved product life in a single cartridge.
- The 20" pre-filter cartridge reduces dirt and particulate in your water, thus increasing the efficiency of the entire system.
- SR-X with SS-IMF cartridge inhibits scale buildup in ice machines and coffee maker systems.
- To maximize filtration capabilities, the flow rate operates at a different pace depending on the sediment to chloramine reduction ratio.
- Swapping out cartridges is quick, easy, and sanitary, because none of the internal filter parts are exposed during routine handling.
- To ensure that even the smallest of contaminants can't slip through the filter, this system has a low micron rating of 5.
- This single system provides water to high flow fountain dispensers, coffee makers and ice machines.
- Rated Capacity: 30,000 gallons @ 6.68 gpm; 38,000 gallons @ 5.33 gpm; 50,400 gallons @ 4.00 gpm
- Pressure Requirements: 10 - 125 psi (0.7 – 8.6 bar), non-shock
- Temperature: 35 - 100°F
- Electrical Connection: None required
- Certifications: NSF/ANSI Standard 42 - Aesthetic effects
- Reduction: Taste & odor, chlorine, chloramines, particulate
- Micron Rating: 5 microns
- Service Flow Rate: 4.00-6.68 gpm
- Applications: Fountain beverage dispensers, ice machine & coffee maker applications
Weight & Dimensions
Approx Height (Inches) | 25.59" |
Approx Width (Inches) | 34" |
Weight (lbs) | 65 |
Details
Application | Coffee System, Fountain Beverage System, Ice System |
Capacity | 14,400 Gallons |
Max Pressure (Psi) | 25 |
Max Temp (°F) | 100 |
Micron Rating (Nominal) | 0.5 µm |
Min Pressure (Psi) | 10 |
Min Temp (°F) | 35 |
Change Frequency | 14,400 Gallons |
Contaminants Reduced | Chlorine/Taste/Odor, Sediment/Dirt/Rust, Cysts, Chloramine |
Flow Rate | 6.8 GPM |
Type | Fountain Beverage Systems |
Warranty & Certifications
Certifications | NSF/ANSI 42; NSF/ANSI 53 |
The Everpure High Flow CSR Quad-7CLM+ Chloramine Reduction Filter System is a high capacity system designed to supply safe, clean water to your fountain dispensers, coffee makers and ice machines, and increase efficiency. This system will effectively reduce contaminants such as chlorine, chloramines, and odors in your water, improving the quality, flavor, and overall appearance of your soda machine beverages and drinking water. The advanced filter blend allows this system to reduce the build-up of sediment dramatically, saving you money on maintenance costs, and extending the life of your equipment.
Features:
- Manifold features water shut-off, flushing valve, inlet and outlet pressure gauges.
- A specialized carbon formulation maximizes the volume of activated carbon to provide a combination of optimal chloramines reduction with improved product life in a single cartridge.
- The 20" pre-filter cartridge reduces dirt and particulate in your water, thus increasing the efficiency of the entire system.
- SR-X with SS-IMF cartridge inhibits scale buildup in ice machines and coffee maker systems.
- To maximize filtration capabilities, the flow rate operates at a different pace depending on the sediment to chloramine reduction ratio.
- Swapping out cartridges is quick, easy, and sanitary, because none of the internal filter parts are exposed during routine handling.
- To ensure that even the smallest of contaminants can't slip through the filter, this system has a low micron rating of 5.
- This single system provides water to high flow fountain dispensers, coffee makers and ice machines.
- Rated Capacity: 30,000 gallons @ 6.68 gpm; 38,000 gallons @ 5.33 gpm; 50,400 gallons @ 4.00 gpm
- Pressure Requirements: 10 - 125 psi (0.7 – 8.6 bar), non-shock
- Temperature: 35 - 100°F
- Electrical Connection: None required
- Certifications: NSF/ANSI Standard 42 - Aesthetic effects
- Reduction: Taste & odor, chlorine, chloramines, particulate
- Micron Rating: 5 microns
- Service Flow Rate: 4.00-6.68 gpm
- Applications: Fountain beverage dispensers, ice machine & coffee maker applications
NOTE: This item is discontinued. We recommend the Everpure High Flow CSR Quad-7CLM PLUS Chloramine Reduction Filter System as a substitute.
Weight & Dimensions
Approx Height (Inches) | 25.59" |
Approx Width (Inches) | 34" |
Weight (lbs) | 65 |
Details
Application | Coffee System, Fountain Beverage System, Ice System |
Capacity | 14,400 Gallons |
Max Pressure (Psi) | 25 |
Max Temp (°F) | 100 |
Micron Rating (Nominal) | 0.5 µm |
Min Pressure (Psi) | 10 |
Min Temp (°F) | 35 |
Change Frequency | 14,400 Gallons |
Contaminants Reduced | Chlorine/Taste/Odor, Sediment/Dirt/Rust, Cysts, Chloramine |
Flow Rate | 6.8 GPM |
Type | Fountain Beverage Systems |
Warranty & Certifications
Certifications | NSF/ANSI 42; NSF/ANSI 53 |
