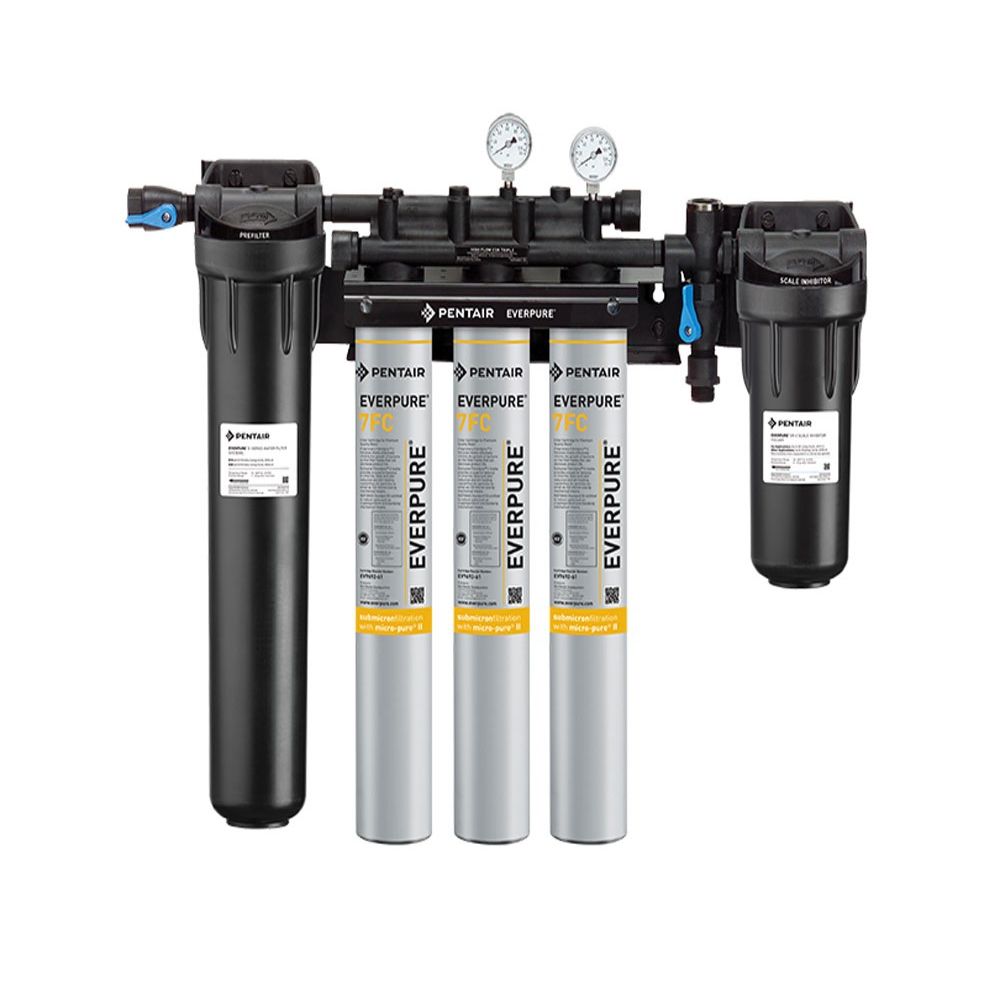

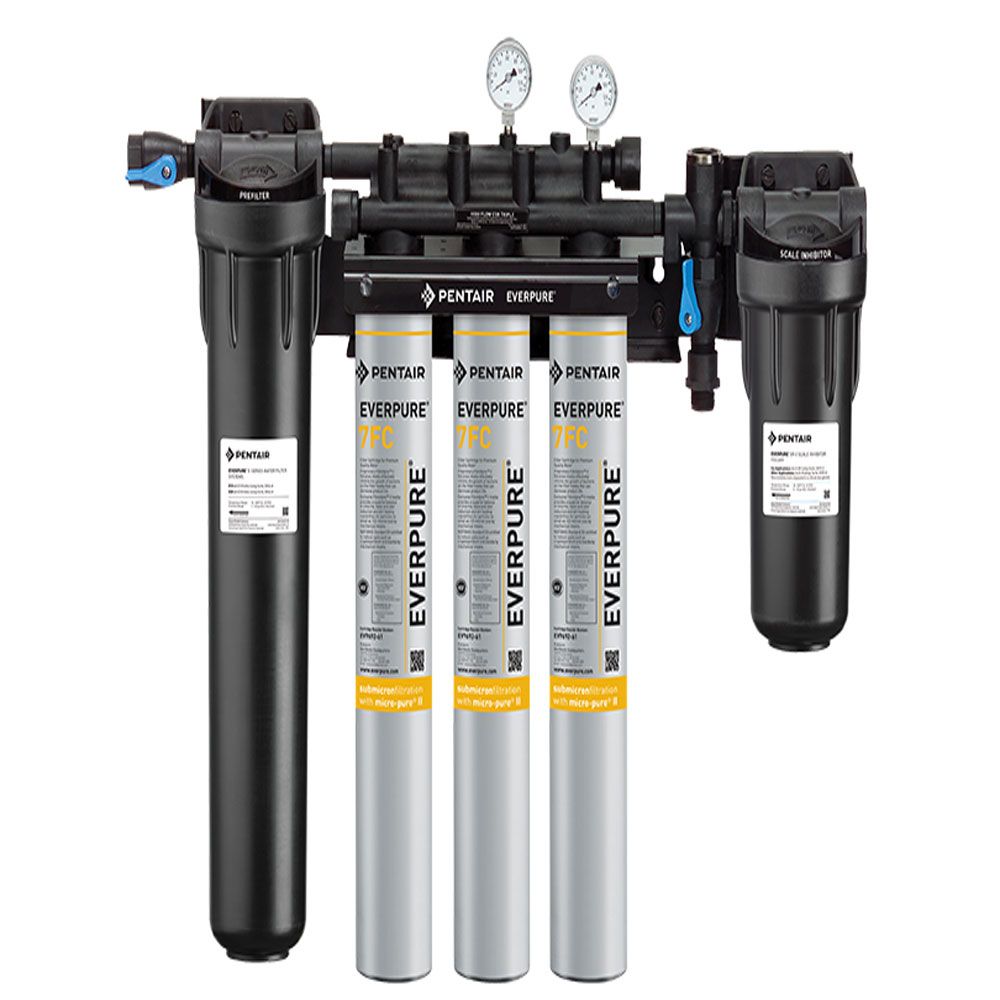

The Everpure EV9329-73 combination system is a single system solution to provide premium quality water for multiple forms of commercial equipment such as coffee brewers, espresso machines, hot chocolate dispensers, fountain and ice machines.
Features:

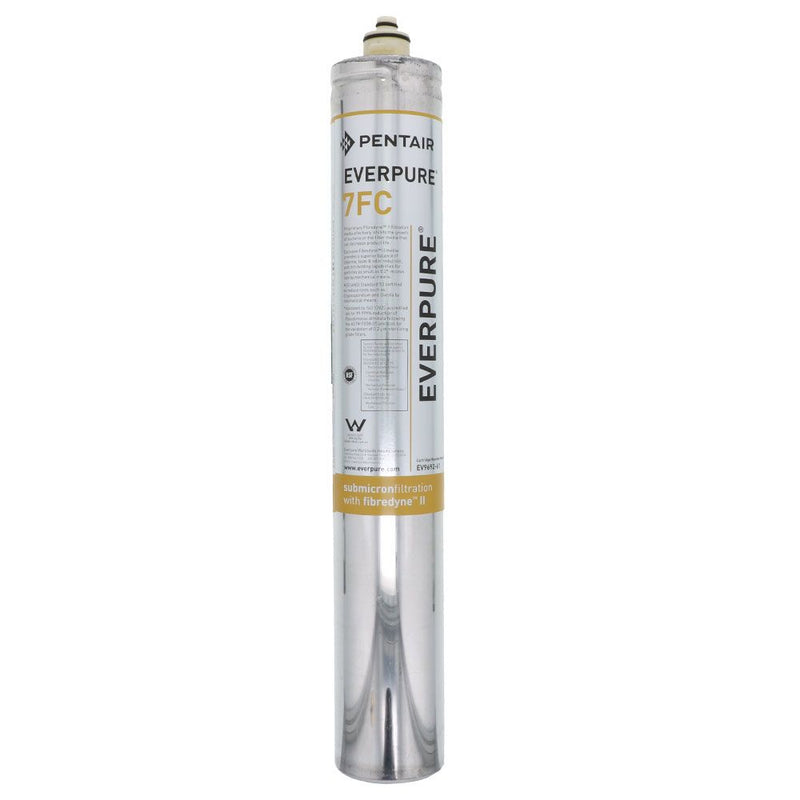

- System features three quick-change 7FC filter cartridges, a 20" coarse prefilter, and an SR-X Scale Reduction Feeder
- New Fibredyne II meda with AgION antimicrobial protection inhibits any potential bacterial growth
- 20" prefilter captures larger dirt particles and extends the life of the 7FC cartridges

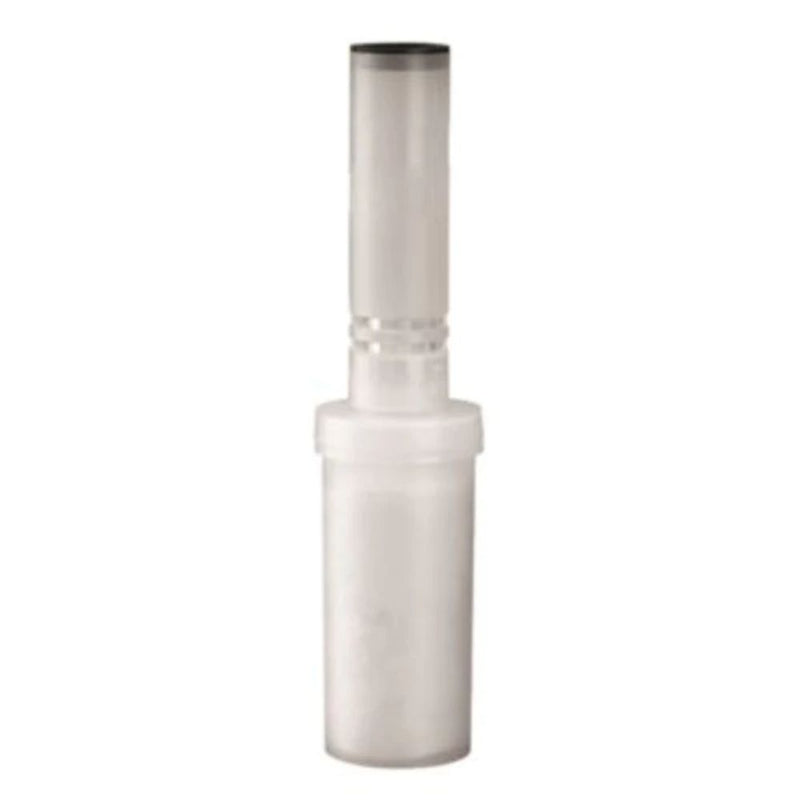

- SR-X feeder with SS-XL cartridge inhibits scale buildup in ice machines and coffee brewers
- Manifold features water shut-off, flushing valve, inlet and outlet pressure gauges
- Micro-Pure II filter media effectively kills many types of bacteria
- Fibredyne II submicron technology reduces dirt and particles as small as 1/2 micron in size and reduces health contaminants such as cysts
- Increases the overall efficiency of equipment
- Sanitary cartridge replacement is simple, quick and clean
- NSF certified to NSF/ANSI Standards 42 and 53
| Everpure Filtration Systems |
Application | |||
| Fountain | Ice | Coffee and Tea | ||
| Description | # of Carbonators | lbs per day | Pot Brewers | Urns |
| High Flow CSR Triple MC2 | 1 | <650 | Up to 2 | N/A |
| High Flow CSR Quad MC2 | 2 | <650 | Up to 2 | 1 |
| High Flow CSR Plus XC2 | 3 | 651-1200 | Up to 4 | 1 |
| High Flow CSR Quad 4FC | 3 | 1201-1500 | Up to 4 | 2 |
| High Flow CSR Triple 7FC | 2 | 1201-1500 | Up to 4 | 2 |
| High Flow CSR Quad 7FC | 4+ | 1501+ | Multi | Multi |
Weight & Dimensions
Approx Height (Inches) | 25.59 Inches |
Approx Width (Inches) | 30 Inches |
Approx Depth | 6.75 Inches |
Details
Application | Coffee System; Fountain Beverage System; Ice Filtration System |
Capacity | 75,000 Gallons |
Connections | 3/4" FNPT Inlet/Outlet |
Flow Rate | Max 7.5 Gallons Per Minute |
Micron Rating (Nominal) | 0.5 Micron |
Operating Pressure Range | 10 - 125 PSI |
Operating Temperature Range | 35 - 100 Degrees Fahrenheit |
Contaminants Reduced | Chlorine; Bad Taste; Bad Odors; Sediment; Cysts; Scale; Turbidity (cloudiness); Bacteriostat Agent; Particulate Class I |
Warranty & Certifications
Certifications | NSF/ANSI 42; NSF/ANSI 53 |
Intended Use:
The Everpure EV9329-73 combination system is a single system solution to provide premium quality water for multiple forms of commercial equipment such as coffee brewers, espresso machines, hot chocolate dispensers, fountain and ice machines.
Features:
- System features three quick-change 7FC filter cartridges, a 20" coarse prefilter, and an SR-X Scale Reduction Feeder
- New Fibredyne II meda with AgION antimicrobial protection inhibits any potential bacterial growth
- 20" prefilter captures larger dirt particles and extends the life of the 7FC cartridges
- SR-X feeder with SS-XL cartridge inhibits scale buildup in ice machines and coffee brewers
- Manifold features water shut-off, flushing valve, inlet and outlet pressure gauges
- Micro-Pure II filter media effectively kills many types of bacteria
- Fibredyne II submicron technology reduces dirt and particles as small as 1/2 micron in size and reduces health contaminants such as cysts
- Increases the overall efficiency of equipment
- Sanitary cartridge replacement is simple, quick and clean
- NSF certified to NSF/ANSI Standards 42 and 53
| Everpure Filtration Systems |
Application | |||
| Fountain | Ice | Coffee and Tea | ||
| Description | # of Carbonators | lbs per day | Pot Brewers | Urns |
| High Flow CSR Triple MC2 | 1 | <650 | Up to 2 | N/A |
| High Flow CSR Quad MC2 | 2 | <650 | Up to 2 | 1 |
| High Flow CSR Plus XC2 | 3 | 651-1200 | Up to 4 | 1 |
| High Flow CSR Quad 4FC | 3 | 1201-1500 | Up to 4 | 2 |
| High Flow CSR Triple 7FC | 2 | 1201-1500 | Up to 4 | 2 |
| High Flow CSR Quad 7FC | 4+ | 1501+ | Multi | Multi |
Weight & Dimensions
Approx Height (Inches) | 25.59 Inches |
Approx Width (Inches) | 30 Inches |
Approx Depth | 6.75 Inches |
Details
Application | Coffee System; Fountain Beverage System; Ice Filtration System |
Capacity | 75,000 Gallons |
Connections | 3/4" FNPT Inlet/Outlet |
Flow Rate | Max 7.5 Gallons Per Minute |
Micron Rating (Nominal) | 0.5 Micron |
Operating Pressure Range | 10 - 125 PSI |
Operating Temperature Range | 35 - 100 Degrees Fahrenheit |
Contaminants Reduced | Chlorine; Bad Taste; Bad Odors; Sediment; Cysts; Scale; Turbidity (cloudiness); Bacteriostat Agent; Particulate Class I |
Warranty & Certifications
Certifications | NSF/ANSI 42; NSF/ANSI 53 |
