The CLARIS-S-NPT System is designed to meet all your filtration and softening needs. The Claris filter is specially designed to tailor to the hot beverage market, including espresso and coffee filtration, brewed iced tea, steamers, and more.

Features:

• DuoBlend Bypass Valve technology, which provides a consistent and precise adjustment of carbonate hardness
• Ensures the efficiency and long service life of your machine
• Optimized use of ingredients and improved energy costs
• Air vent and flush directly at the filter head without any disconnection of tubes
• Vertical or horizontal operating configuration
• Rated Capacity:
  • 400 Gallons (1,514 L) for Espresso
  • 450 Gallons (1,703 L) for OCS/Coffee

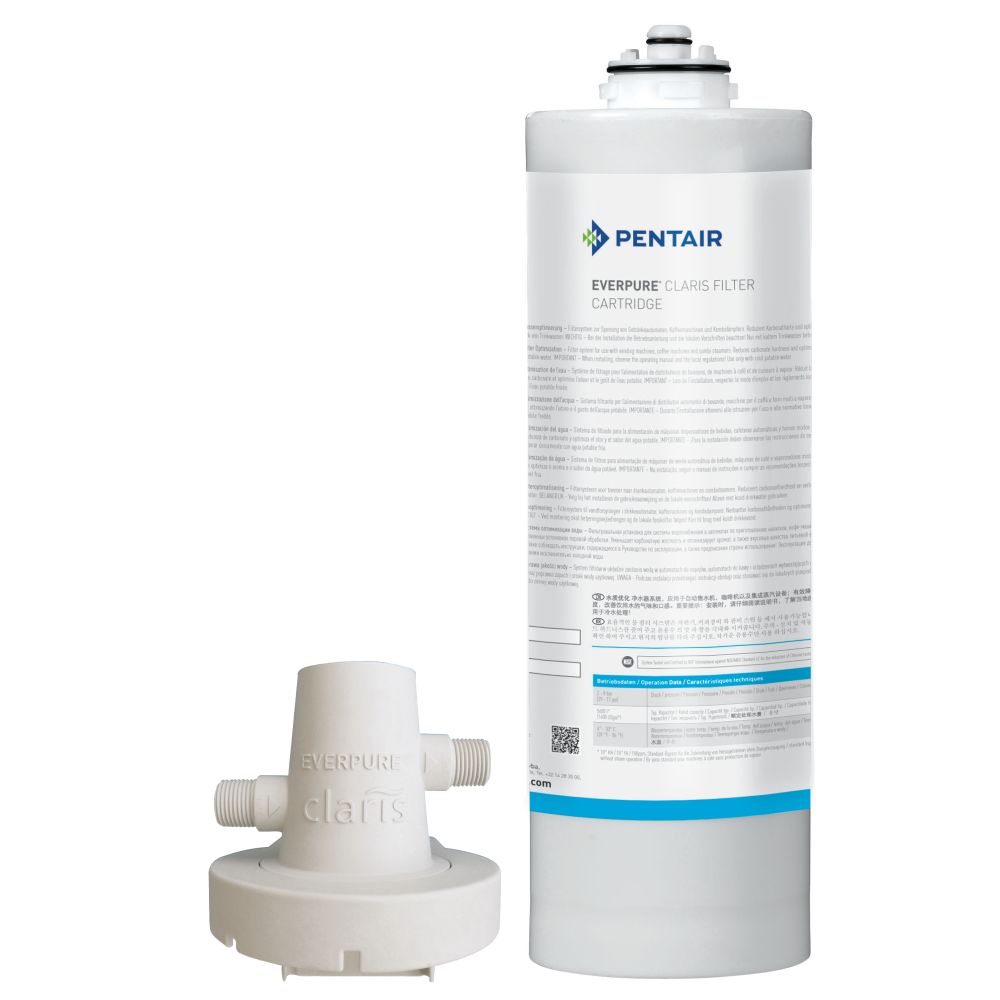

• Includes:

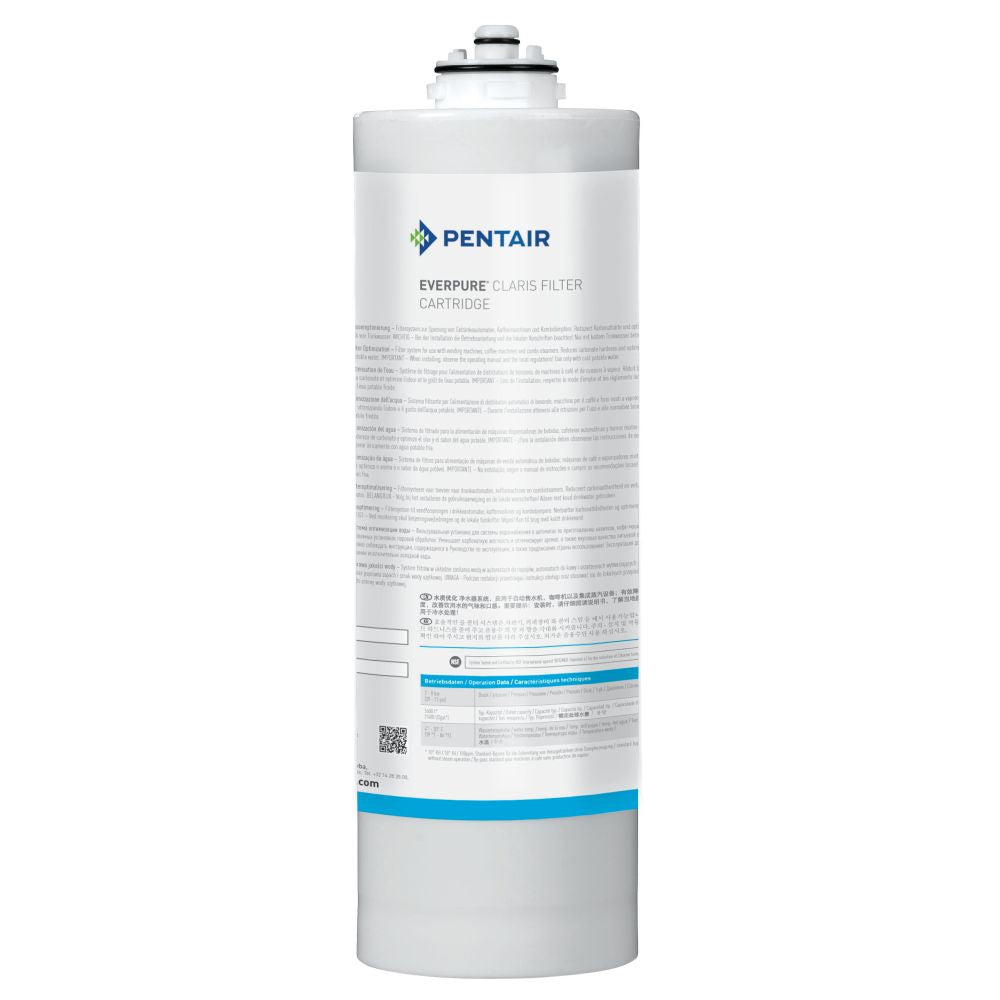

  • (1) Claris Small EV4339-10 filter cartridge

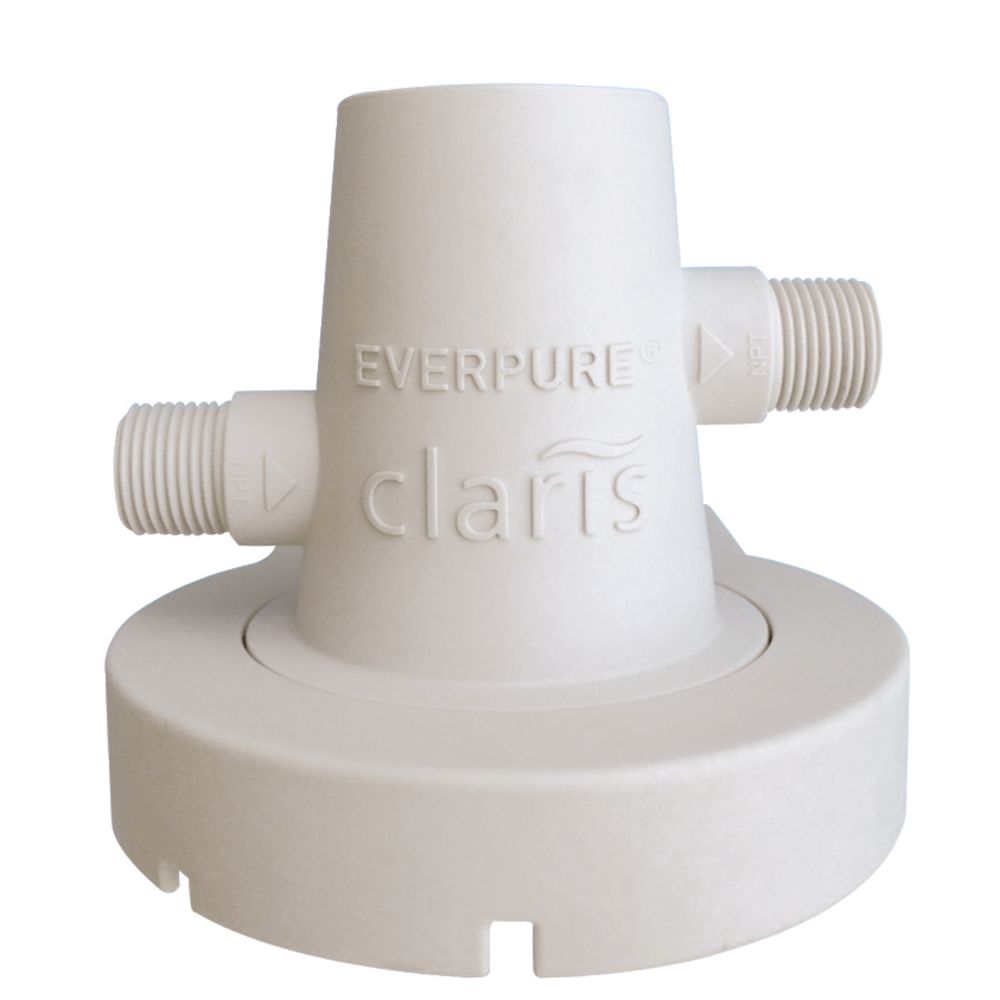

  • (1) Claris Gen2 EV433991 Filter Head w/ 3/8" NPT (male pipe thread) inlet/outlet connections

Five Stage Filtration Process of Claris Cartridges:

1. Pre-filtration media at the entrance to the cartridge retains coarse particles, such as sand or grit
2. The ion-selective CLARIS medium reduces carbonate hardness (alkalinity) while retaining other minerals needed for good drink quality
3. Fine filtration impacts the filter media and removes fine particles from the water
4. High efficient carbon block filter removes harmful contaminants, unpleasant odors and tastes
5. Solid membrane type filter removes particles down to 5 μm for the highest equipment protection

Cartridge replacement is recommended annually, or when its pre-calculated water volume has been reached. Replacement of all gaskets between head to cartridge is also recommended with every new cartridge.
