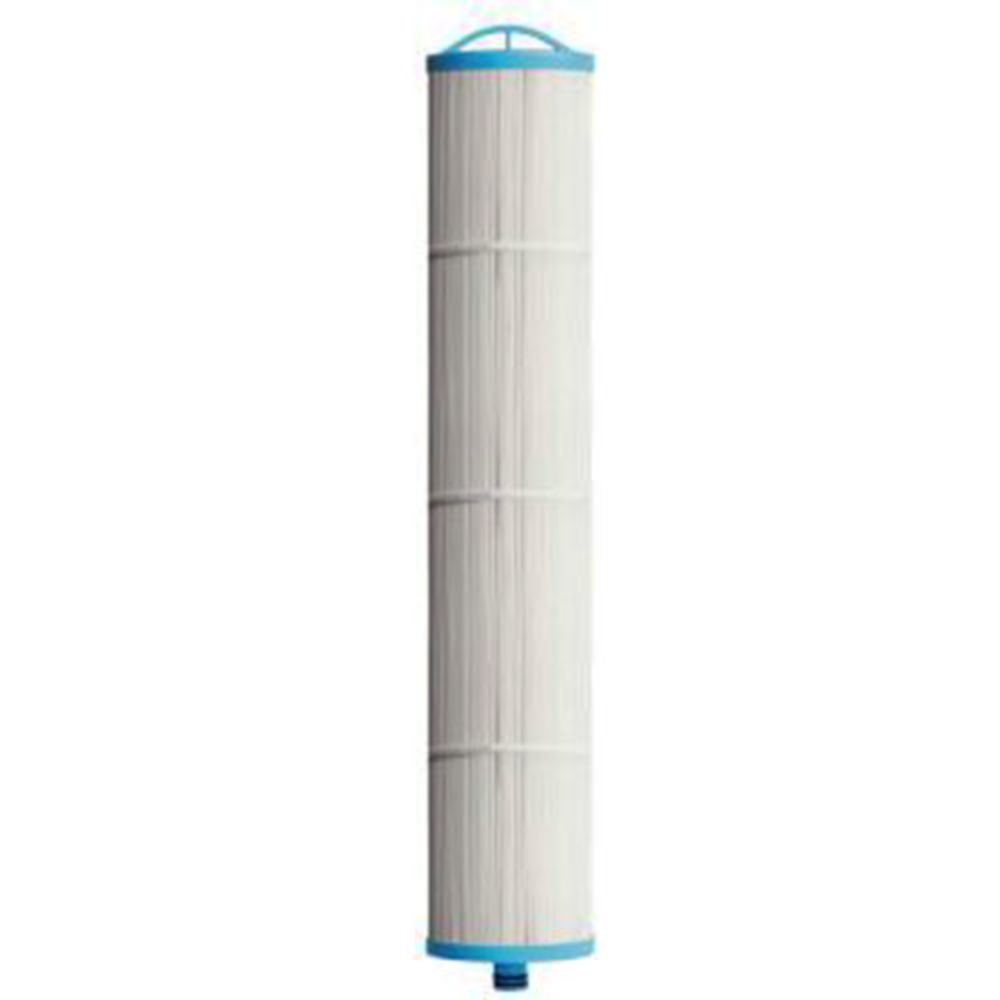

The Enpress NFS-P1A-PLUS is a Absolute pleated filter designed for the Enpress Cartridge Tank Filtration System. This filter features an external 1 micron pre-filtration layer and a 1 micron internal layer. The internal layer is smaller and will extend the level of contamination reduction while achieving high flow and low pressure drop. The NFS-P1A-PLUS function like a sediment filter to remove silt, rust, and other particulates. The Red Series filters provide lower shear water velocity as the raw water passes through the filter, allowing for more contact time and interaction with the extensive surface area of the filter. This results in higher water quality and longer life of the filtration system.
Specifications:
Specifications:
- External Layer: 1 µm
- Internal Layer: 1 µm
- Material: Polyester
- End Caps: Polypropylene
- O-rings: Dual buna-N seals
- Features a top handle for easy installation and maintenance
Weight & Dimensions
Weight (lbs) | 0.3 |
Details
Capacity | As Needed |
Core Material | Polypropylene |
Gaskets | Buna-N |
Micron Rating (Absolute) | 1 µm |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Buna-N O-Ring |
Filter Construction | Pleated |
Filter Type | Pleated |
Media Type | Polyester |
Micron Rating | 1 µm |
The Enpress NFS-P1A-PLUS is a Absolute pleated filter designed for the Enpress Cartridge Tank Filtration System. This filter features an external 1 micron pre-filtration layer and a 1 micron internal layer. The internal layer is smaller and will extend the level of contamination reduction while achieving high flow and low pressure drop. The NFS-P1A-PLUS function like a sediment filter to remove silt, rust, and other particulates. The Red Series filters provide lower shear water velocity as the raw water passes through the filter, allowing for more contact time and interaction with the extensive surface area of the filter. This results in higher water quality and longer life of the filtration system.
Specifications:
- External Layer: 1 µm
- Internal Layer: 1 µm
- Material: Polyester
- End Caps: Polypropylene
- O-rings: Dual buna-N seals
- Features a top handle for easy installation and maintenance
Weight & Dimensions
Weight (lbs) | 0.3 |
Details
Capacity | As Needed |
Core Material | Polypropylene |
Gaskets | Buna-N |
Micron Rating (Absolute) | 1 µm |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Buna-N O-Ring |
Filter Construction | Pleated |
Filter Type | Pleated |
Media Type | Polyester |
Micron Rating | 1 µm |
