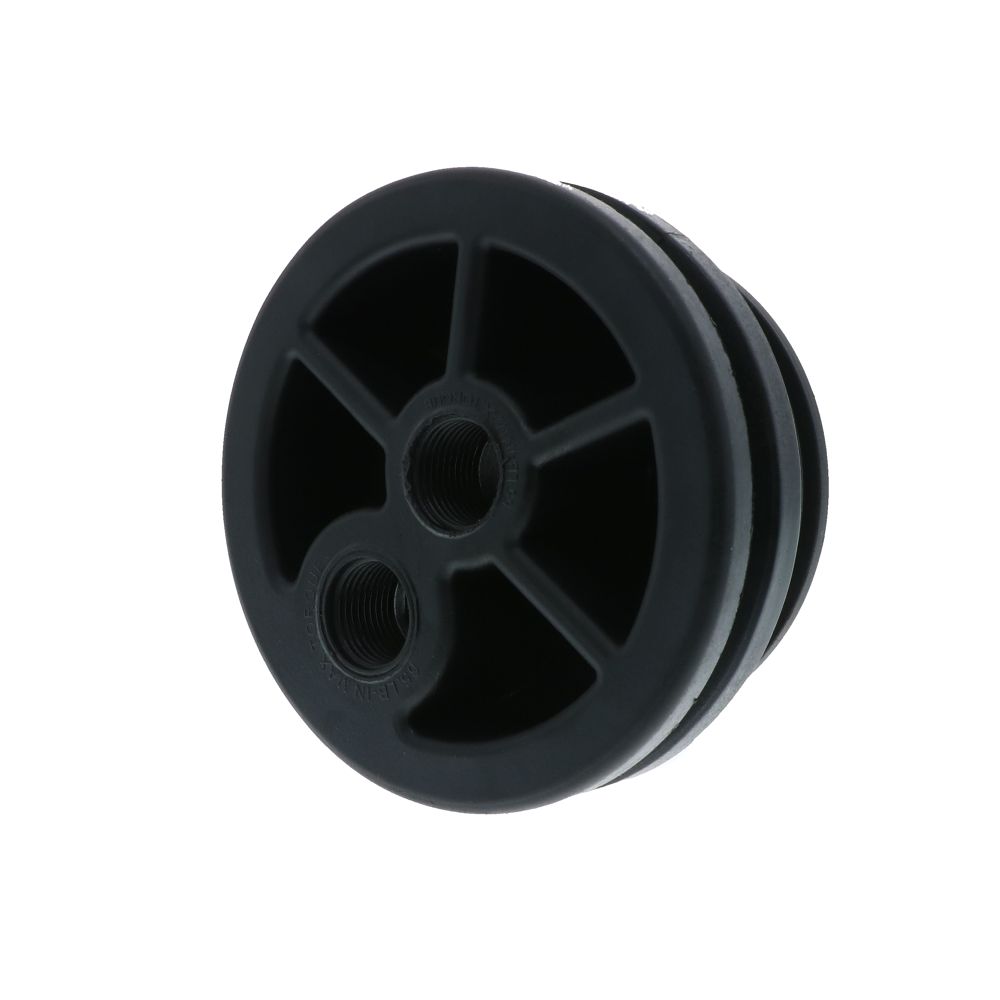

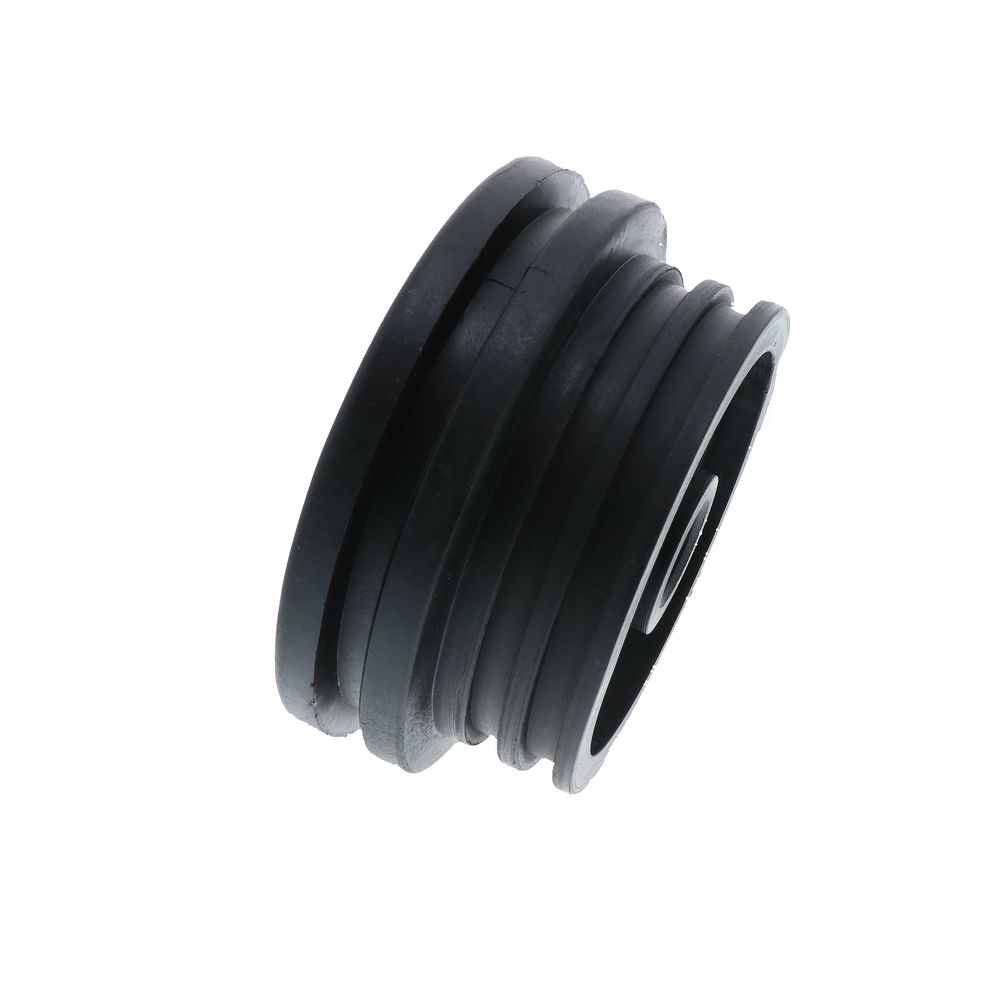

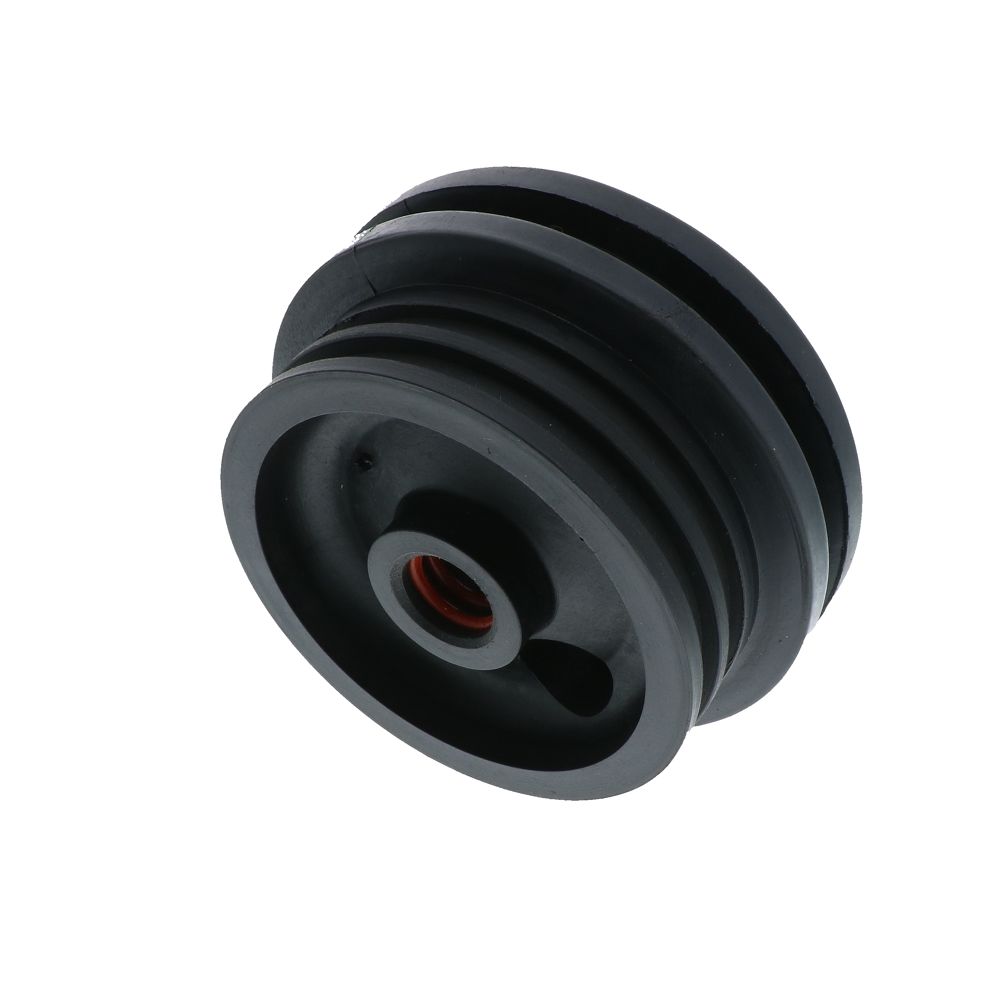

End Cap for 4" Stainless Steel Housing 1/2" Feed & 1/2" Permeate

Part Number: MH-40-CAP12

In Stock

out of stock

In Stock

$19.99

The 4" Nylon End Cap for Stainless Steel Pressure Vessel uses two sets of double O-Rings which allow the housing to withstand pressures up to 250 PSI. An outer set of 4" double O-rings seal the end cap to the pressure vessel, while a second inner set of double O-rings seal the membrane to the end cap.

Features:
  • 1/2" Feed Port
  • 1/2" Permeate Port
  • Made of durable Nylon material
  • Secured by "U-type" clamp closures (not included)

Note: This cap does not include the required outer o-rings. Please select the "With O-rings" option above to order the cap with two outer o-rings.

Compatible with: AXEON Membranes | 201535, PureGen - UNPUBLISHED | MH-40-CAP-1212


Details

Body Material

Nylon

Max Operating Pressure

250 psi / 17 bar PSI

Max Operating Temperature

120° F/ 48° C Degrees Fahrenheit

O Rings

Buna-N


End




The 4" Nylon End Cap for Stainless Steel Pressure Vessel uses two sets of double O-Rings which allow the housing to withstand pressures up to 250 PSI. An outer set of 4" double O-rings seal the end cap to the pressure vessel, while a second inner set of double O-rings seal the membrane to the end cap.

Features:
  • 1/2" Feed Port
  • 1/2" Permeate Port
  • Made of durable Nylon material
  • Secured by "U-type" clamp closures (not included)

Note: This cap does not include the required outer o-rings. Please select the "With O-rings" option above to order the cap with two outer o-rings.

Compatible with: AXEON Membranes | 201535, PureGen - UNPUBLISHED | MH-40-CAP-1212

Details

Body Material

Nylon

Max Operating Pressure

250 psi / 17 bar PSI

Max Operating Temperature

120° F/ 48° C Degrees Fahrenheit

O Rings

Buna-N
