Fresh Water Systems

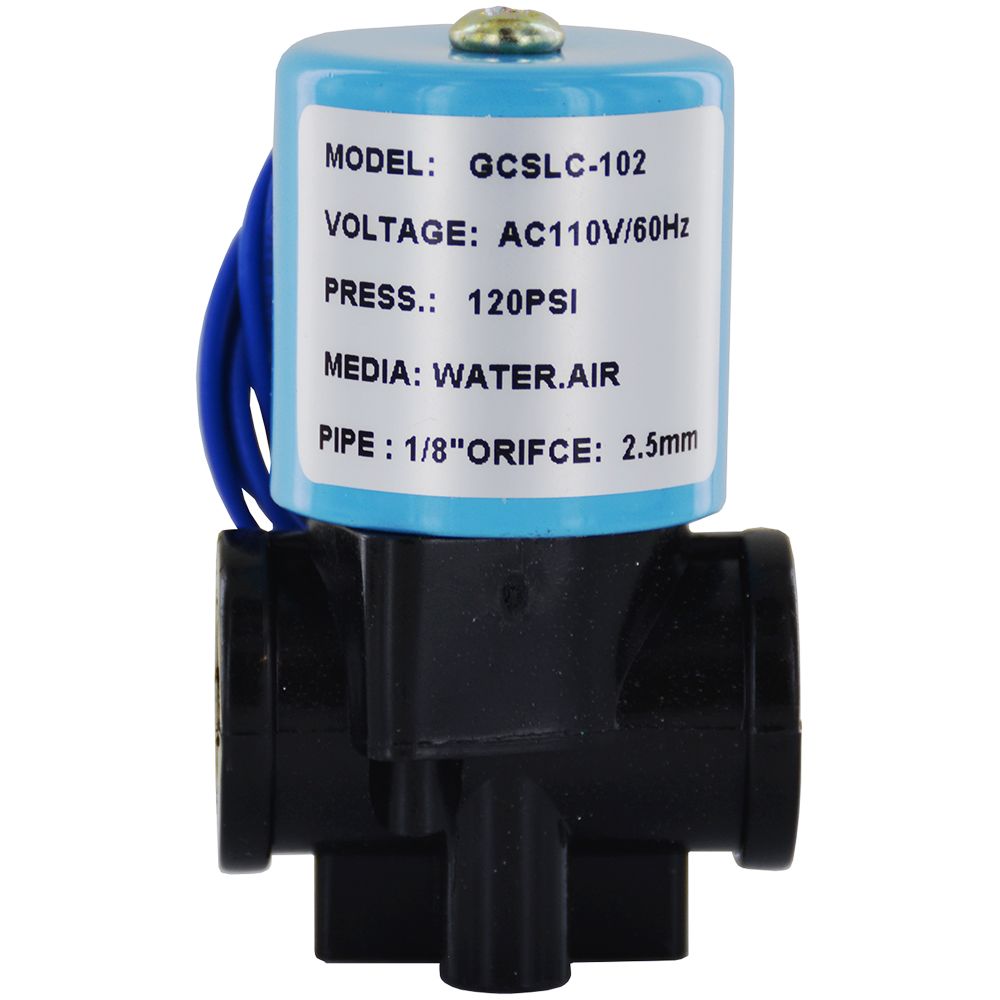

Electronic Shut-off Solenoid Valve 120 Volt

Part Number: GCSLXNPAD5-120VAC

Alt. Part Number: 1102X-062CE-B210DC, AMC0402

In Stock

out of stock

In Stock

$28.99

This shut off valve has been designed for use in drinking water & similar applications. The  GCSLXNPAD5-120VAC offers quick actuation response time (typically 20-50 milliseconds) and can be mounted in any position, however best if vertical and upright.

Features:
  • Conserves water
  • Normally Closed
  • Positive shut-off
  • Compact design
  • Plastic valve body
  • Low power
  • Cool running
  • Hermetically protected electronics for long life
Note:  This is a directional valve. Please note the small directional arrows molded onto the housing when installing.    Also Compatible With: Alcon 12AZ041A1-1GCA-14  Alcon 12AZ041A1-1GCA-18


Details

Mounting Options

Any

Operating Pressure Range

150 PSI

Operating Temperature Range

max. 180°F (+82°C)

Origin

USA

Valve Type

Closed

Voltage

120 Volts

Electrical

Leads 24", 18 AWG

Wetted Materials

Stainless Steel; Polypropylene; EPDM

Port Size

3/32" Inches

Warranty & Certifications

Certifications

NSF 372



This shut off valve has been designed for use in drinking water & similar applications. The  GCSLXNPAD5-120VAC offers quick actuation response time (typically 20-50 milliseconds) and can be mounted in any position, however best if vertical and upright.

Features:
  • Conserves water
  • Normally Closed
  • Positive shut-off
  • Compact design
  • Plastic valve body
  • Low power
  • Cool running
  • Hermetically protected electronics for long life
Note:  This is a directional valve. Please note the small directional arrows molded onto the housing when installing.    Also Compatible With: Alcon 12AZ041A1-1GCA-14  Alcon 12AZ041A1-1GCA-18

Details

Mounting Options

Any

Operating Pressure Range

150 PSI

Operating Temperature Range

max. 180°F (+82°C)

Origin

USA

Valve Type

Closed

Voltage

120 Volts

Electrical

Leads 24", 18 AWG

Wetted Materials

Stainless Steel; Polypropylene; EPDM

Port Size

3/32" Inches

Warranty & Certifications

Certifications

NSF 372


Reviews
