Fresh Water Systems

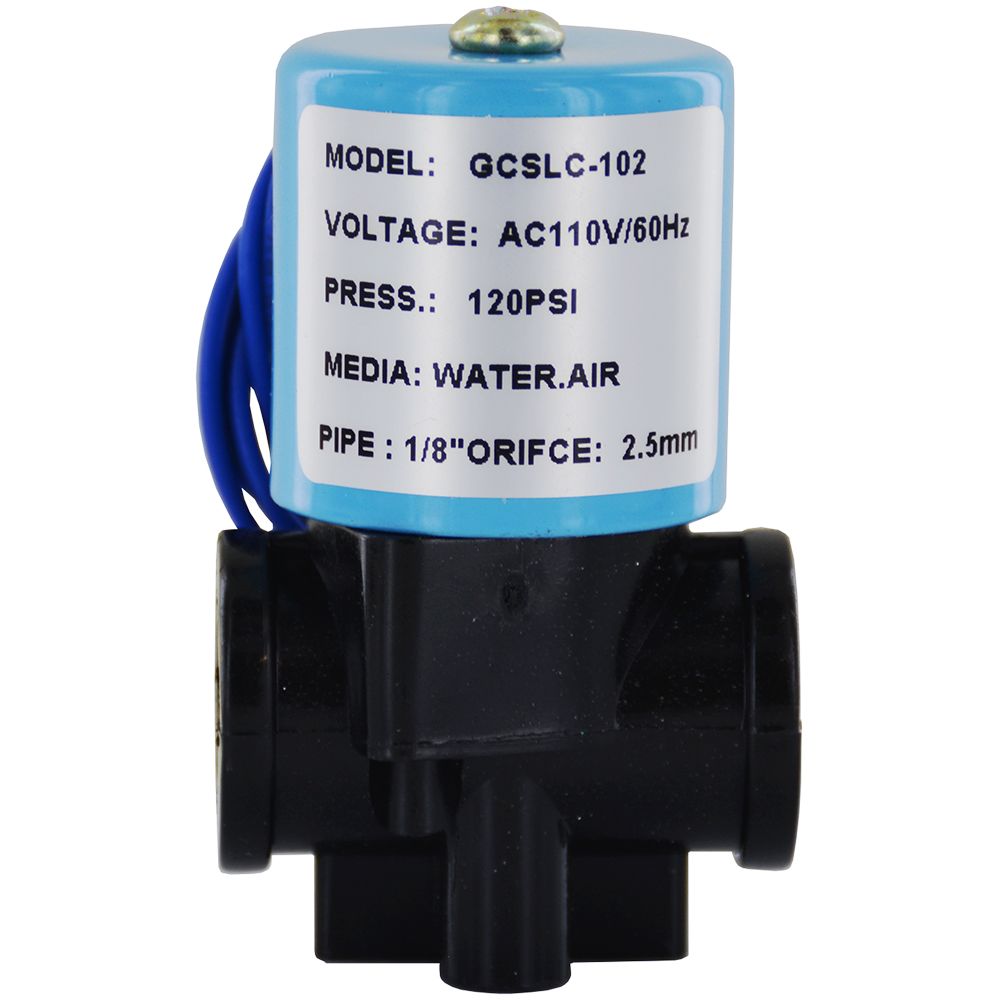

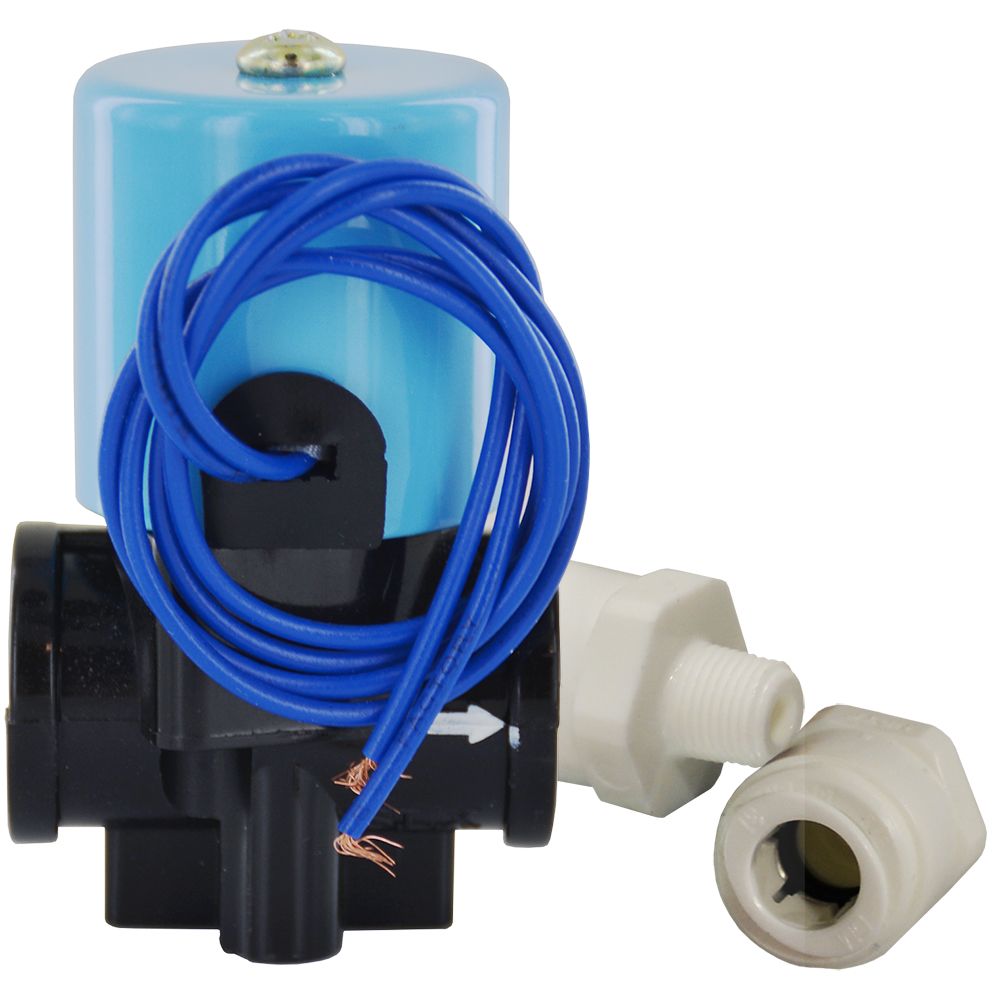

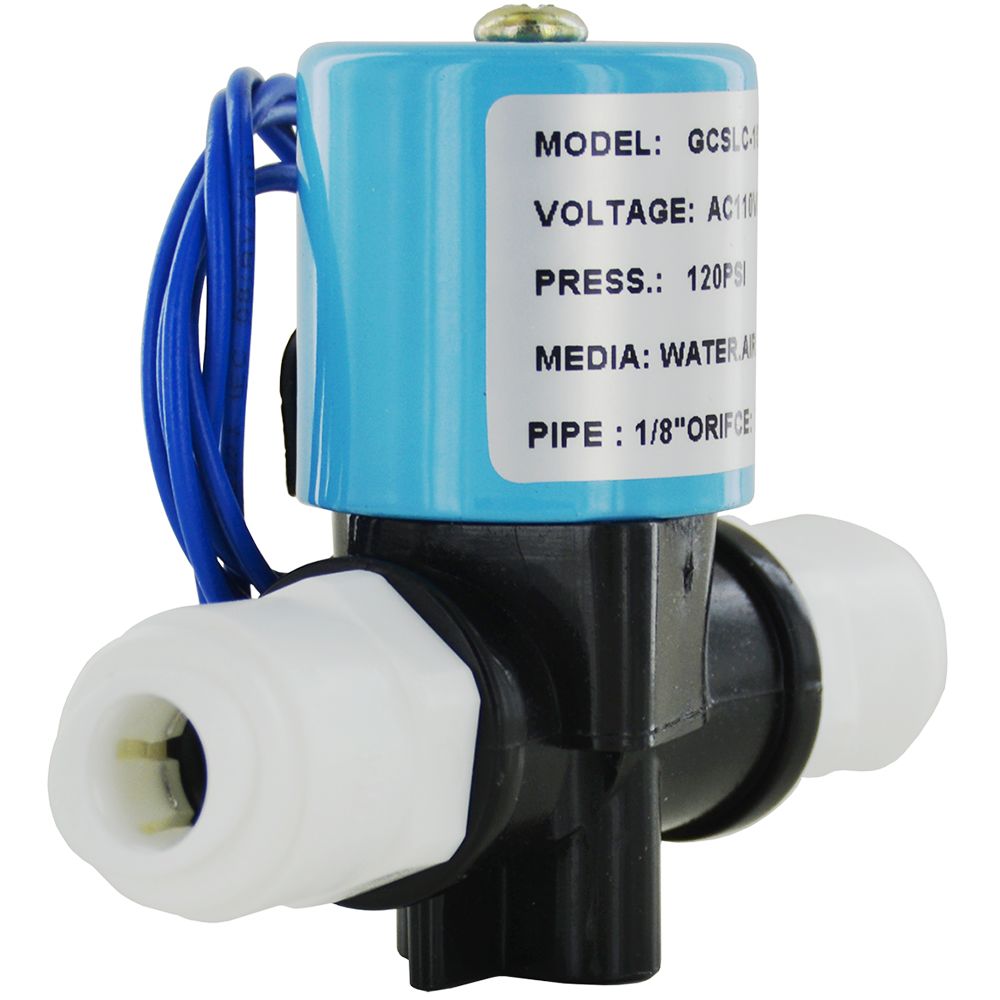

Electronic Shut-off Solenoid Valve 115 Volt 1/8" FPT

Part Number: 1102X-062CE-B210DC-14

Alt. Part Number: 1102X-062CE-B210DC, GCSLXNPAD5-120VAC, AMC0402, 12AZ041A1-1GCA

In Stock

out of stock

In Stock

$31.96


This shut off valve has been designed for use in drinking water & similar applications. The 1102X-062CE-B210DC-14 offers quick actuation response time (typically 20-50 milliseconds) and can be mounted in any position, however best if vertical and upright.

Features:
  • Choose from either 1/4" or 3/8" Quick Connect Fittings
  • Conserves water
  • Normally Closed
  • Positive shut-off
  • Compact design
  • Plastic valve body
  • Low power
  • Cool running
  • Hermetically protected electronics for long life
Note:  This is a directional valve. Please note the small directional arrows molded onto the housing when installing.
Also Compatible With: Alcon 12AZ041A1-1GCA-14  Alcon 12AZ041A1-1GCA-18




Details

Diameter

3/32"

Frequency

50/60 Hz

Max Pressure (Psi)

150

Max Temp (°F)

180

Origin

USA

Power

Leads 24" 18 AWG

Voltage

110-120

Wetted Materials

Stainless Steel; Polypropylene; EPDM

Warranty & Certifications

Certifications

NSF 372




This shut off valve has been designed for use in drinking water & similar applications. The 1102X-062CE-B210DC-14 offers quick actuation response time (typically 20-50 milliseconds) and can be mounted in any position, however best if vertical and upright.

Features:
  • Choose from either 1/4" or 3/8" Quick Connect Fittings
  • Conserves water
  • Normally Closed
  • Positive shut-off
  • Compact design
  • Plastic valve body
  • Low power
  • Cool running
  • Hermetically protected electronics for long life
Note:  This is a directional valve. Please note the small directional arrows molded onto the housing when installing.
Also Compatible With: Alcon 12AZ041A1-1GCA-14  Alcon 12AZ041A1-1GCA-18



Details

Diameter

3/32"

Frequency

50/60 Hz

Max Pressure (Psi)

150

Max Temp (°F)

180

Origin

USA

Power

Leads 24" 18 AWG

Voltage

110-120

Wetted Materials

Stainless Steel; Polypropylene; EPDM

Warranty & Certifications

Certifications

NSF 372
