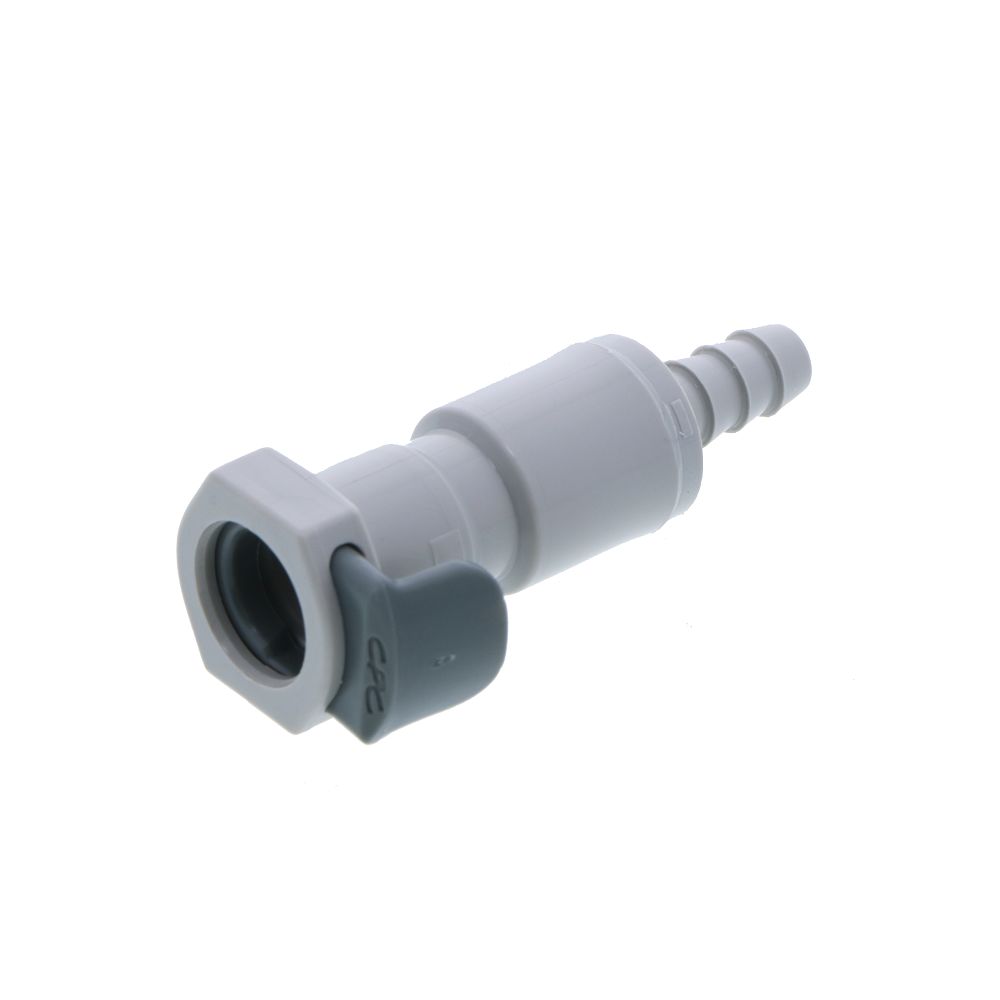

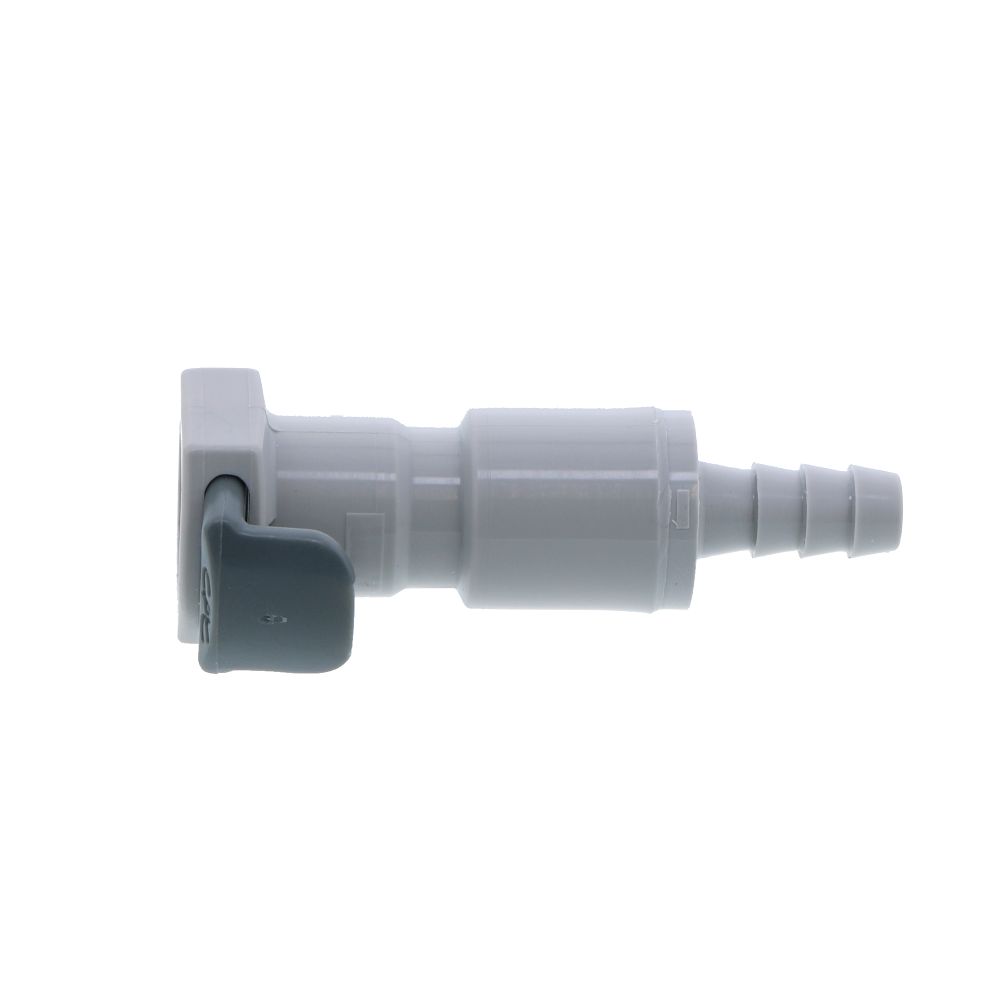

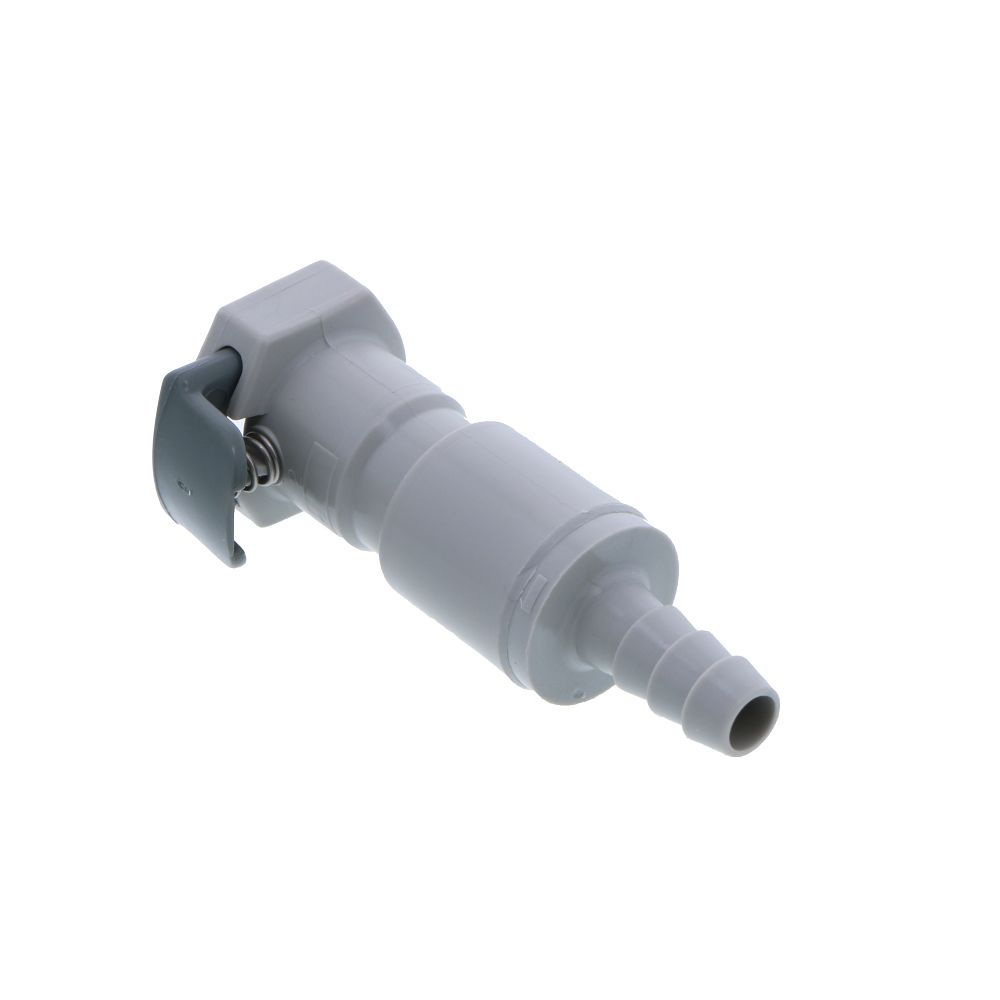

9/32" flow EFC12 Series couplings utilize a high efficiency valve design to provide a greater flow capacity than other couplings its size. The EFC12 Series is constructed out of chemically resistant polypropylene and mates with most APC couplings.
Specifications
Specifications
- Material: Polypropylene
- Color: Gray
- Mounting Option: Free Floating
- Seal Option: EPDM
- Valve Spring: 316 Stainless Steel
- Pressure Range: Vacuum to 105 psi, 7.2 bar
- Temperature Range: 32ºF to 160ºF
Weight & Dimensions
Weight (lbs) | 0.05 |
Details
Application | Water |
Barb Size | 1/4" ID |
Body Material | Polypropylene |
Max Pressure (Psi) | 105 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Seal Material | EPDM |
Series | EFC12 |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Gray |
Type | Coupling Body |
9/32" flow EFC12 Series couplings utilize a high efficiency valve design to provide a greater flow capacity than other couplings its size. The EFC12 Series is constructed out of chemically resistant polypropylene and mates with most APC couplings.
Specifications
- Material: Polypropylene
- Color: Gray
- Mounting Option: Free Floating
- Seal Option: EPDM
- Valve Spring: 316 Stainless Steel
- Pressure Range: Vacuum to 105 psi, 7.2 bar
- Temperature Range: 32ºF to 160ºF
Weight & Dimensions
Weight (lbs) | 0.05 |
Details
Application | Water |
Barb Size | 1/4" ID |
Body Material | Polypropylene |
Max Pressure (Psi) | 105 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Seal Material | EPDM |
Series | EFC12 |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Gray |
Type | Coupling Body |
