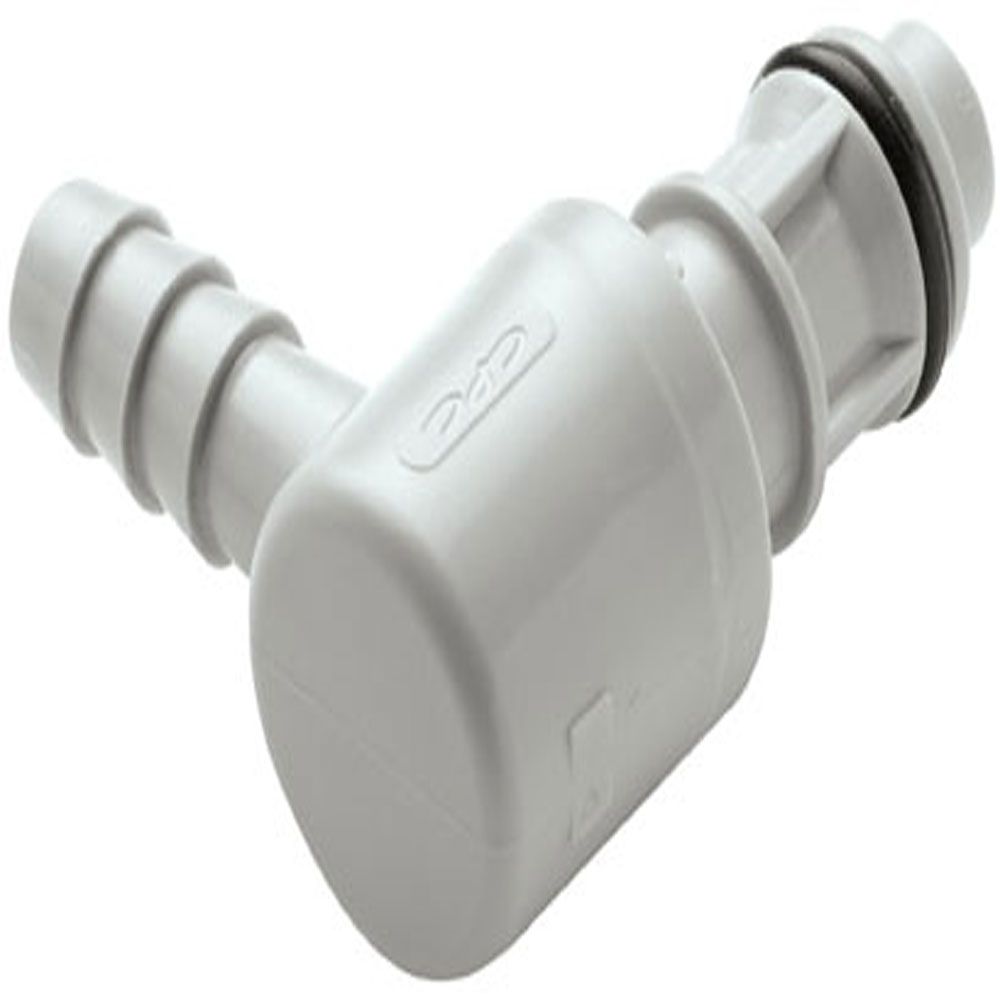

EFC23412 Non-Valved Hose Barb Elbow Coupling Insert 1/4 ID Barb

The 9/32" flow EFC12 Series couplings feature a high efficiency valve design that provides a greater flow capability than any other coupling its size. Chemically resistant polypropylene material makes it ideal for harsh environments. The EFC12 Series adds a bulkhead panel mount option for tight seals against tank walls and drums.

Specifications:

Material: Polypropylene
Material Finish: Molded Grey
Valve Option: Non-Valved
Mounting Option: Free Floating
Temperature Range: 32°F to 160°F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	1/4" ID
Body Material	Polypropylene
Max Pressure (Psi)	105
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Seal Material	EPDM
Series	EFC12
Shape	90
Valve Type	Non-Valved
Color / Finish	Gray
Type	Coupling Insert

Product Details
Application	Water
Barb Size	1/4" ID
Body Material	Polypropylene
Max Pressure (Psi)	105
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Seal Material	EPDM
Series	EFC12
Shape	90
Valve Type	Non-Valved
Color / Finish	Gray
Type	Coupling Insert

Product Details
Application	Water
Barb Size	1/4" ID
Body Material	Polypropylene
Max Pressure (Psi)	105
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Seal Material	EPDM
Series	EFC12
Shape	90
Valve Type	Non-Valved
Color / Finish	Gray
Type	Coupling Insert
