Colder Products

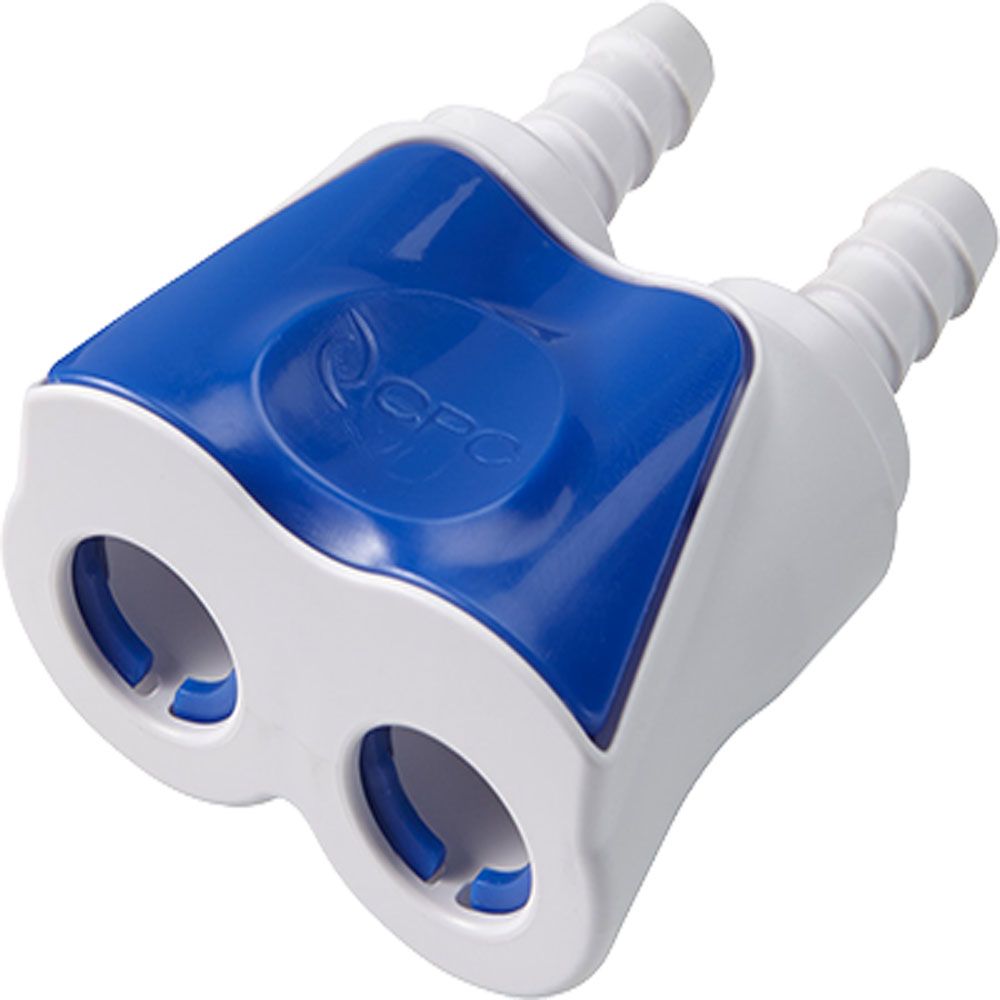

DTLD17004 Valved In-line Dual Hose Barb Coupling Body 1/4 ID Barb

Part Number: DTLD17004

In Stock

out of stock

In Stock

$6.75

The 1/4" flow DTLD Series dual flow couplings provide a unique thumb latch with independent or simultaneous connections of loose tube sets. Made from ABS thermoplastic, the DTLD Series valved couplings ensures when connecting one insert, the second insert is prevented from disconnecting. One-hand operation makes the DTLD Series the choice for simple, independent connections of dual port connections. The DTLD Series is compatible with all PLC, PLC12 and LC Series Inserts.

Specifications:
  • Material: ABS
  • Material Finish: White with blue latch
  • Color:White with blue latch
  • Valve Option: Valved
  • Sterilization: EtO, E-beam, Gamma
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 20 psi, 1.38 bar
  • Temperature Range: 32°F to 120°F


Details

Series

DTL

Barb Size

1/4"

Bag Quantity

25 Units

Body Material

ABS

Color / Finish

White with blue latch

Mounting Options

Free Floating

Operating Pressure Range

Vacuum to 20 psi, 1.38 bar PSI

Operating Temperature Range

32t-120 Degrees Fahrenheit

Valve Type

Valved


DTLD17004




The 1/4" flow DTLD Series dual flow couplings provide a unique thumb latch with independent or simultaneous connections of loose tube sets. Made from ABS thermoplastic, the DTLD Series valved couplings ensures when connecting one insert, the second insert is prevented from disconnecting. One-hand operation makes the DTLD Series the choice for simple, independent connections of dual port connections. The DTLD Series is compatible with all PLC, PLC12 and LC Series Inserts.

Specifications:
  • Material: ABS
  • Material Finish: White with blue latch
  • Color:White with blue latch
  • Valve Option: Valved
  • Sterilization: EtO, E-beam, Gamma
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 20 psi, 1.38 bar
  • Temperature Range: 32°F to 120°F

Details

Series

DTL

Barb Size

1/4"

Bag Quantity

25 Units

Body Material

ABS

Color / Finish

White with blue latch

Mounting Options

Free Floating

Operating Pressure Range

Vacuum to 20 psi, 1.38 bar PSI

Operating Temperature Range

32t-120 Degrees Fahrenheit

Valve Type

Valved

Documentation
DTLD17004

Reviews
