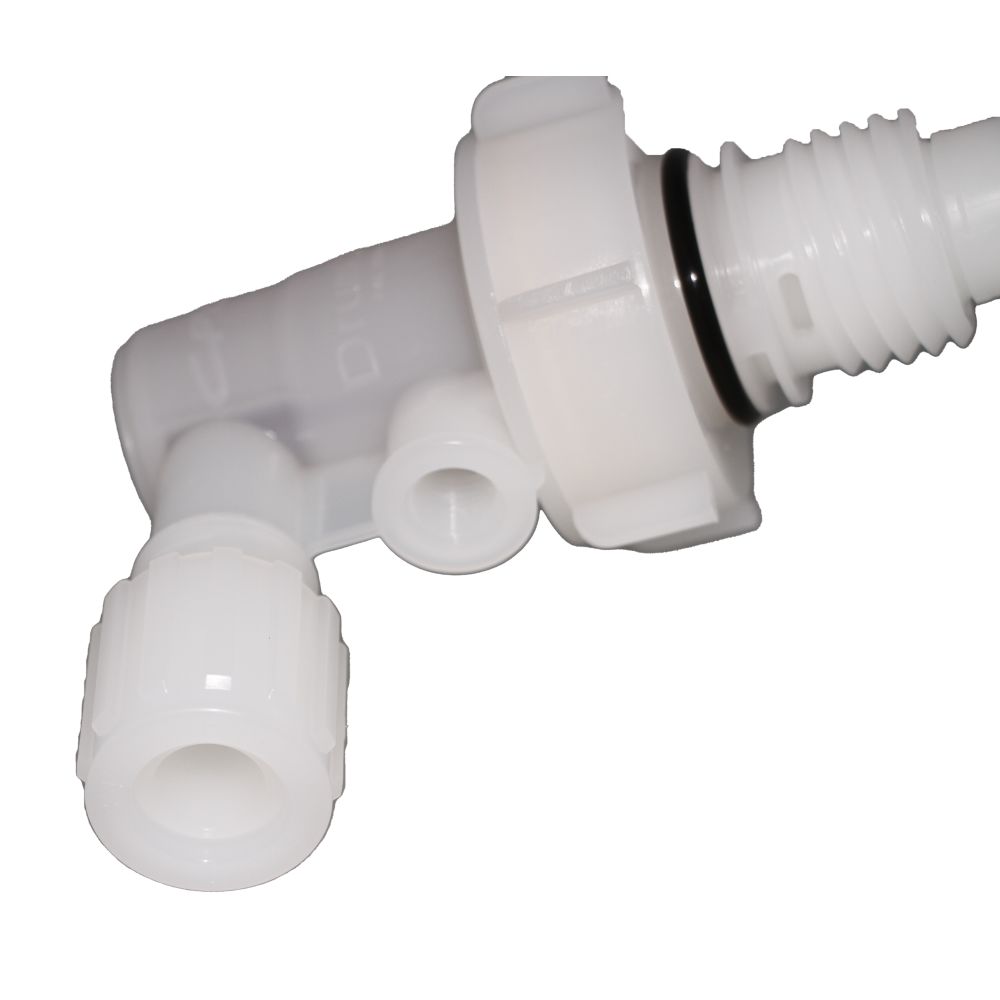

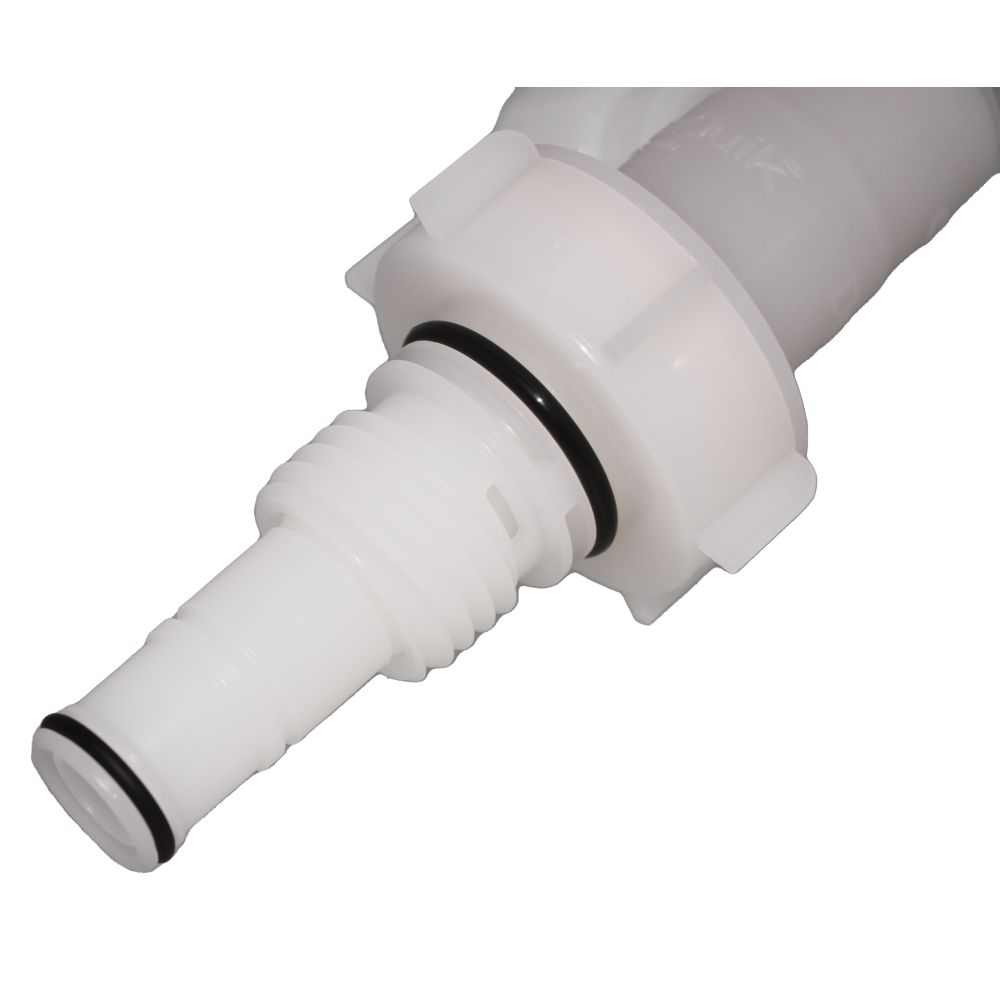

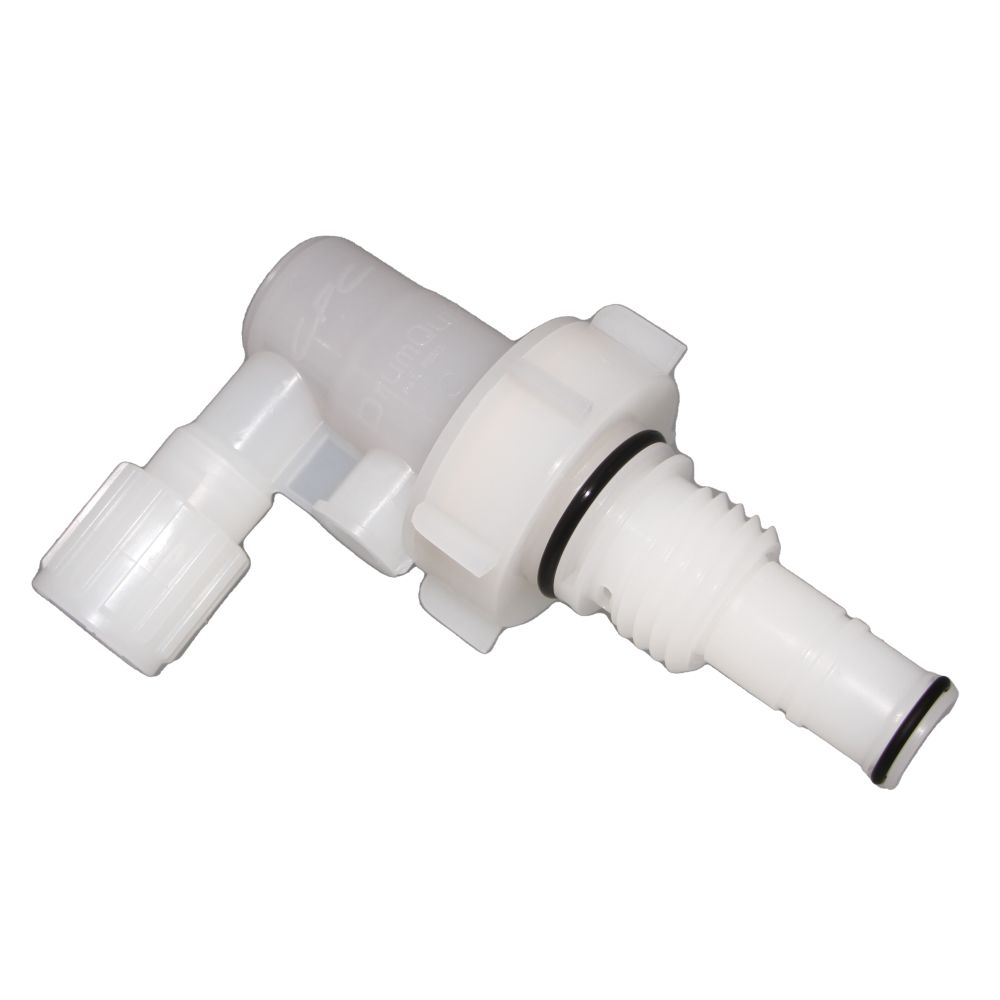

DrumQuik PUR Couplers are designed with quick connect/disconnect capabilities in order to allow for faster drum change outs. PUR couplers are cleanroom manufactured in order to provide a high level of purity. These couplers come with an automatic shutoff valve and are constructed out of PVDF. Using DrumQuik dispensing systems helps users keep a clean and safe work environment.
Specifications:
Specifications:
- Material: PVDF
- Mounting Option: Thread
- Seal Option: FKM
- Valve Spring: PEEK Polyphenylene Sulfide encapsulated 316 Stainless Steel
- Temperature Range: 0ºF to 120ºF
- Cleanroom manufactured
- Sold individually
Weight & Dimensions
Weight (lbs) | 1 |
Details
Series | DrumQuik |
Max Temp (°F) | 120 |
Min Temp (°F) | 0 |
Body Material | Kynar |
Mounting Options | Thread |
Seal Material | FKM |
Size | 3/4" |
Spring | PEEK Polyphenylene Sulfide encapsulated 316 Stainless Steel |
Valve Type | Valved |
Inlet/Outlet Connection | 3/4" Flare |
DrumQuik PUR Couplers are designed with quick connect/disconnect capabilities in order to allow for faster drum change outs. PUR couplers are cleanroom manufactured in order to provide a high level of purity. These couplers come with an automatic shutoff valve and are constructed out of PVDF. Using DrumQuik dispensing systems helps users keep a clean and safe work environment.
Specifications:
- Material: PVDF
- Mounting Option: Thread
- Seal Option: FKM
- Valve Spring: PEEK Polyphenylene Sulfide encapsulated 316 Stainless Steel
- Temperature Range: 0ºF to 120ºF
- Cleanroom manufactured
- Sold individually
Weight & Dimensions
Weight (lbs) | 1 |
Details
Series | DrumQuik |
Max Temp (°F) | 120 |
Min Temp (°F) | 0 |
Body Material | Kynar |
Mounting Options | Thread |
Seal Material | FKM |
Size | 3/4" |
Spring | PEEK Polyphenylene Sulfide encapsulated 316 Stainless Steel |
Valve Type | Valved |
Inlet/Outlet Connection | 3/4" Flare |
