Colder Products

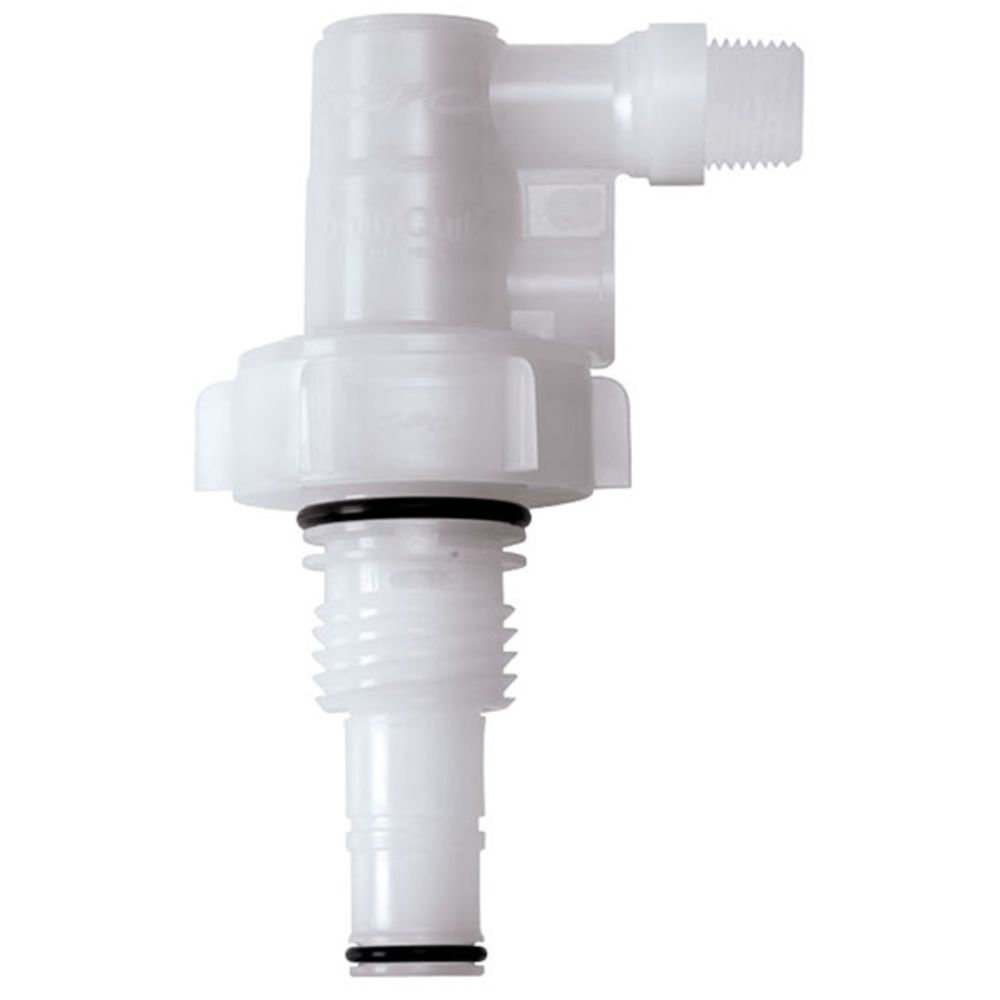

DrumQuik DQPRO120712202 PRO Elbow Coupler Viton O-Rings - 3/4 BSPP

Part Number: DQPRO120712202

In Stock

out of stock

In Stock

$75.79

DrumQuik PRO Couplers are designed with quick connect/disconnect capabilities in order to allow for faster drum change outs. These couplers come with an automatic shutoff valve and are constructed out of polypropylene. Using DrumQuik dispensing systems helps users keep a clean and safe work environment.

Specifications:
  • Material: Polypropylene
  • Mounting Option: Thread
  • Seal Option: Viton
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: 0 to 45 psig (0 to 3.1 bar)
  • Temperature Range: 32ºF to 120ºF
  • Sold individually
  • Also available in bags of 5


Weight & Dimensions

Weight (lbs)

1

Details

Series

DrumQuik

Max Temp (°F)

120

Max Pressure (Psi)

45

Min Temp (°F)

32

Min Pressure (Psi)

0

Bag Quantity

5

Body Material

Polypropylene

Mounting Options

Thread

O-Rings

Viton

Seal Material

Viton

Size

3/4"

Spring

316 Stainless Steel

Valve Type

Valved

Inlet/Outlet Connection

3/4" BSP


DrumQuik


Product Videos


DrumQuik PRO Couplers are designed with quick connect/disconnect capabilities in order to allow for faster drum change outs. These couplers come with an automatic shutoff valve and are constructed out of polypropylene. Using DrumQuik dispensing systems helps users keep a clean and safe work environment.

Specifications:
  • Material: Polypropylene
  • Mounting Option: Thread
  • Seal Option: Viton
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: 0 to 45 psig (0 to 3.1 bar)
  • Temperature Range: 32ºF to 120ºF
  • Sold individually
  • Also available in bags of 5

Weight & Dimensions

Weight (lbs)

1

Details

Series

DrumQuik

Max Temp (°F)

120

Max Pressure (Psi)

45

Min Temp (°F)

32

Min Pressure (Psi)

0

Bag Quantity

5

Body Material

Polypropylene

Mounting Options

Thread

O-Rings

Viton

Seal Material

Viton

Size

3/4"

Spring

316 Stainless Steel

Valve Type

Valved

Inlet/Outlet Connection

3/4" BSP
