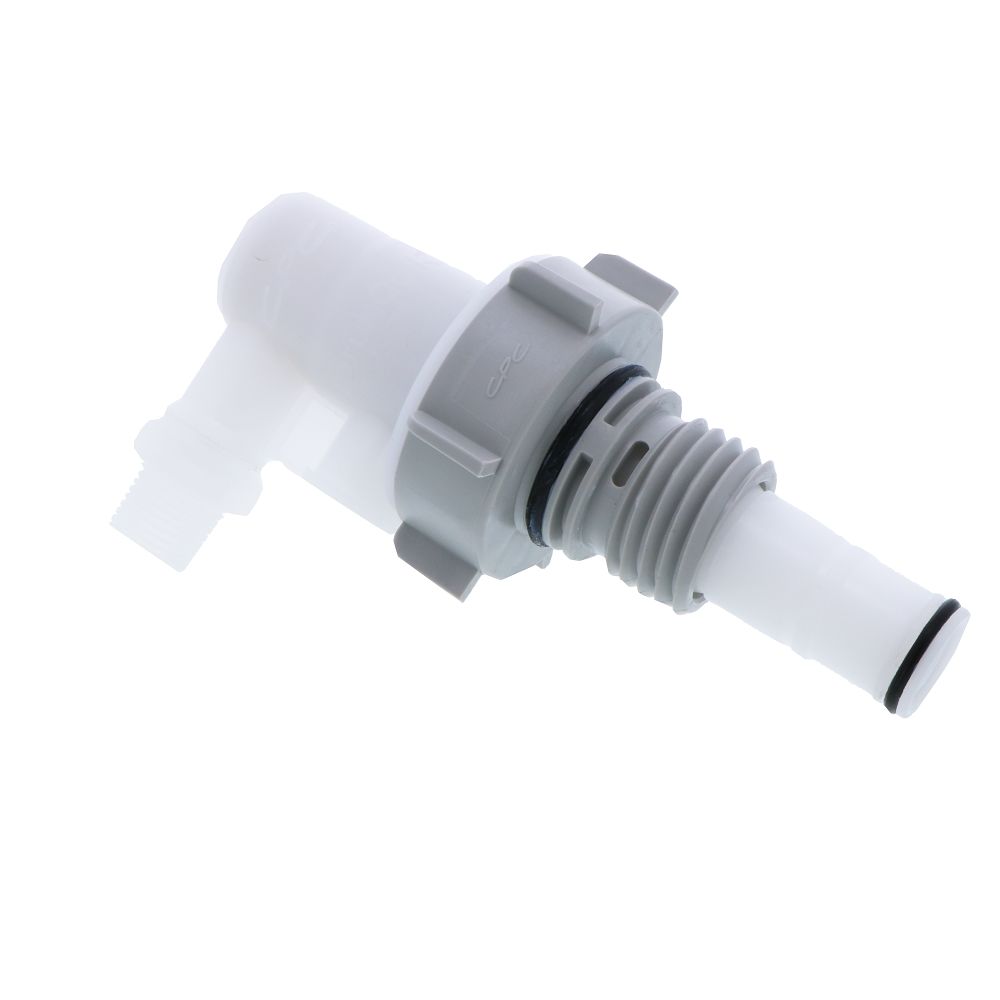

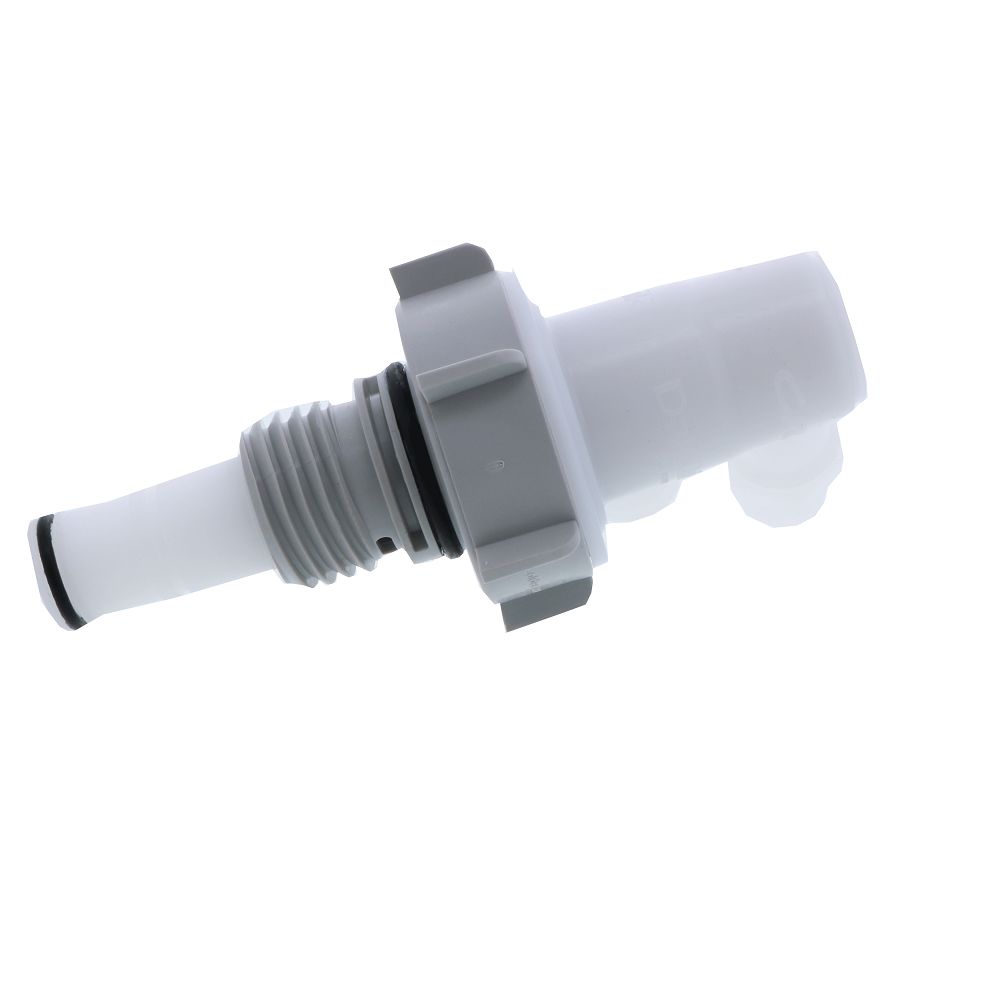

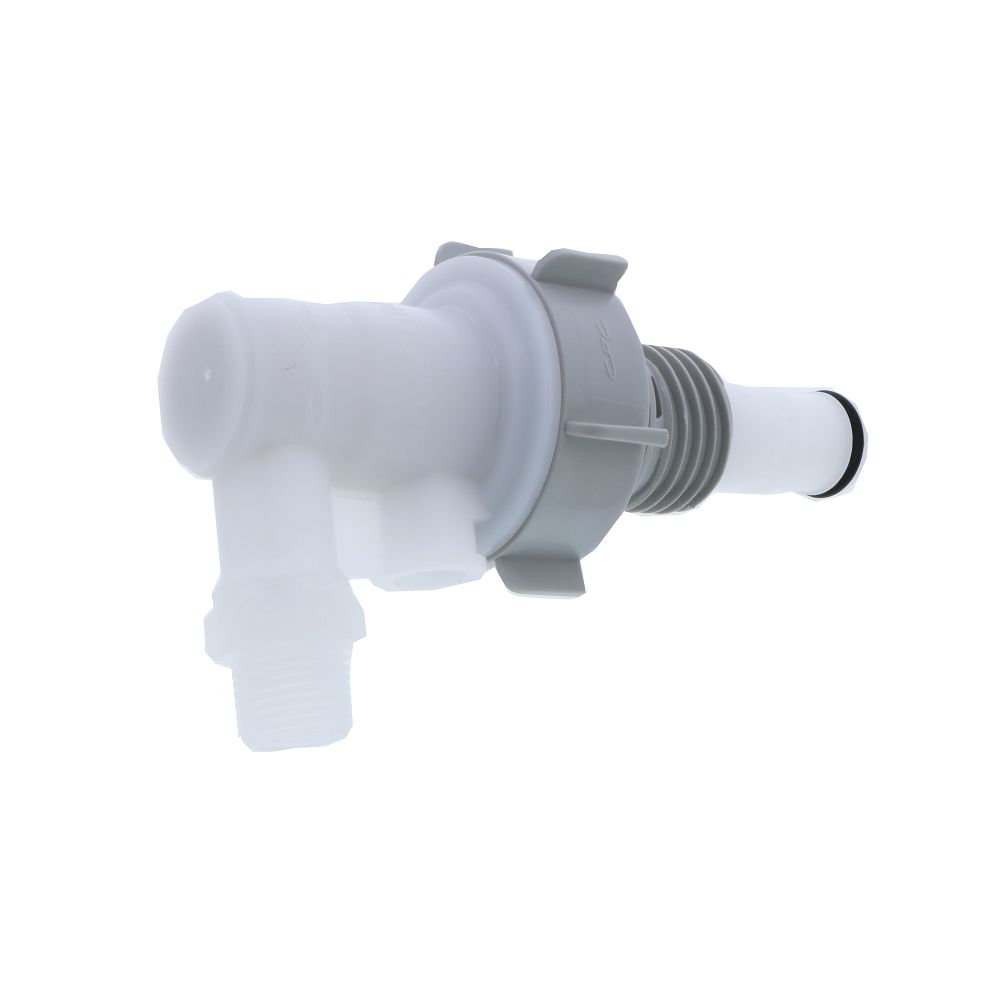

DrumQuik DQPRO120208206 PRO Elbow Coupler EPDM O-Rings Hastelloy C Spring - 1/2 MNPT

DrumQuik PRO Couplers are designed with quick connect/disconnect capabilities in order to allow for faster drum change outs. These couplers come with an automatic shutoff valve and are constructed out of polypropylene. Using DrumQuik dispensing systems helps users keep a clean and safe work environment.

Specifications:

Material: Polypropylene
Mounting Option: Thread
Seal Option: EPDM
Valve Spring: Hastelloy C
Pressure Range: 0 to 45 psig (0 to 3.1 bar)
Temperature Range: 32ºF to 120ºF
Sold individually
Also available in bags of 5

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Polypropylene
Inlet Connection	1/2" MPT
Max Pressure (Psi)	45
Max Temp (°F)	120
Min Pressure (Psi)	0
Min Temp (°F)	32
Mounting Options	Thread
Nsf Version	No
O-Rings	EPDM
Outlet Connection	1/2" MPT
Seal Material	EPDM
Series	DrumQuik
Size	1/2"
Spring	Hastelloy C
Valve Type	Valved
Connection Type	Male (MPT)
Shipping Dimensions
Shipping Length	6.38 in.
Shipping Width	3 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Height	3 in.
Product Length	6.38 in.
Product Width	3 in.
Product Weight (lbs)	0.01875

Product Details
Body Material	Polypropylene
Inlet Connection	1/2" MPT
Max Pressure (Psi)	45
Max Temp (°F)	120
Min Pressure (Psi)	0
Min Temp (°F)	32
Mounting Options	Thread
Nsf Version	No
O-Rings	EPDM
Outlet Connection	1/2" MPT
Seal Material	EPDM
Series	DrumQuik
Size	1/2"
Spring	Hastelloy C
Valve Type	Valved
Connection Type	Male (MPT)
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	13 in.
Shipping Height	13 in.
Product Weight & Dimensions
Product Weight (lbs)	2.2

Product Details
Body Material	Polypropylene
Inlet Connection	1/2" MPT
Max Pressure (Psi)	45
Max Temp (°F)	120
Min Pressure (Psi)	0
Min Temp (°F)	32
Mounting Options	Thread
Nsf Version	No
O-Rings	EPDM
Outlet Connection	1/2" MPT
Seal Material	EPDM
Series	DrumQuik
Size	1/2"
Spring	Hastelloy C
Valve Type	Valved
Connection Type	Male (MPT)
Product Weight & Dimensions
Product Weight (lbs)	6

DrumQuik DQPRO120208206 PRO Elbow Coupler EPDM O-Rings Hastelloy C Spring - 1/2 MNPT Manual
