Colder Products

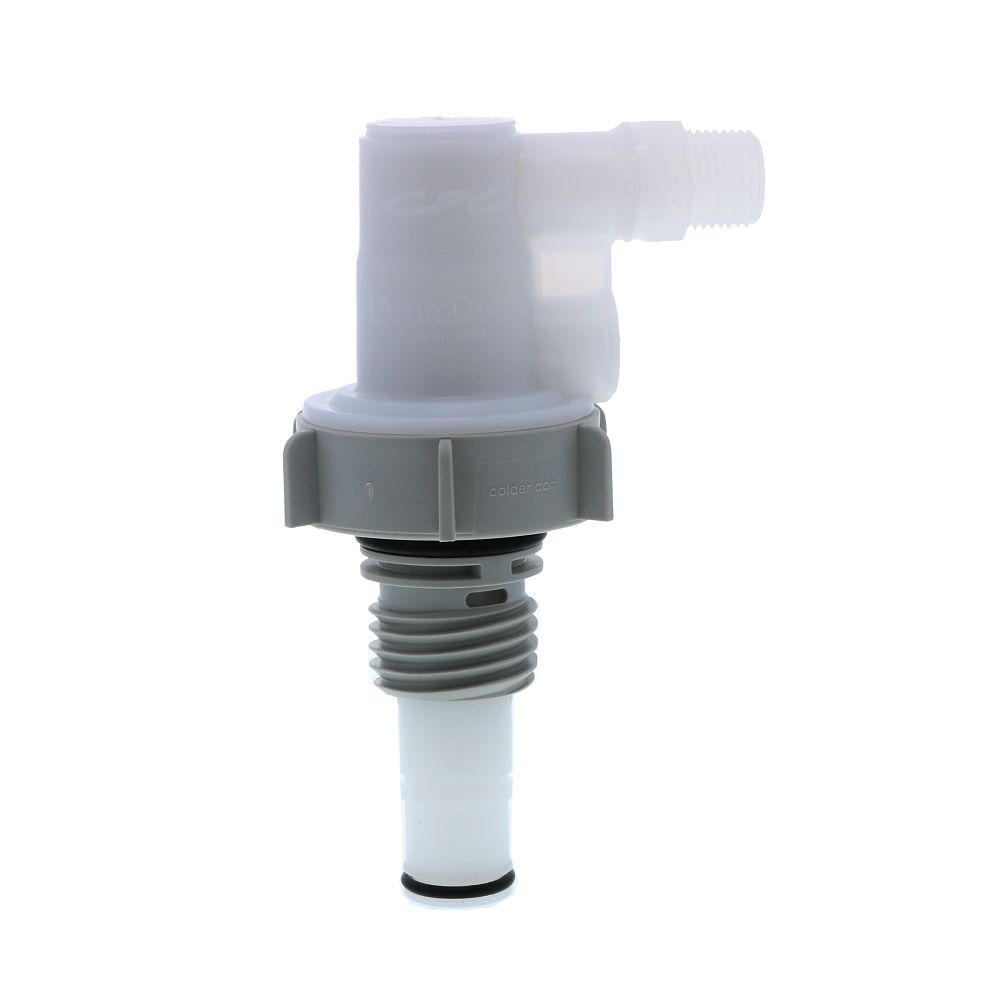

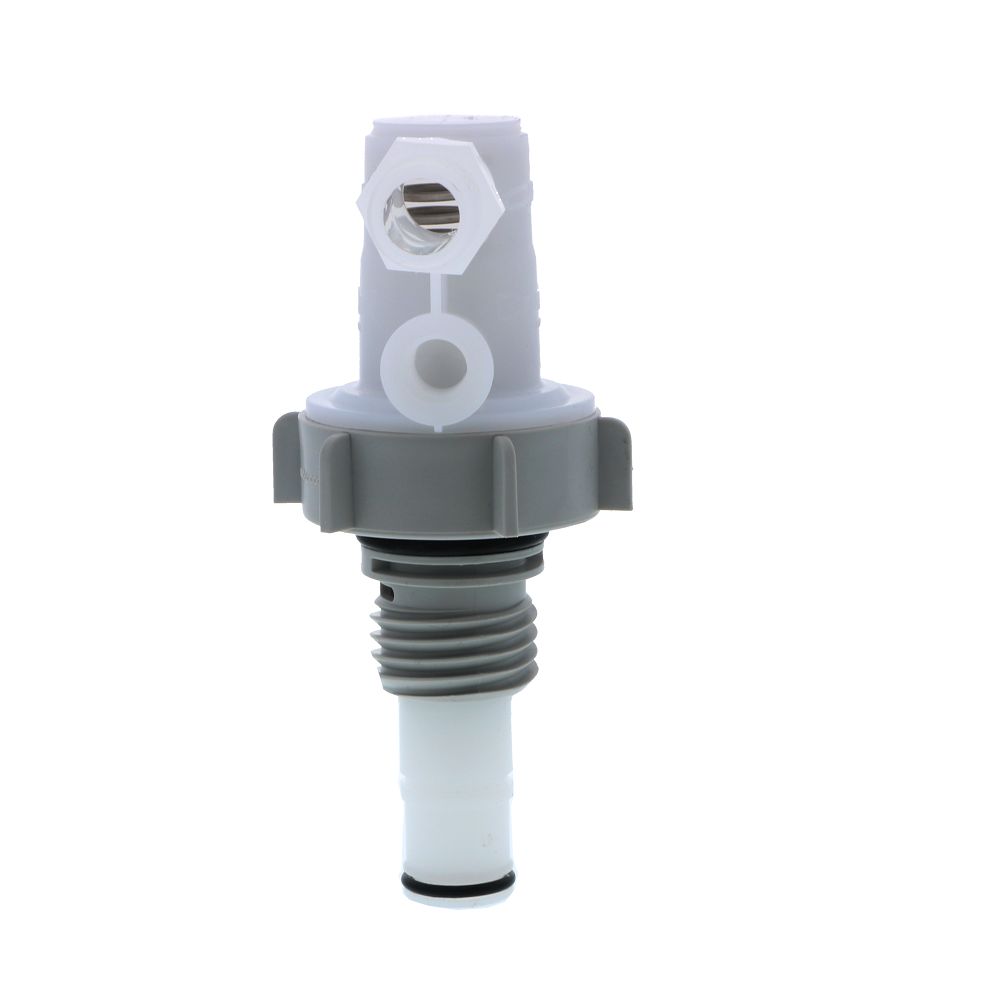

DrumQuik DQPRO120208 PRO Elbow Coupler EPDM O-Rings - 1/2 MNPT

Part Number: DQPRO120208

In Stock

out of stock

In Stock

$60.46

DrumQuik PRO Couplers are designed with quick connect/disconnect capabilities in order to allow for faster drum change outs. These couplers come with an automatic shutoff valve and are constructed out of polypropylene. Using DrumQuik dispensing systems helps users keep a clean and safe work environment.

 Specifications:
  • Material: Polypropylene
  • Mounting Option: Thread
  • Seal Option: EPDM
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: 0 to 45 psig (0 to 3.1 bar)
  • Temperature Range: 32ºF to 120ºF
  • Sold individually
  • Also available in bags of 5




Weight & Dimensions

Bag Quantity

5

Weight (lbs)

1

Details

Body Material

Polypropylene

Inlet/Outlet Connection

1/2" MPT

Max Pressure (Psi)

45

Max Temp (°F)

120

Min Pressure (Psi)

0

Min Temp (°F)

32

Mounting Options

Thread

Seal Material

EPDM

Series

DrumQuik

Size

1/2"

Spring

316 Stainless Steel

Valve Type

Valved

Connection Type

Male (MPT)


DrumQuik


Product Videos


DrumQuik PRO Couplers are designed with quick connect/disconnect capabilities in order to allow for faster drum change outs. These couplers come with an automatic shutoff valve and are constructed out of polypropylene. Using DrumQuik dispensing systems helps users keep a clean and safe work environment.

 Specifications:
  • Material: Polypropylene
  • Mounting Option: Thread
  • Seal Option: EPDM
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: 0 to 45 psig (0 to 3.1 bar)
  • Temperature Range: 32ºF to 120ºF
  • Sold individually
  • Also available in bags of 5



Weight & Dimensions

Bag Quantity

5

Weight (lbs)

1

Details

Body Material

Polypropylene

Inlet/Outlet Connection

1/2" MPT

Max Pressure (Psi)

45

Max Temp (°F)

120

Min Pressure (Psi)

0

Min Temp (°F)

32

Mounting Options

Thread

Seal Material

EPDM

Series

DrumQuik

Size

1/2"

Spring

316 Stainless Steel

Valve Type

Valved

Connection Type

Male (MPT)
