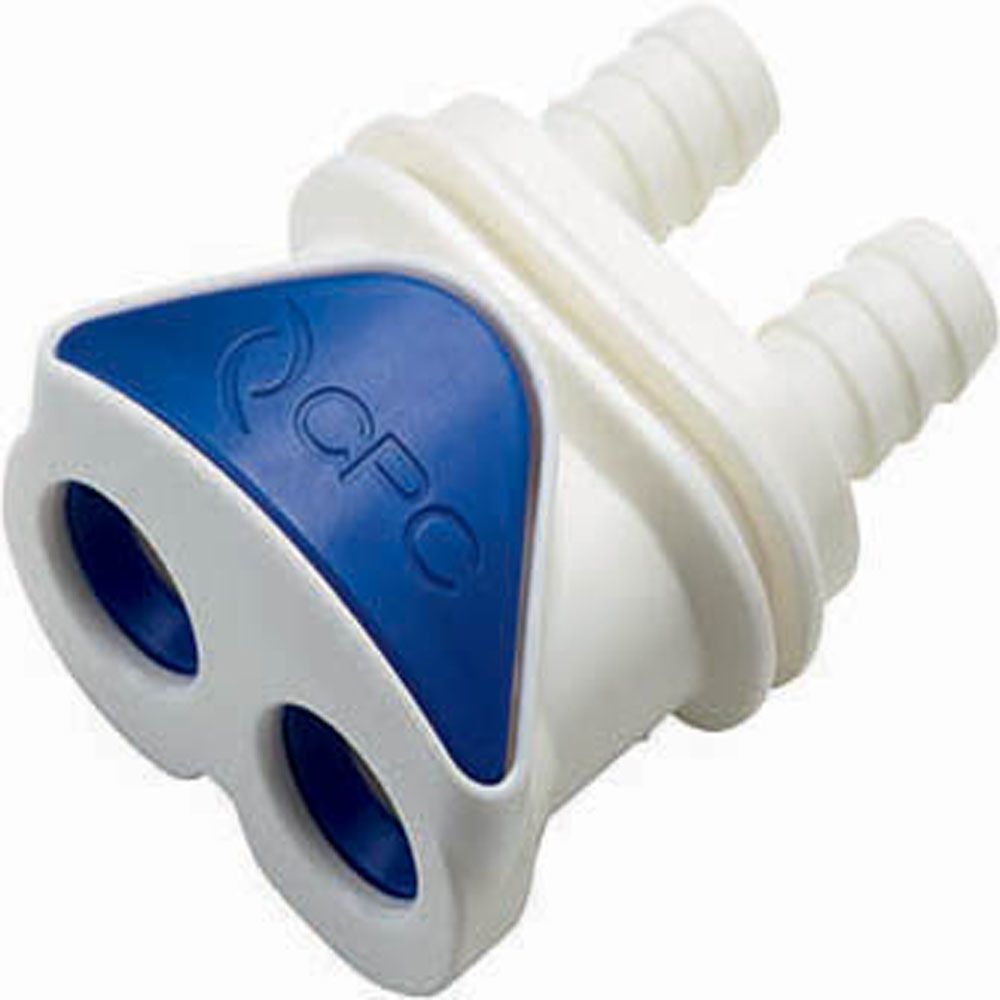

DPC17006 Non-Valved In-Line Hose Barb Coupling Body - 3/8

The 1/4" flow DPC Series couplings feature a dual port connection in a contoured design that delivers ease-of-use and excellent flow in a compact size. Made from acetal thermoplastic, the DPC Series includes valved and non-valved couplings with a single plastic thumb latch. One-hand operation makes the DPC Series the choice for simple, simultaneous connections and disconnections where two fluid lines are required.

Specifications:

Material: Acetal
Material Finish: White
Color: White
Valve Option: Non-Valved
Mounting Option: In-Line
Pressure Range: Vacuum to 120 psi, 8.3 bar
Temperature Range: 32°F to 180°F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	3/8" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Series	DPC
Shape	Straight
Valve Type	Non-Valved
Color / Finish	White
Type	Coupling Body

Product Details
Application	Water
Barb Size	3/8" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Series	DPC
Shape	Straight
Valve Type	Non-Valved
Color / Finish	White
Type	Coupling Body

Product Details
Application	Water
Barb Size	3/8" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Series	DPC
Shape	Straight
Valve Type	Non-Valved
Color / Finish	White
Type	Coupling Body
