Doulton-British Berkefeld

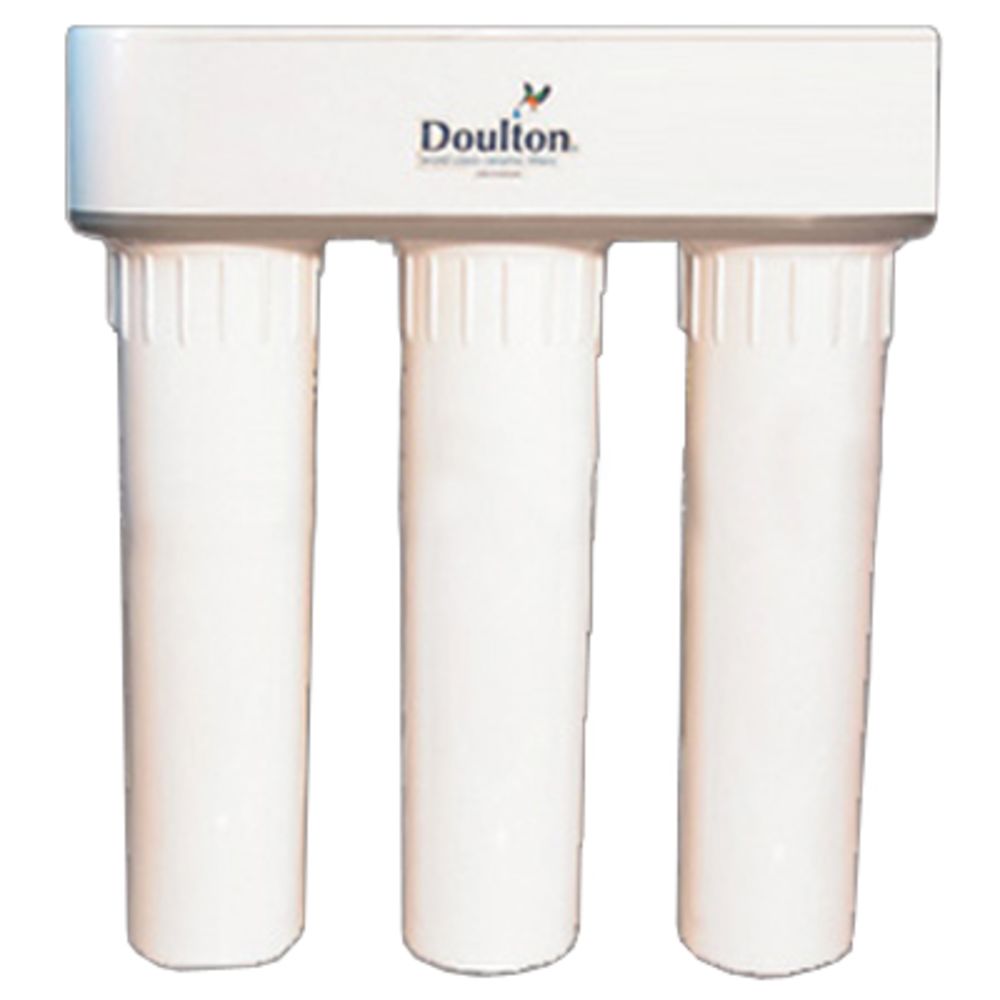

Doulton HIP3 Triple UnderCounter Housing System

Part Number: HIP3-UC

Alt. Part Number: W9380002

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Neo-Pure TL3-A502 Ultrafiltration System - Chrome Faucet as a substitute.


The Doulton HIP3-UC Triple In-line Housing Filter System is for those who have specific filtration requirements where even the exceptional qualities of ceramics cannot provide sufficient reduction alone.

The second and/or third filter chambers allow you to select the additional filter(s) to meet your specific filtration needs, such as Alkaline Enhancement, Arsenic Reduction, Lead/Heavy Metal Filtration, MTBE Filtration and Nitration Reduction.    Other than Reverse Osmosis, the B-2 cartridge is one of very few filters available which will reduce Chromium VI (Hexavalent Chromium) and Fluoride from your drinking water.
Includes:
  • Filter housings with 3/8" inlet and outlet
  • Mounting bracket and screws for installation
  • Feed supply adapter
  • Tubing, in-line ball valve, 3/8" union tee for installation
  • Exclusive UltraCarb candle (2" x 10" candle)
  • Select fluoride, nitrate, arsenic, or MTBE reduction candle
Specifications:
  • Flow Rate of 0.5 gallons per minute
  • Absolute filtration efficiency to 0.9 microns
  • Particles from 0.5 to 0.8 microns filtration efficiency is greater than 99.99%
  • Ceramic cartridges are cleanable
  • Includes first UltraCarb candle, mounting bracket, tubing and fittings necessary for a standard under sink installation
  • Removes dirt, rust, sediment, chlorine, bad tastes and odors, lead and all particles 1 micron or larger in size
  • Independently tested to remove the following parasites and pathogenic bacteria
  • NO FAUCET INCLUDED

NOTE: In order to complete your system, visit our large selection of Drinking Water Faucets in different styles and finishes.

Feature CeraCarb CeraUltra Ultracarb
Micron Rating (Absolute) 0.7 µm 0.9 µm  0.9 µm
Capacity 1500 gallons 1000 gallons  600 gallons
Filter Life 12 months 6 months  6 months
NSF Certified? Yes Yes  Yes


Weight & Dimensions

Weight (lbs)

7.2

Details

Max Temp (°F)

100

Max Pressure (Psi)

125

Min Temp (°F)

40

Min Pressure (Psi)

10

Application

Drinking Water

Capacity

1500 Gallons

Flow Rate

0.5 GPM

Housing Material

Polypropylene

Contaminants Reduced

Chlorine/Taste/Odor, Sediment/Dirt/Rust, Lead, Cysts, Particulate Class I, Heavy Metals, Fluoride

Warranty & Certifications

Certifications

NSF/ANSI 42


Doulton

Doulton

Doulton





The Doulton HIP3-UC Triple In-line Housing Filter System is for those who have specific filtration requirements where even the exceptional qualities of ceramics cannot provide sufficient reduction alone.

The second and/or third filter chambers allow you to select the additional filter(s) to meet your specific filtration needs, such as Alkaline Enhancement, Arsenic Reduction, Lead/Heavy Metal Filtration, MTBE Filtration and Nitration Reduction.    Other than Reverse Osmosis, the B-2 cartridge is one of very few filters available which will reduce Chromium VI (Hexavalent Chromium) and Fluoride from your drinking water.
Includes:
  • Filter housings with 3/8" inlet and outlet
  • Mounting bracket and screws for installation
  • Feed supply adapter
  • Tubing, in-line ball valve, 3/8" union tee for installation
  • Exclusive UltraCarb candle (2" x 10" candle)
  • Select fluoride, nitrate, arsenic, or MTBE reduction candle
Specifications:
  • Flow Rate of 0.5 gallons per minute
  • Absolute filtration efficiency to 0.9 microns
  • Particles from 0.5 to 0.8 microns filtration efficiency is greater than 99.99%
  • Ceramic cartridges are cleanable
  • Includes first UltraCarb candle, mounting bracket, tubing and fittings necessary for a standard under sink installation
  • Removes dirt, rust, sediment, chlorine, bad tastes and odors, lead and all particles 1 micron or larger in size
  • Independently tested to remove the following parasites and pathogenic bacteria
  • NO FAUCET INCLUDED

NOTE: In order to complete your system, visit our large selection of Drinking Water Faucets in different styles and finishes.

Feature CeraCarb CeraUltra Ultracarb
Micron Rating (Absolute) 0.7 µm 0.9 µm  0.9 µm
Capacity 1500 gallons 1000 gallons  600 gallons
Filter Life 12 months 6 months  6 months
NSF Certified? Yes Yes  Yes

NOTE: This item is discontinued. We recommend the Neo-Pure TL3-A502 Ultrafiltration System - Chrome Faucet as a substitute.

Weight & Dimensions

Weight (lbs)

7.2

Details

Max Temp (°F)

100

Max Pressure (Psi)

125

Min Temp (°F)

40

Min Pressure (Psi)

10

Application

Drinking Water

Capacity

1500 Gallons

Flow Rate

0.5 GPM

Housing Material

Polypropylene

Contaminants Reduced

Chlorine/Taste/Odor, Sediment/Dirt/Rust, Lead, Cysts, Particulate Class I, Heavy Metals, Fluoride

Warranty & Certifications

Certifications

NSF/ANSI 42
