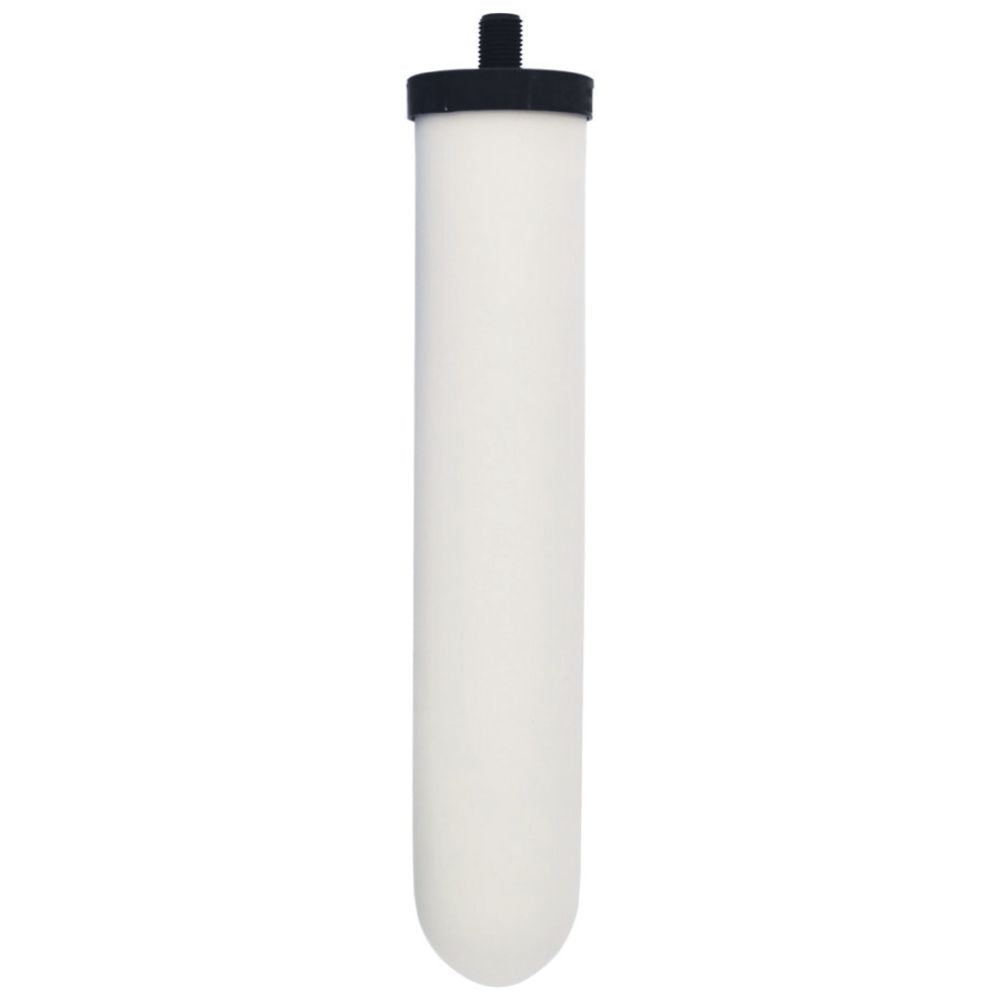

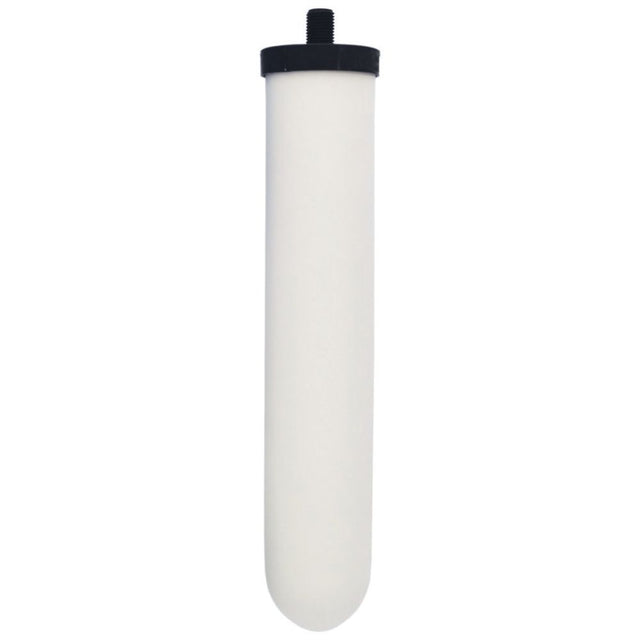

Doulton DUC-1000 UltraCarb Ceramic Filter Candle

Part Number: DUC-1000

Alt. Part Number: W9123053

In Stock

out of stock

In Stock

$39.99 Regular price $59.00 (32% Off)

Doulton DUC-1000 W9123053 UltraCarb is a four stage ceramic filter cartridge combining the highly efficient filtration properties of ceramic with the enhanced water treatment properties of activated carbon and the heavy metal reduction capabilities of ion exchange media. These elements have been made in accordance with NSF protocols for cyst, turbidity, particulate, and chlorine reductions (Class 1).

Fits in:

  • Twin Counter Top Systems: Doulton HCPS, HCS and HCP
  • Under Sink Systems: Doulton HIP, HIP2, HIP3 and HIS
  • Pressure Housings: AquaCera Inline (IP), HIS, HCP and HCS
  • Mountain Pure® Ceramic Filtration Systems MT660 and MT662

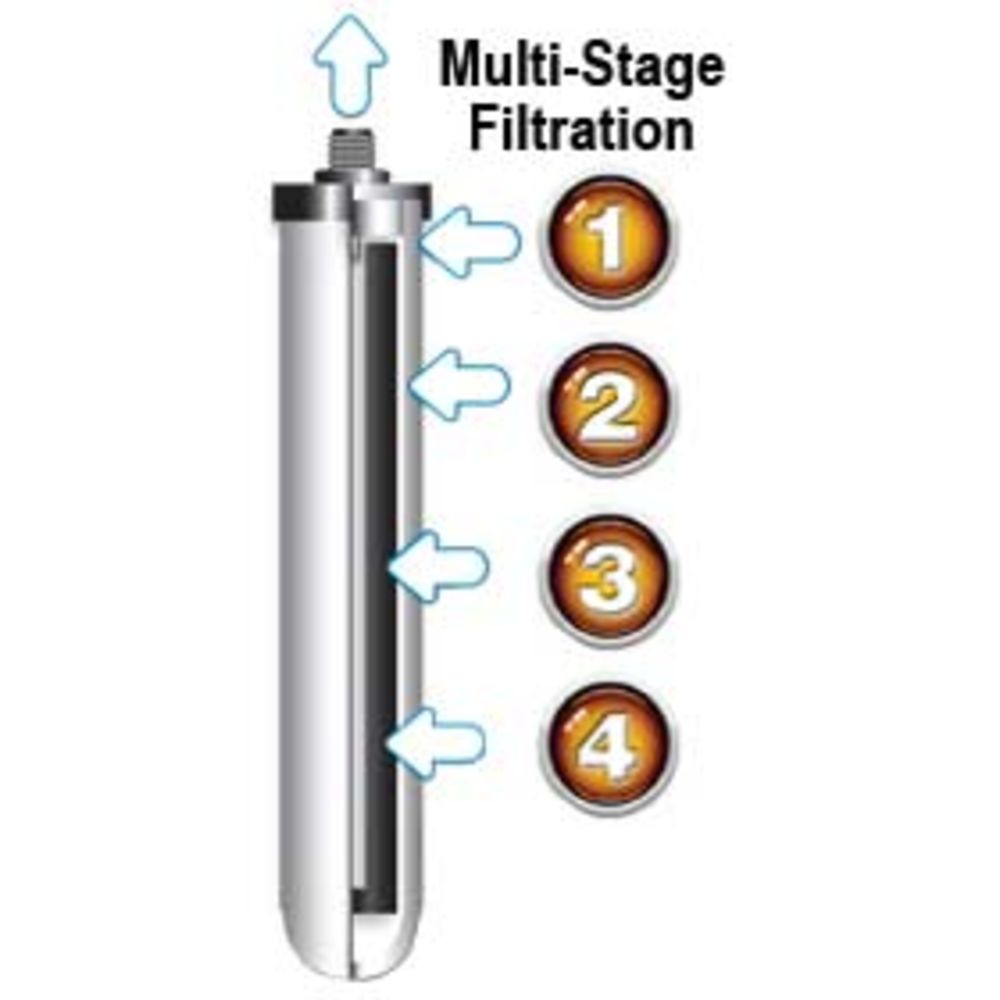

First Stage: The first stage consists of Doulton Ultracarb ceramic which provides genuine sub micron filtration. The cartridge reduces fine particulate matter, bacteria, cysts and turbidity.
Second Stage: The incorporation of silver locked within the ceramic structure gives enhanced bacteriostatic and self sterilizing properties.
Third Stage: An inner core of activated carbon block removes chlorine and organic compounds.
Fourth Stage: Ion exchange resin reduces lead and other heavy metals.

Specifications:

  • Cleanable filter element
  • Recommended flow rate: 0.3 - 0.5 gpm
  • Fits Doulton housings
  • Removes suspended solids, pathogenic bacteria, hydrogen sulphide, and lead
  • Improves tastes and reduces trace contaminants
  • Four filtration stages within a single candle
  • Filtration efficiency of > 99.99% at 0.9 microns
  • Filtration efficiency of > 99.9% at 0.5 to 0.8 microns
  • Highly efficient bacteriological filtration
  • Tested with live cryptosporidium to a removal efficiency 100%
  • Tested with live E.coli

Compatible replacement for:

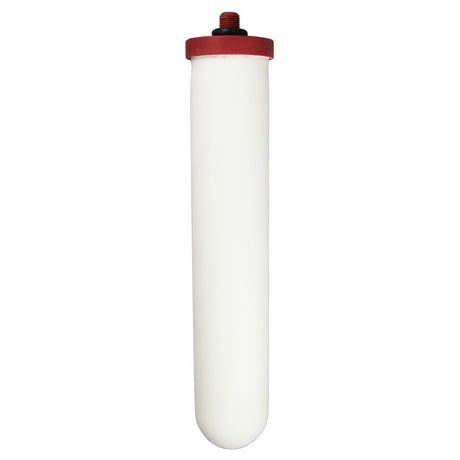

  • AquaCera W9512500 CeraUltra Ceramic Filter
  • Mountain Pure Water MT661/RFC Filter


Weight & Dimensions

Approx Length (Inches)

10" (25.4 cm)

Details

Capacity

6 months; 600 Gallons

Case Quantity

25

Connections

1/4" BSP - Short Mount (3/4")

Filter Application

Sediment/Dirt/Rust; Chlorine/Taste/Odor; Lead; Cyst; Bacteria Reduction

Flow Rate

.53 Gallons Per Minute

Media Type

Ceramic

Micron Rating (Absolute)

.9 Micron

Micron Rating (Nominal)

0.5-0.8 Micron

Operating Pressure Range

10-125 PSI

Operating Temperature Range

41-100 Degrees Celsius

Origin

England

Outer Diameter

2"

Warranty & Certifications

Certifications

NSF 42; NSF 53
