Crystal Mountain STF-M2KHK1C Storm Bottom Load Cooler H/C

Part Number: M2KHK1C
Your price:
similar items

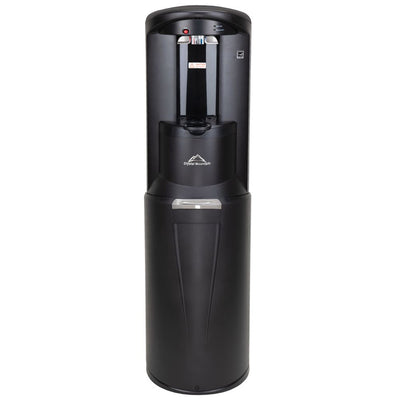

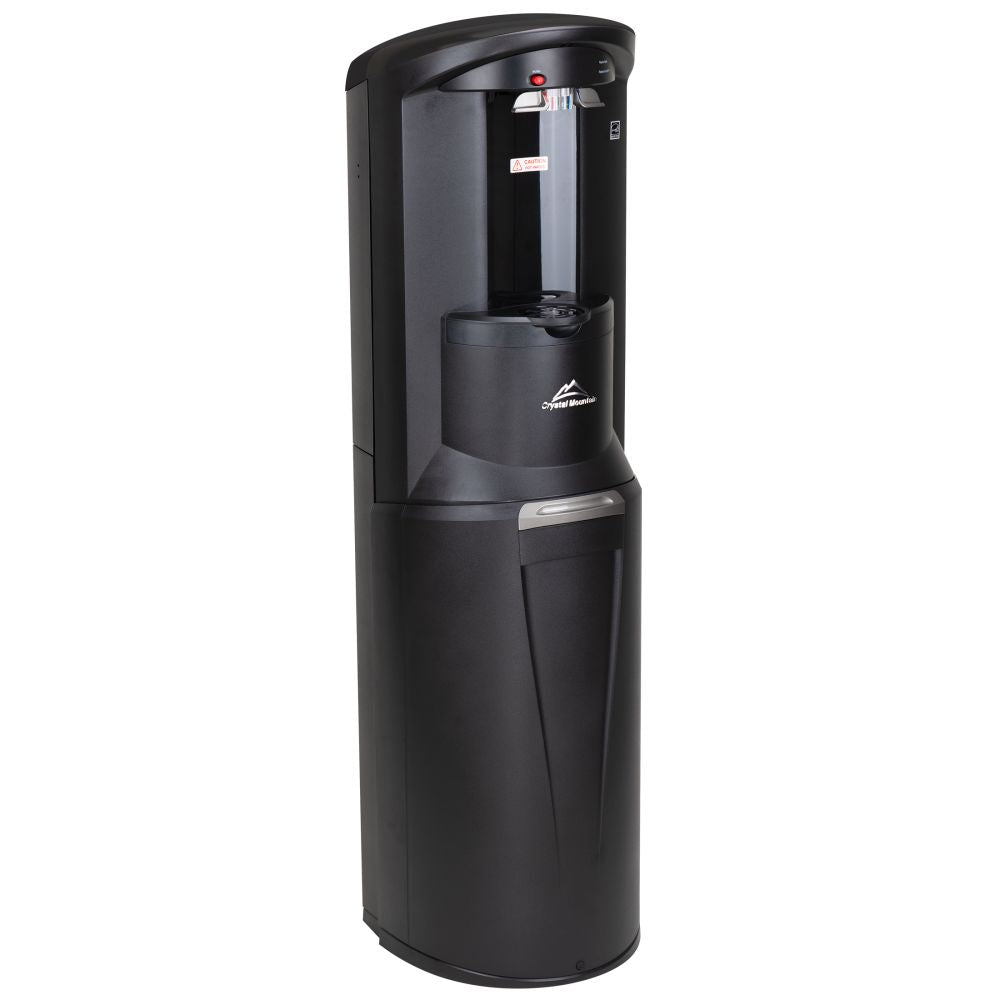

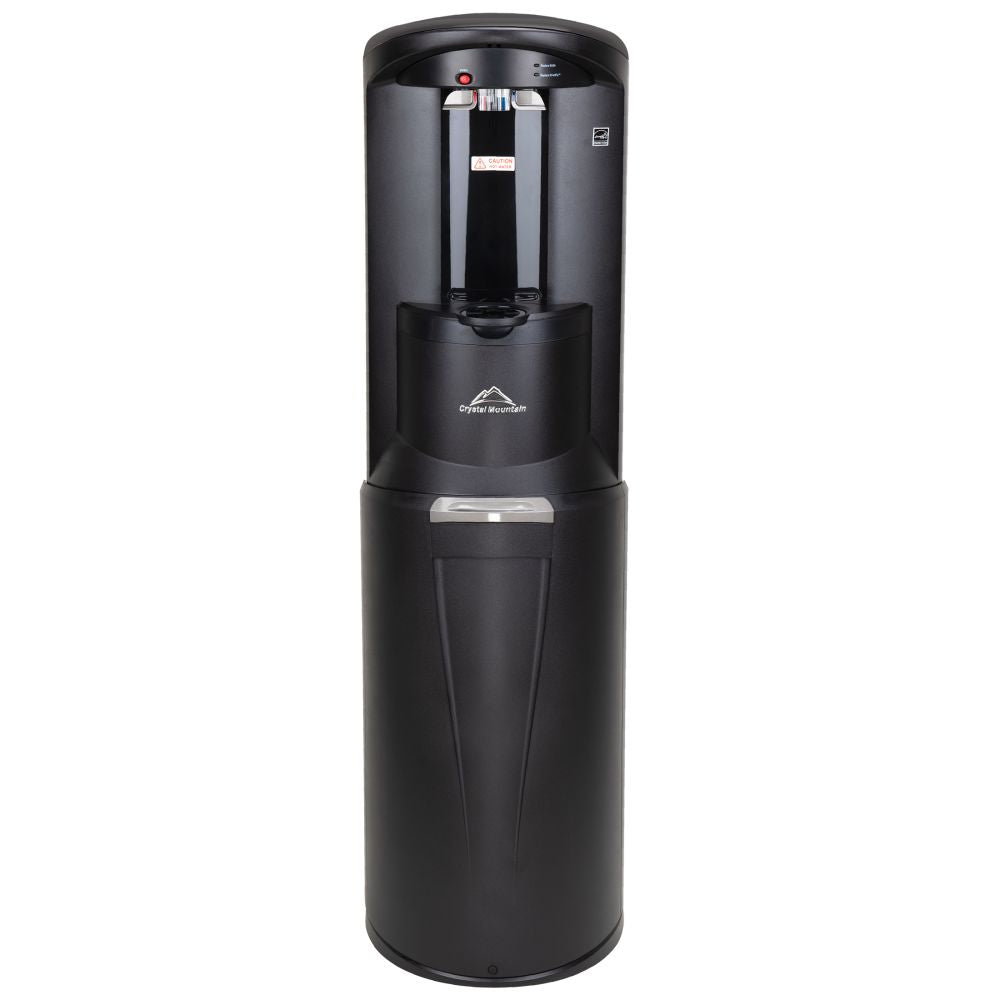

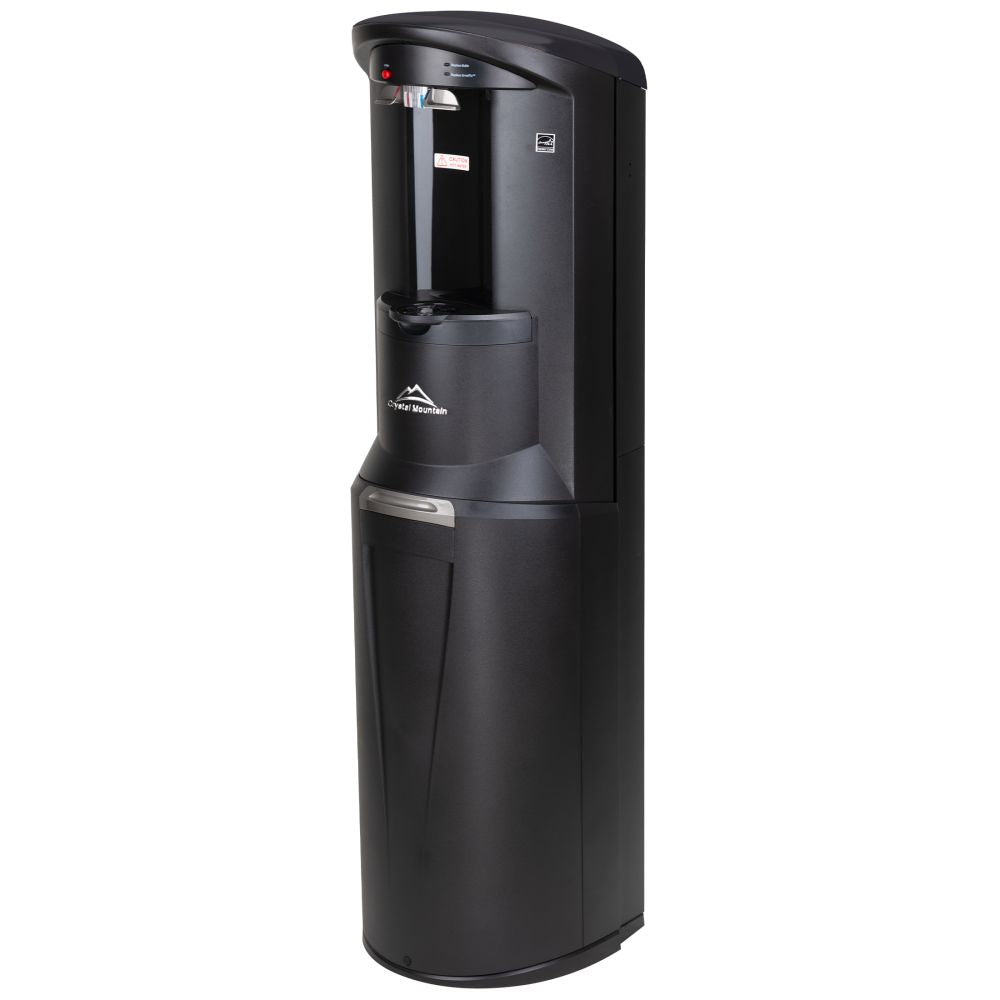

The Crystal Mountain STF-M2KHK1C Storm Bottom Load Cooler H/C is the latest model in Crystal Mountain's quality line of water coolers. The Storm cooler features the new bottom load bottle, which means no more lifting heavy water bottles! Simply open the front compartment door, and your bottle can effortlessly be slid into the base of the cooler. The Storm utilizes an easy to remove reservoir system that can be easily changed in less than a minute. With the handy LED indicator letting you know when your water level is low, you won't have to keep checking the bottle. Additionally, the recessed dispensing point helps to protect the water from contamination.

Servicing a water cooler has never been easier! With it's modern design, sleek finish, concealed faucets and easy maintenance, the Crystal Mountain Storm Cooler is sure to dazzle in any environment!

  • High gloss finish, with stainless look

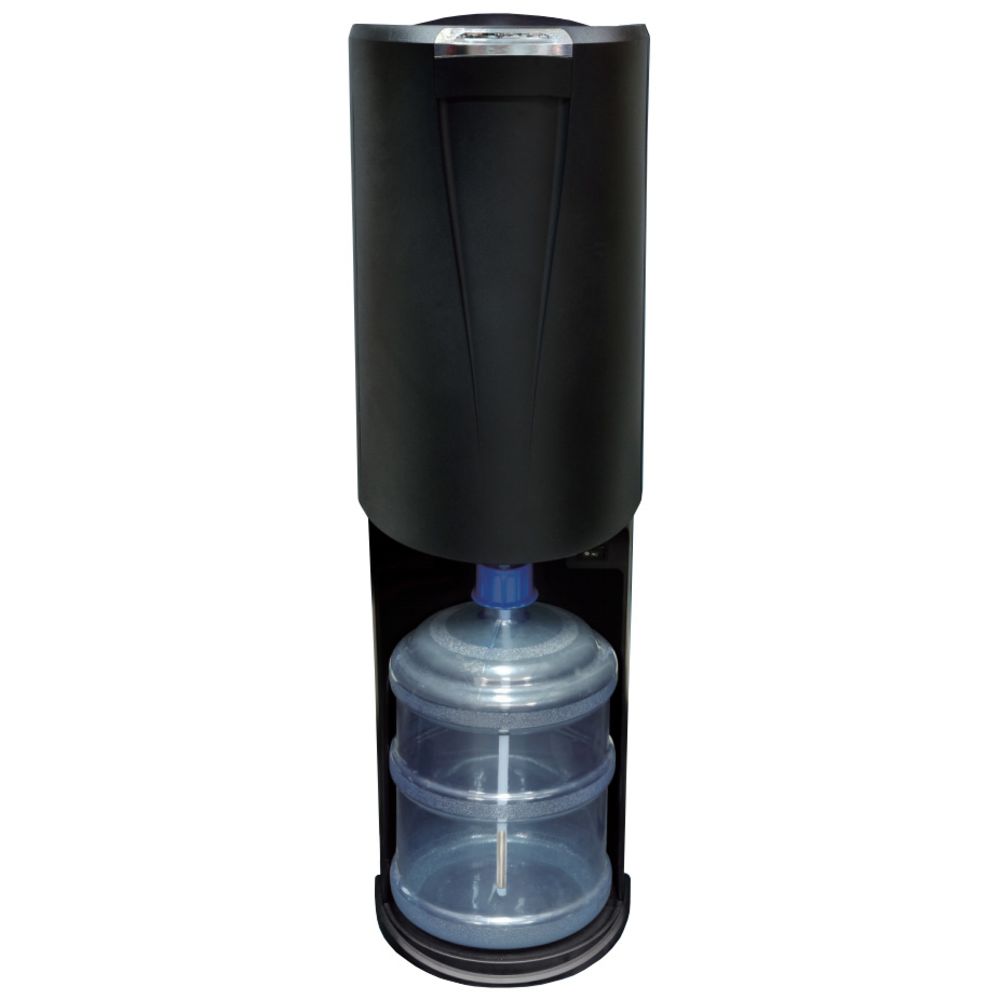

  • Hidden Bottle w/ space-saving sliding front door
  • LED low water indicator light over faucet
  • SmartFlo™ SF-1 Water Cartridge – replacing is simple, quick and hygienic
  • Ergonomic – higher dispense point
  • Removable drip tray
  • Commercial grade and quality construction
  • Large dispensing area for coffee pots and larger water bottles
  • Bottle Size: 3, 4, and 5 gallon bottles
  • Power Rating: 100-115VAC 60Hz,
  • single phase
  • Standard Current: H&C: 4.8~5.3A
  • Refrigerant Charge: 35g(1.2 oz)
  • Noise (Sound Power Level): Pump- 55dB(A); Compressor-43dB(A)
  • Product Dimensions: 12.6" x 13.4" x 43.9"
  • Certifications: C-UL-US, CE, CB, EPA
  • IEC protection class: Class 1
  • Energy star certified
Hot Specifications:
  • Power Consumption: 500W
  • Heater: Internal heater
  • Temperature Range: 168.8-197.6°F
  • Temperature Control: Bimetal (185°F)
  • Capacity (Internal Heater): 0.3 gallons
  • Safety Device: Bimetal (Manual reset: 203°F OFF)
Cold Specifications:
  • Cold: 70W
  • Compressor: Single phase motor
  • Refrigerant: R134a
  • Temperature Range: 39.2-50°F
  • Temperature Control: Thermostat (ON 46.5°F ±35°F, OFF 39°C ±35°C)
  • Volume of Cold Reservoir: 0.4 gallons

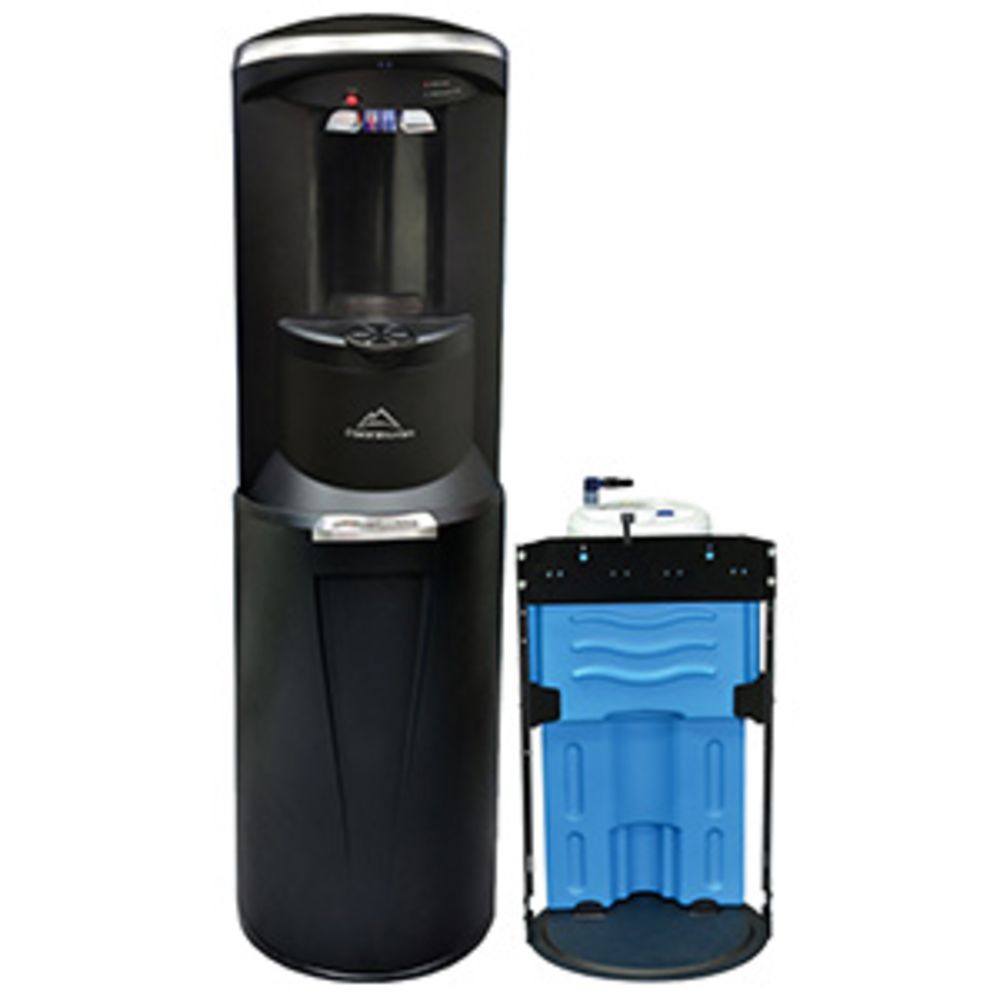

The SmartFlo SF-1 Water Cartridge was specially designed with ease of installation and sanitary replacement in mind. In less than 45 seconds, all water contact points can be exchanged, making change-outs not only quick and easy, but completely hygienic. When you replace the enclosed reservoir & Bottle Adaptor Assembly, all water contact parts are changed! The Storm POU Assembly easily and quickly converts the Storm bottle cooler to the Storm POU cooler. An air filter is incorporated into the top of the lid to protect the integrity of the water from airborne contaminants. This POU assembly uses a primary float with a secondary backup.

Please refer to the documentation section below for detailed installation instructions.
