Colder Products

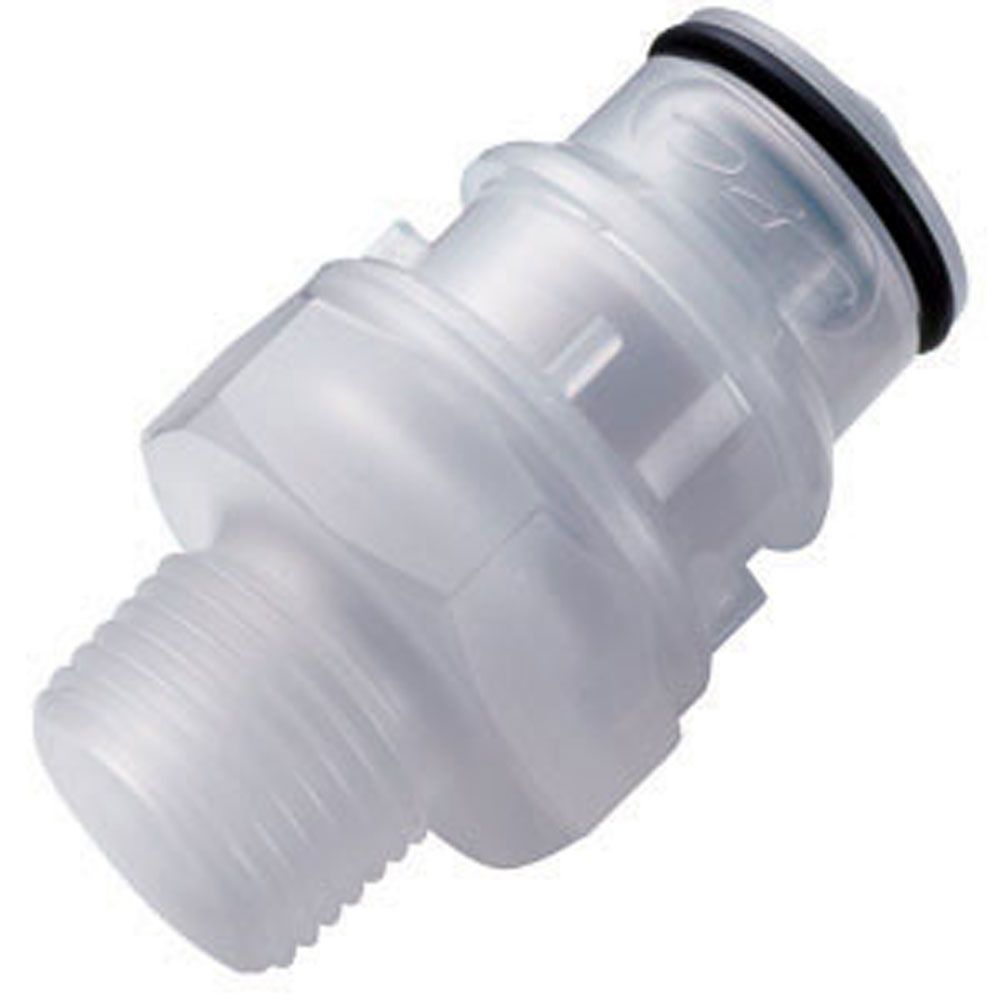

CQHD06200212 In-Line Coupling Insert 3/4" MNPT

Part Number: CQHD06200212

In Stock

out of stock

In Stock

$70.17

Specifications:
  • Material: Polypropylene
  • Material Finish: Natural
  • Color: White
  • Valve Option: Valved
  • Mounting Option: Thread
  • Pressure Range: Vacuum to 80 psi, 5.5 bar
  • Temperature Range: 32°F to 225°F


Details

Series

CQ

Thread Connection

3/4" | NPT

Body Material

Polypropylene

Color / Finish

White, Natural

Mounting Options

Thread

Operating Pressure Range

Vacuum to 80 psi, 5.5 bar PSI

Operating Temperature Range

32-225 Degrees Fahrenheit

Seal Material

Viton FKM

Spring

PEEK

Valve Type

Valved


CQHD06200212




Specifications:
  • Material: Polypropylene
  • Material Finish: Natural
  • Color: White
  • Valve Option: Valved
  • Mounting Option: Thread
  • Pressure Range: Vacuum to 80 psi, 5.5 bar
  • Temperature Range: 32°F to 225°F

Details

Series

CQ

Thread Connection

3/4" | NPT

Body Material

Polypropylene

Color / Finish

White, Natural

Mounting Options

Thread

Operating Pressure Range

Vacuum to 80 psi, 5.5 bar PSI

Operating Temperature Range

32-225 Degrees Fahrenheit

Seal Material

Viton FKM

Spring

PEEK

Valve Type

Valved

Documentation
CQHD06200212
