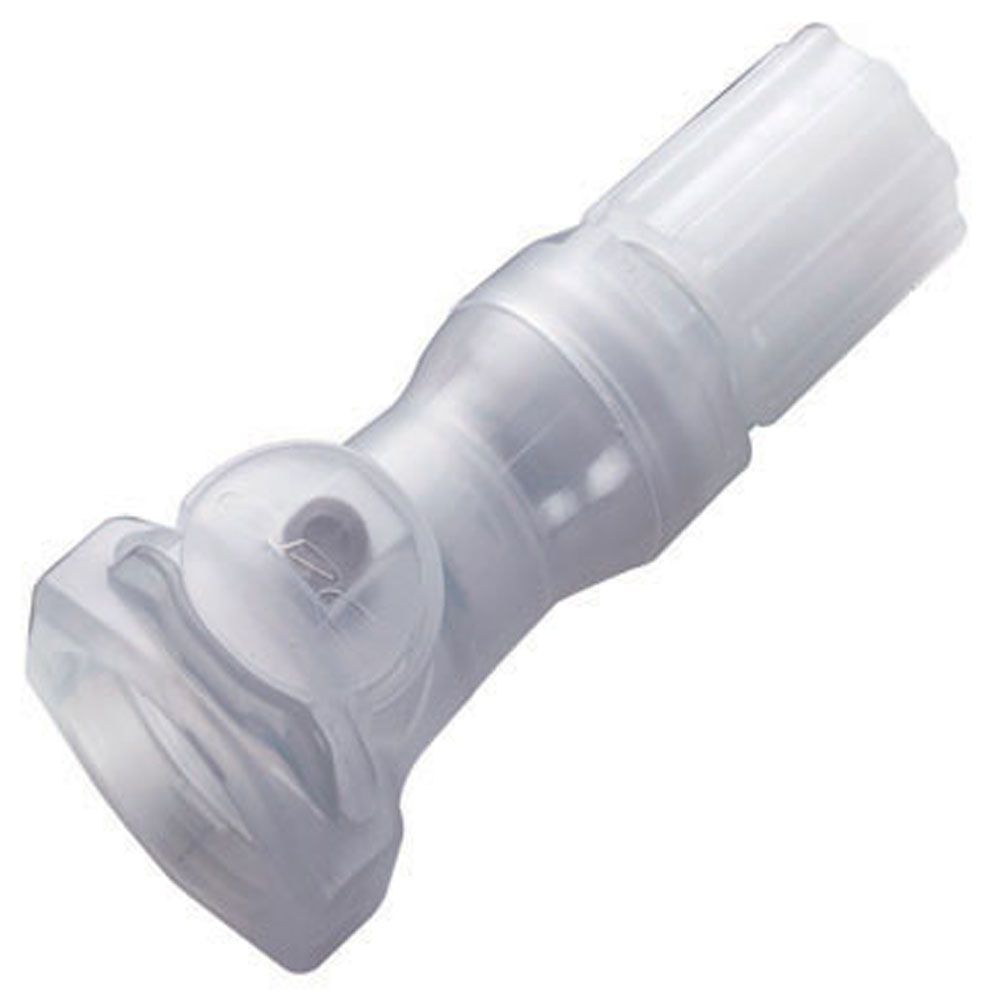

CQHD06100104 In-Line Coupling Body 1/4 Flare

The In-Line Coupling Body Flare is made of polypropylene with a natural finish. It has a pressure range of vacuum to 80 psi and a temperature range of 32 degrees Fahrenheit to 225 degrees Fahrenheit.

Specifications:

Color: White
Valve Option: Valved
Mounting Opti:Free Floating

NOTE: If interested in buying the CQHD06100104 in large quantities, please contact one of our Customer Service Representatives at 877-335-3339 to discuss available pack-quantity discounts.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water High Purity
Body Material	Virgin Polypropylene
Inlet Connection	1/4" Flare
Max Pressure (Psi)	80
Max Temp (°F)	225
Min Pressure (Psi)	0
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	1/4" Flare
Seal Material	FKM (Viton)
Series	CQH
Shape	Straight
Size	1/4"
Spring	PEEK
Valve Type	Valved
Color / Finish	White Natural
Connection Type	Flare
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	0.3

Product Details
Application	Water High Purity
Body Material	Virgin Polypropylene
Inlet Connection	1/4" Flare
Max Pressure (Psi)	80
Max Temp (°F)	225
Min Pressure (Psi)	0
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	1/4" Flare
Seal Material	FKM (Viton)
Series	CQH
Shape	Straight
Size	1/4"
Spring	PEEK
Valve Type	Valved
Color / Finish	White Natural
Connection Type	Flare
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	3

Product Details
Application	Water High Purity
Body Material	Virgin Polypropylene
Inlet Connection	1/4" Flare
Max Pressure (Psi)	80
Max Temp (°F)	225
Min Pressure (Psi)	0
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	1/4" Flare
Seal Material	FKM (Viton)
Series	CQH
Shape	Straight
Size	1/4"
Spring	PEEK
Valve Type	Valved
Color / Finish	White Natural
Connection Type	Flare
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	5

CQHD06100104 In-Line Coupling Body 1/4 Flare Manual
