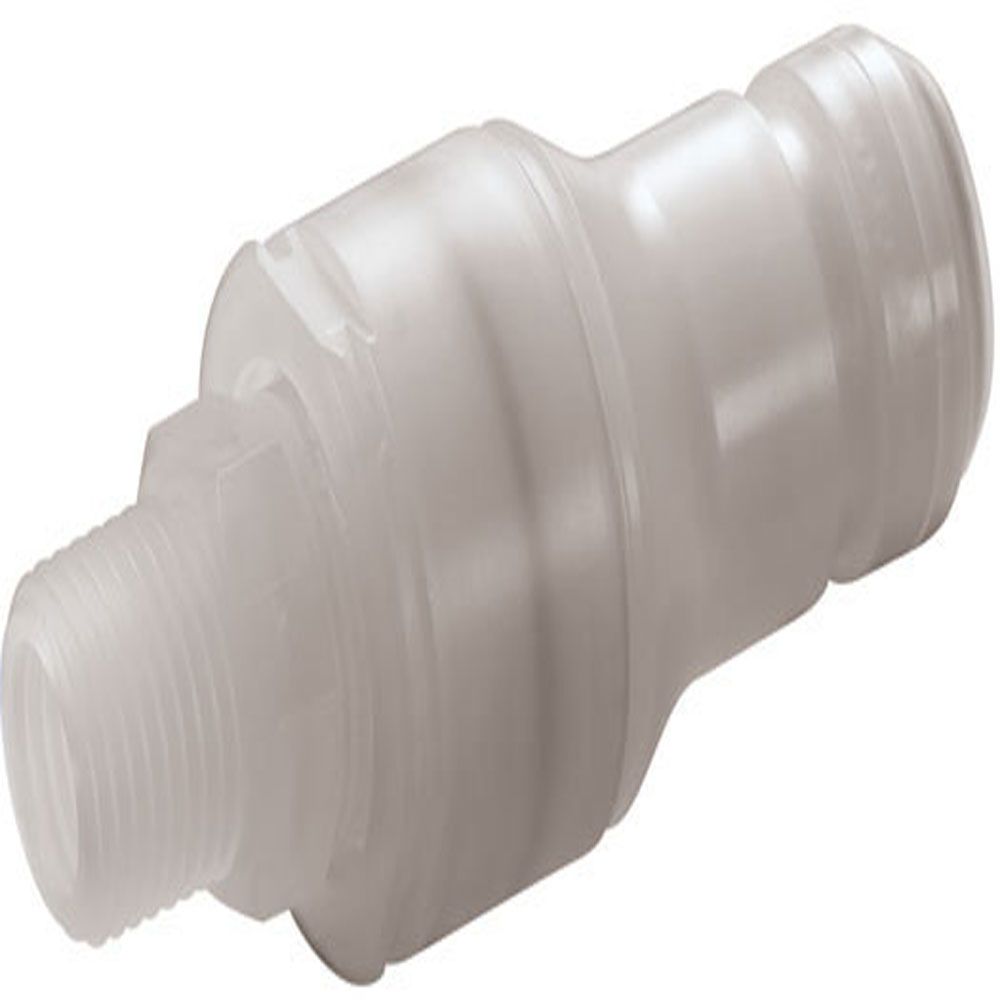

CQGD06200108 In-Line Coupling Insert 1/2 Flare

CQG Series high purity couplings feature our patented pressure-balanced, non-spill design. Molded virgin polypropylene and a 100% springless flow path provide broad chemical resistance and exceptionally high flow capacity, allowing instant disconnects (and reconnects), even under pressure.

Specifications:

Material: Polypropylene
Material Finish: Natural
Color: White
Valve Option: Valved
Mounting Option: Free Floating
Pressure Range: Vacuum to 120 psi, 5.5 bar
Temperature Range: 32°F to 150°F

NOTE: If interested in buying the CQGD06200108 in large quantities, please contact one of our Customer Service Representatives at 877-335-3339 to discuss available pack-quantity discounts.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water High Purity
Body Material	Virgin Polypropylene
Inlet Connection	1/2" Flare
Max Pressure (Psi)	80
Max Temp (°F)	150
Min Pressure (Psi)	0
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	1/2" Flare
Seal Material	FKM (Viton)
Series	CQG
Shape	Straight
Size	1/2"
Spring	Hastelloy C
Valve Type	Valved
Color / Finish	White Natural
Connection Type	Flare
Type	Coupling Insert

Product Details
Application	Water High Purity
Body Material	Virgin Polypropylene
Inlet Connection	1/2" Flare
Max Pressure (Psi)	80
Max Temp (°F)	150
Min Pressure (Psi)	0
Min Temp (°F)	32
Mounting Options	Free Floating
Outlet Connection	1/2" Flare
Seal Material	FKM (Viton)
Series	CQG
Shape	Straight
Size	1/2"
Spring	Hastelloy C
Valve Type	Valved
Color / Finish	White Natural
Connection Type	Flare
Type	Coupling Insert

Product Details
Application	Water High Purity
Body Material	Virgin Polypropylene
Inlet Connection	1/2" Flare
Max Pressure (Psi)	80
Max Temp (°F)	150
Min Pressure (Psi)	0
Min Temp (°F)	32
Mounting Options	Free Floating
Outlet Connection	1/2" Flare
Seal Material	FKM (Viton)
Series	CQG
Shape	Straight
Size	1/2"
Spring	Hastelloy C
Valve Type	Valved
Color / Finish	White Natural
Connection Type	Flare
Type	Coupling Insert

CQGD06200108 In-Line Coupling Insert 1/2 Flare Manual
