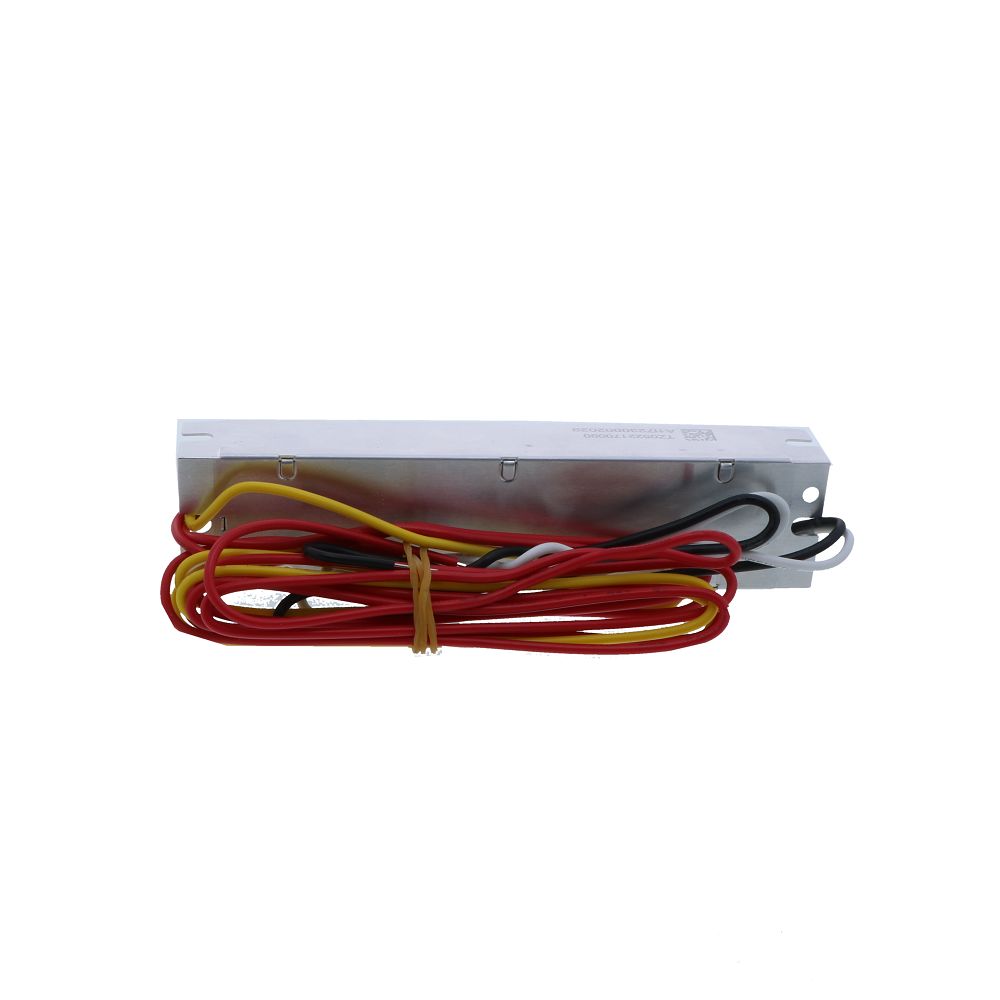

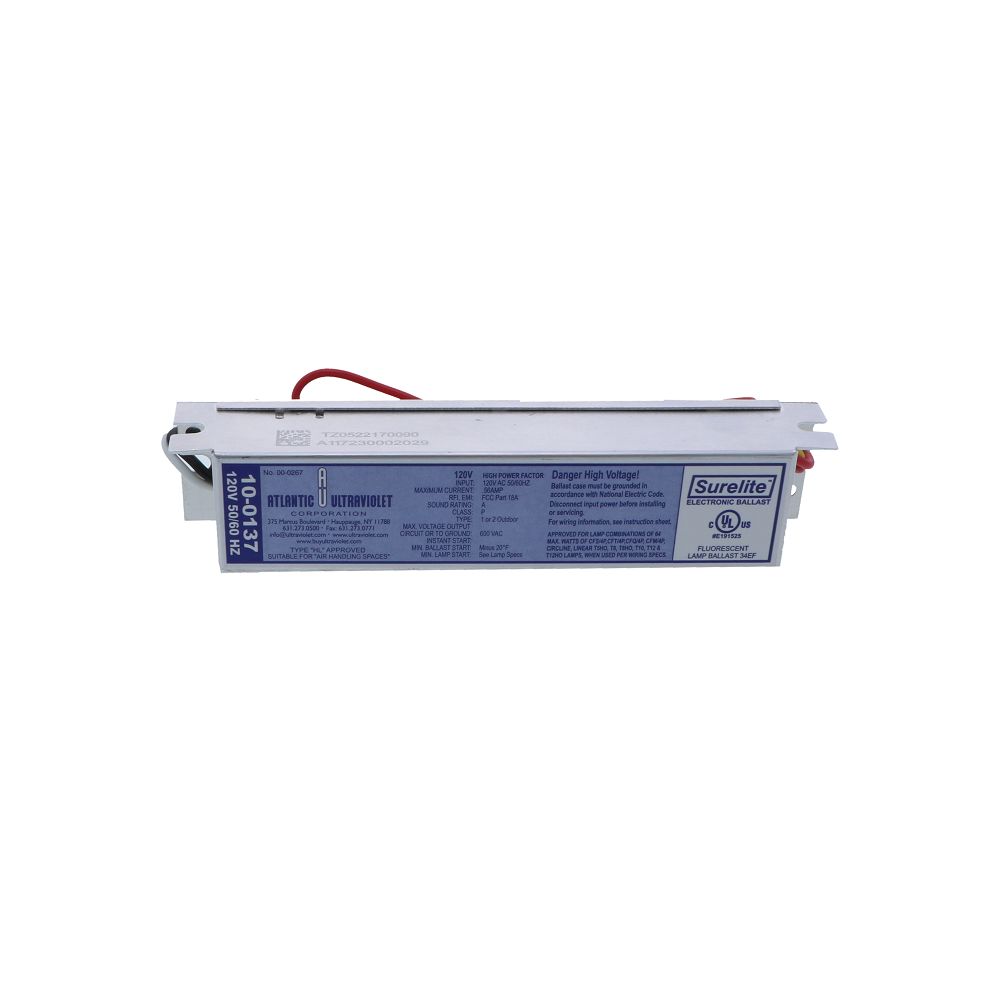

Compatible Transformer Ballast for Mighty Pure and Sanitron Series 120V

Part Number: 10-0137-A

Alt. Part Number: replaces 10-1036, 10-1073, 10-1049, & 10-1071, BA-539, 10-0137

In Stock

out of stock

In Stock

$75.00


120v/60Hz replacement transformer ballast for MightyPure MP16A, MP22A, MP36C, and MP49C lamps and Sanitron S17A (05-1098-R), S23A (05-1097-R), S37C (05-1343-R), and S50C (05-1334-R) lamps. It can also be used with G12, G48T5, GPH212, and GPH1148T5 germicidal lamps.This ballast can also be used to replace the obsolete Sterilight BA-539 magnetic ballast. The two red wires get twisted together as described in the wiring diagram linked below. This new improved version replaces older 120V/60Hz Transformer Ballast part numbers: 10-1036, 10-1071, 10-1073 and 10-1049. The Sanitron S50 Series in 120V accepts either the 10-0137 or 10-0091 Transformer Ballast. Also replaces part number 10-1079 for the ROMP36 system, and the Atlantic Treatment Services part number BA-ATS8-224 for the Hydroflo UV-10A system.

NOTE: The 10-0137 ballast may be wired differently from older, obsolete models.

Compatible with: ATS Misc Parts | BA-ATS8-224


Details

Frequency

50-60 Hz

Type

See Chart On Next Page

Voltage

120 V




120v/60Hz replacement transformer ballast for MightyPure MP16A, MP22A, MP36C, and MP49C lamps and Sanitron S17A (05-1098-R), S23A (05-1097-R), S37C (05-1343-R), and S50C (05-1334-R) lamps. It can also be used with G12, G48T5, GPH212, and GPH1148T5 germicidal lamps.This ballast can also be used to replace the obsolete Sterilight BA-539 magnetic ballast. The two red wires get twisted together as described in the wiring diagram linked below. This new improved version replaces older 120V/60Hz Transformer Ballast part numbers: 10-1036, 10-1071, 10-1073 and 10-1049. The Sanitron S50 Series in 120V accepts either the 10-0137 or 10-0091 Transformer Ballast. Also replaces part number 10-1079 for the ROMP36 system, and the Atlantic Treatment Services part number BA-ATS8-224 for the Hydroflo UV-10A system.

NOTE: The 10-0137 ballast may be wired differently from older, obsolete models.

Compatible with: ATS Misc Parts | BA-ATS8-224

Details

Frequency

50-60 Hz

Type

See Chart On Next Page

Voltage

120 V
