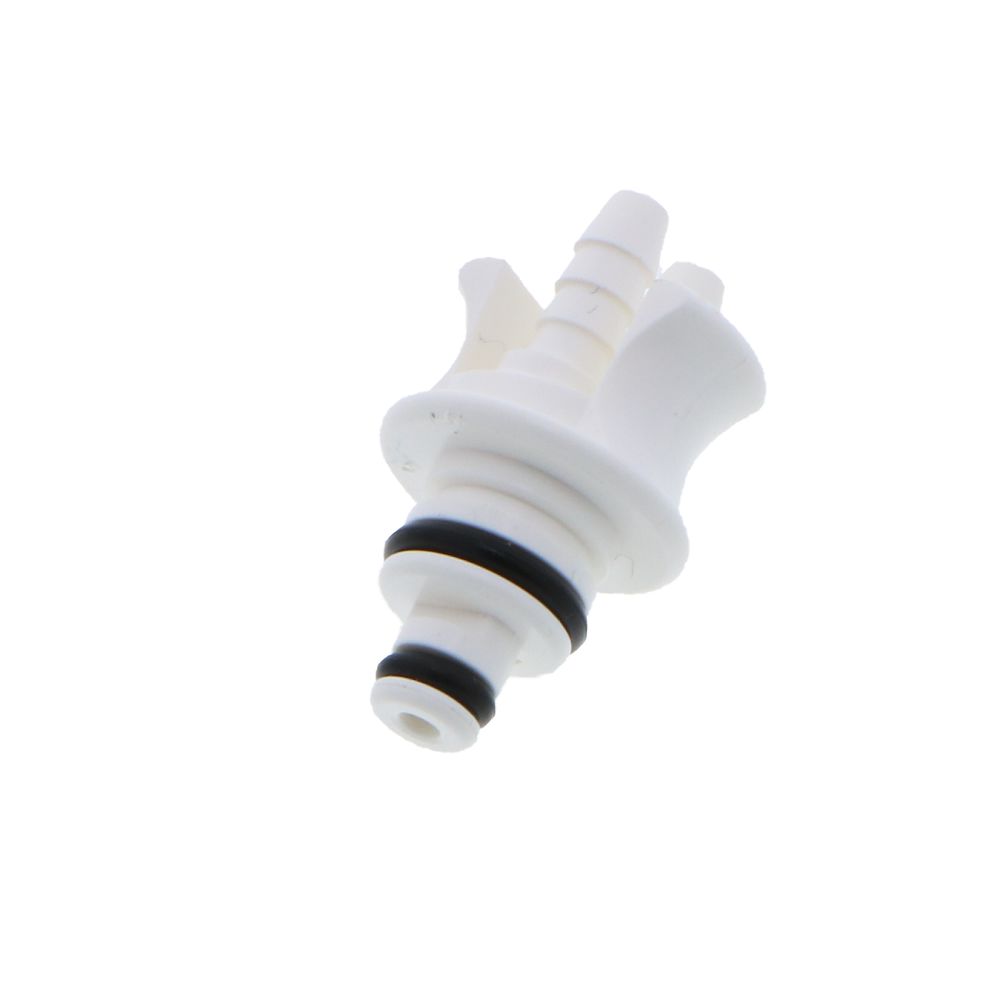

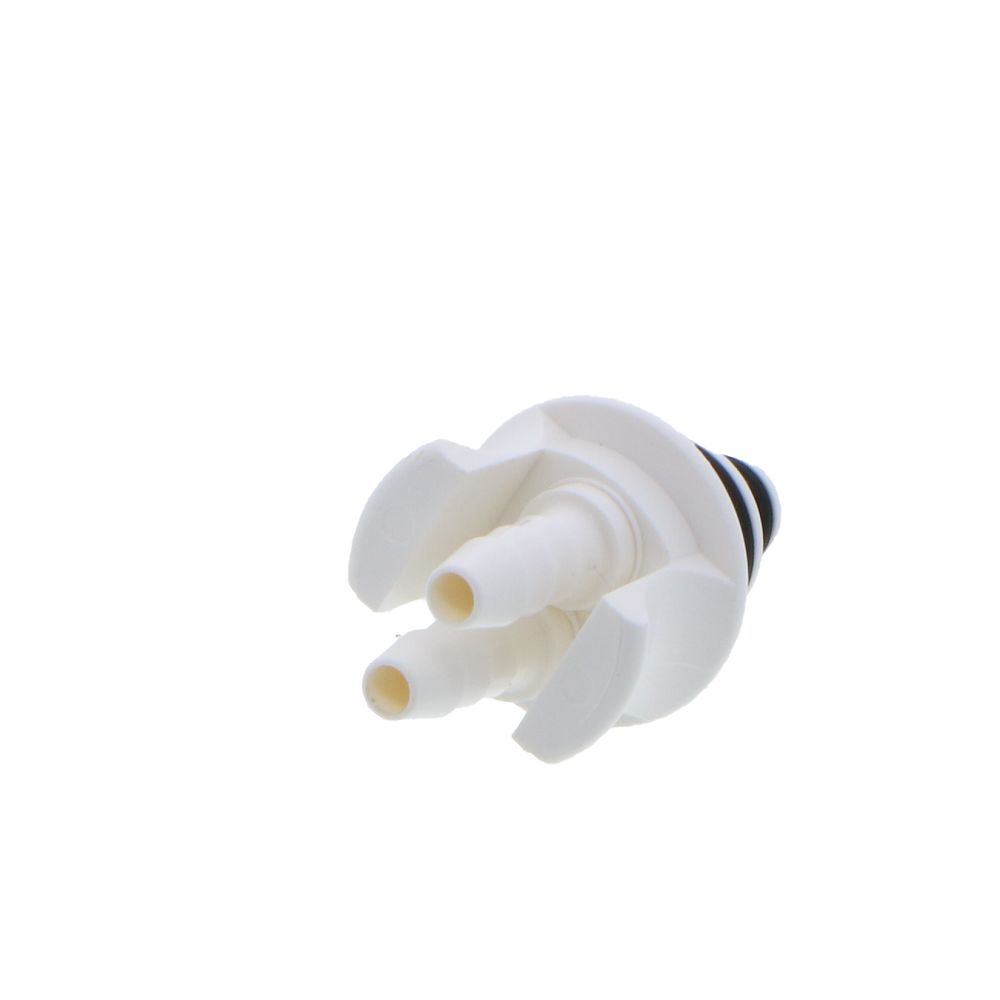

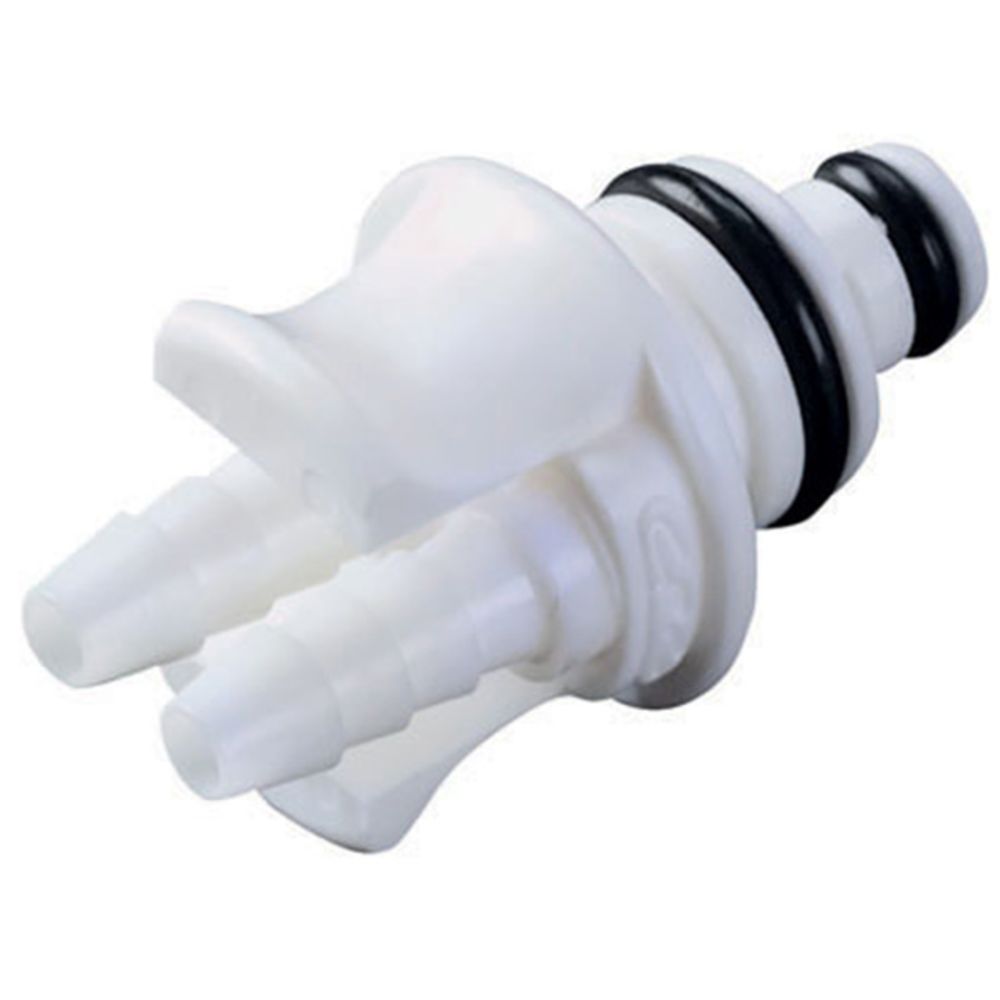

Colder PTC2202096 Non-Valved Free Floating Hose Barb Coupling Insert - 1/8 ID Barb

PTC Twin Tube Series Coupling Body with a 1/8" hose barb features an acetal shrouded thumb latch allowing quick and easy disconnection. The twin tube coupling body allows two separate flow paths in the same coupling body, and delivers excellent flow in a compact size.

Specifications:

Material: ABS
Material Finish: Natural
Color: White
Valve Option: Non-Valved
O-rings: Buna-N
Mounting Option: Free Floating
Pressure Range: Vacuum to 120 psi, 8.3 bar
Temperature Range: -40ºF to 180ºF
Sterilization: Gamma

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	1/8" ID
Body Material	ABS
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Seal Material	Buna-N
Series	Twin Tube
Shape	Straight
Valve Type	Non-Valved
Color / Finish	White
Origin	U.S.A.
Type	Coupling Insert
