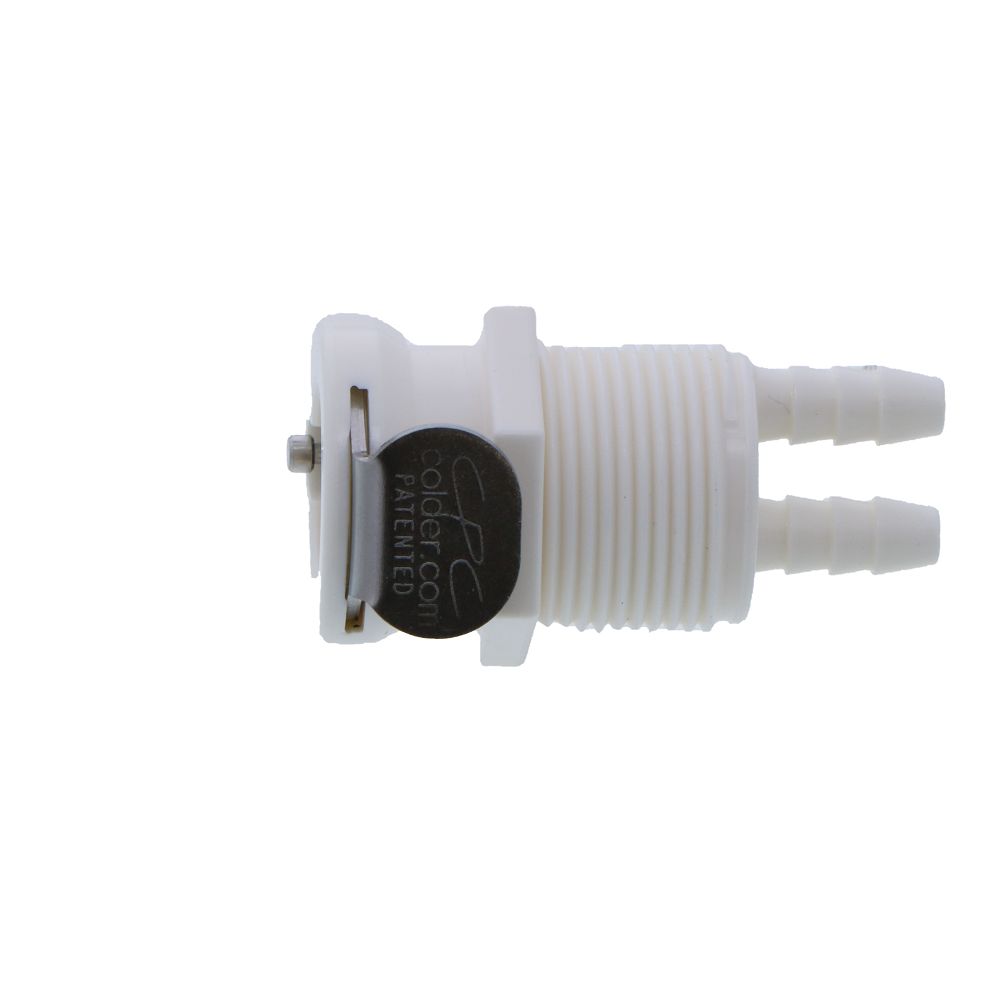

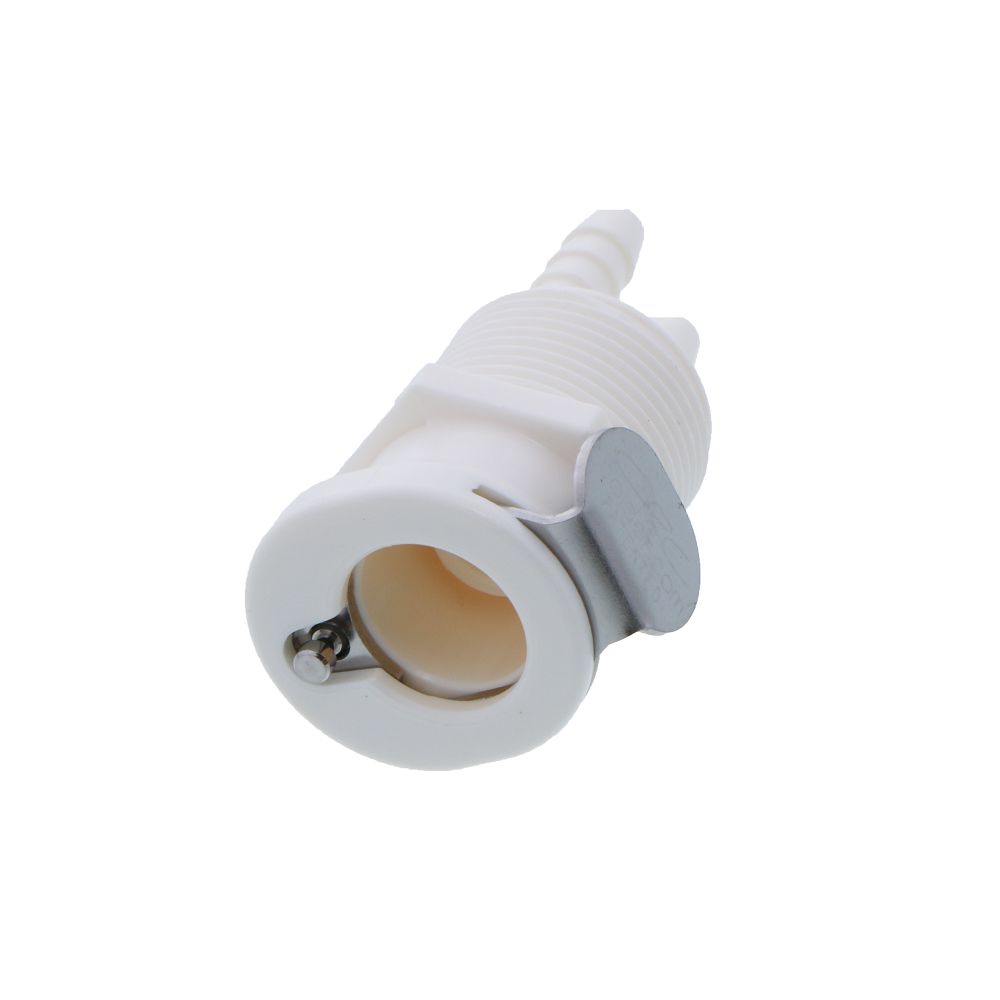

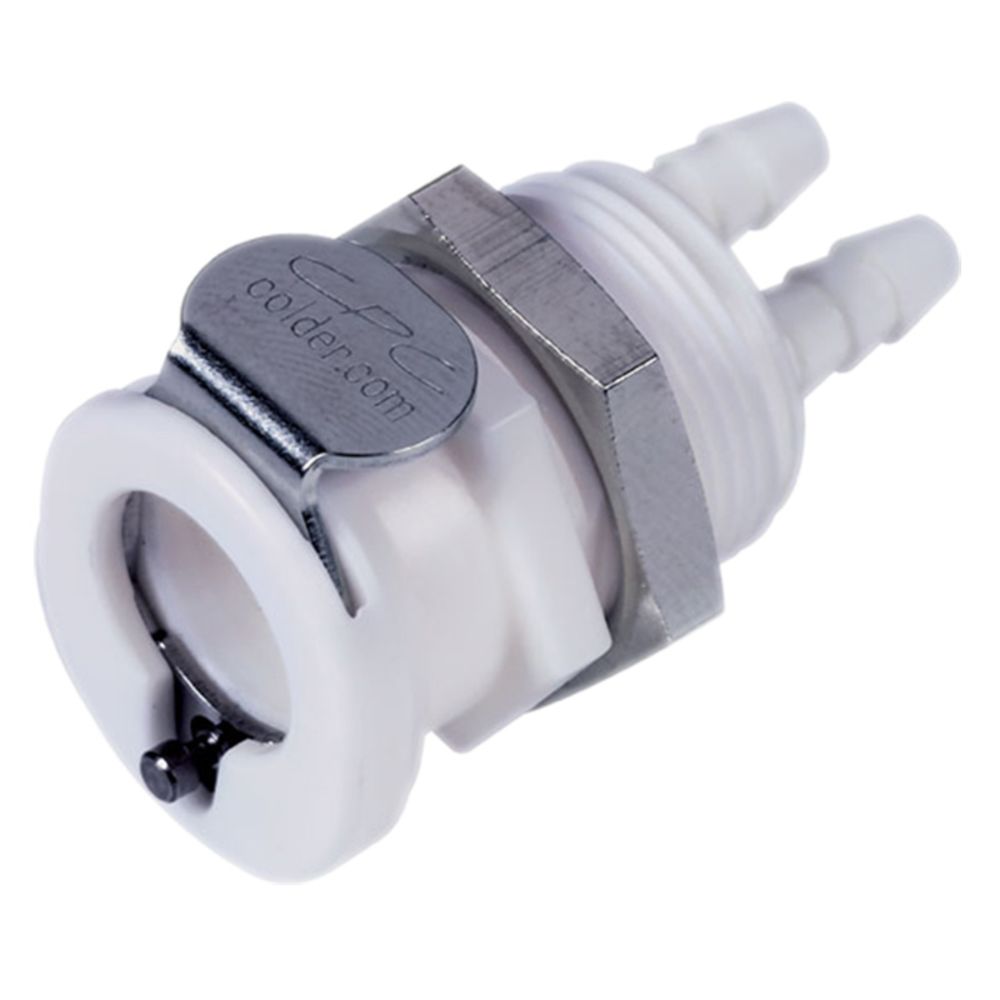

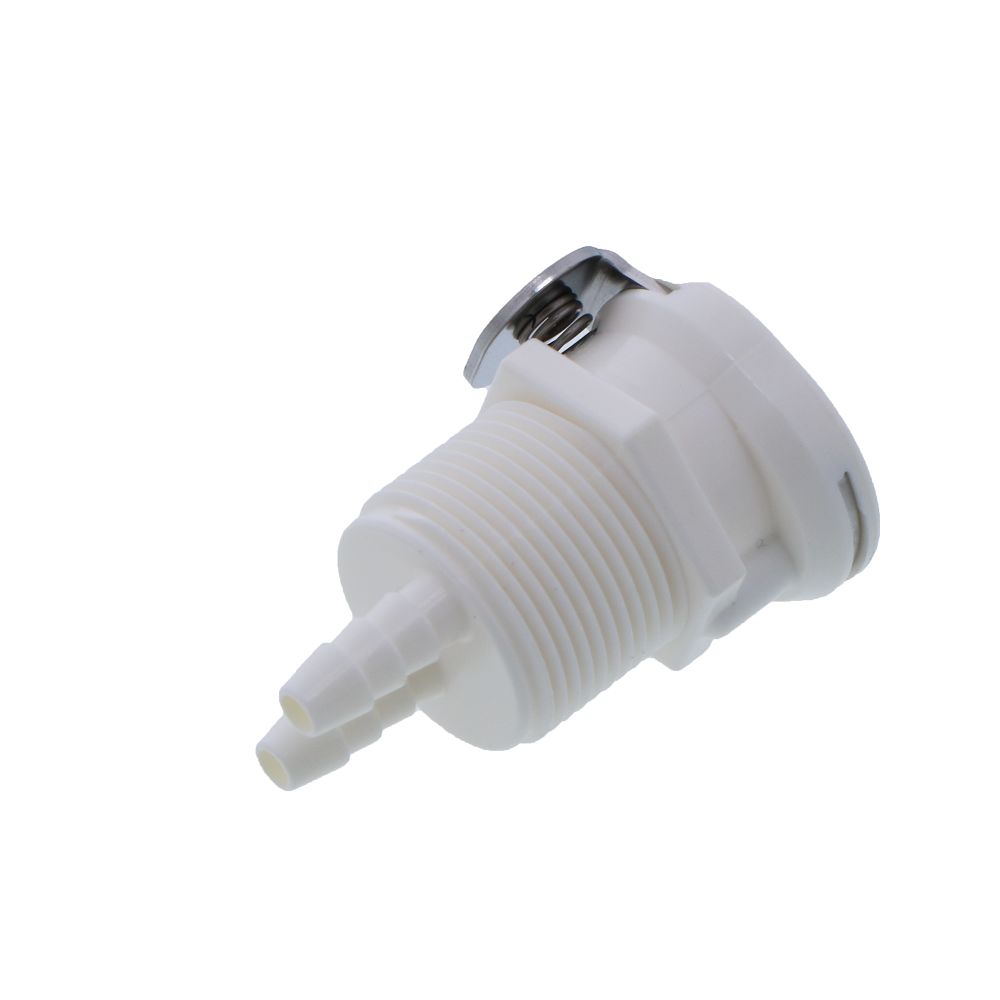

Colder PTC1602096 Non-Valved Panel Mount Hose Barb Coupling Body - 1/8 ID Barb

PTC Twintube Series Coupling Body with a 1/8" hose barb features an ABS shrouded thumb latch allowing quick and easy disconnection. The twin tube coupling body allows two separate flow paths in the same coupling body, and delivers excellent flow in a compact size.

Specifications:

Material: ABS
Material Finish: Natural
Color: White
Valve Option: Non-Valved
Mounting Option: Panel Mount
O-rings: Buna-N
Pressure Range: Vacuum to 120 psi, 8.3 bar
Temperature Range: -40ºF to 180ºF
Sterilization: Gamma

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	1/8" ID
Body Material	ABS
External Springs And Pin	Stainless Steel
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Panel Mount
Nsf Version	No
Series	Twin Tube
Shape	Straight
Thumb Latch	Stainless steel
Valve Type	Non-Valved
Color / Finish	White
Origin	U.S.A.
Type	Coupling Body

Product Details
Application	Water
Barb Size	1/8" ID
Body Material	ABS
External Springs And Pin	Stainless Steel
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Panel Mount
Nsf Version	No
Series	Twin Tube
Shape	Straight
Thumb Latch	Stainless steel
Valve Type	Non-Valved
Color / Finish	White
Origin	U.S.A.
Type	Coupling Body

Product Details
Application	Water
Barb Size	1/8" ID
Body Material	ABS
External Springs And Pin	Stainless Steel
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Panel Mount
Nsf Version	No
Series	Twin Tube
Shape	Straight
Thumb Latch	Stainless steel
Valve Type	Non-Valved
Color / Finish	White
Origin	U.S.A.
Type	Coupling Body
