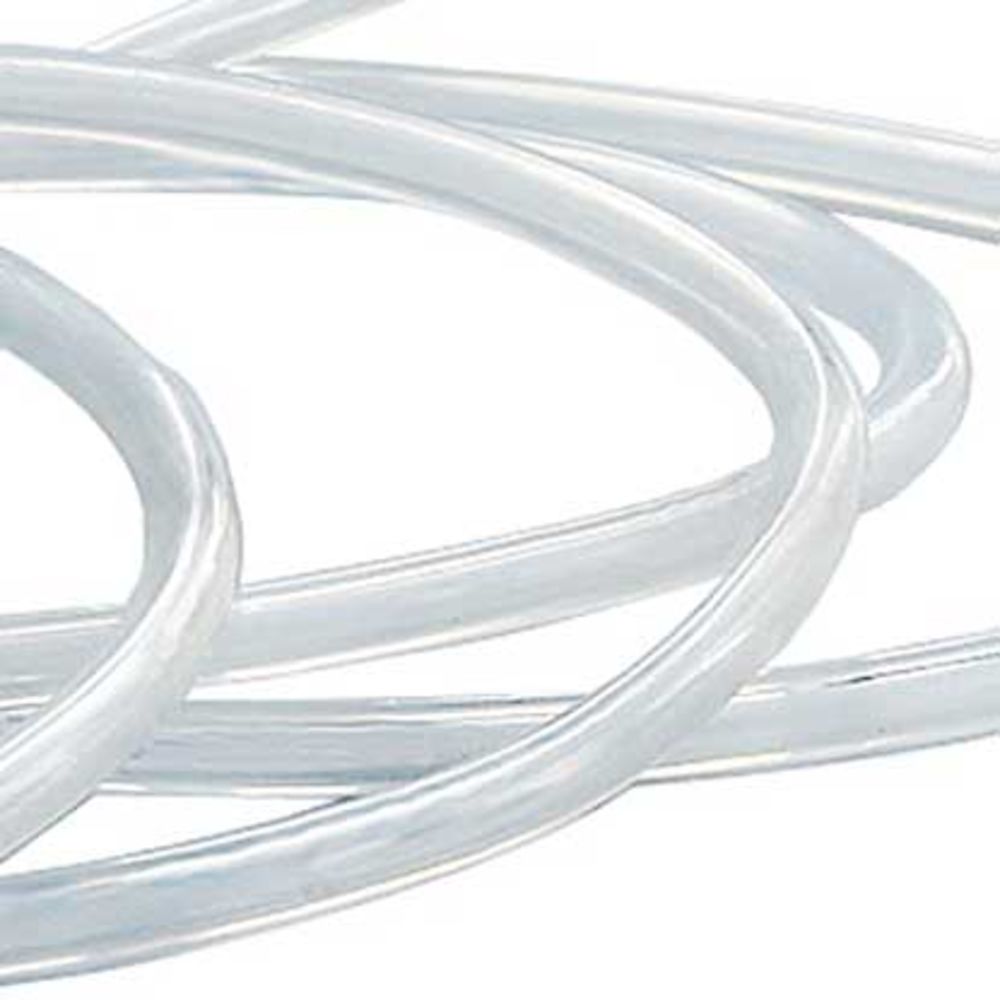

Clear Polyurethane Ether Based Tubing is made from non-toxic ingredients and conforms to FDA standards for use with wet and fatty food contact surfaces. It is transparent, flexible, resilient and resistant to weathering, tearing, impact, radiation and abrasion. This ether-based tubing is NSF-61 listed for use with potable water and is also resistant to oils, greases and fuels.
Features:
This tubing is comparable to tubing from other manufacturers including New Age Industries Superthane 2101148.
*Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment.
Features:
- Can be heat sealed, coiled, fabricated or bonded
- Contains no plasticizer which could cause flow contamination or tube hardening
- Tubing ID: 3/8"
- Tubing OD: 1/2"
- Tubing Material: Unreinforced Clear Polyurethane Tubing (Ether Based)
- Brittle Temperature: -90° F
- Working Pressure: 59 psi @ 70° F
- Approved by FDA, NSF-61
- Coil Length: 100'*
- Cable Jacketing
- Clean Liquids
- Computer Manufacture
- Fuel Lines (Small Motor)
- Gases
- Granular Materials
- Grease and Lubrication Lines
- Instrumentation
- Insulation Sleeves
- Internal Contamination Fluids
- Metering Pumps
- Nuclear Power Facilities
- Pressure Measuring Devices
- Robotics
- Slurry Transfer
- Vacuum Lines
- Washers and Bumpers
This tubing is comparable to tubing from other manufacturers including New Age Industries Superthane 2101148.
*Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment.
Details
Application | Potable Water, Grease Lines, Oxygen and Other Gas Lines, Pressure Measuring Devices, Robotics, Small Motor Fuel Lines, Vacuum |
Brittle Temperature | -90 °F |
Hardness, Shore A | 85 |
Material Of Construction | Polyurethane |
Max Pressure (Psi) | 59 |
Max Temp (°F) | 175 |
Tensile Strength | 5500 PSI |
Thickness | 1/16" |
Diameter | 1/2" |
Inner Diameter | 3/8" |
Warranty & Certifications
Certifications | NSF-61 |
Clear Polyurethane Ether Based Tubing is made from non-toxic ingredients and conforms to FDA standards for use with wet and fatty food contact surfaces. It is transparent, flexible, resilient and resistant to weathering, tearing, impact, radiation and abrasion. This ether-based tubing is NSF-61 listed for use with potable water and is also resistant to oils, greases and fuels.
Features:
- Can be heat sealed, coiled, fabricated or bonded
- Contains no plasticizer which could cause flow contamination or tube hardening
- Tubing ID: 3/8"
- Tubing OD: 1/2"
- Tubing Material: Unreinforced Clear Polyurethane Tubing (Ether Based)
- Brittle Temperature: -90° F
- Working Pressure: 59 psi @ 70° F
- Approved by FDA, NSF-61
- Coil Length: 100'*
- Cable Jacketing
- Clean Liquids
- Computer Manufacture
- Fuel Lines (Small Motor)
- Gases
- Granular Materials
- Grease and Lubrication Lines
- Instrumentation
- Insulation Sleeves
- Internal Contamination Fluids
- Metering Pumps
- Nuclear Power Facilities
- Pressure Measuring Devices
- Robotics
- Slurry Transfer
- Vacuum Lines
- Washers and Bumpers
This tubing is comparable to tubing from other manufacturers including New Age Industries Superthane 2101148.
*Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment.
Details
Application | Potable Water, Grease Lines, Oxygen and Other Gas Lines, Pressure Measuring Devices, Robotics, Small Motor Fuel Lines, Vacuum |
Brittle Temperature | -90 °F |
Hardness, Shore A | 85 |
Material Of Construction | Polyurethane |
Max Pressure (Psi) | 59 |
Max Temp (°F) | 175 |
Tensile Strength | 5500 PSI |
Thickness | 1/16" |
Diameter | 1/2" |
Inner Diameter | 3/8" |
Warranty & Certifications
Certifications | NSF-61 |
