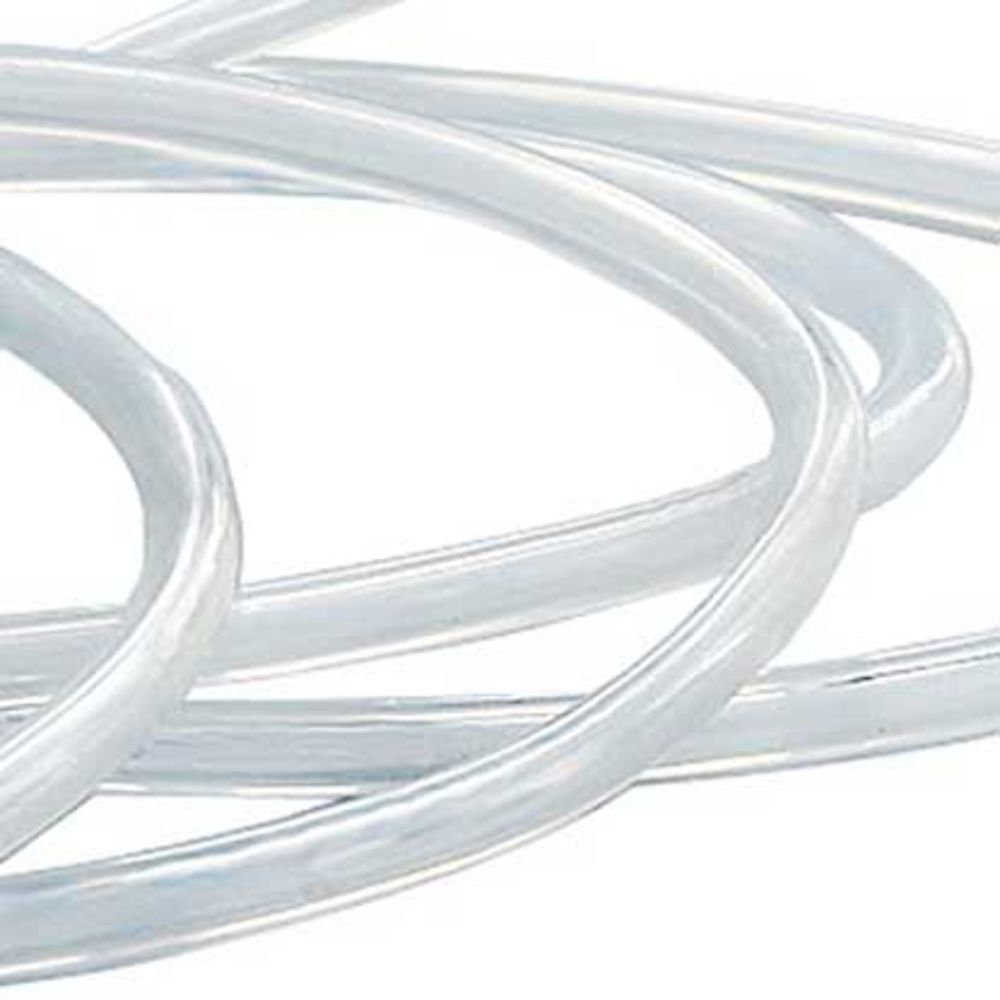

Clear Polyurethane Ether Based Tubing 3/16 ID x 5/16 OD x 1'

Part Number: PU-0305

In Stock

out of stock

In Stock

$0.45

Intedned Use:
Clear Polyurethane Ether Based Tubing is made from non-toxic ingredients and conforms to FDA standards for use with wet and fatty food contact surfaces. It is transparent, flexible, resilient and resistant to weathering, tearing, impact, radiation and abrasion. This ether-based tubing is NSF-61 listed for use with potable water and is also resistant to oils, greases and fuels.

Specifications:
  • Can be heat sealed, coiled, fabricated or bonded
  • Contains no plasticizer which could cause flow contamination or tube hardening
  • Tubing ID: 3/16"
  • Tubing OD: 5/16"
  • Tubing Material: Unreinforced Clear Polyurethane Tubing (Ether Based)
  • Brittle Temperature: -90° F
  • Working Pressure: 74 psi @ 70° F
  • Approved by FDA, NSF-61
  • Coil Length: 100'*
* Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment.
Note: Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.
This tubing is comparable to tubing from other manufacturers including New Age Industries Superthane 2100455.
Applications:
  • Cable Jacketing
  • Clean Liquids
  • Computer Manufacture
  • Fuel Lines (Small Motor)
  • Gases
  • Granular Materials
  • Grease and Lubrication Lines
  • Instrumentation
  • Insulation Sleeves
  • Internal Contamination Fluids
  • Metering Pumps
  • Nuclear Power Facilities
  • Pressure Measuring Devices
  • Robotics
  • Slurry Transfer
  • Vacuum Lines
  • Washers and Bumpers


Weight & Dimensions

Cord Length

100 Feet

Details

Application

Potable Water; Grease Lines; Oxygen and Other Gas Lines; Pressure Measuring Devices; Robotics; Small Motor Fuel Lines; Vacuum Equipment

Material Of Construction

Clear Ether-Based Polyurethane

Max Operating Temperature

175 Degrees Fahrenheit

Operating Pressure Range

74 psi @ 70°F

Outer Diameter

5/16"

Thickness

1/16 Inches

Inner Diameter

3/16"

Brittle Temperature

-90 Degrees Fahrenheit

Hardness, Shore A

85

Tensile Strength

5500 PSI

Warranty & Certifications

Certifications

NSF-61
