Clark CLXC-P Series Single Jet Totalizing Water Meter 5/8 x 3/4" No Pulse

Part Number: CLXC-P-20D-C

In Stock

out of stock

In Stock

$63.00

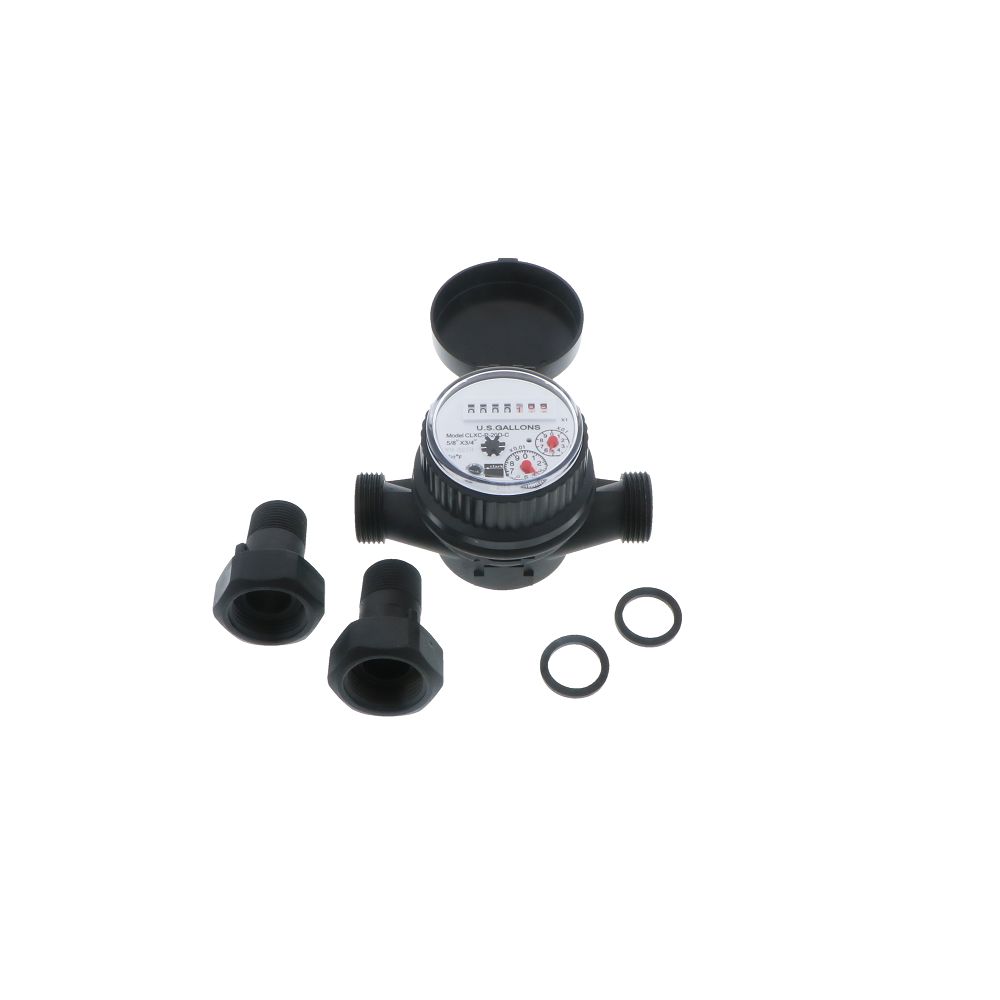

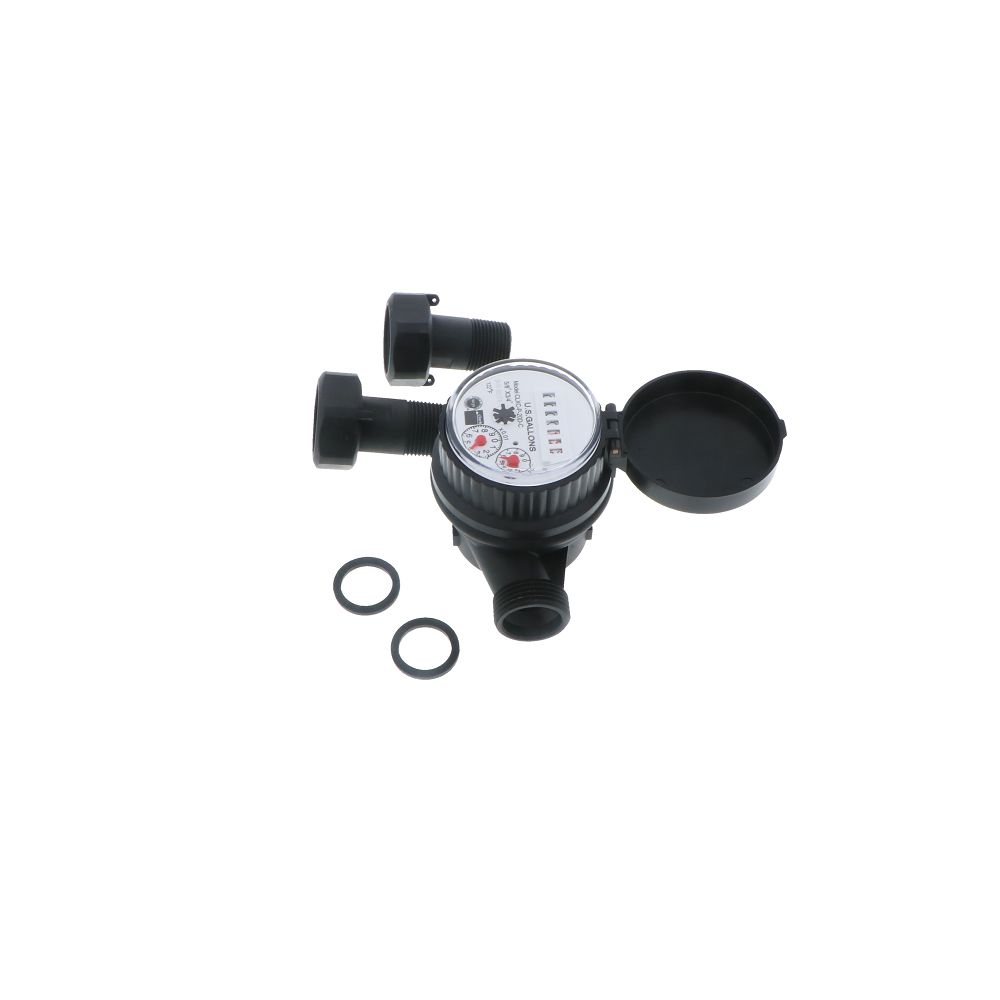

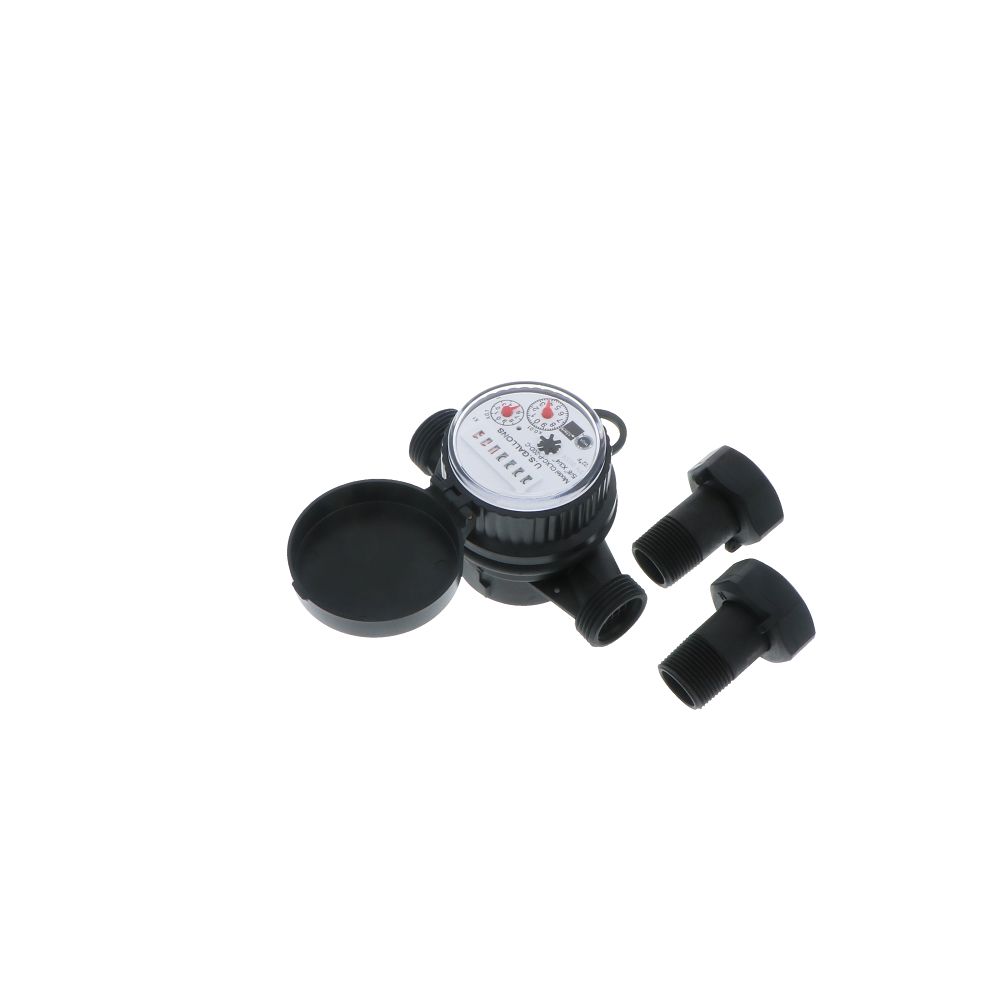

The CLXC-P-20D-C Cold Water Meter is a single-jet dry type totalizing water meter. These accurate and reliable meters are an ideal choice for a range of sub-metering applications for apartment and commercial buildings, as well as marinas, RV and camping parks. It is highly recommended to install it at a horizontal orientation. Each meter is supplied with a meter coupling (tailpiece) set, which includes two couplings and 2 gaskets.

This meter has been tested and certified by the Water Quality Association to meet ANSI/NSF Standard 61 for materials safety. It has also been tested to ANSI/NSF Standard 372 for lead free compliance.
This meter offers a quality and reliable water meter at an affordable price compared to alternative water meters on the market. In addition to be an economical choice, having a water meter installed can also save you money on your water bill by allowing you to be charged only for the water you use, and making your more aware of your water usage.    Features and Specifications:
  • Cold Water Meter
  • Lead free
  • WQA certified to ANSI/NSF 61 & 372
  • Produced in a ISO9001 certified facility
  • Nominal Flow Rate: 11 GPM
  • Flow Rate: 0.22 - 22 GPM
  • Max. Operating Pressure: 150 PSI
  • Max. Pressure Drop: 15 PSI
  • Major Dial Division Reading: 0.01 - 9999999 Gallons
  • Max. Media Temperature: 122°F
  • Materials of Construction: GV-5 FWA
  • Measuring Principal: Single jet
  • Meter Size: 5/8" x 3/4"
  • Tailpiece Set: 1" NPS female nut to 3/4" NPT male union


Details

Coupling

GV-5 FWA

Max Reading

9999999 G / 99999999 L / 99999 m³

Measuring Principle

Single jet

Min Major Dial Division Reading

0.01G / 0.1L / 0.0001m³

Pulse Output Option

None

Body Material

50% glass fibre reinforced engineering thermoplastic material (GV-5 FWA)

Flow Rate

11 GPM

Max Flow Rate

22 GPM

Max Operating Pressure

150 PSI

Max Operating Temperature

122°F (50°C)

Size

5/8 x 3/4

Type

Dry, magnetic coupling between rotor and register movement

Max Pressure Drop

15 PSI Max

Min Flow Rate

0.22 GPM

Bottom Style

GV-5 FWA

Warranty & Certifications

Certifications

ANSI/NSF 61; ANSI/NSF 372


Clark




The CLXC-P-20D-C Cold Water Meter is a single-jet dry type totalizing water meter. These accurate and reliable meters are an ideal choice for a range of sub-metering applications for apartment and commercial buildings, as well as marinas, RV and camping parks. It is highly recommended to install it at a horizontal orientation. Each meter is supplied with a meter coupling (tailpiece) set, which includes two couplings and 2 gaskets.

This meter has been tested and certified by the Water Quality Association to meet ANSI/NSF Standard 61 for materials safety. It has also been tested to ANSI/NSF Standard 372 for lead free compliance.
This meter offers a quality and reliable water meter at an affordable price compared to alternative water meters on the market. In addition to be an economical choice, having a water meter installed can also save you money on your water bill by allowing you to be charged only for the water you use, and making your more aware of your water usage.    Features and Specifications:
  • Cold Water Meter
  • Lead free
  • WQA certified to ANSI/NSF 61 & 372
  • Produced in a ISO9001 certified facility
  • Nominal Flow Rate: 11 GPM
  • Flow Rate: 0.22 - 22 GPM
  • Max. Operating Pressure: 150 PSI
  • Max. Pressure Drop: 15 PSI
  • Major Dial Division Reading: 0.01 - 9999999 Gallons
  • Max. Media Temperature: 122°F
  • Materials of Construction: GV-5 FWA
  • Measuring Principal: Single jet
  • Meter Size: 5/8" x 3/4"
  • Tailpiece Set: 1" NPS female nut to 3/4" NPT male union

Details

Coupling

GV-5 FWA

Max Reading

9999999 G / 99999999 L / 99999 m³

Measuring Principle

Single jet

Min Major Dial Division Reading

0.01G / 0.1L / 0.0001m³

Pulse Output Option

None

Body Material

50% glass fibre reinforced engineering thermoplastic material (GV-5 FWA)

Flow Rate

11 GPM

Max Flow Rate

22 GPM

Max Operating Pressure

150 PSI

Max Operating Temperature

122°F (50°C)

Size

5/8 x 3/4

Type

Dry, magnetic coupling between rotor and register movement

Max Pressure Drop

15 PSI Max

Min Flow Rate

0.22 GPM

Bottom Style

GV-5 FWA

Warranty & Certifications

Certifications

ANSI/NSF 61; ANSI/NSF 372
