Clack Corporation

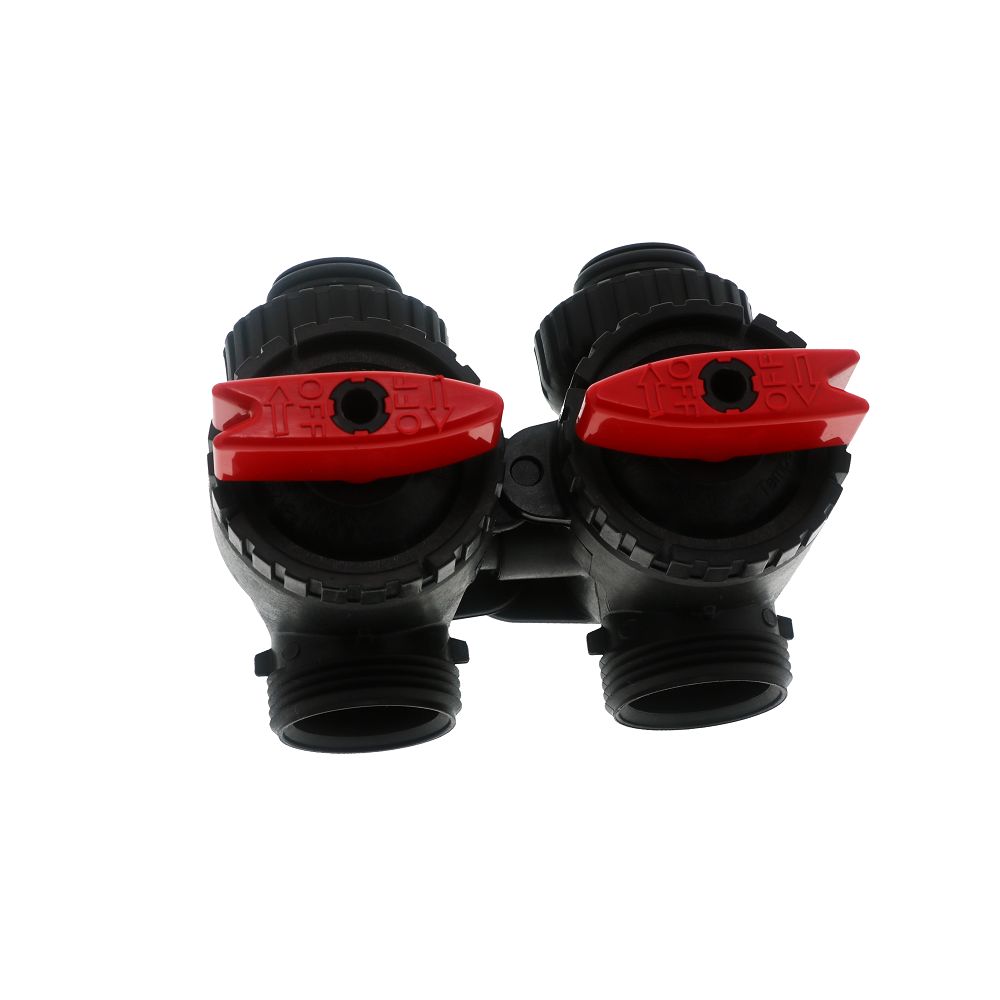

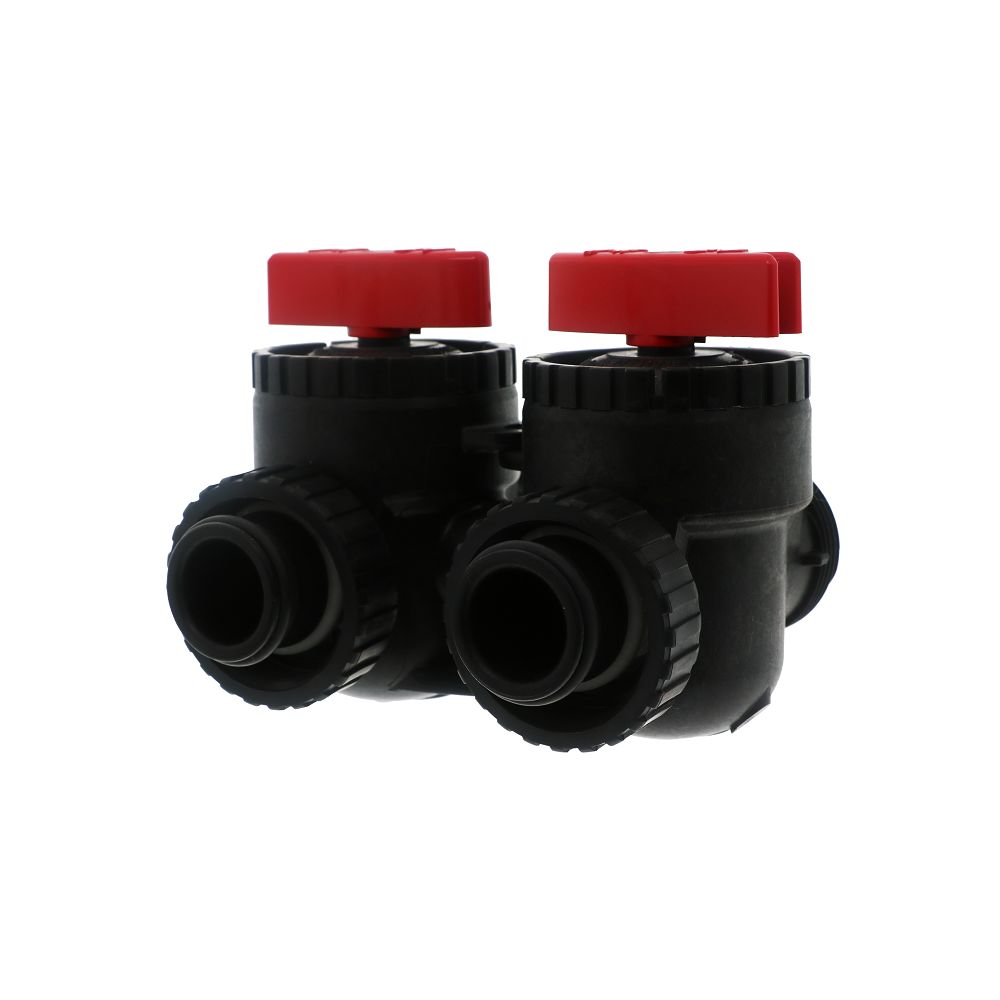

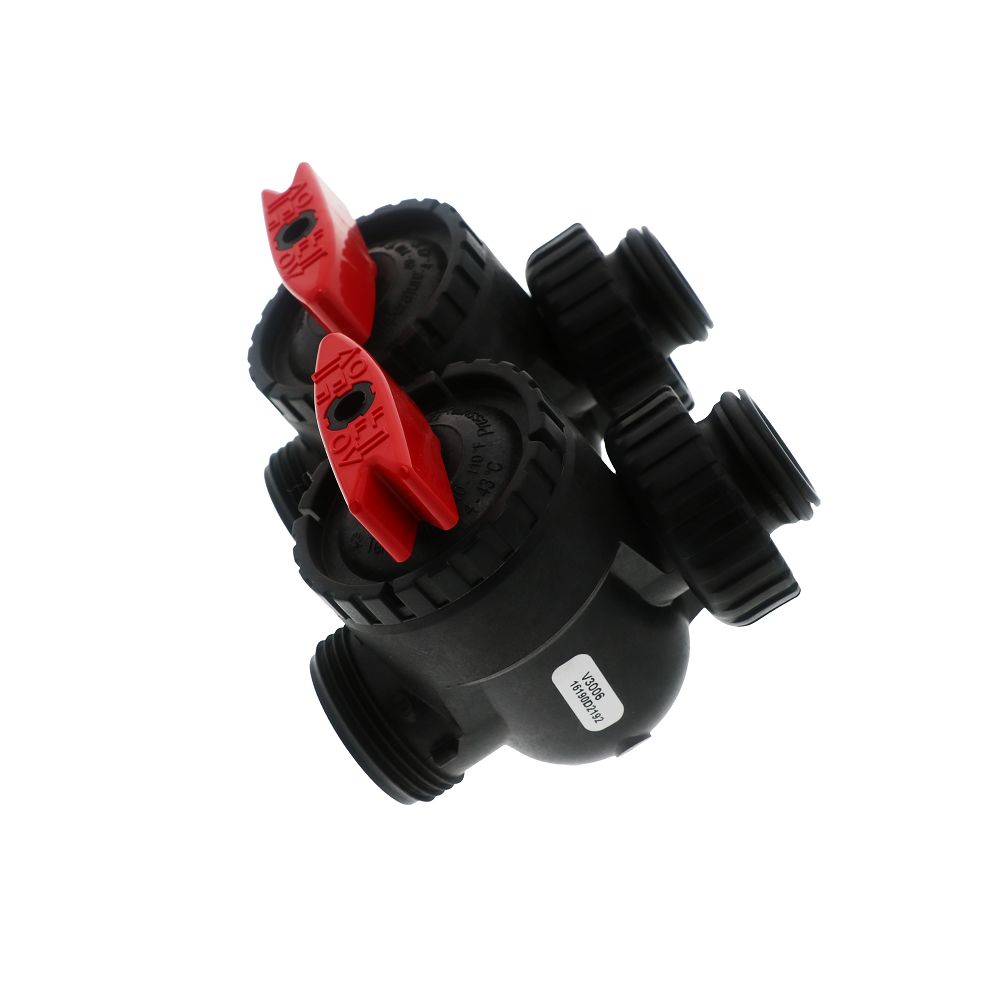

Clack WS1 V3006 Bypass for 1" Valve

Part Number: V3006

Alt. Part Number: C-Bypass

In Stock

out of stock

In Stock

$33.95

The Clack WS1 V3006 Bypass Assembly is designed to connect to Clack Water Conditioners. Also connects to fittings from many other manufacturers. These fittings are utilized with the ScaleNet Salt Free Water Conditioners.

The Clack WS1 Series fittings are designed for use with any of Clack's 27 gpm systems with 1" connections.

Features:
  • Fits Clack and other brands fittings
  • 1" Male BSPT connection

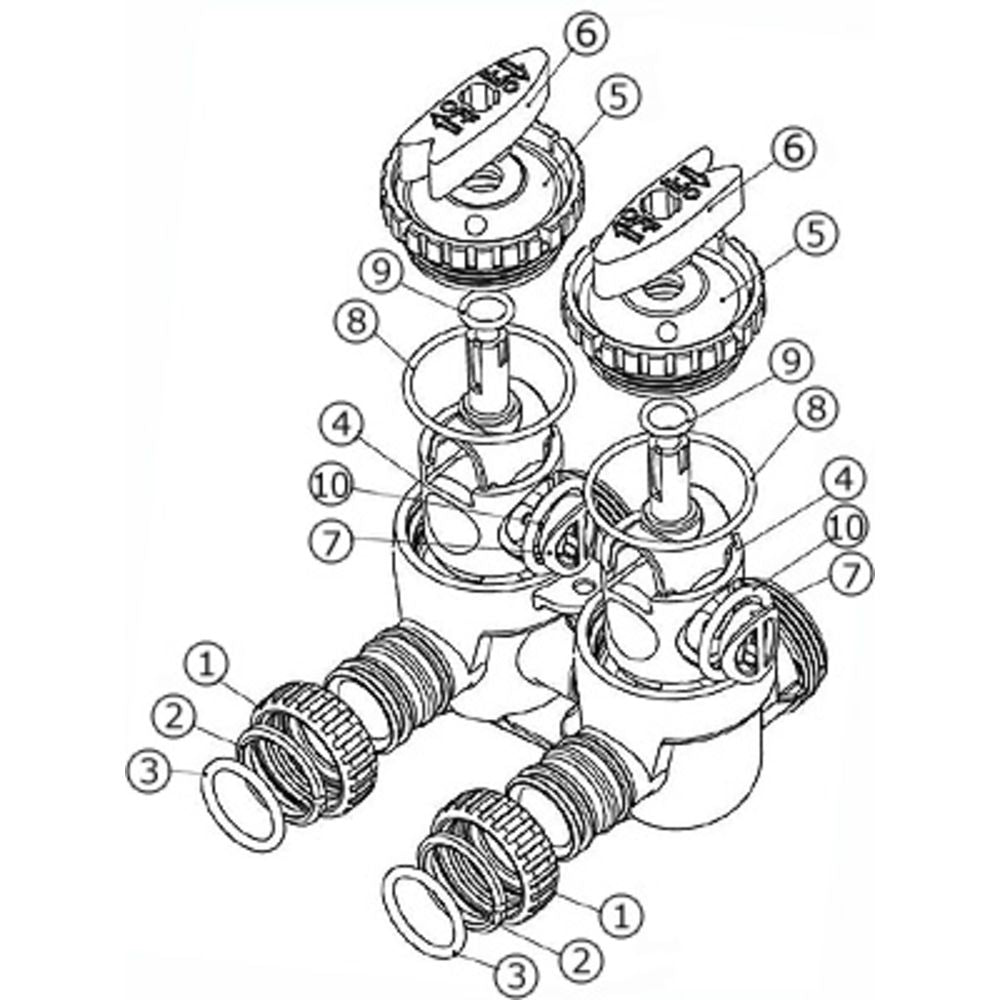

  • Includes all parts shown in diagram for a single bypass assembly
  • Compatible with ScaleNet, Fusion, Filtersorb and more



Item Part# Description Qty
1 V3151 WS1 Nut 1" Quick
Connect
2
2 V3150 WS1 Split Ring 2
3 V3105 O-Ring 215 2
4 V3145 WS1 Bypass 1" Rotor 2
5 V3146 WS1 Bypass Cap 2
6 V3147 WS1 Bypass Handle 2
7 V3148 WS1 Bypass Rotor
Seal Retainer
2
8 V3152 O-Ring 135 2
9 V3155 O-Ring 112 2
10 V3156 O-Ring 214 2


Weight & Dimensions

Weight (lbs)

2


Clack




The Clack WS1 V3006 Bypass Assembly is designed to connect to Clack Water Conditioners. Also connects to fittings from many other manufacturers. These fittings are utilized with the ScaleNet Salt Free Water Conditioners.

The Clack WS1 Series fittings are designed for use with any of Clack's 27 gpm systems with 1" connections.

Features:
  • Fits Clack and other brands fittings
  • 1" Male BSPT connection
  • Includes all parts shown in diagram for a single bypass assembly
  • Compatible with ScaleNet, Fusion, Filtersorb and more



Item Part# Description Qty
1 V3151 WS1 Nut 1" Quick
Connect
2
2 V3150 WS1 Split Ring 2
3 V3105 O-Ring 215 2
4 V3145 WS1 Bypass 1" Rotor 2
5 V3146 WS1 Bypass Cap 2
6 V3147 WS1 Bypass Handle 2
7 V3148 WS1 Bypass Rotor
Seal Retainer
2
8 V3152 O-Ring 135 2
9 V3155 O-Ring 112 2
10 V3156 O-Ring 214 2

Weight & Dimensions

Weight (lbs)

2
