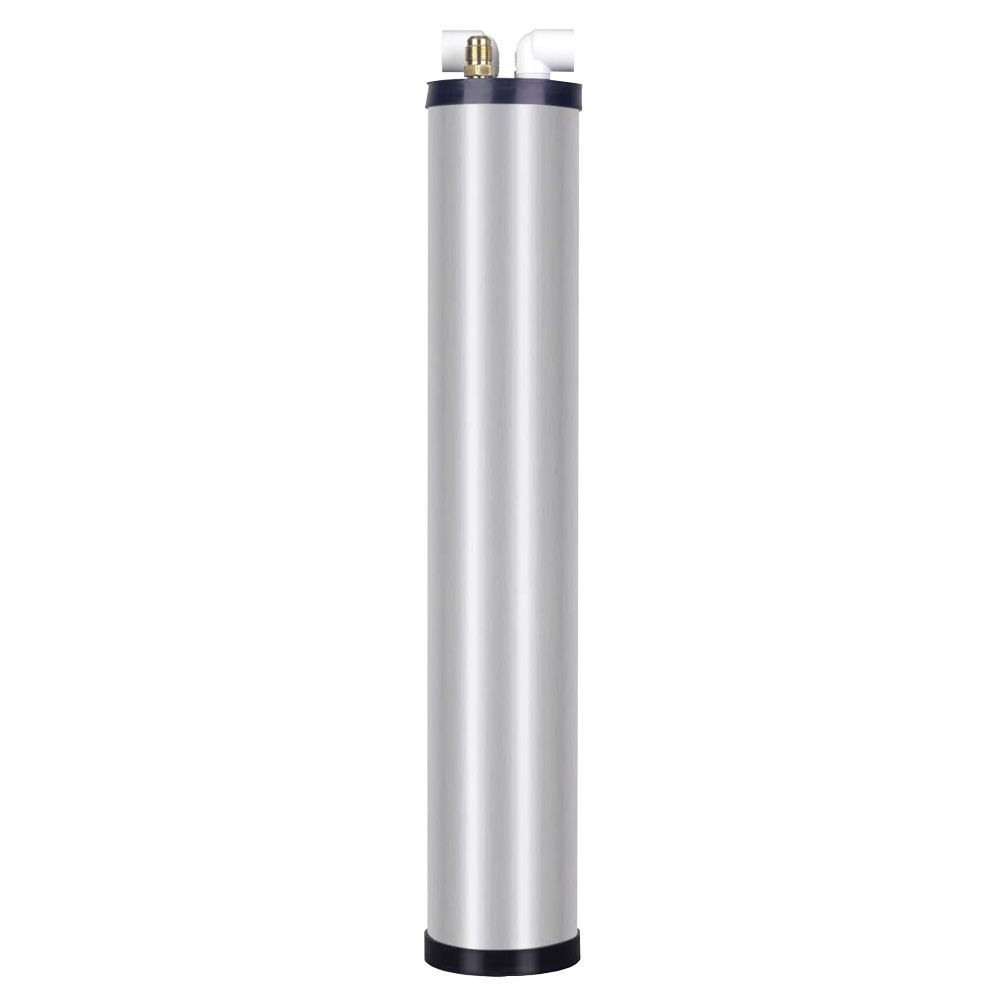

ChillTech CTII Heat Exchanger for Icemakers up to 2,400 lbs

Part Number: CHILLTECH

Alt. Part Number: CTII

In Stock

out of stock

In Stock

$479.77


The exclusive ChillTech System significantly reduces the temperature of the water to incoming ice makers. This lower feed water temperature reduces ice maker cycle times and kWh consumption while increasing the ice making capacity of the ice maker up to 30%.
In short, the ChillTech drastically cuts energy usage, and increases the volume of ice a machine produces. In addition, it increases harvest weight and reduces freeze times. At the end of the cycle, you will have purged much less water. This means a highly reduced kWh consumption per 100 pounds of ice and a reduction in gallons of water used per pounds of ice harvested.

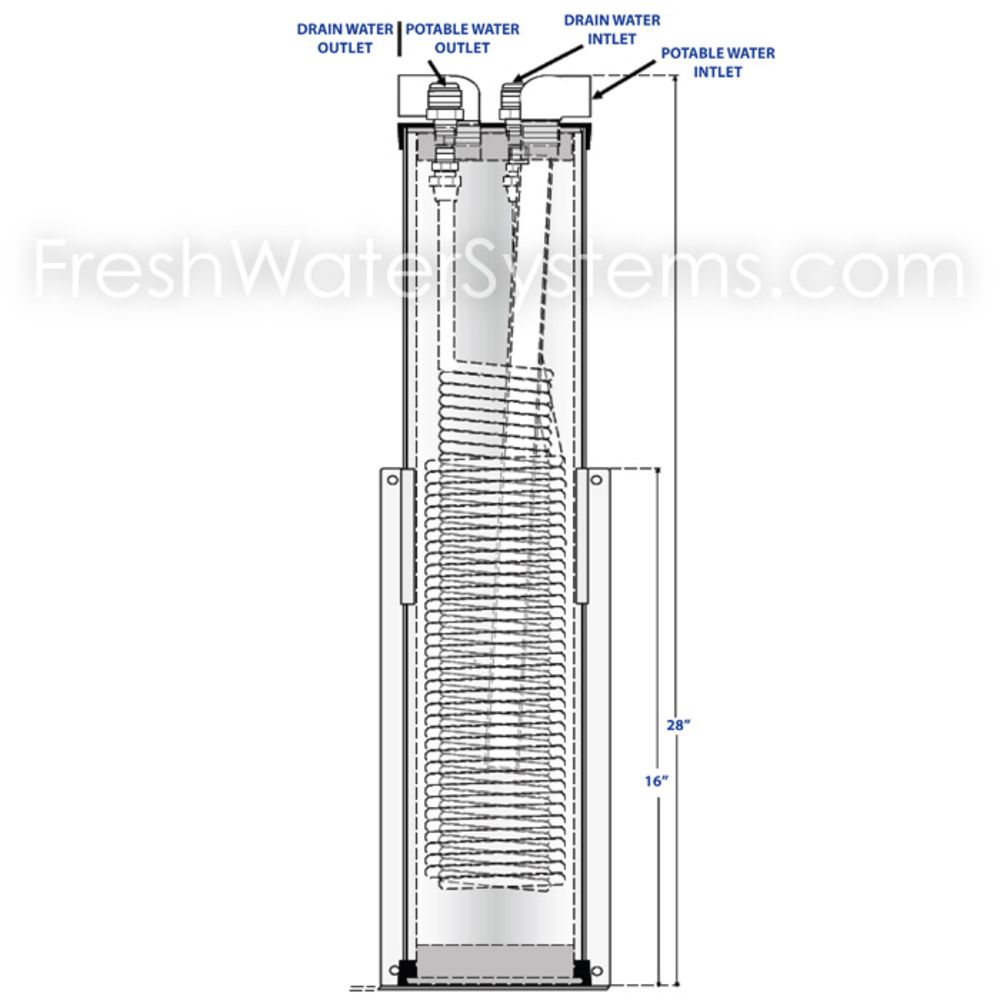

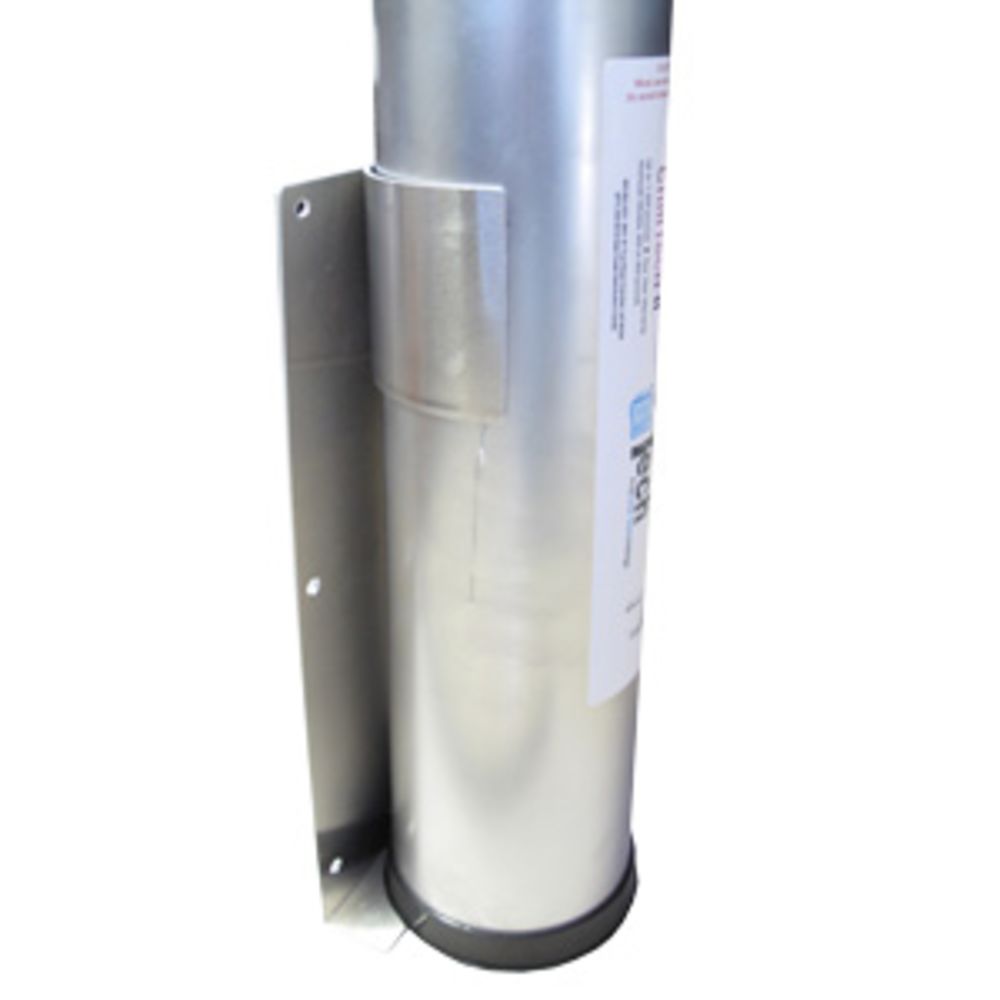

The ChillTech was developed to be a very simple add on to an existing or new ice machine. The ChillTech is designed to sit on the floor, or mount on the wall using the included mounting bracket.
Features:
  • 2 year warranty
  • Increase ice production up to 30%
  • Lowers kWh consumption up to 30%
  • Connects to cold water feed line
  • Self cleaning and maintenance free
  • No moving parts or electrical hook-up
Specifications:
  • Maximum Pressure: 100 psi
  • Maximum Temperature: 100º F

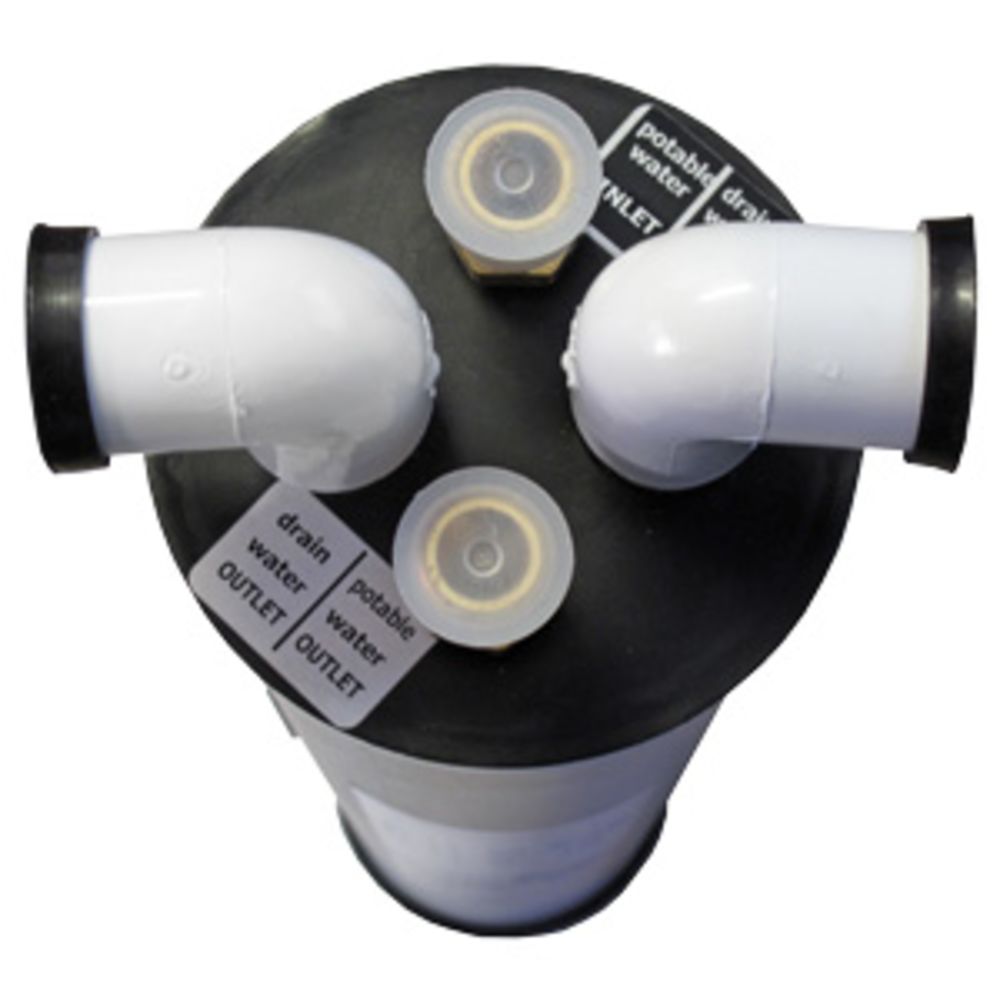

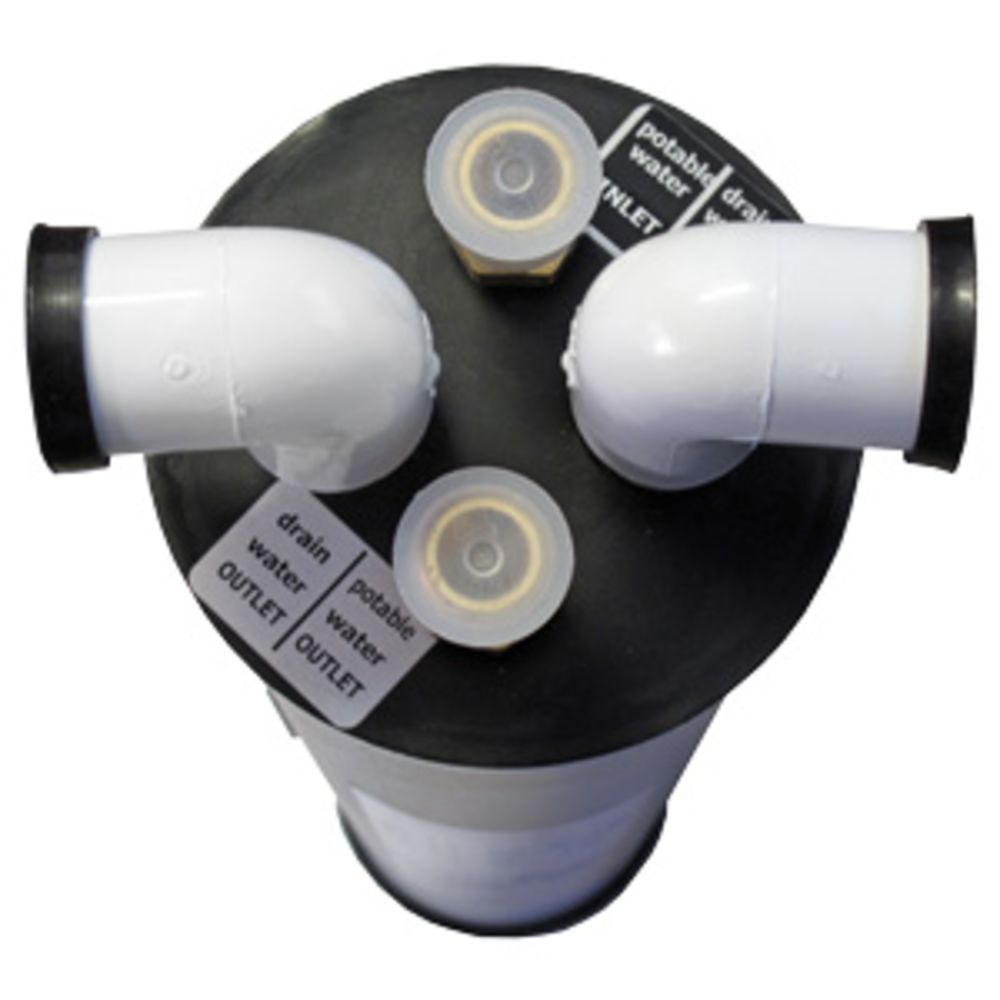

  • Feed Inlet/Outlet: 1/2" male flare or male NPTF
  • Drain Inlet/Outlet:  3/4" slip
  • Flow Rate: 5.5 gpm
  • Dimensions: 5" W x 28.5" H
  • Shipping Weight: 18 lbs.
  • Made in the USA
Customer Testimonial:

6/22/2009 "We have a large ice cuber which just isn't keeping up with our needs as our business has grown over the past 5 years. We have had to purchase ice on a regular basis to offset the shortage. To resolve the problem, we installed a ChillTech Ice Booster several weeks ago and find that our ice bin is full and keeping us in plenty of ice. Manufacturer states up to 30% more ice with it installed. In our case, that could be several hundred extra pounds of ice per day." – David Cassidy, Executive Chef at Black & Blue Steak & Crab, Rochester, NY


Weight & Dimensions

Approx Height (Inches)

28.5 Inches

Approx Weight

2400 Lbs

Approx Width (Inches)

5 Inches

Details

Connections

1/2" Male NPTF or Male Flare

Flow Rate

5.5 Gallons Per Minute

Operating Pressure Range

Maximum 100 PSI

Operating Temperature Range

Maximum 100 Degrees Fahrenheit

Origin

USA


ChillTech

ChillTech





The exclusive ChillTech System significantly reduces the temperature of the water to incoming ice makers. This lower feed water temperature reduces ice maker cycle times and kWh consumption while increasing the ice making capacity of the ice maker up to 30%.
In short, the ChillTech drastically cuts energy usage, and increases the volume of ice a machine produces. In addition, it increases harvest weight and reduces freeze times. At the end of the cycle, you will have purged much less water. This means a highly reduced kWh consumption per 100 pounds of ice and a reduction in gallons of water used per pounds of ice harvested.
The ChillTech was developed to be a very simple add on to an existing or new ice machine. The ChillTech is designed to sit on the floor, or mount on the wall using the included mounting bracket.
Features:
  • 2 year warranty
  • Increase ice production up to 30%
  • Lowers kWh consumption up to 30%
  • Connects to cold water feed line
  • Self cleaning and maintenance free
  • No moving parts or electrical hook-up
Specifications:
  • Maximum Pressure: 100 psi
  • Maximum Temperature: 100º F
  • Feed Inlet/Outlet: 1/2" male flare or male NPTF
  • Drain Inlet/Outlet:  3/4" slip
  • Flow Rate: 5.5 gpm
  • Dimensions: 5" W x 28.5" H
  • Shipping Weight: 18 lbs.
  • Made in the USA
Customer Testimonial:

6/22/2009 "We have a large ice cuber which just isn't keeping up with our needs as our business has grown over the past 5 years. We have had to purchase ice on a regular basis to offset the shortage. To resolve the problem, we installed a ChillTech Ice Booster several weeks ago and find that our ice bin is full and keeping us in plenty of ice. Manufacturer states up to 30% more ice with it installed. In our case, that could be several hundred extra pounds of ice per day." – David Cassidy, Executive Chef at Black & Blue Steak & Crab, Rochester, NY

Weight & Dimensions

Approx Height (Inches)

28.5 Inches

Approx Weight

2400 Lbs

Approx Width (Inches)

5 Inches

Details

Connections

1/2" Male NPTF or Male Flare

Flow Rate

5.5 Gallons Per Minute

Operating Pressure Range

Maximum 100 PSI

Operating Temperature Range

Maximum 100 Degrees Fahrenheit

Origin

USA
