CFA

CFA C9 Series Solenoid Valve w/ Manual Override Normally Closed 1" FPT 120V

Part Number: C9-212N6252-G0-M-120VAC

Alt. Part Number: SP311GN02MGFG9M

In Stock

out of stock

In Stock

$58.70

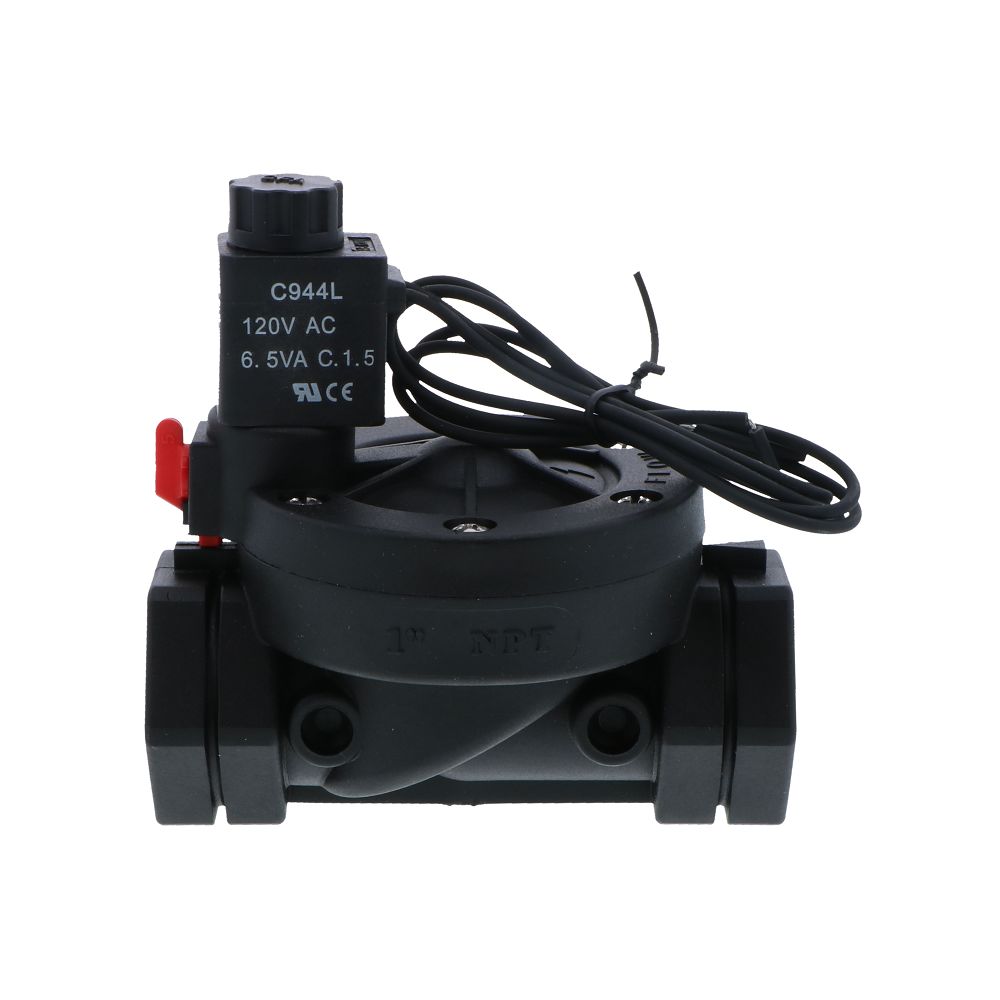

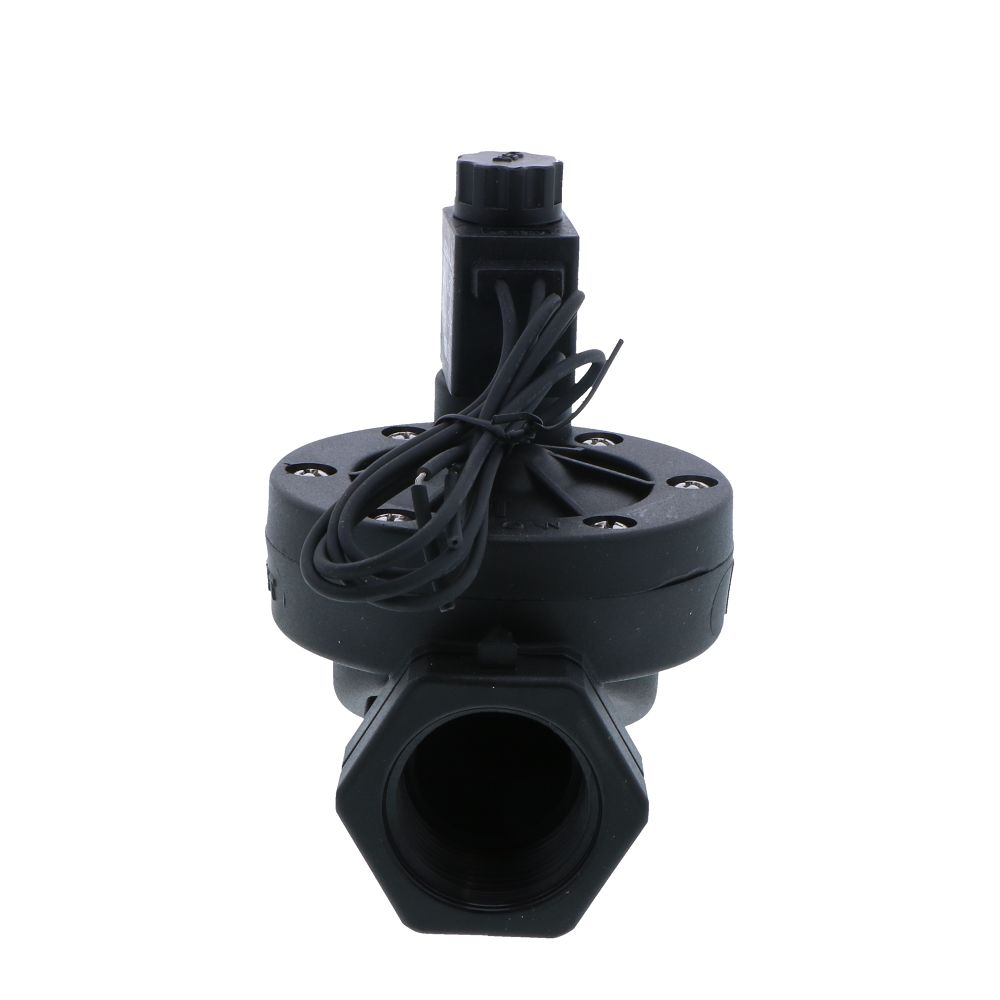

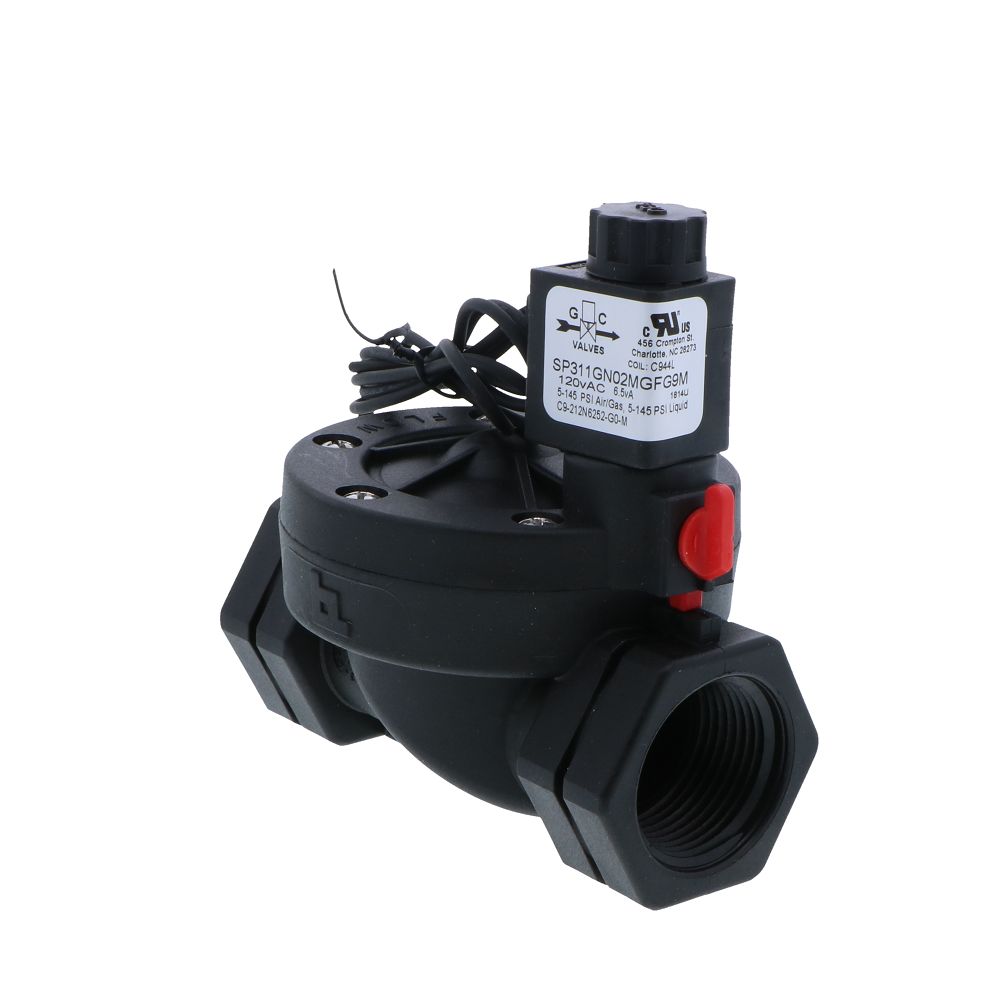

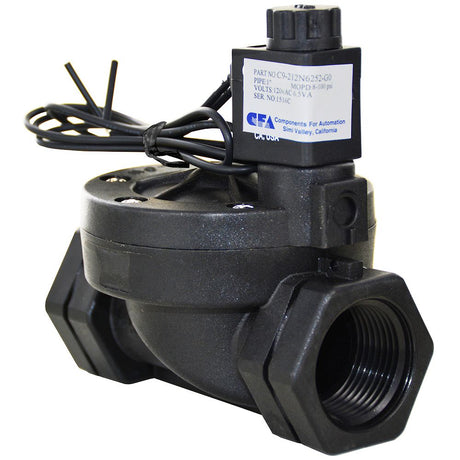

The CFA C9-212N6252-G0-M-120VAC is a normally closed solenoid valve uniquely suited for use in consumer applications where high reliability and low cost are needed. This valve is designed to allow maximum flow over a wide range of pressures.
Quality Construction The internal diaphragm allows smooth opening and closing, which prevents problems with surge and water hammer. The body is made of glass reinforced nylon and the seals are durable Viton. This valve also features a manual override as well as a flow control.

Specifications:
  • Connection Size: 1" FPT
  • Power Connection: Lead Wires
  • Voltage: 120v AC
  • Body: Nylon
  • Diaphram Material: EPDM
  • Seal Material: Viton
  • Manual Override
  • Internal Components: Stainless Steel
  • Media Temperature: 41 - 122 °F
  • Response Time: 75 - 150 ms
  • Operating Pressure: 5 - 145 PSI
  • Media: Liquid
  • Normally Closed
Applications:
  • Carwash
  • Industrial Applications
  • Process Applications
  • Water Industries
  • HVAC




Weight & Dimensions

Height (inches)

3.25

Length (inches)

4.25

Weight (lbs)

0.875

Width (inches)

6

Details

Power

41 - 122 Degrees Fahrenheit

Wetted Materials

Glass Filled Nylon

Diameter

1"

Port Size

1"

Voltage

120V




The CFA C9-212N6252-G0-M-120VAC is a normally closed solenoid valve uniquely suited for use in consumer applications where high reliability and low cost are needed. This valve is designed to allow maximum flow over a wide range of pressures.
Quality Construction The internal diaphragm allows smooth opening and closing, which prevents problems with surge and water hammer. The body is made of glass reinforced nylon and the seals are durable Viton. This valve also features a manual override as well as a flow control.

Specifications:
  • Connection Size: 1" FPT
  • Power Connection: Lead Wires
  • Voltage: 120v AC
  • Body: Nylon
  • Diaphram Material: EPDM
  • Seal Material: Viton
  • Manual Override
  • Internal Components: Stainless Steel
  • Media Temperature: 41 - 122 °F
  • Response Time: 75 - 150 ms
  • Operating Pressure: 5 - 145 PSI
  • Media: Liquid
  • Normally Closed
Applications:
  • Carwash
  • Industrial Applications
  • Process Applications
  • Water Industries
  • HVAC



Weight & Dimensions

Height (inches)

3.25

Length (inches)

4.25

Weight (lbs)

0.875

Width (inches)

6

Details

Power

41 - 122 Degrees Fahrenheit

Wetted Materials

Glass Filled Nylon

Diameter

1"

Port Size

1"

Voltage

120V
