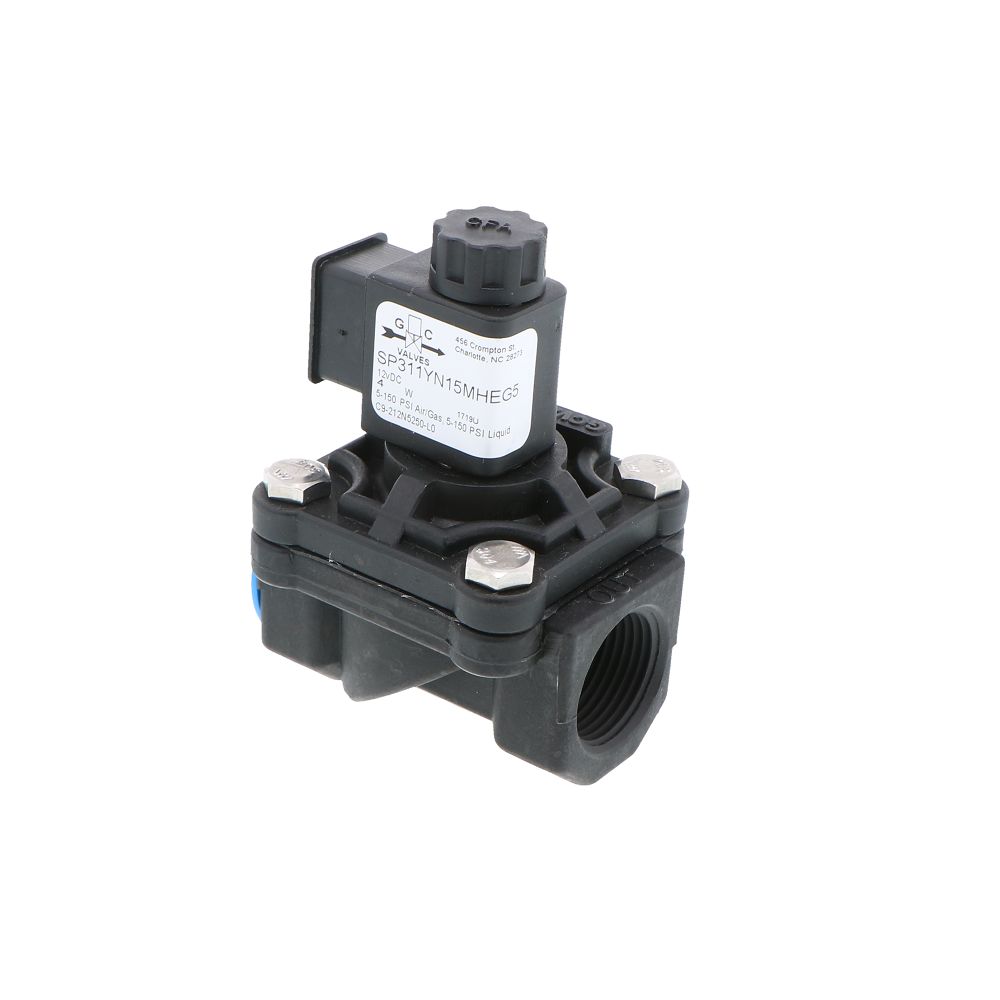

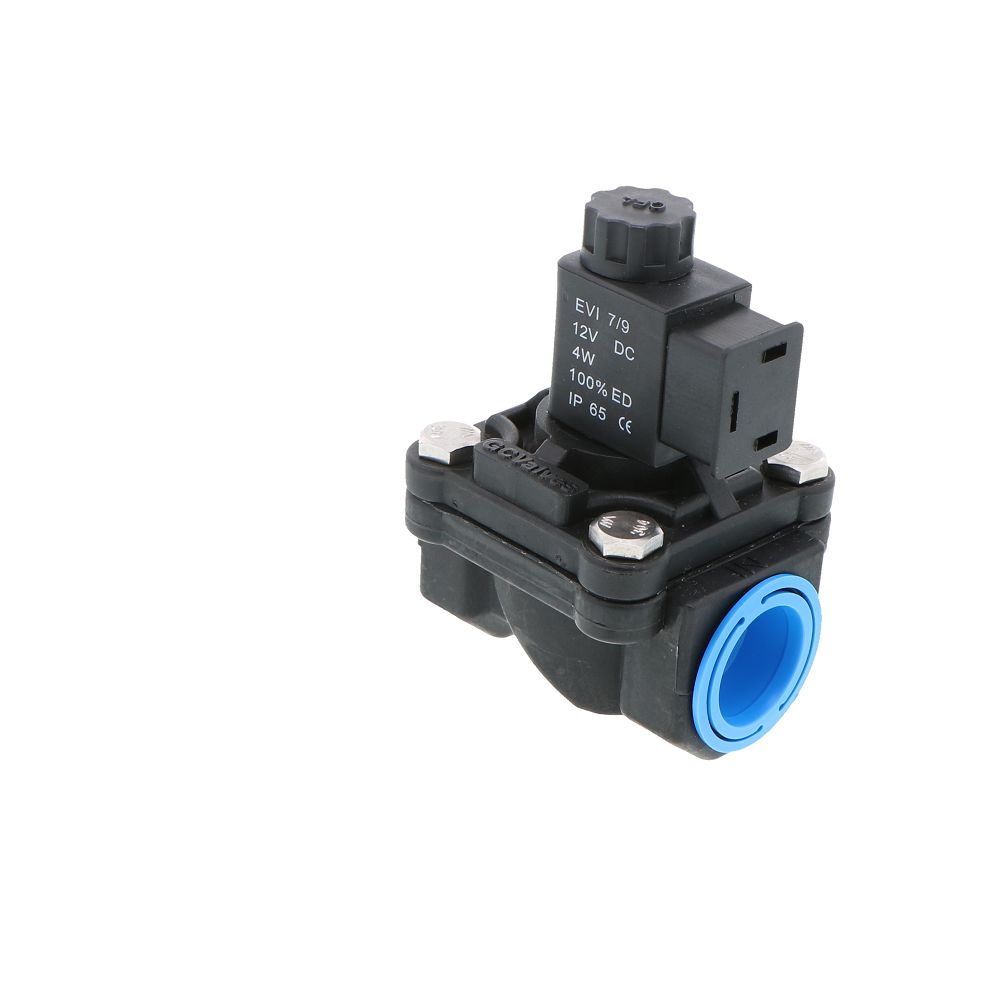

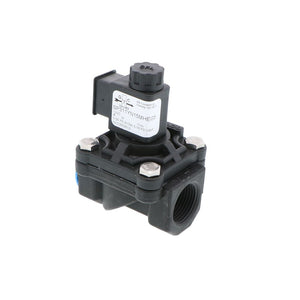

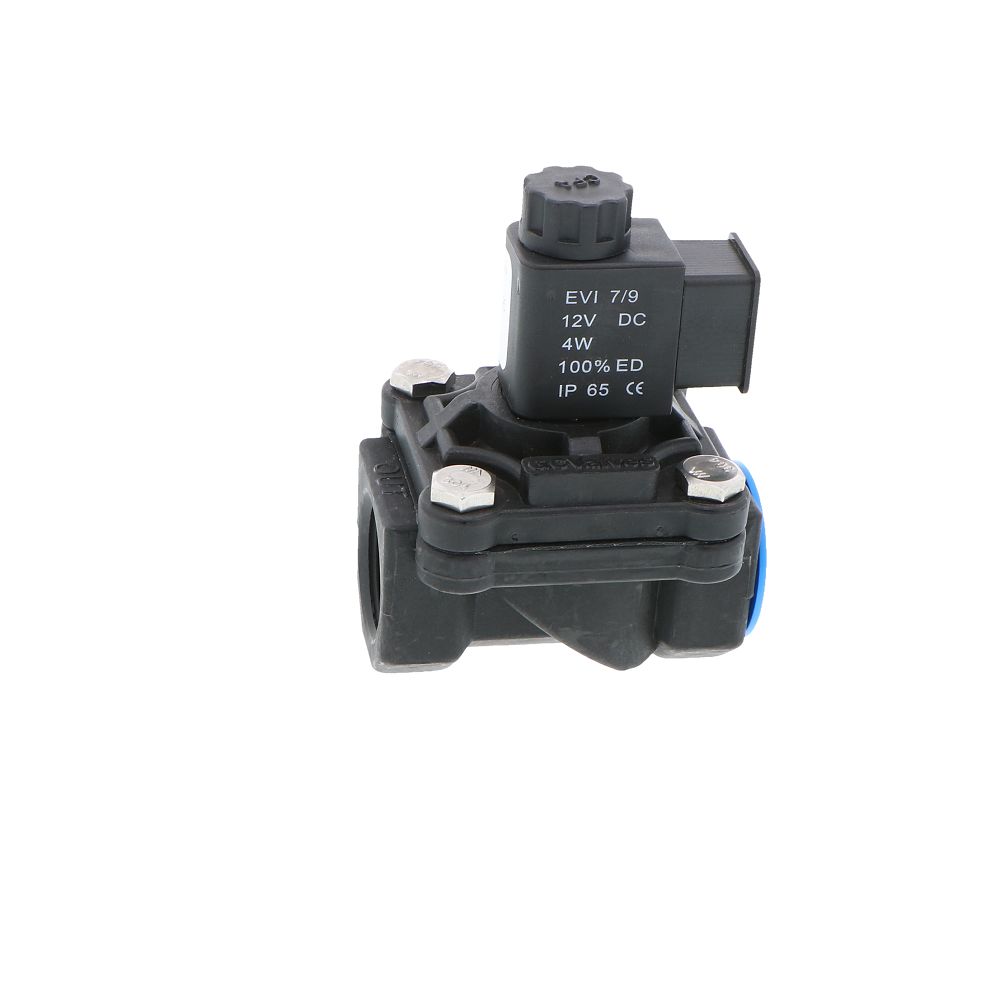

CFA C9 Series Solenoid Valve w/ Flow Control Normally Closed 3/4" FPT 12VDC

Part Number: C9-212N5252-L0-12VDC

In Stock

out of stock

In Stock

$58.95

The CFA C9-212N5252-L0-12VDC solenoid valve is uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve housing is constructed of nylon, the diaphragm material is made Buna-N, and the seals are viton.

Specifications:
  • Connection Size: 3/4" FPT
  • Power Connection: Lead Wires
  • Voltage: 12 VDC
  • Body: Nylon
  • Diaphragm Material: Buna-N
  • Seal Material: Viton
  • Media: Liquid
  • Media Temperature: 41 - 122 °F
  • Response Time: 25 - 100mS
  • Operating Pressure: 5 - 150 PSI
  • Normally Closed




Weight & Dimensions

Weight (lbs)

1.5

Details

Body Material

Glass filled nylon

Diameter

3/4"

Max Pressure (Psi)

150

Max Temp (°F)

120

Min Pressure (Psi)

5

Port Size

3/4" NPT"

Seal Material

Viton/FKM

Wetted Materials

Glass Reinforced Nylon; EPDM



The CFA C9-212N5252-L0-12VDC solenoid valve is uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve housing is constructed of nylon, the diaphragm material is made Buna-N, and the seals are viton.

Specifications:
  • Connection Size: 3/4" FPT
  • Power Connection: Lead Wires
  • Voltage: 12 VDC
  • Body: Nylon
  • Diaphragm Material: Buna-N
  • Seal Material: Viton
  • Media: Liquid
  • Media Temperature: 41 - 122 °F
  • Response Time: 25 - 100mS
  • Operating Pressure: 5 - 150 PSI
  • Normally Closed



Weight & Dimensions

Weight (lbs)

1.5

Details

Body Material

Glass filled nylon

Diameter

3/4"

Max Pressure (Psi)

150

Max Temp (°F)

120

Min Pressure (Psi)

5

Port Size

3/4" NPT"

Seal Material

Viton/FKM

Wetted Materials

Glass Reinforced Nylon; EPDM
