CFA

CFA C9 Series Four Station Normally Closed Solenoid Valves with Manifold 1/8" FPT 24VAC

Part Number: C94-211N105-P1-ECI

Alt. Part Number: PSK2GPH18MV

In Stock

out of stock

In Stock

$148.30

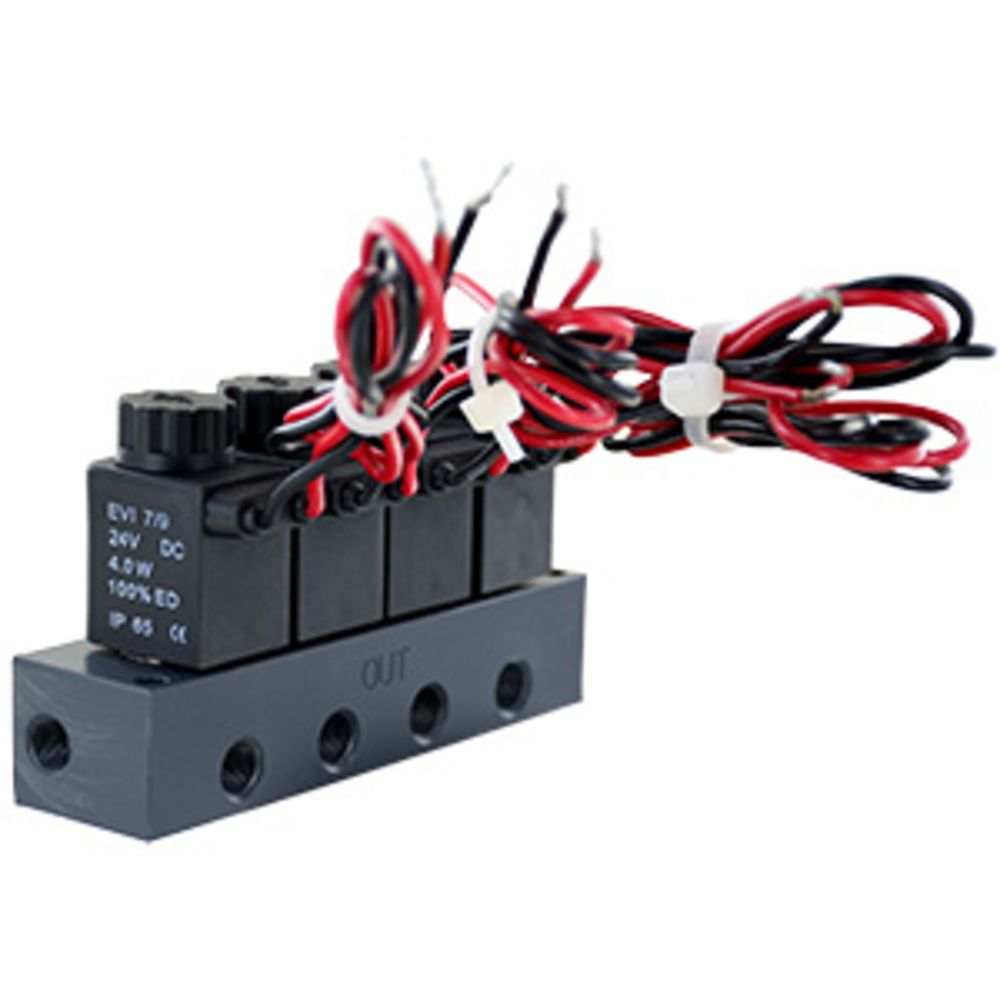

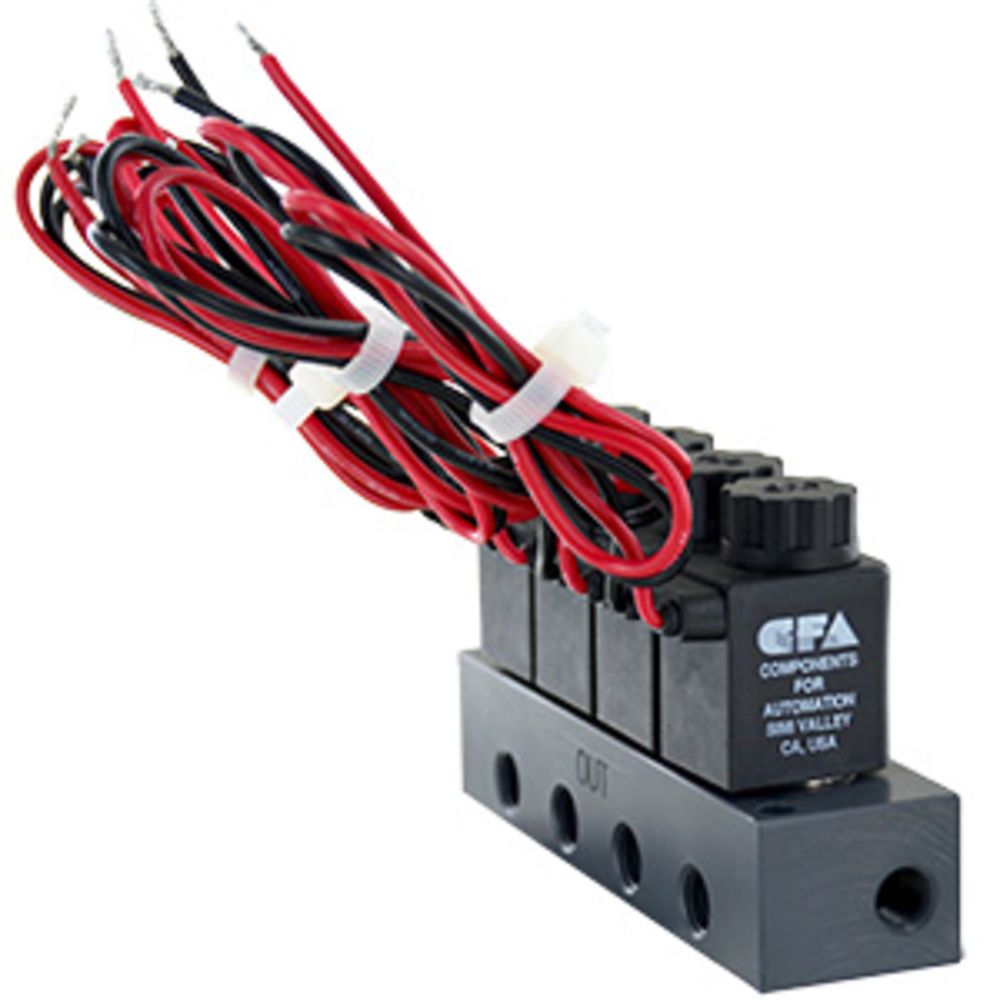

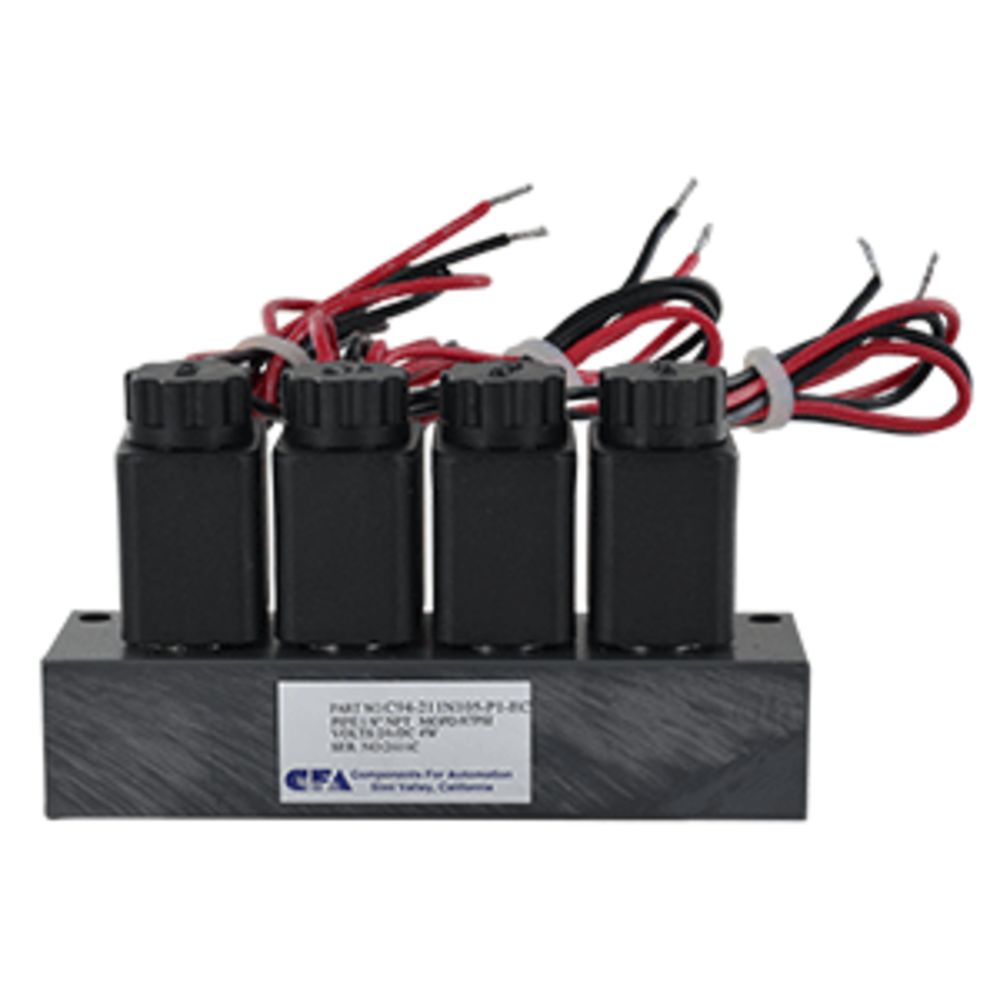

The CFA C94-211N105-P1-ECI is a four station normally closed solenoid valve. This unique solenoid valve assembly features a PVC manifold with 1/8" FPT connections. These solenoids have a 3/32" orifice and can handle liquid pressures up to 175 PSI.          Specifications:
  • Connection Size: 1/8" FPT
  • Power Connection: Lead Wires
  • Voltage: 24VAC
  • Body: Nylon
  • Seal Material: Viton
  • Manifold Construction: PVC
  • Media Temperature: 41 - 122 °F
  • Response Time: 5 - 15ms
  • Operating Pressure: 0 - 400 PSI
  • Normally Closed


Details

Body Material

Glass filled nylon

Diameter

3/32"

Operating Pressure Range

0 - 400 PSI

Operating Temperature Range

max. 131°F (+55°C)

Seal Material

Viton/FKM

Voltage

24 VAC

Electrical

Leads 18"




The CFA C94-211N105-P1-ECI is a four station normally closed solenoid valve. This unique solenoid valve assembly features a PVC manifold with 1/8" FPT connections. These solenoids have a 3/32" orifice and can handle liquid pressures up to 175 PSI.          Specifications:
  • Connection Size: 1/8" FPT
  • Power Connection: Lead Wires
  • Voltage: 24VAC
  • Body: Nylon
  • Seal Material: Viton
  • Manifold Construction: PVC
  • Media Temperature: 41 - 122 °F
  • Response Time: 5 - 15ms
  • Operating Pressure: 0 - 400 PSI
  • Normally Closed

Details

Body Material

Glass filled nylon

Diameter

3/32"

Operating Pressure Range

0 - 400 PSI

Operating Temperature Range

max. 131°F (+55°C)

Seal Material

Viton/FKM

Voltage

24 VAC

Electrical

Leads 18"
