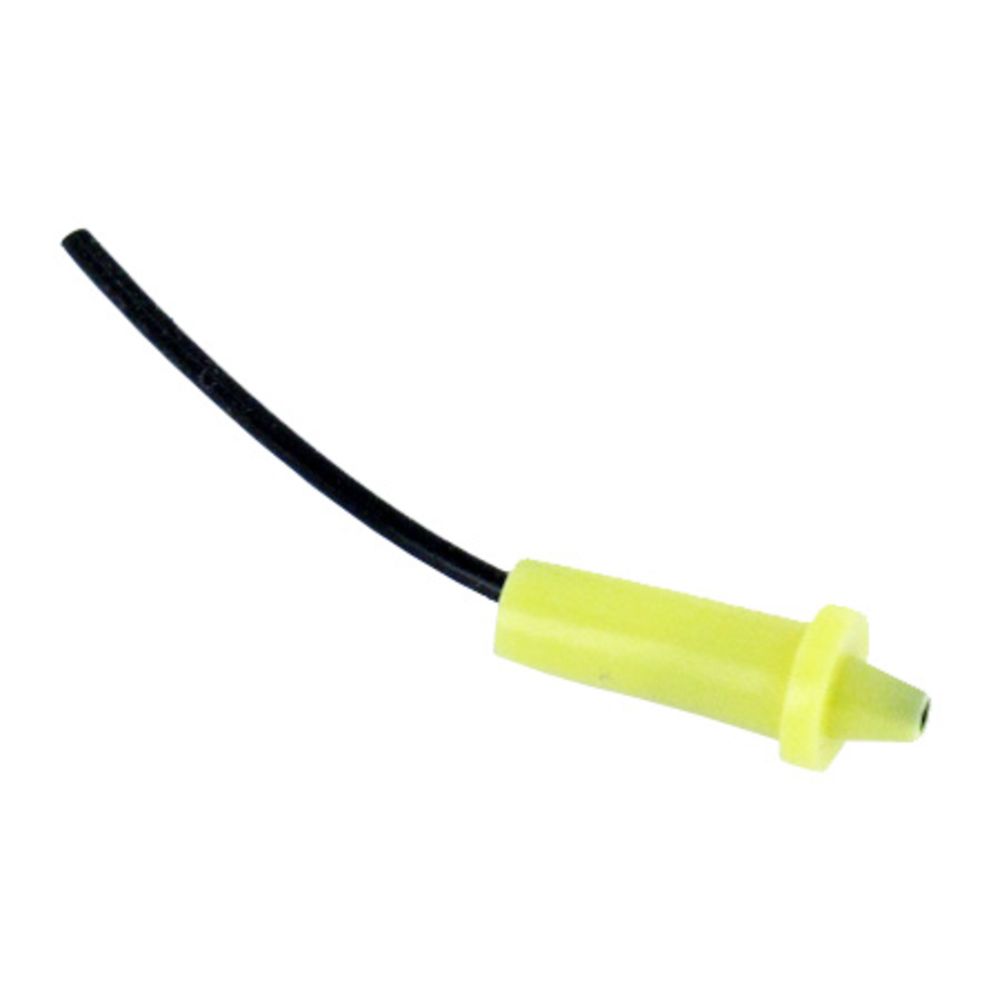

Capillary Flow Restrictor - 365ml/mn (YLW) for 36-50gpd membrane

Part Number: FRCT-365

Alt. Part Number: ID5005, 120036, FRCT35

In Stock

out of stock

In Stock

$4.88 Regular price

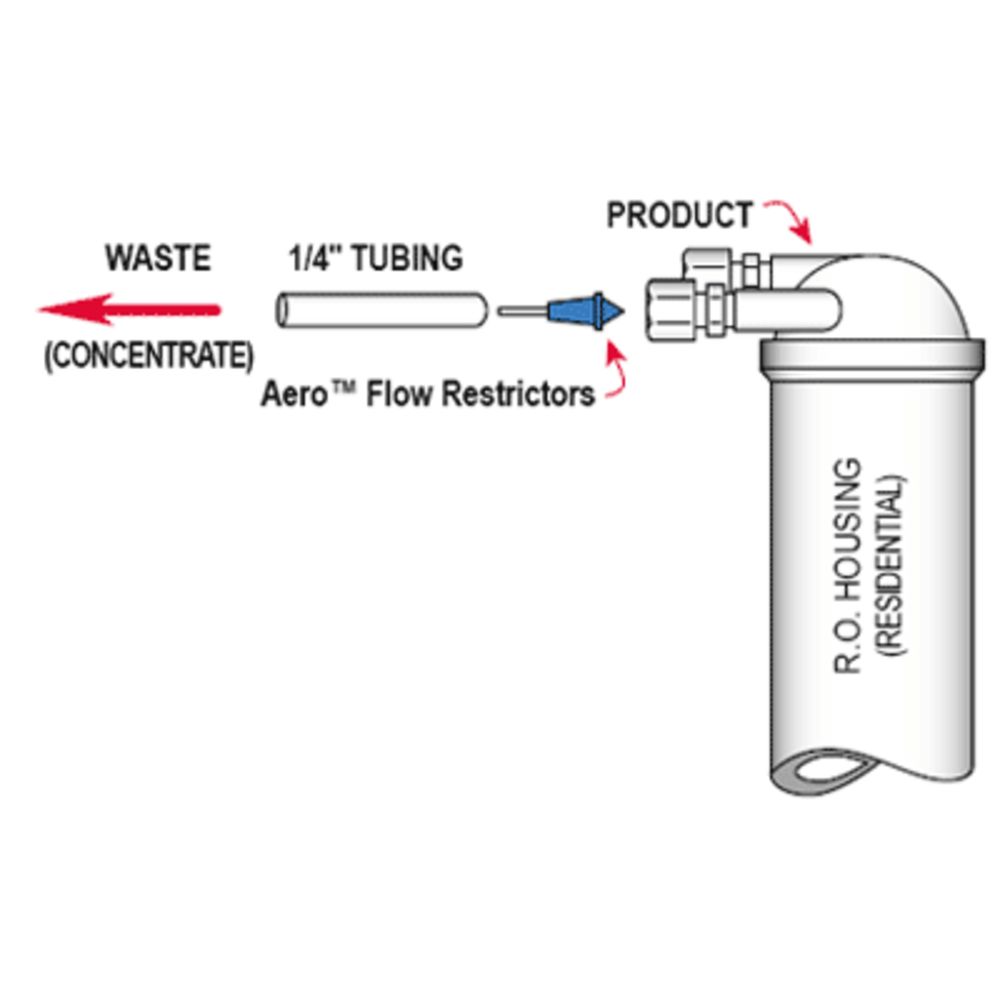

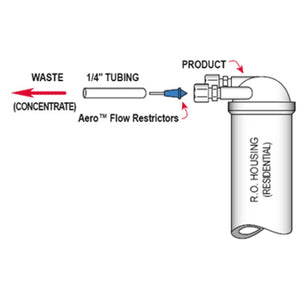

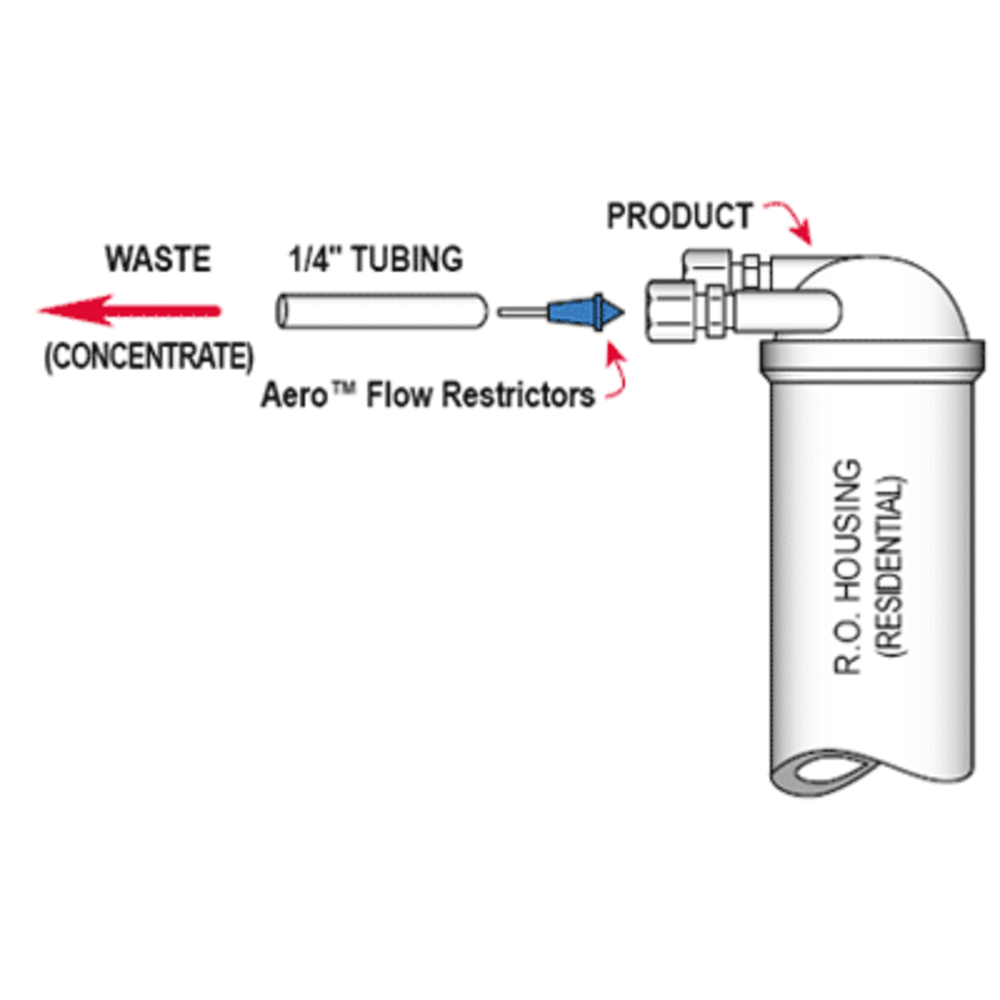

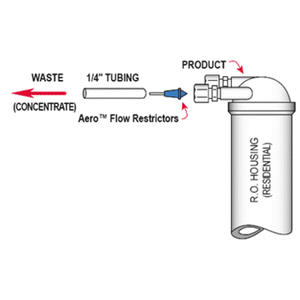

Aero Capillary Flow Restrictors easily inserts into all 1/4" OD tubing located on the membrane Waste line (aka concentrate, brine or rinse).  The length of the flow control capillary line determines the flow restriction, shorter lenghts allow water to pass thru at a greater rate.

Specifications:
  • Compatible with all Quick-Connect and compression fittings
  • FDA food grade material
  • Fits 1/4" OD tubing
Capillary Flow Restrictors

Membrane Capacity
4 to 1 ratio (3 to 1 ratio)

Part No.

Color

Rinse Flow Rate*
(Concentrate)

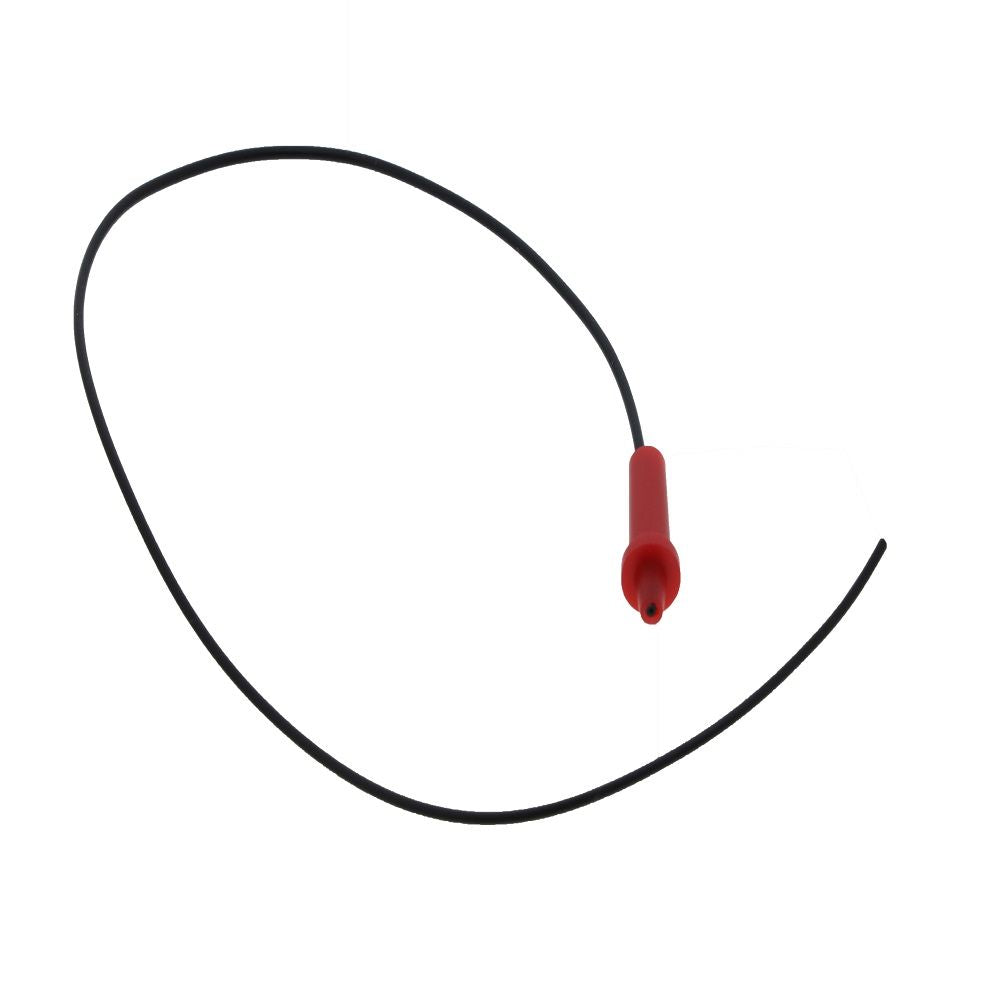

FRCT-110

Red

110 ml/mn (42 gpd)

10 gpd (14 gpd)

FRCT-189

Brown

189 ml/mn (73 gpd)

18 gpd (24 gpd)

FRCT-260

Black

260 ml/mn (100 gpd)

24 gpd (33 gpd)

FRCT-365

Yellow

365 ml/mn (140 gpd)

36 gpd (47 gpd)

FRCT-525

Green

525 ml/mn (202 gpd)

50 gpd (67 gpd)

FRCT-575

Blue

575 ml/mn (221 gpd)

55 gpd (75 gpd)

FRCT-730

White

730 ml/mn (280 gpd)

70 gpd (93 gpd)


Details

Color / Finish

YELLOW

Outer Diameter

1/4"




Aero Capillary Flow Restrictors easily inserts into all 1/4" OD tubing located on the membrane Waste line (aka concentrate, brine or rinse).  The length of the flow control capillary line determines the flow restriction, shorter lenghts allow water to pass thru at a greater rate.

Specifications:
  • Compatible with all Quick-Connect and compression fittings
  • FDA food grade material
  • Fits 1/4" OD tubing
Capillary Flow Restrictors

Membrane Capacity
4 to 1 ratio (3 to 1 ratio)

Part No.

Color

Rinse Flow Rate*
(Concentrate)

FRCT-110

Red

110 ml/mn (42 gpd)

10 gpd (14 gpd)

FRCT-189

Brown

189 ml/mn (73 gpd)

18 gpd (24 gpd)

FRCT-260

Black

260 ml/mn (100 gpd)

24 gpd (33 gpd)

FRCT-365

Yellow

365 ml/mn (140 gpd)

36 gpd (47 gpd)

FRCT-525

Green

525 ml/mn (202 gpd)

50 gpd (67 gpd)

FRCT-575

Blue

575 ml/mn (221 gpd)

55 gpd (75 gpd)

FRCT-730

White

730 ml/mn (280 gpd)

70 gpd (93 gpd)

Details

Color / Finish

YELLOW

Outer Diameter

1/4"
