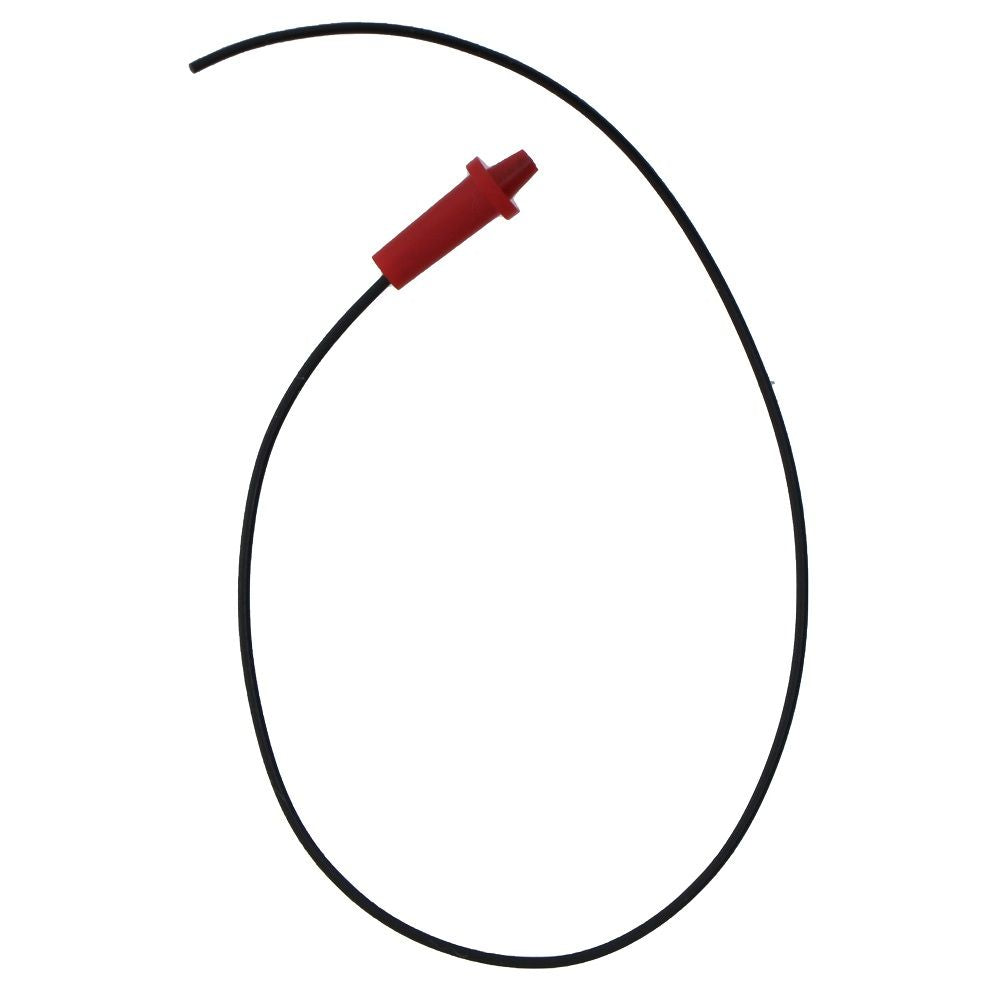

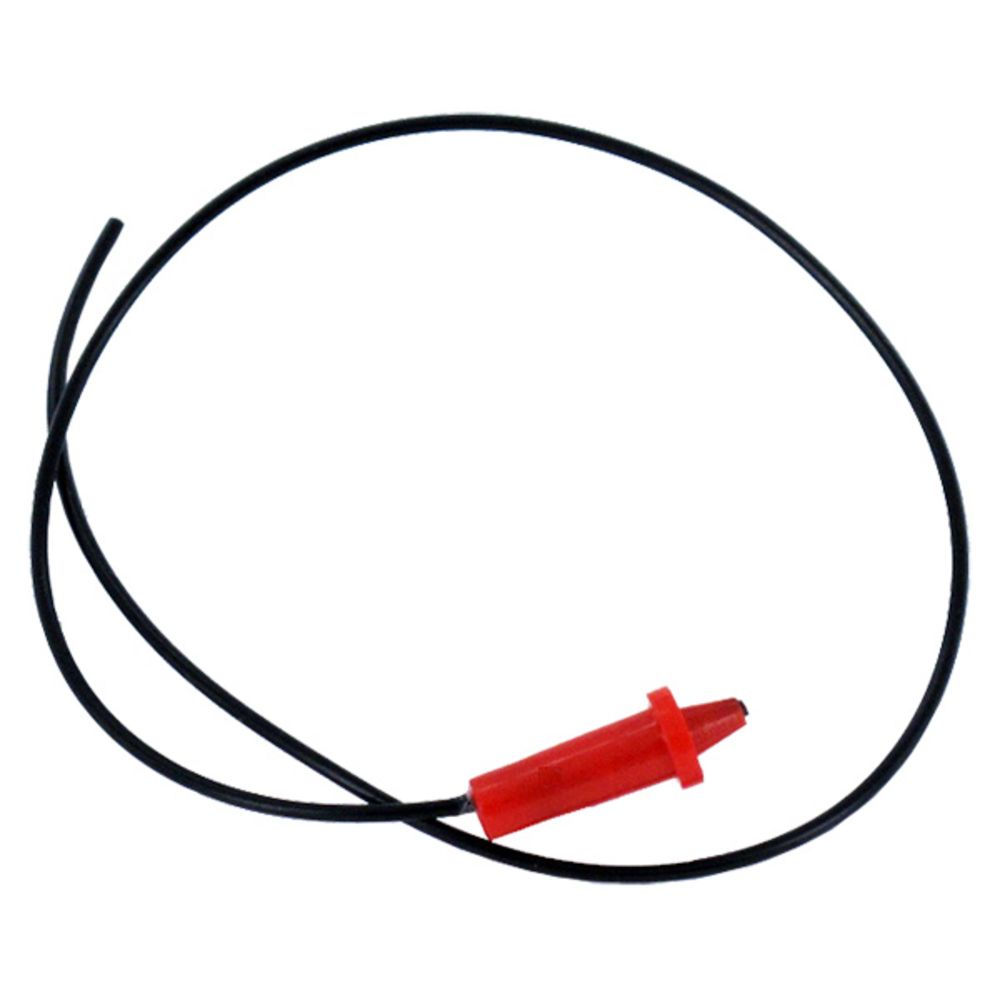

Capillary Flow Restrictor - 110ml/mn (RED) for 10gpd

Part Number: FRCT-110

Alt. Part Number: ID5002, 120010, FRCT10

In Stock

out of stock

In Stock

$4.88

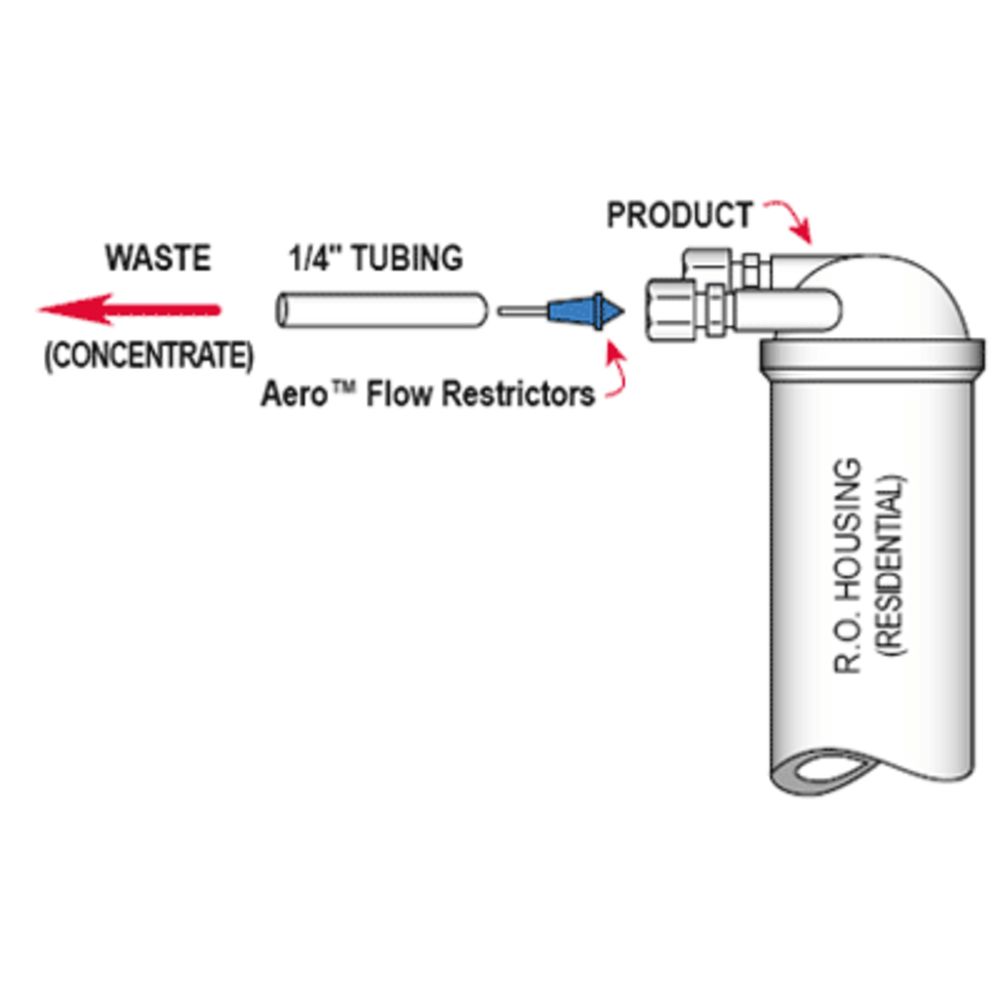

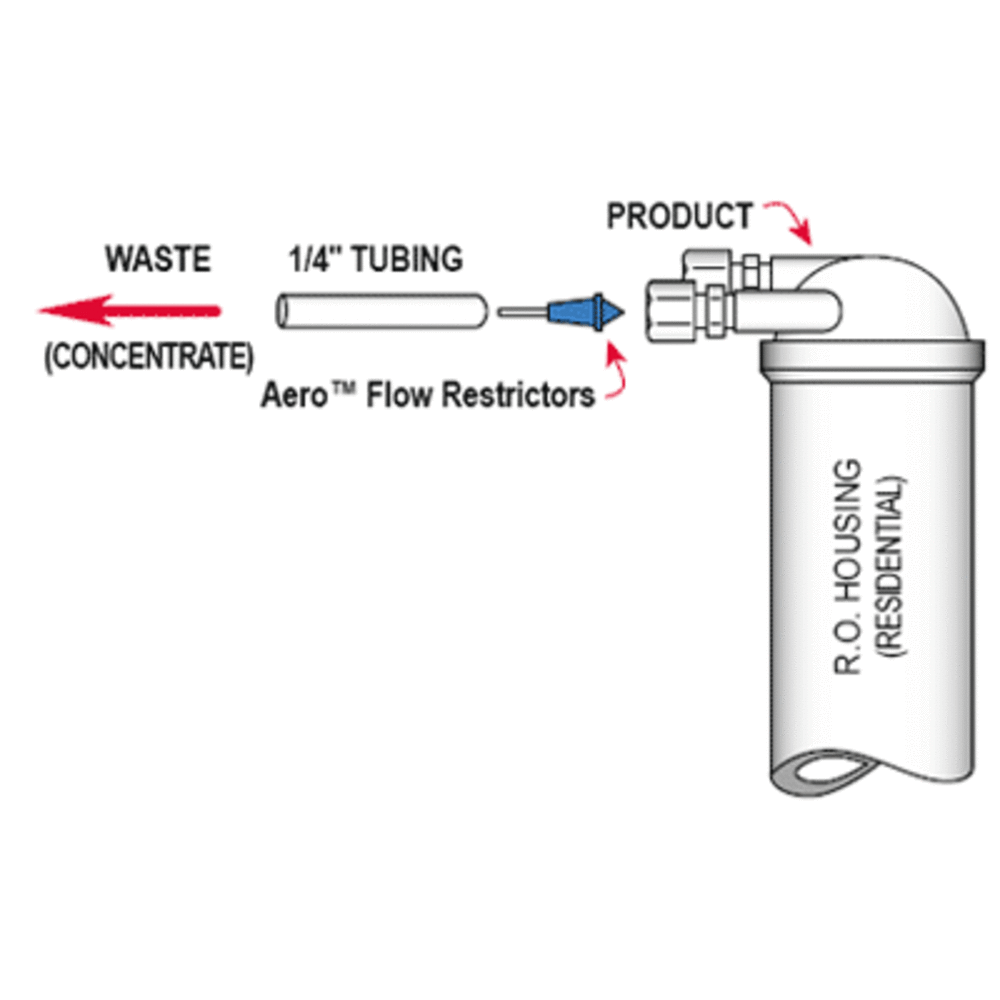

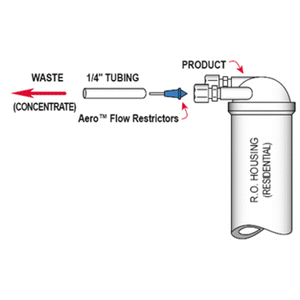

Aero Capillary Flow Restrictors easily inserts into all 1/4" OD tubing located on the membrane Waste line (aka concentrate, brine or rinse).   The length of the flow control capillary line determines the flow restriction, shorter lenghts allow water to pass thru at a greater rate.

Specifications:
  • Compatible with all Quick-Connect and compression fittings
  • FDA food grade material
  • Fits 1/4" OD tubing



Capillary Flow Restrictors Membrane Capacity
4 to 1 ratio (3 to 1 ratio)
Part No. Color Rinse Flow Rate*
(Concentrate)
FRCT-110 Red 110 ml/mn (42 gpd) 10 gpd (14 gpd)
FRCT-189 Brown 189 ml/mn (73 gpd) 18 gpd (24 gpd)
FRCT-260 Black 260 ml/mn (100 gpd) 24 gpd (33 gpd)
FRCT-365 Yellow 365 ml/mn (140 gpd) 36 gpd (47 gpd)
FRCT-525 Green 525 ml/mn (202 gpd) 50 gpd (67 gpd)
FRCT-575 Blue 575 ml/mn (221 gpd) 55 gpd (75 gpd)
FRCT-730 White 730 ml/mn (280 gpd) 70 gpd (93 gpd)


Weight & Dimensions

Height (inches)

0.13

Length (inches)

9.5

Weight (lbs)

0.000625

Width (inches)

0.13

Details

Color / Finish

RED

Diameter

1/4"

Sub-Type

Capillary Flow Restrictors

Type

Accessories



Aero Capillary Flow Restrictors easily inserts into all 1/4" OD tubing located on the membrane Waste line (aka concentrate, brine or rinse).   The length of the flow control capillary line determines the flow restriction, shorter lenghts allow water to pass thru at a greater rate.

Specifications:
  • Compatible with all Quick-Connect and compression fittings
  • FDA food grade material
  • Fits 1/4" OD tubing



Capillary Flow Restrictors Membrane Capacity
4 to 1 ratio (3 to 1 ratio)
Part No. Color Rinse Flow Rate*
(Concentrate)
FRCT-110 Red 110 ml/mn (42 gpd) 10 gpd (14 gpd)
FRCT-189 Brown 189 ml/mn (73 gpd) 18 gpd (24 gpd)
FRCT-260 Black 260 ml/mn (100 gpd) 24 gpd (33 gpd)
FRCT-365 Yellow 365 ml/mn (140 gpd) 36 gpd (47 gpd)
FRCT-525 Green 525 ml/mn (202 gpd) 50 gpd (67 gpd)
FRCT-575 Blue 575 ml/mn (221 gpd) 55 gpd (75 gpd)
FRCT-730 White 730 ml/mn (280 gpd) 70 gpd (93 gpd)

Weight & Dimensions

Height (inches)

0.13

Length (inches)

9.5

Weight (lbs)

0.000625

Width (inches)

0.13

Details

Color / Finish

RED

Diameter

1/4"

Sub-Type

Capillary Flow Restrictors

Type

Accessories
