Burkert

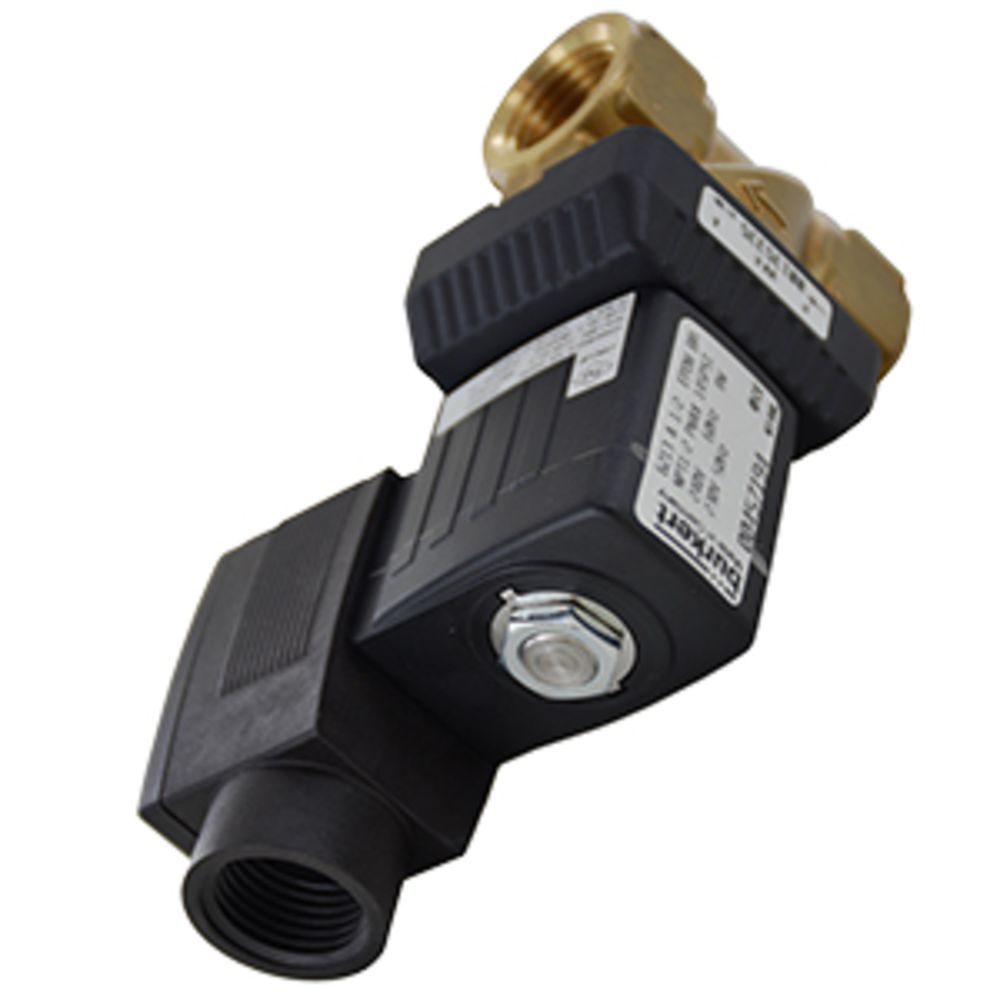

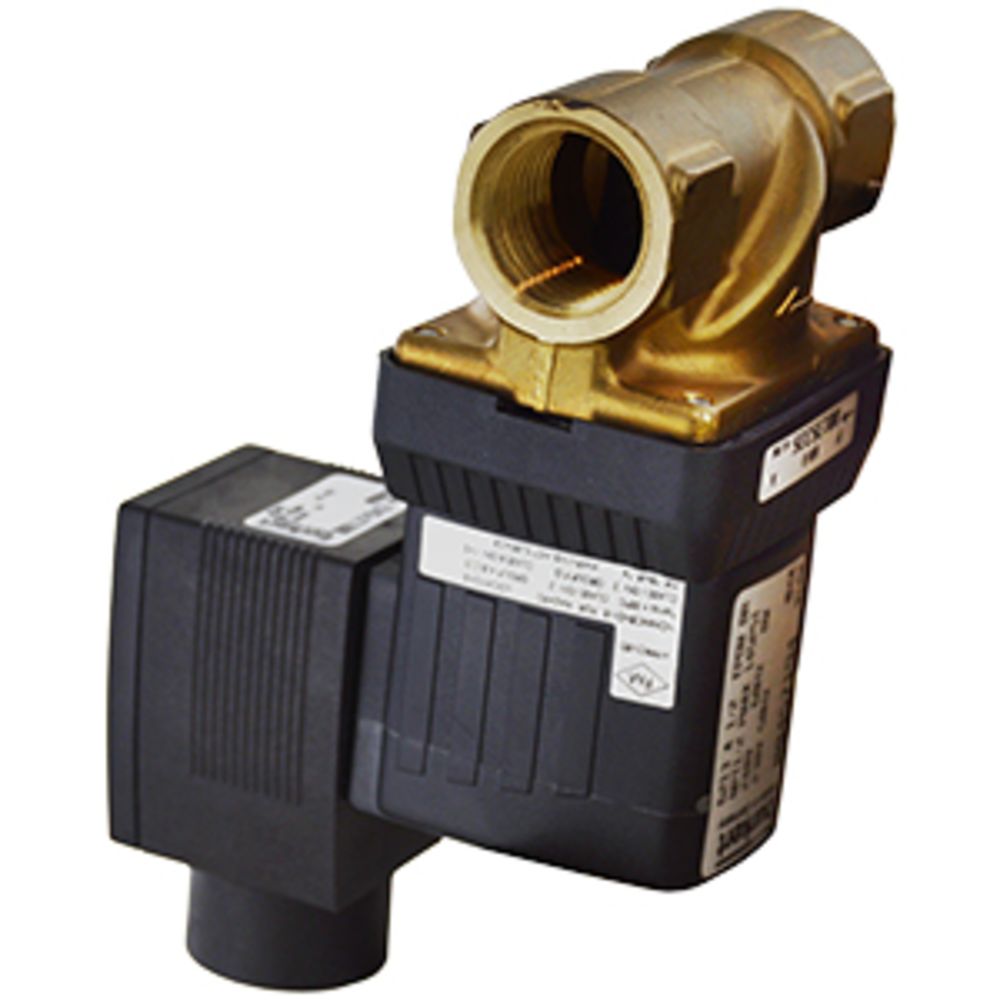

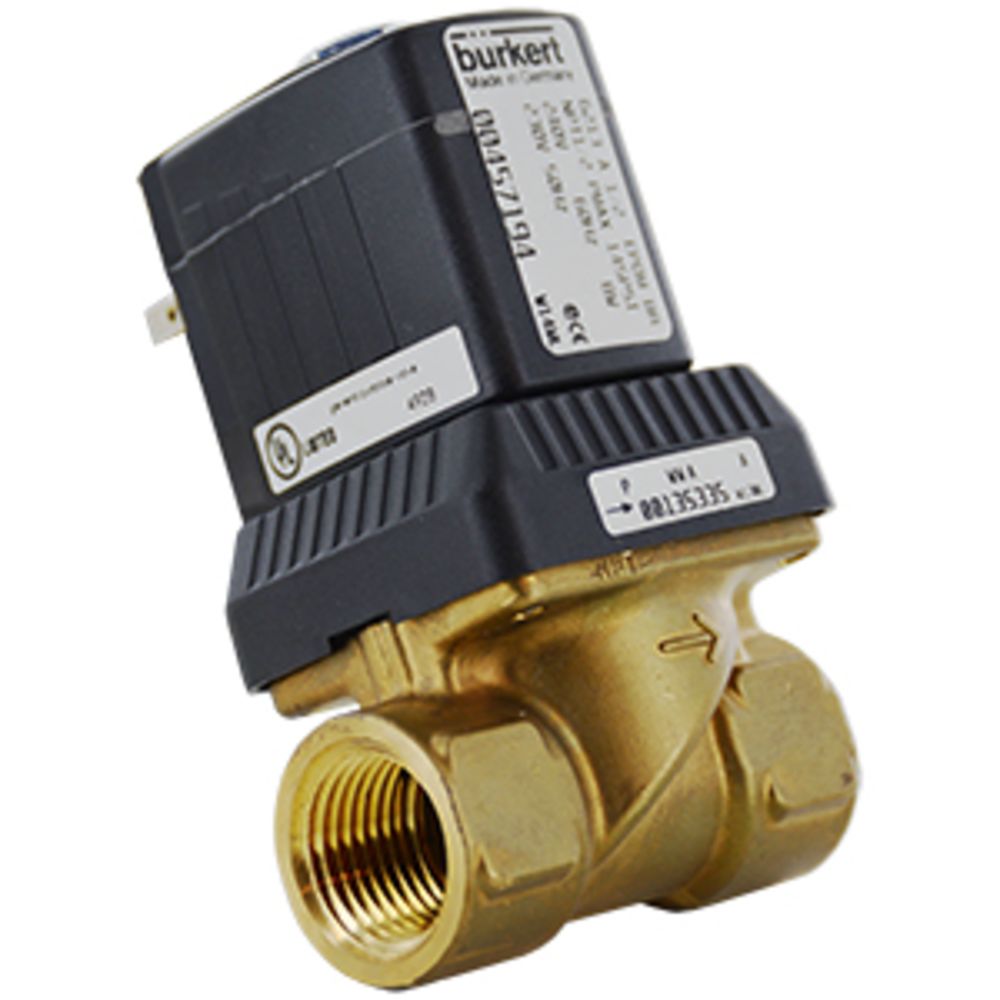

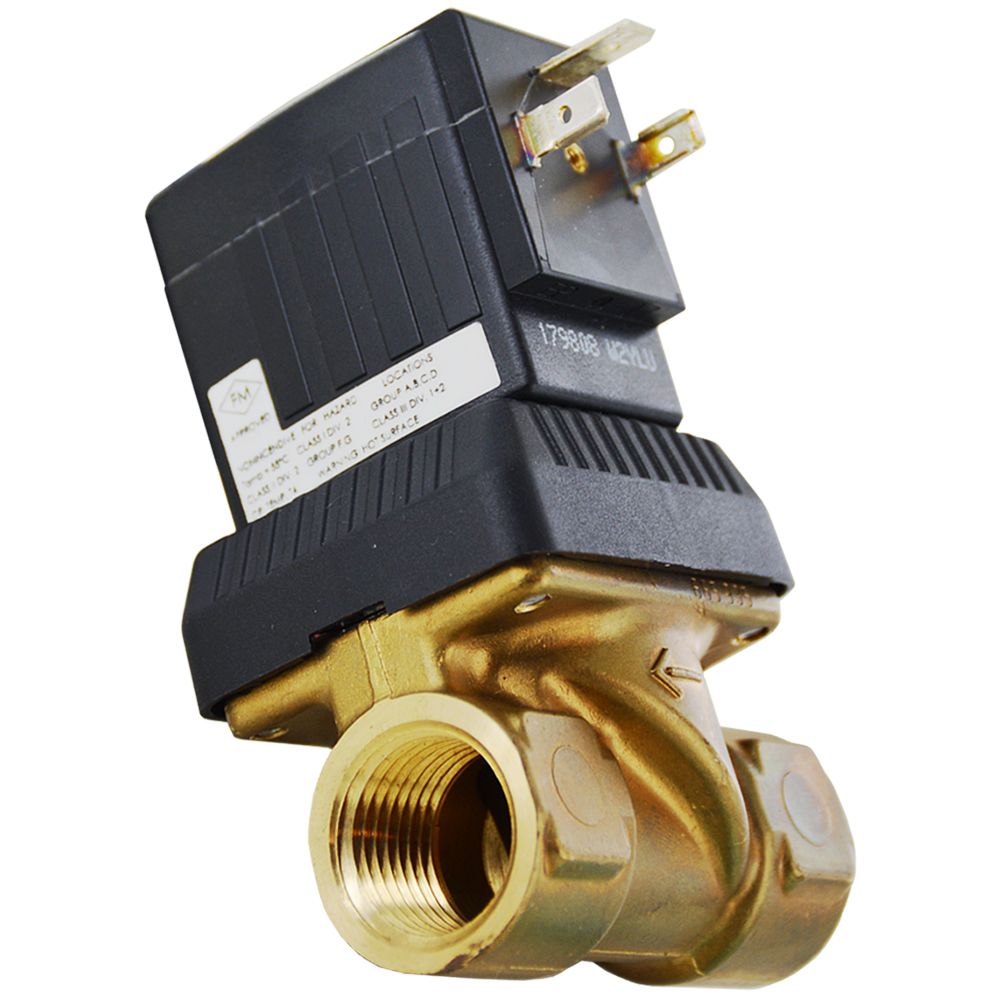

Burkert 2-Way Solenoid Valve Normally Closed 1/2 FPT 240V

Part Number: 457194

Alt. Part Number: 457194N, 00457194, HSMMSV-15-2

In Stock

out of stock

In Stock

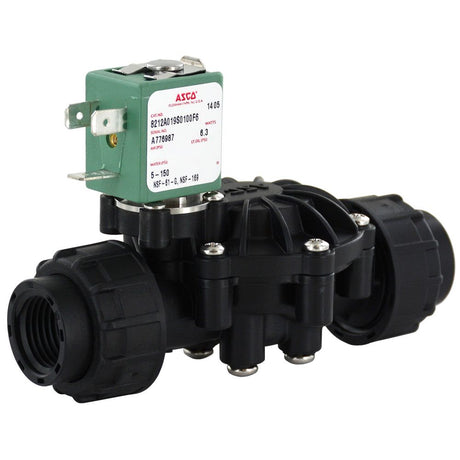

This item is discontinued. We recommend the 2-Way Solenoid Valve Normally Closed 1/2" FPT 120V as a substitute.

The Burkert Type 6213 is a 2/2-way normally closed solenoid valve with a forced couple diaphragm system. It switches from 1.5 PSI and can be used universally for fluids. For complete opening, a differential pressure of at least 1.5 PSI is necessary.

Specifications:
  • Compact brass body
  • Push-over coil
  • Waterhammer-free, low noise
  • Diaphragm materials in EPDM
  • Pressure Range: 1.5 - 145 psi
  • Duty Cycle: 100% continuous rating
  • UL Listed
Note: This solenoid valve contains more than 0.25% lead and is illegal to use in any plumbing system providing water for human consumption anywhere in the United States.



Weight & Dimensions

Weight (lbs)

3.5

Details

Body Material

Brass, Polyphenylene Sulfide (PPS)

Frequency

60 Hz

Max Pressure (Psi)

145

Max Temp (°F)

180

Min Pressure (Psi)

1.5

Power

8 W

Psid@Flow Rate

1 PSI @ 2.4 GPM

Seal Material

EPDM

Wetted Materials

Brass

Diameter

1/2"

Origin

Germay

Port Size

1/2" NPT"

Voltage

240V AC


Burkert

Burkert




The Burkert Type 6213 is a 2/2-way normally closed solenoid valve with a forced couple diaphragm system. It switches from 1.5 PSI and can be used universally for fluids. For complete opening, a differential pressure of at least 1.5 PSI is necessary.

Specifications:
  • Compact brass body
  • Push-over coil
  • Waterhammer-free, low noise
  • Diaphragm materials in EPDM
  • Pressure Range: 1.5 - 145 psi
  • Duty Cycle: 100% continuous rating
  • UL Listed
Note: This solenoid valve contains more than 0.25% lead and is illegal to use in any plumbing system providing water for human consumption anywhere in the United States.


NOTE: This item is discontinued. We recommend the 2-Way Solenoid Valve Normally Closed 1/2" FPT 120V as a substitute.

Weight & Dimensions

Weight (lbs)

3.5

Details

Body Material

Brass, Polyphenylene Sulfide (PPS)

Frequency

60 Hz

Max Pressure (Psi)

145

Max Temp (°F)

180

Min Pressure (Psi)

1.5

Power

8 W

Psid@Flow Rate

1 PSI @ 2.4 GPM

Seal Material

EPDM

Wetted Materials

Brass

Diameter

1/2"

Origin

Germay

Port Size

1/2" NPT"

Voltage

240V AC
