Burkert

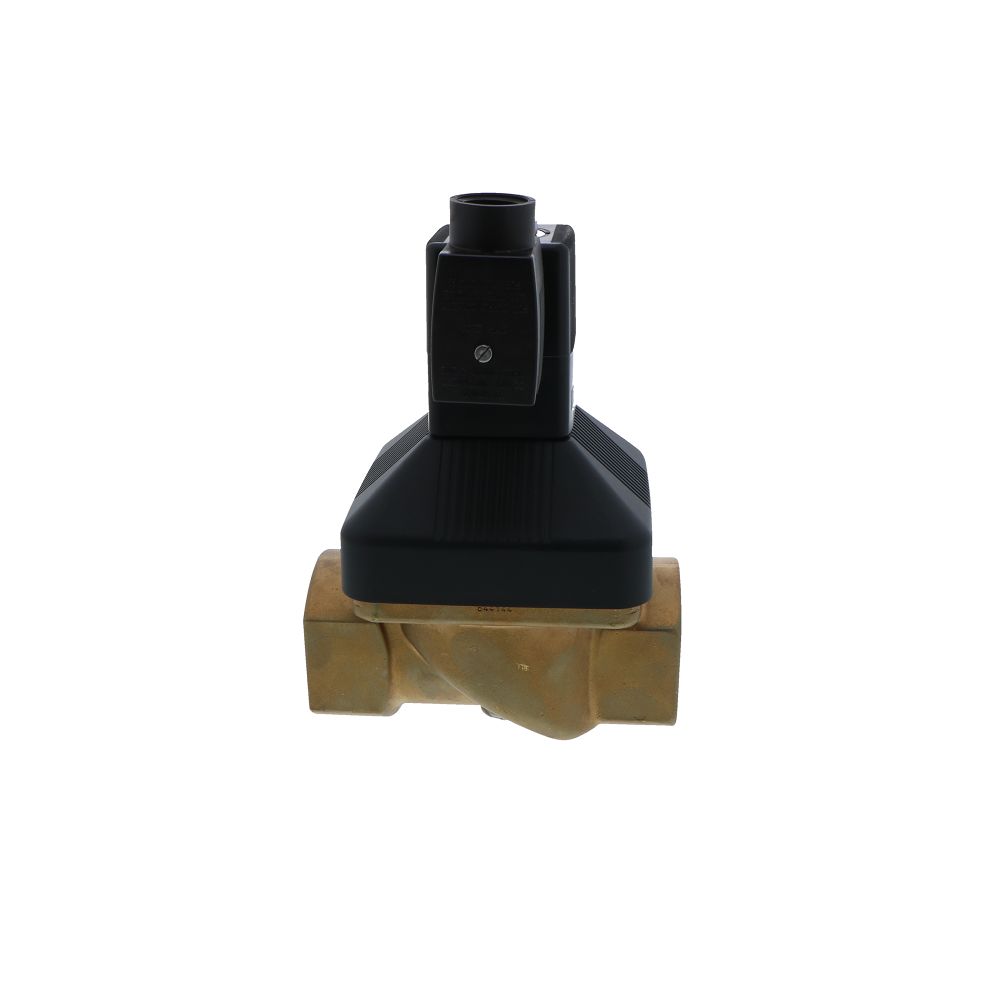

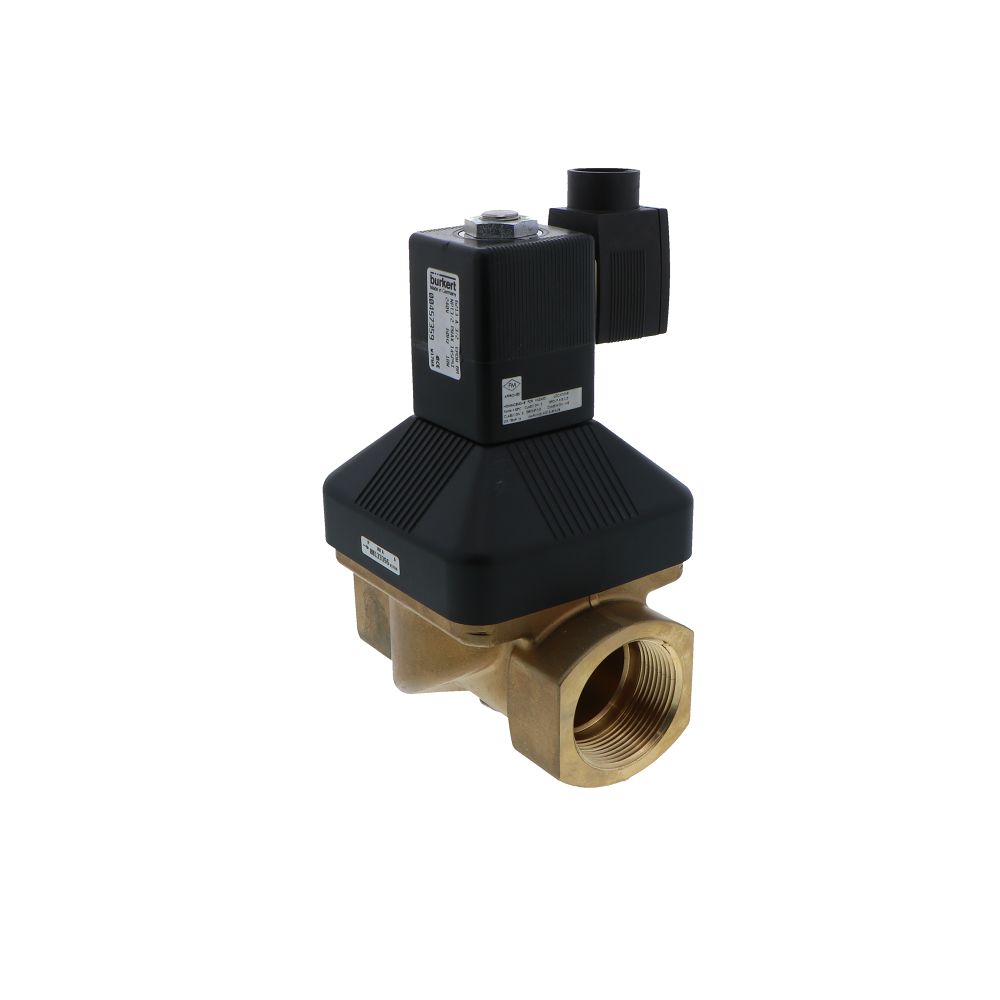

Burkert 2-Way Solenoid Valve Normally Closed 1-1/2 FPT 240V

Part Number: 457359

Alt. Part Number: 00457359, HSMMSV-150-2

In Stock

out of stock

In Stock

$543.37


The Burkert Type 6213 is a 2/2-way normally closed solenoid valve with a forced couple diaphragm system. It switches from 1.5 PSI and can be used universally for fluids. For complete opening, a differential pressure of at least 1.5 PSI is necessary.

Features:
  • Compact brass body
  • Push-over coil
  • Waterhammer-free, low noise
  • Diaphragm materials in EPDM
  • Pressure Range: 1.5 - 145 psi
  • Duty Cycle: 100% continuous rating
  • UL Listed
Note: This solenoid valve contains more than 0.25% lead and is illegal to use in any plumbing system providing water for human consumption anywhere in the United States.


Details

Flow Factor (Metric Or English)

35.1 (GPM@1psi drop, 16°C)

Body Material

Brass; Stainless Steel; Polyphenylene Sulfide (PPS)

Diameter

1-1/2"

Frequency

60 Hertz

Operating Pressure Range

1.5-145 PSI

Operating Temperature Range

max. 131°F (+55°C)

Origin

Germany

Power

18 Watts

Seal Material

EPDM

Valve Type

Closed

Va Inrush / Va Holding

202/38(18W)

Wetted Materials

Stainless Steel; Brass

Port Size

1-1/2" FPT Inches


Burkert

Burkert





The Burkert Type 6213 is a 2/2-way normally closed solenoid valve with a forced couple diaphragm system. It switches from 1.5 PSI and can be used universally for fluids. For complete opening, a differential pressure of at least 1.5 PSI is necessary.

Features:
  • Compact brass body
  • Push-over coil
  • Waterhammer-free, low noise
  • Diaphragm materials in EPDM
  • Pressure Range: 1.5 - 145 psi
  • Duty Cycle: 100% continuous rating
  • UL Listed
Note: This solenoid valve contains more than 0.25% lead and is illegal to use in any plumbing system providing water for human consumption anywhere in the United States.

Details

Flow Factor (Metric Or English)

35.1 (GPM@1psi drop, 16°C)

Body Material

Brass; Stainless Steel; Polyphenylene Sulfide (PPS)

Diameter

1-1/2"

Frequency

60 Hertz

Operating Pressure Range

1.5-145 PSI

Operating Temperature Range

max. 131°F (+55°C)

Origin

Germany

Power

18 Watts

Seal Material

EPDM

Valve Type

Closed

Va Inrush / Va Holding

202/38(18W)

Wetted Materials

Stainless Steel; Brass

Port Size

1-1/2" FPT Inches
