Colder Products

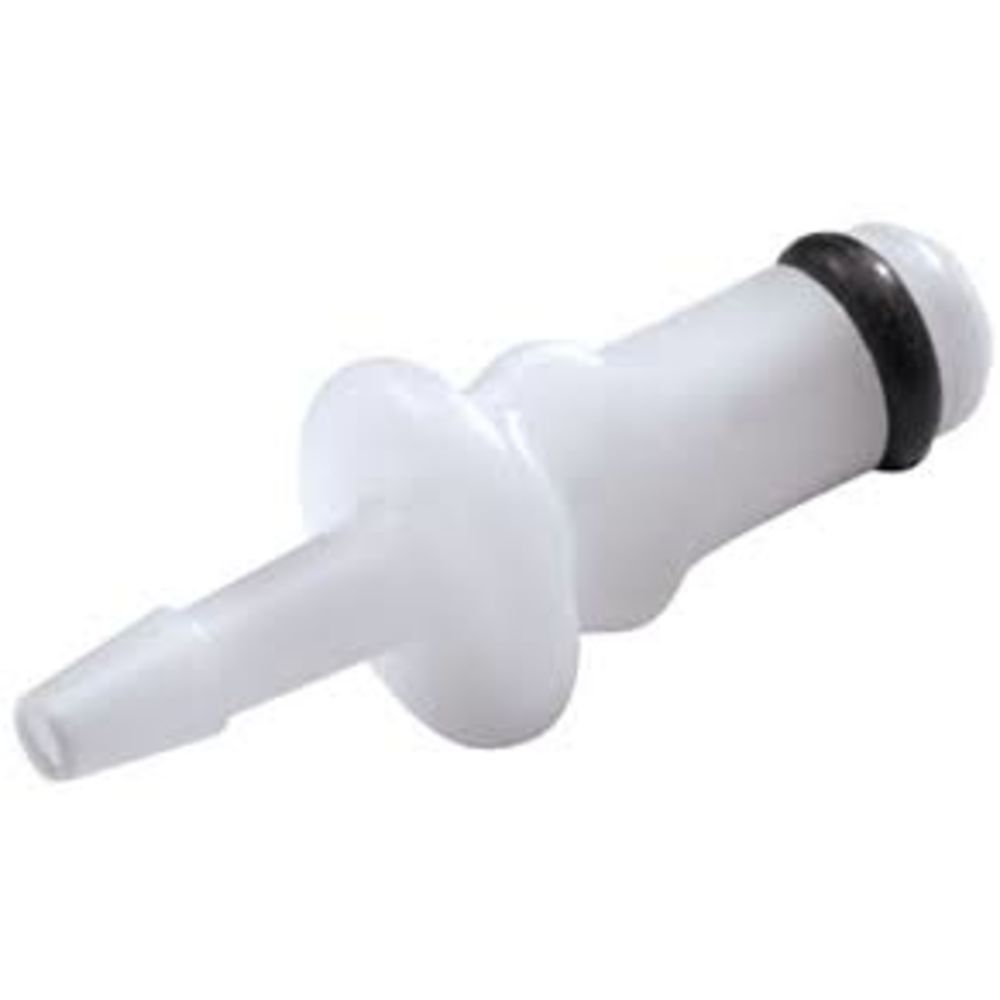

BSQ2202 1/8 Hose Barb Insert

Part Number: BSQ2202

In Stock

out of stock

In Stock

$1.04

SnapQuik® is a breakaway connector ideal for small-bore applications. The compact design delivers high flow fluid transfer in a small profile. Featuring a unique internal latching mechanism that creates a smooth, streamlined exterior that is easy to clean and use.

Specifications:
  • Material: Acetal
  • Material Finish: Natural
  • Color: White
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 15 psi, 1.03 bar
  • Temperature Range: 32°F to 122°F


Details

Series

SnapQuik

Barb Size

1/8"

Bag Quantity

25

Body Material

Acetal

Color / Finish

White, Natural

O Rings

Buna-N

Operating Pressure Range

Vacuum to 15 psi, 1.03 bar

Operating Temperature Range

32°F - 122°F

Seal Material

BUNA-N

Valve Type

Non-Valved


BSQ2202




SnapQuik® is a breakaway connector ideal for small-bore applications. The compact design delivers high flow fluid transfer in a small profile. Featuring a unique internal latching mechanism that creates a smooth, streamlined exterior that is easy to clean and use.

Specifications:
  • Material: Acetal
  • Material Finish: Natural
  • Color: White
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 15 psi, 1.03 bar
  • Temperature Range: 32°F to 122°F

Details

Series

SnapQuik

Barb Size

1/8"

Bag Quantity

25

Body Material

Acetal

Color / Finish

White, Natural

O Rings

Buna-N

Operating Pressure Range

Vacuum to 15 psi, 1.03 bar

Operating Temperature Range

32°F - 122°F

Seal Material

BUNA-N

Valve Type

Non-Valved

Documentation
BSQ2202

Reviews
