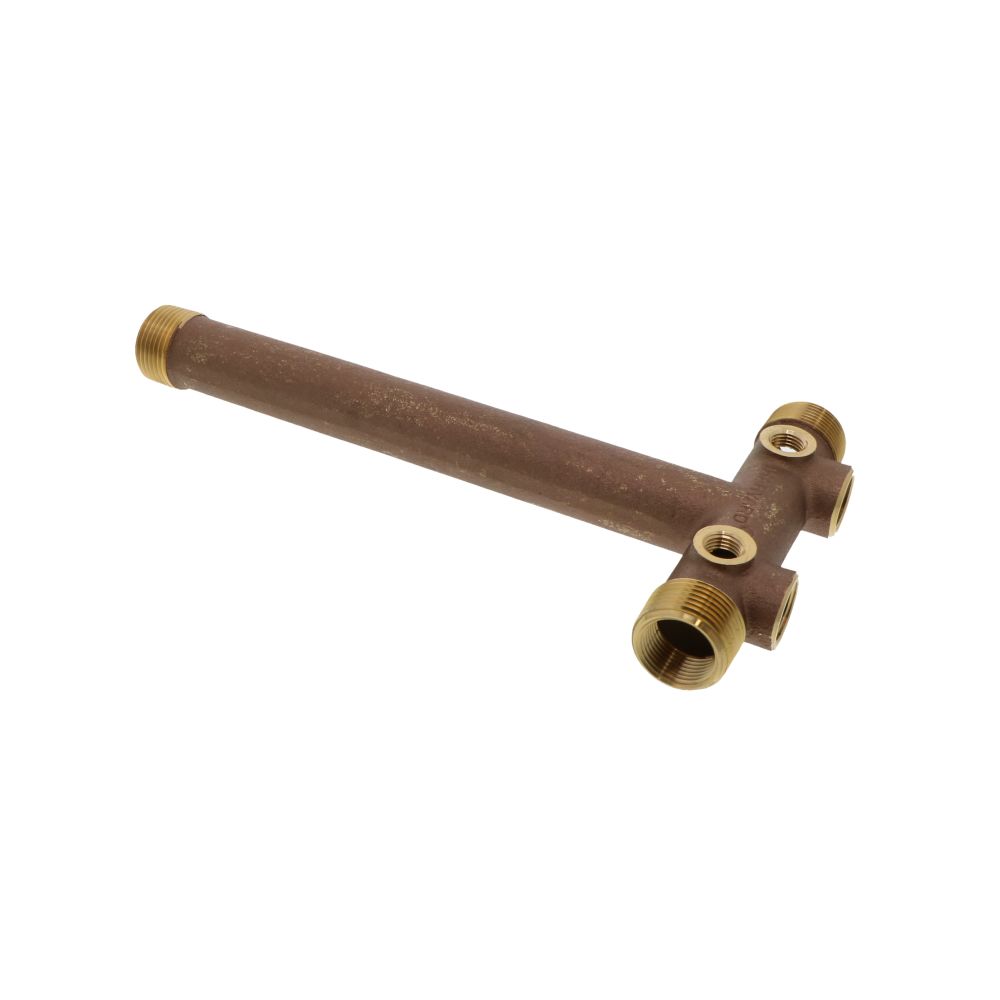

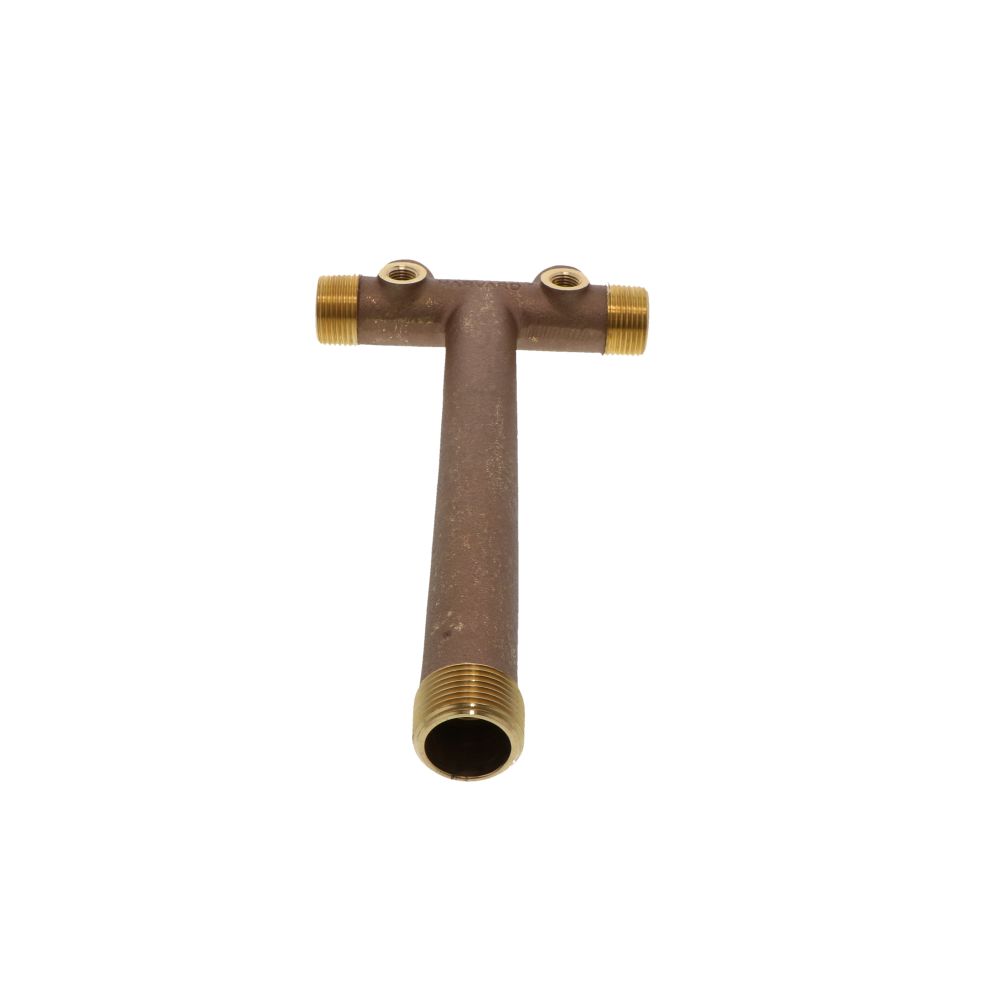

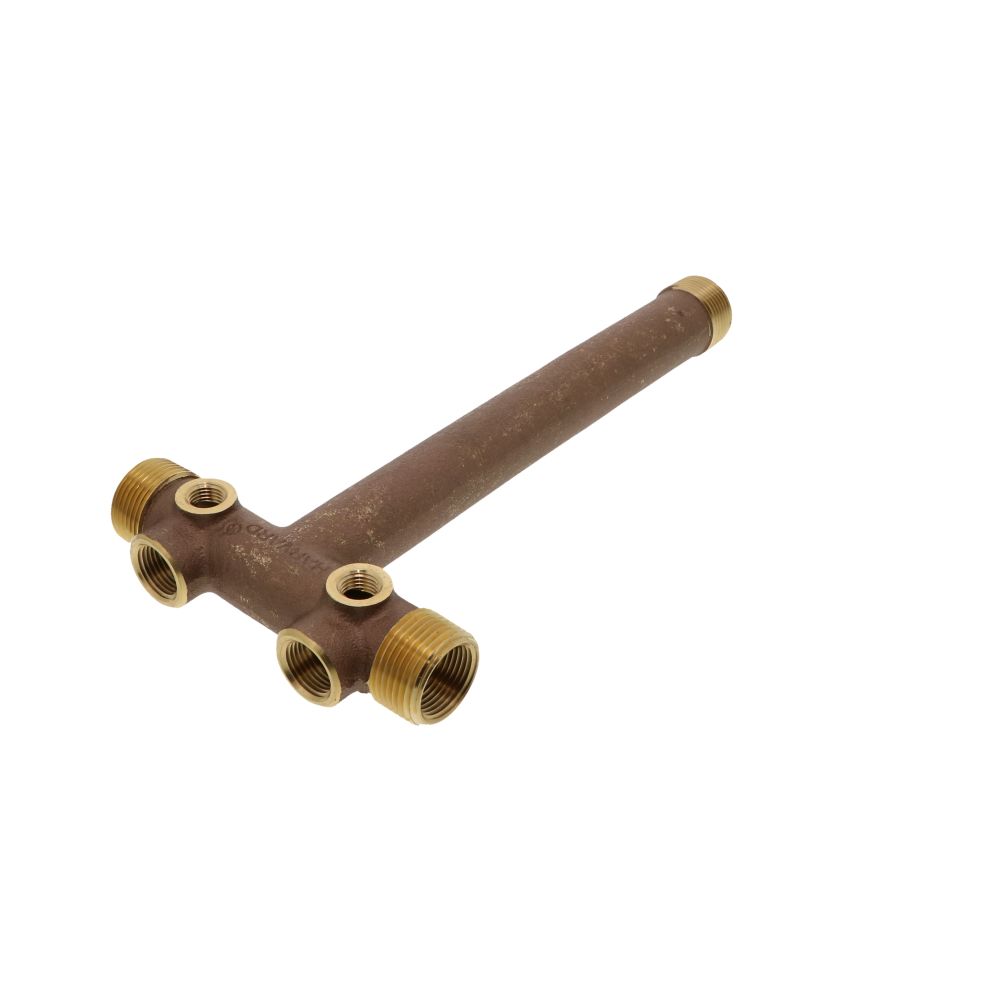

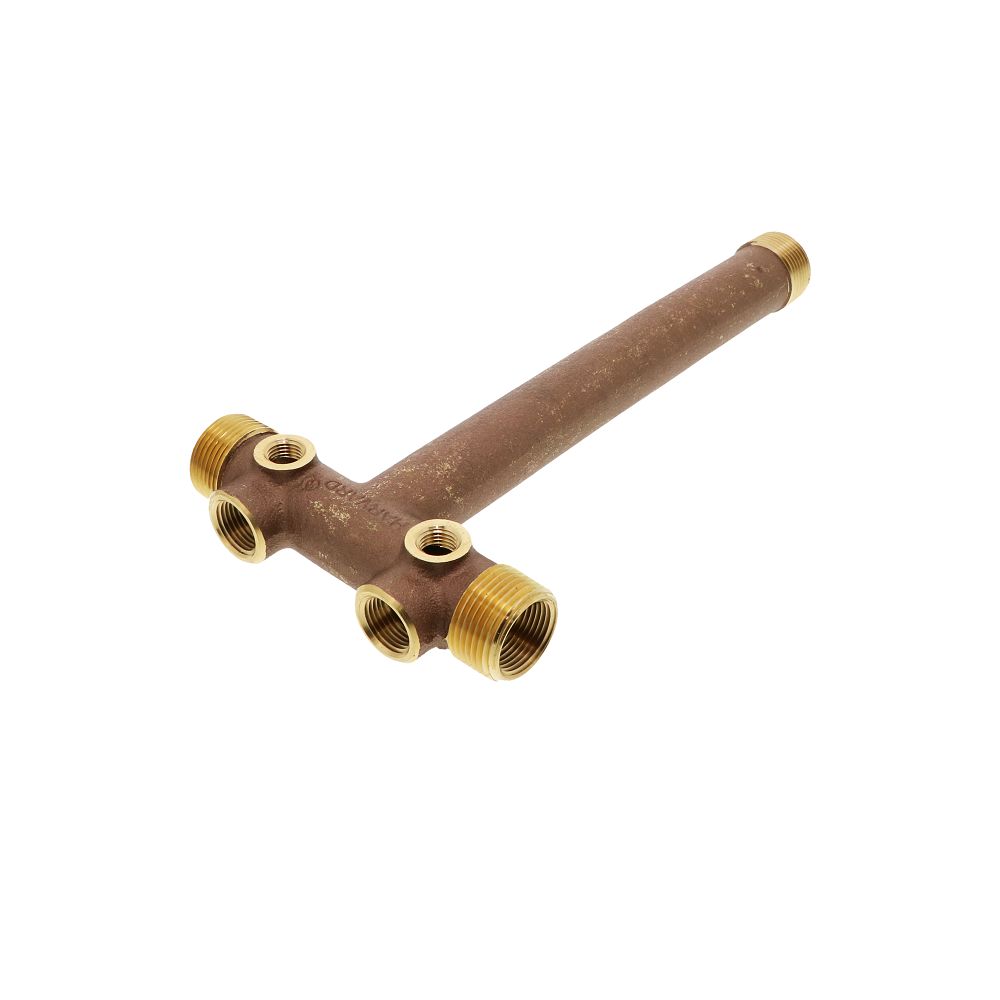

Brass Tank Cross Lead-Free 1" x 11"

Part Number: TCNL10011-2

In Stock

out of stock

In Stock

$39.51

Specifications:
  • 1" MIPT Tank Connection
  • Internal and external threads reduce the number of fittings needed for installation
  • Lead Free Brass Construction
  • Copper Tubing Soldered Together
  • AB1953 Certified
This tank cross is comparable to equivalent crosses from Merrill and Boshart.

Overall Length 11"
Tank Connection 1" MIPT
Leg Connections 1" MIPT and 3/4" FIPT
Drain Ports (qty) 1/2" FIPT (2)
Top Ports (qty) 1/4" FIPT (2)
Material Lead Free Brass


Weight & Dimensions

Approx Length (Inches)

11"

Details

Leg Connections

1" MIPT and 3/4" FIPT

Primary Connection

1"

Drain Size

1/2" FIPT

Material Of Construction

Lead-Free Brass

Origin

USA

Port Size

1/4" FIPT

Warranty & Certifications

Certifications

Lead Free: AB1953



Specifications:
  • 1" MIPT Tank Connection
  • Internal and external threads reduce the number of fittings needed for installation
  • Lead Free Brass Construction
  • Copper Tubing Soldered Together
  • AB1953 Certified
This tank cross is comparable to equivalent crosses from Merrill and Boshart.

Overall Length 11"
Tank Connection 1" MIPT
Leg Connections 1" MIPT and 3/4" FIPT
Drain Ports (qty) 1/2" FIPT (2)
Top Ports (qty) 1/4" FIPT (2)
Material Lead Free Brass

Weight & Dimensions

Approx Length (Inches)

11"

Details

Leg Connections

1" MIPT and 3/4" FIPT

Primary Connection

1"

Drain Size

1/2" FIPT

Material Of Construction

Lead-Free Brass

Origin

USA

Port Size

1/4" FIPT

Warranty & Certifications

Certifications

Lead Free: AB1953
