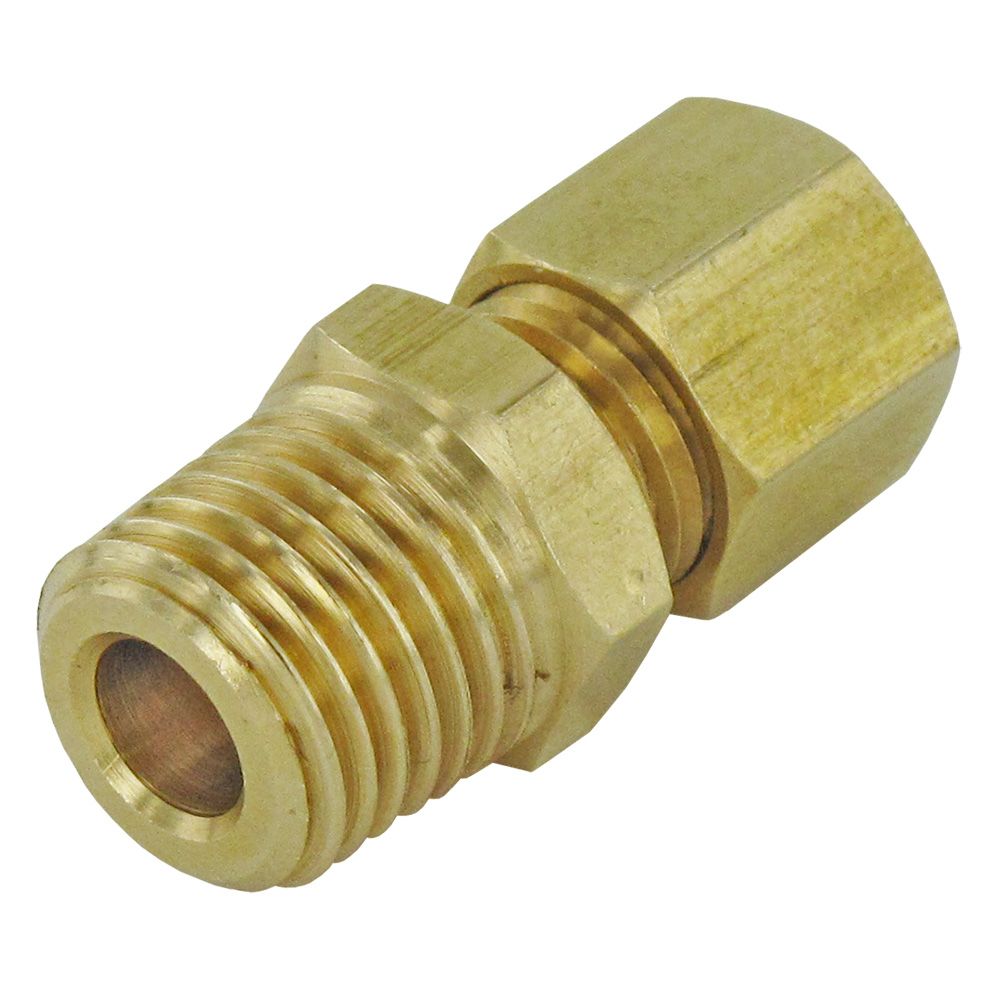

Brass Male Connector 5/16 Compression x 1/4 NPT

Part Number: BCMC-0504

Alt. Part Number: 68C-5-4

In Stock

out of stock

In Stock

$8.17


Use with copper, brass, and aluminum. Not recommended for steel tubing. Manufactured for low medium pressure tubing connection work.

Specifications:
  • 5/16 compression x 1/4 NPT male thread
  • Material: brass
Assembly Instructions:
  • Slide nut, then sleeve into tubing. The thread end of the nut must face out.
  • Insert the tube into the fittings. Be sure the tube is bottomed on the fitting shoulder.
  • Assemble nut to body, and tighten.


Also available upon request in the following configurations:


Compression Thread Male Pipe Thread
1/8 1/8
3/16 1/4
3/16 1/8
1/4 1/2
1/4 1/4
1/4 1/8
1/4 3/8
5/16 1/4
3/8 1/2
3/8 1/4
3/8 1/8
3/8 3/8
3/8 3/4
7/16 1/4
7/16 3/8
1/2 1/2
1/2 1/4
1/2 3/8
5/8 1/2
5/8 3/4
5/8 3/8
7/8 1/2
7/8 3/4


Weight & Dimensions

Height (inches)

0.5

Length (inches)

1.25

Weight (lbs)

0.003125

Width (inches)

0.5

Details

Application

Water, Gas, Air, Oil

Body Material

Lead Free Brass

Inlet/Outlet Connection

5/16" Compression, 1/4" MPT

Mounting Options

Thread

Push-In Size

5/16" OD

Series

LF Brass

Size

5/16", 1/4"

Color / Finish

Brass

Connection Type

Male (MPT), Compression

Type

Adapter
