Hydronamic Engineering

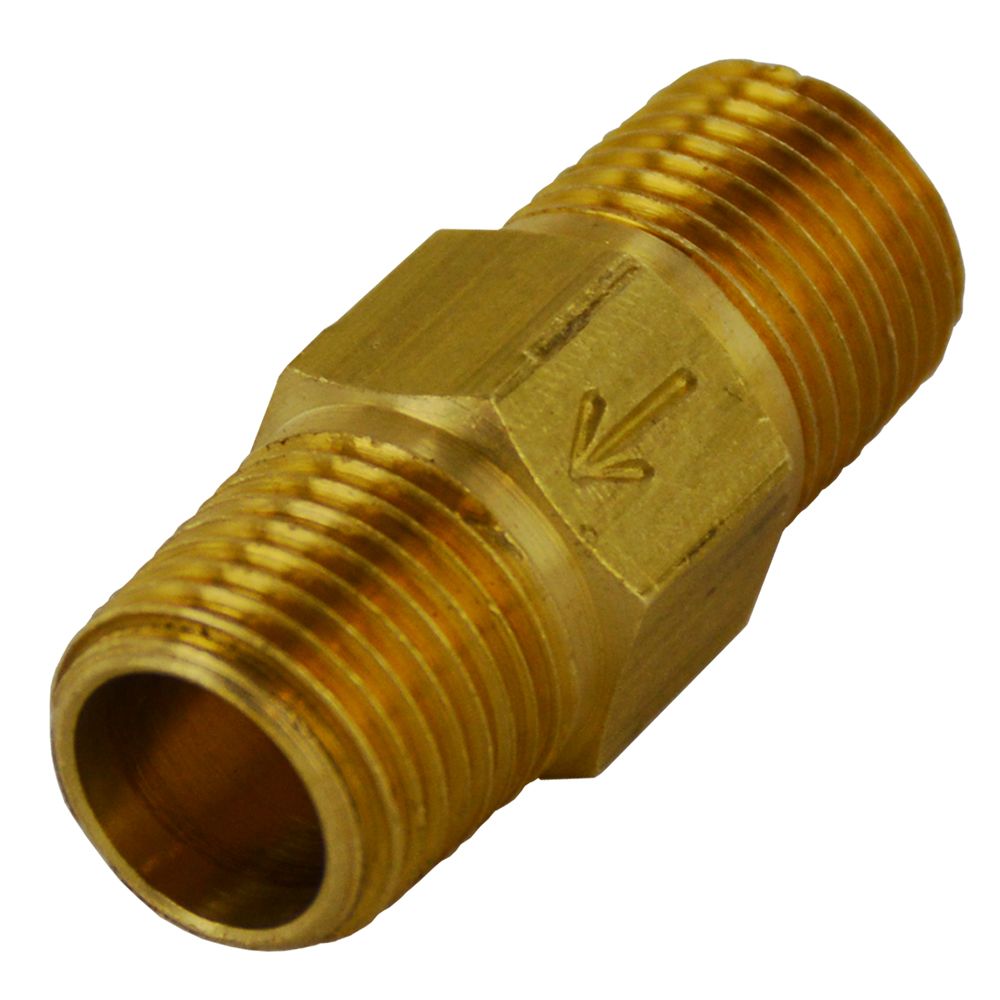

Brass Check Valve 1/8 MPT x 1/8 MPT

Part Number: CV18B-MM

Alt. Part Number: CV18B-MXM-1psi-Buna

In Stock

out of stock

In Stock

$7.85

This Hydronamic Engineering Brass Check Valve is constructed of heavy duty 360 brass for long lasting reliability and corrosion resistance. The CV18B-MM can be used in water, oil, and gas applications and has a maximum pressure rating of 1 psi.

Specifications:
  • 1/8 MPT Inlet x 1/8 MPT Outlet
  • Dimensions: 1.00" x 7/16" Hex
  • Max Pressure Rating: 1 psi
  • Standard Assembly: 1.0 psi cracking pressure +/- 0.5
  • O-ring Material: Buna
Flow Rates:
  • 0.35gpm @ 5psi
  • 0.64gpm @ 10psi
  • 0.73gpm @ 15psi
  • 0.84gpm @ 20psi




Weight & Dimensions

Weight (lbs)

0.1

Details

Body Material

Brass

Inlet/Outlet Connection

1/8" MPT

Max Pressure (Psi)

1

O-Rings

Buna-N

Size

1/8"



This Hydronamic Engineering Brass Check Valve is constructed of heavy duty 360 brass for long lasting reliability and corrosion resistance. The CV18B-MM can be used in water, oil, and gas applications and has a maximum pressure rating of 1 psi.

Specifications:
  • 1/8 MPT Inlet x 1/8 MPT Outlet
  • Dimensions: 1.00" x 7/16" Hex
  • Max Pressure Rating: 1 psi
  • Standard Assembly: 1.0 psi cracking pressure +/- 0.5
  • O-ring Material: Buna
Flow Rates:
  • 0.35gpm @ 5psi
  • 0.64gpm @ 10psi
  • 0.73gpm @ 15psi
  • 0.84gpm @ 20psi



Weight & Dimensions

Weight (lbs)

0.1

Details

Body Material

Brass

Inlet/Outlet Connection

1/8" MPT

Max Pressure (Psi)

1

O-Rings

Buna-N

Size

1/8"
