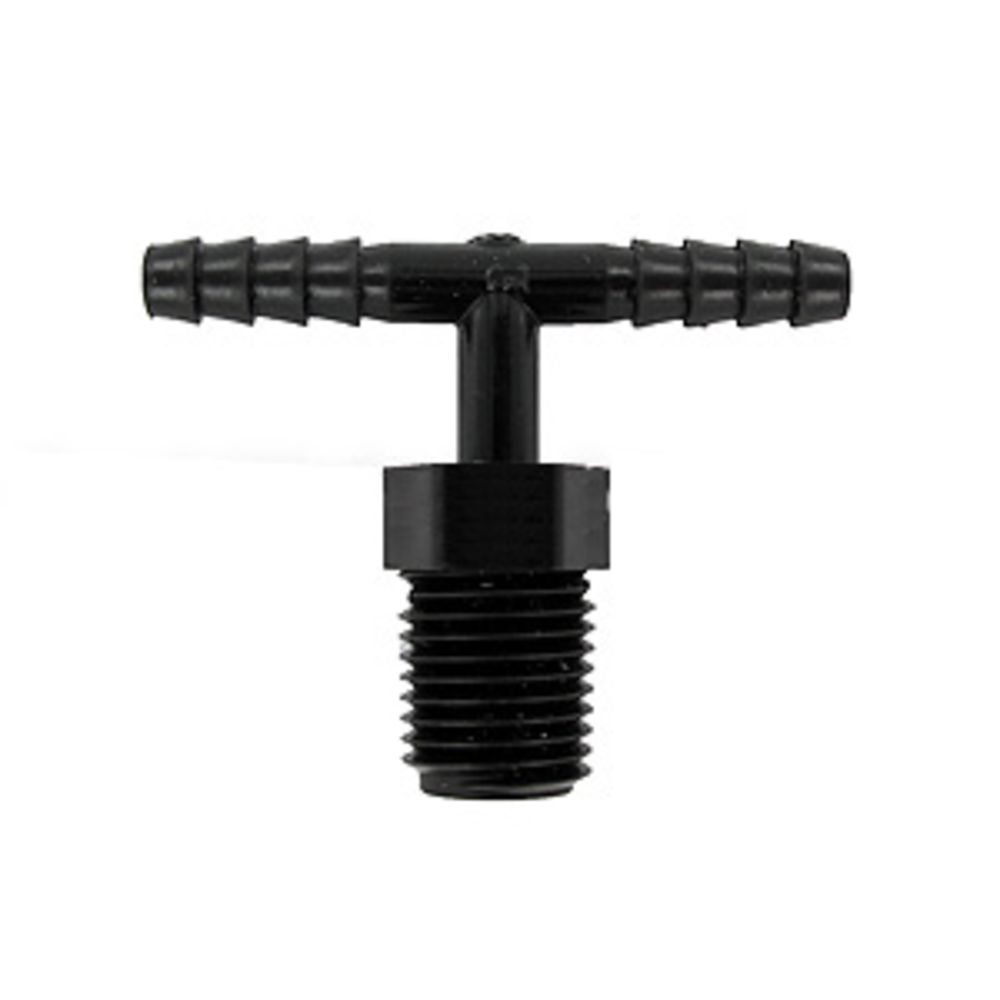

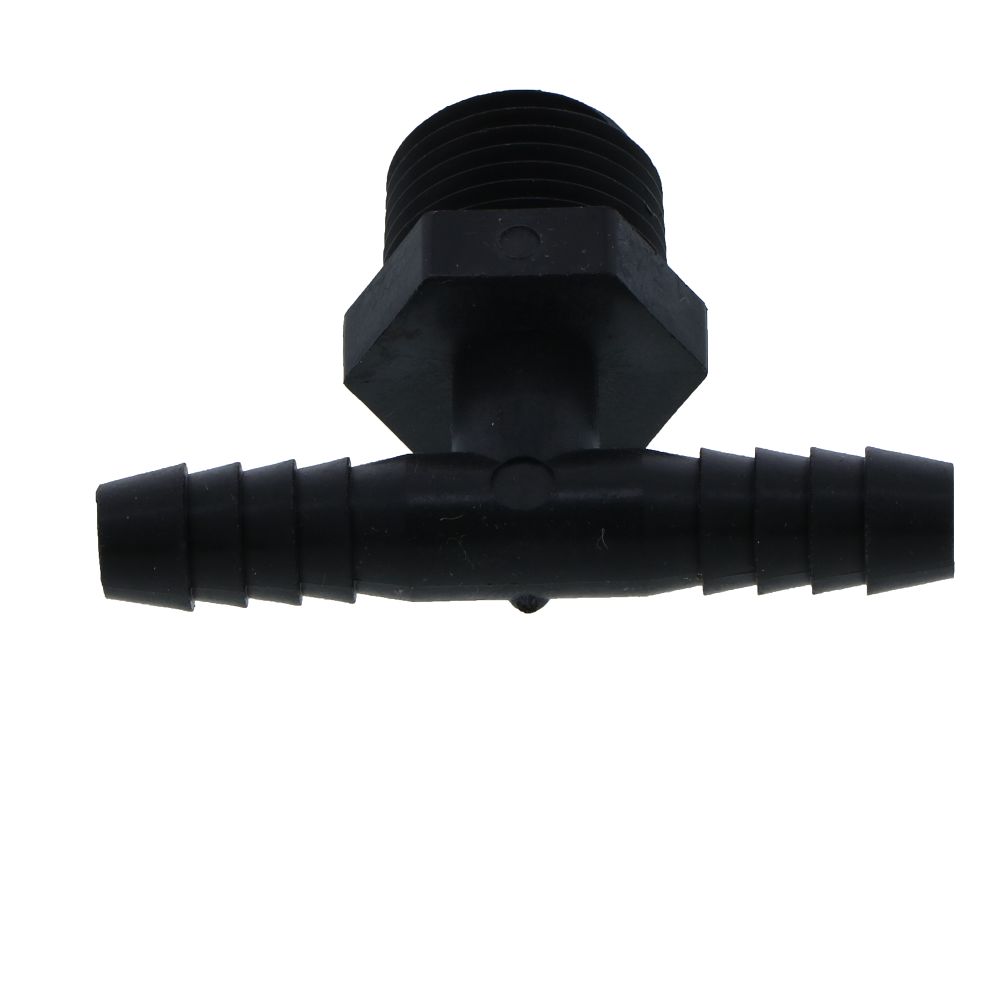

Barb Tee x Male Branch - 3/8 ID x 1/2 MNPT
Closeout sale item with limited availability.
Par-Barb fittings are precision injection molded from high strength, chemically inert, thermoplastic materials. Par-Barb fittings meet FDA and NSF-51 specifications for food contact.
Specifications:
Specifications:
- Temperature Range: 65º F to 190º
- Max Working Pressure: 125 psi
 | ||||||

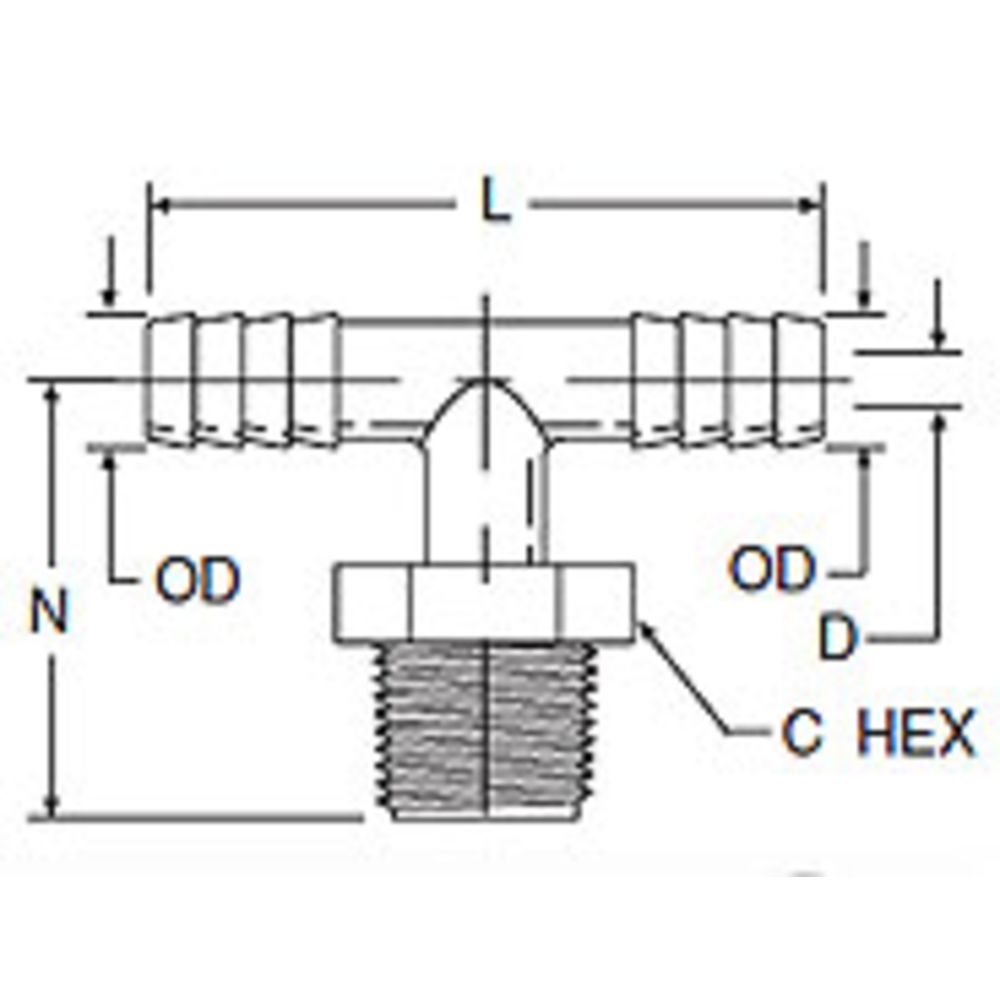

| Par-Barb | Tube I.D. |
NPTF Thread |
C Hex |
L | N | D |
| P4MTB4 | 1/4 | 1/4 | 9/16 | 2.004 | 1.406 | .153 |
Weight & Dimensions
Height (inches) | 2.25 |
Length (inches) | 2.25 |
Weight (lbs) | 0.000625 |
Width (inches) | 0.75 |
Details
Application | Water |
Barb Size | 3/8" ID |
Body Material | Polypropylene |
Color / Finish | Black |
Inlet/Outlet Connection | 1/2" MPT |
Mounting Options | Thread |
Series | Polypropylene |
Size | 1/2" |
Par-Barb fittings are precision injection molded from high strength, chemically inert, thermoplastic materials. Par-Barb fittings meet FDA and NSF-51 specifications for food contact.
Specifications:
- Temperature Range: 65º F to 190º
- Max Working Pressure: 125 psi
| ||||||
| Par-Barb | Tube I.D. |
NPTF Thread |
C Hex |
L | N | D |
| P4MTB4 | 1/4 | 1/4 | 9/16 | 2.004 | 1.406 | .153 |
NOTE: Closeout sale item with limited availability.
Weight & Dimensions
Height (inches) | 2.25 |
Length (inches) | 2.25 |
Weight (lbs) | 0.000625 |
Width (inches) | 0.75 |
Details
Application | Water |
Barb Size | 3/8" ID |
Body Material | Polypropylene |
Color / Finish | Black |
Inlet/Outlet Connection | 1/2" MPT |
Mounting Options | Thread |
Series | Polypropylene |
Size | 1/2" |
