Banjo

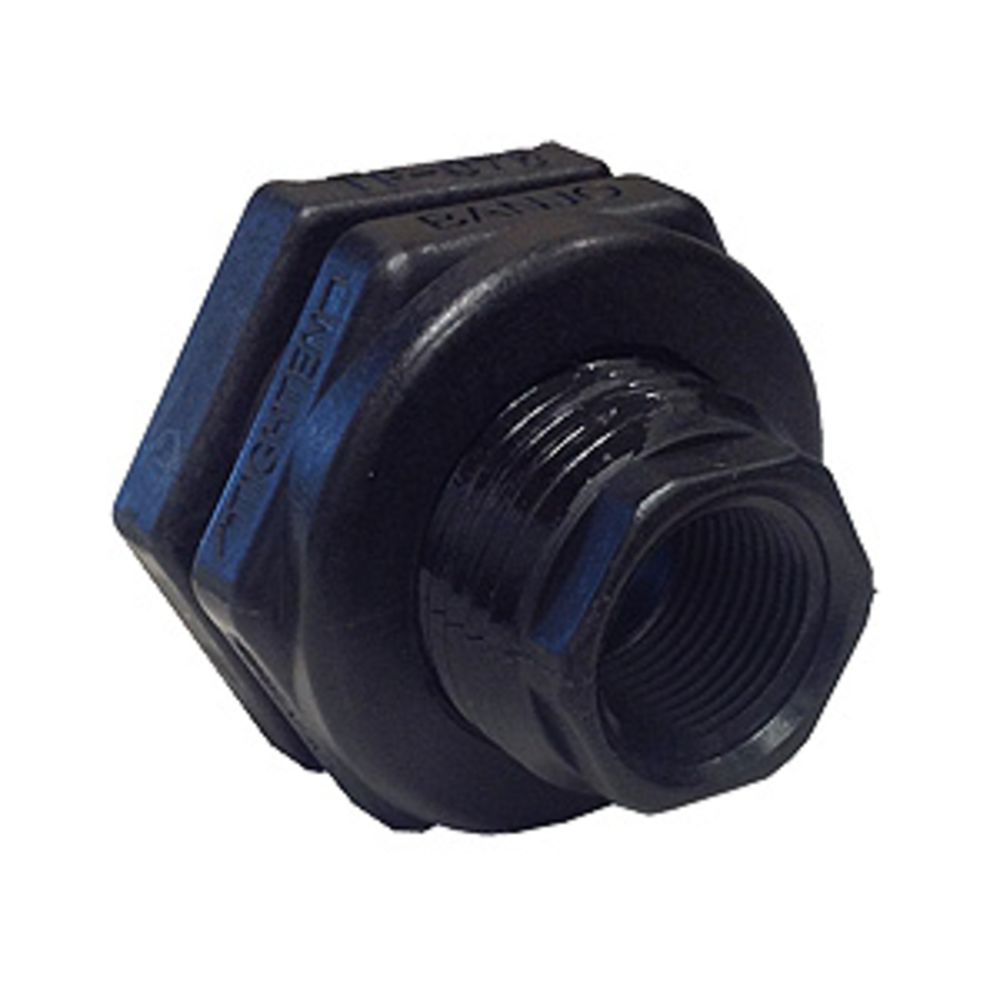

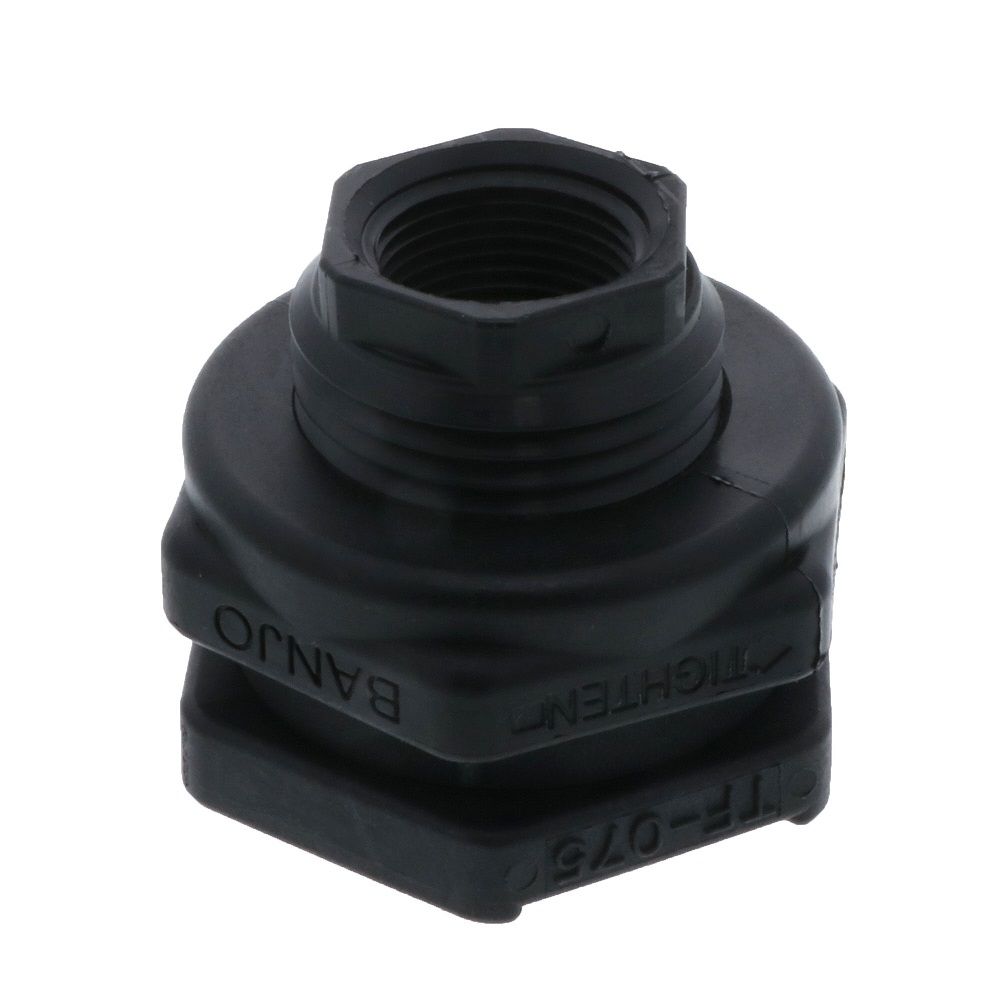

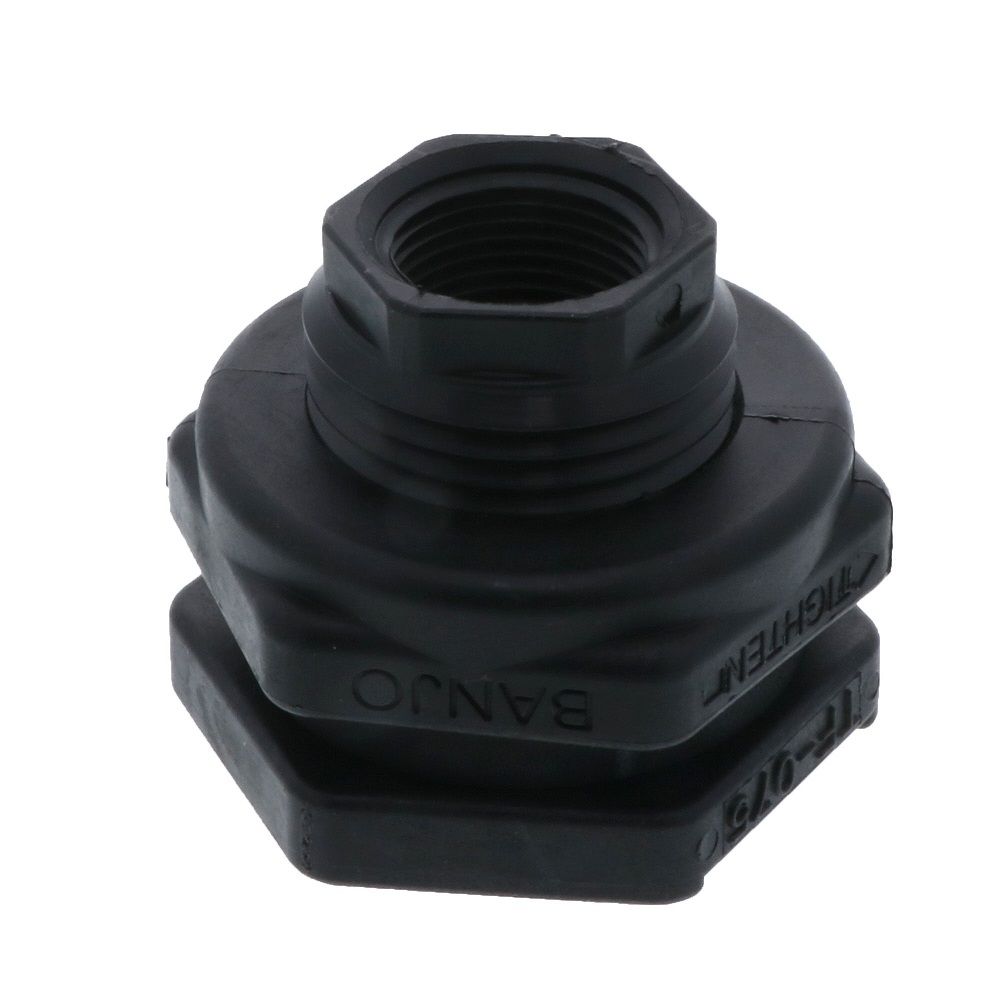

Banjo 3/4" Polypropylene Bulkhead Tank Fitting with EPDM Gaskets

Part Number: BHTF075-PP

Alt. Part Number: TF-075, TF075

In Stock

out of stock

In Stock

$5.99

The Banjo 3/4" Polypropylene Bulkhead Tank Fitting with EPDM gaskets and constructed of glass reinforced polypropylene which has superior chemical and corrosion resistance, rigidity, light weight, and stress cracking resistance. This bulkhead fitting includes a double sided female NPT thread. The EPDM gaskets are not FDA compliant, but the black polypropylene is FDA compliant material. The 3/4" Polypropylene Bulkhead Tank Fittings with EPDM gaskets can be used with our atmospheric vertical storage tanks.

Specifications:
  • Thread Size: 3/4"
  • Required Hole Size: 1-5/8"
  • Max Pressure: 150 psi
  • Temperature Range: -20 - 150º F
  • Connection: FNPT
  • Gasket Material: EPDM
  • Color: Black


Details

Body Material

Polypropylene

Color / Finish

Black

Operating Pressure Range

150 PSI

Operating Temperature Range

-20 - 150º F

Origin

USA

Size

3/4"


Banjo




The Banjo 3/4" Polypropylene Bulkhead Tank Fitting with EPDM gaskets and constructed of glass reinforced polypropylene which has superior chemical and corrosion resistance, rigidity, light weight, and stress cracking resistance. This bulkhead fitting includes a double sided female NPT thread. The EPDM gaskets are not FDA compliant, but the black polypropylene is FDA compliant material. The 3/4" Polypropylene Bulkhead Tank Fittings with EPDM gaskets can be used with our atmospheric vertical storage tanks.

Specifications:
  • Thread Size: 3/4"
  • Required Hole Size: 1-5/8"
  • Max Pressure: 150 psi
  • Temperature Range: -20 - 150º F
  • Connection: FNPT
  • Gasket Material: EPDM
  • Color: Black

Details

Body Material

Polypropylene

Color / Finish

Black

Operating Pressure Range

150 PSI

Operating Temperature Range

-20 - 150º F

Origin

USA

Size

3/4"
