Banjo 1.50" Polypropylene Bulkhead Tank Fitting with EPDM Gaskets

Home / Tanks / Tank Accessories / Banjo 1.50" Polypropylene Bulkhead Tank Fitting with EPDM Gaskets

Banjo

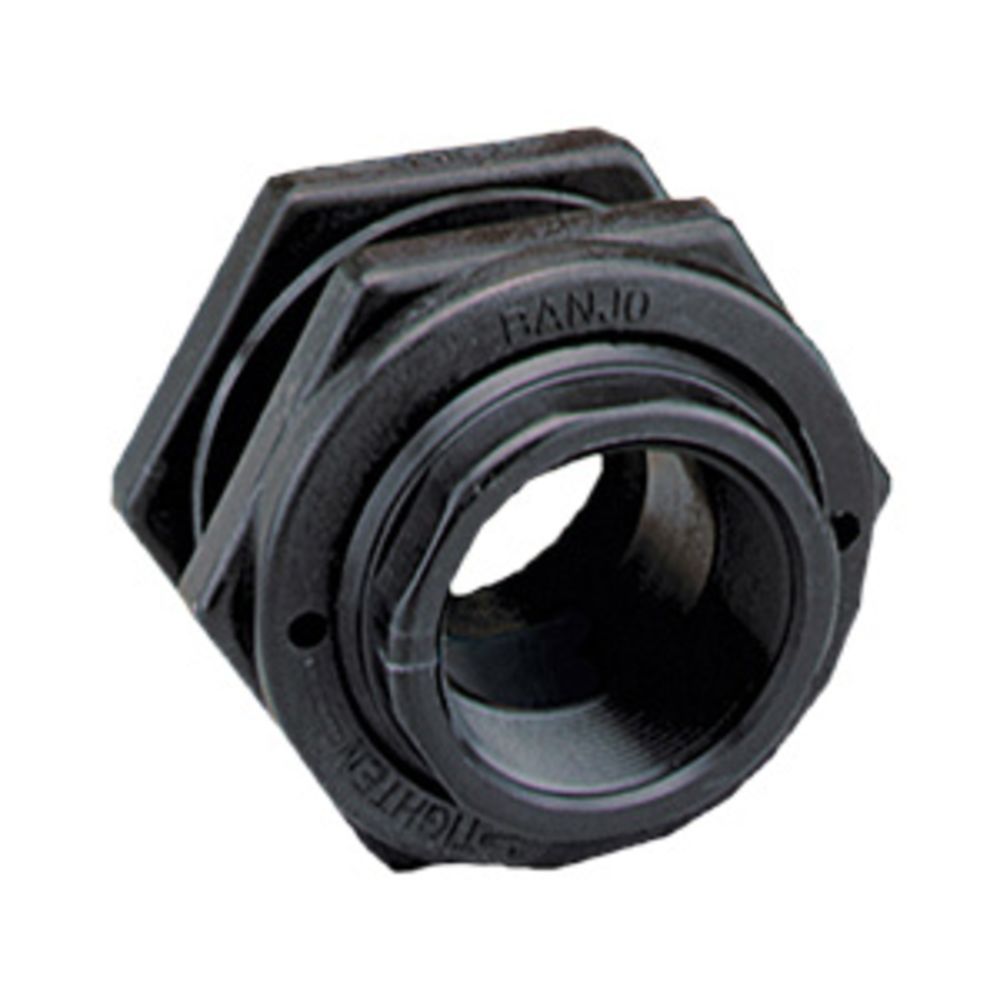

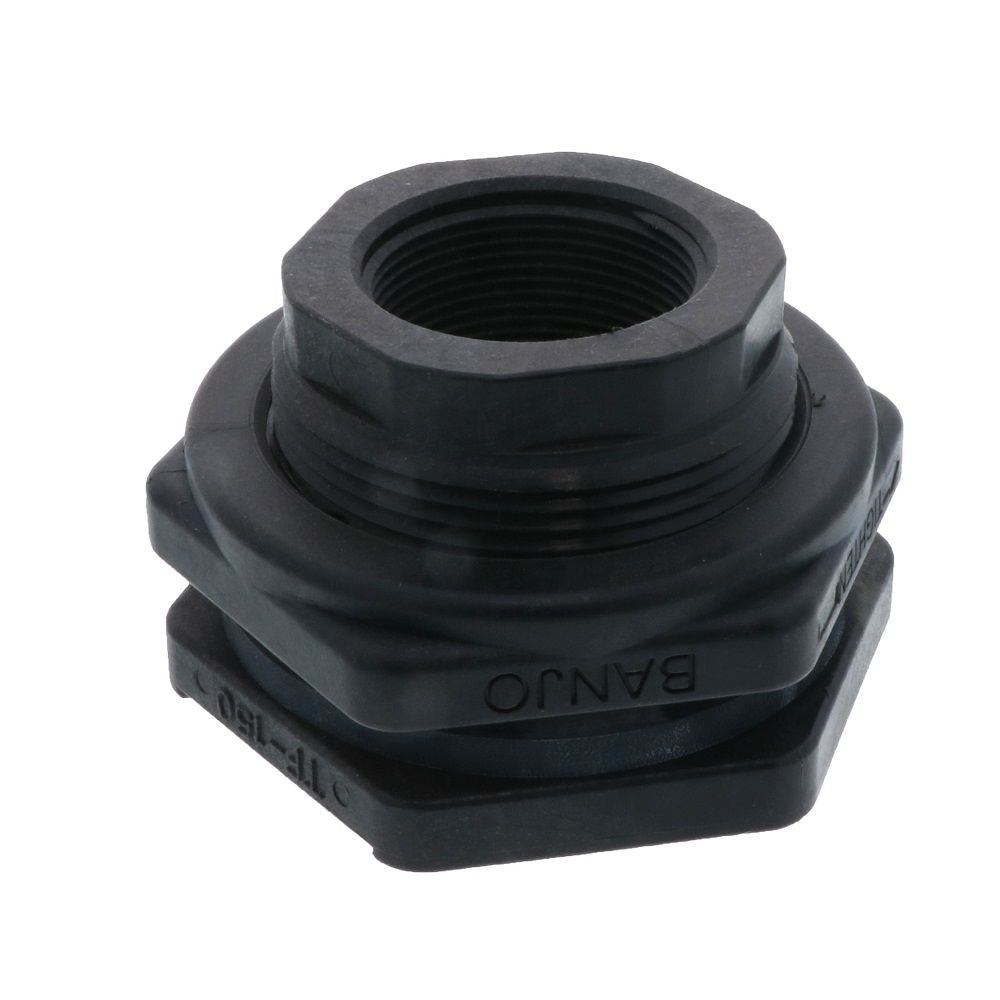

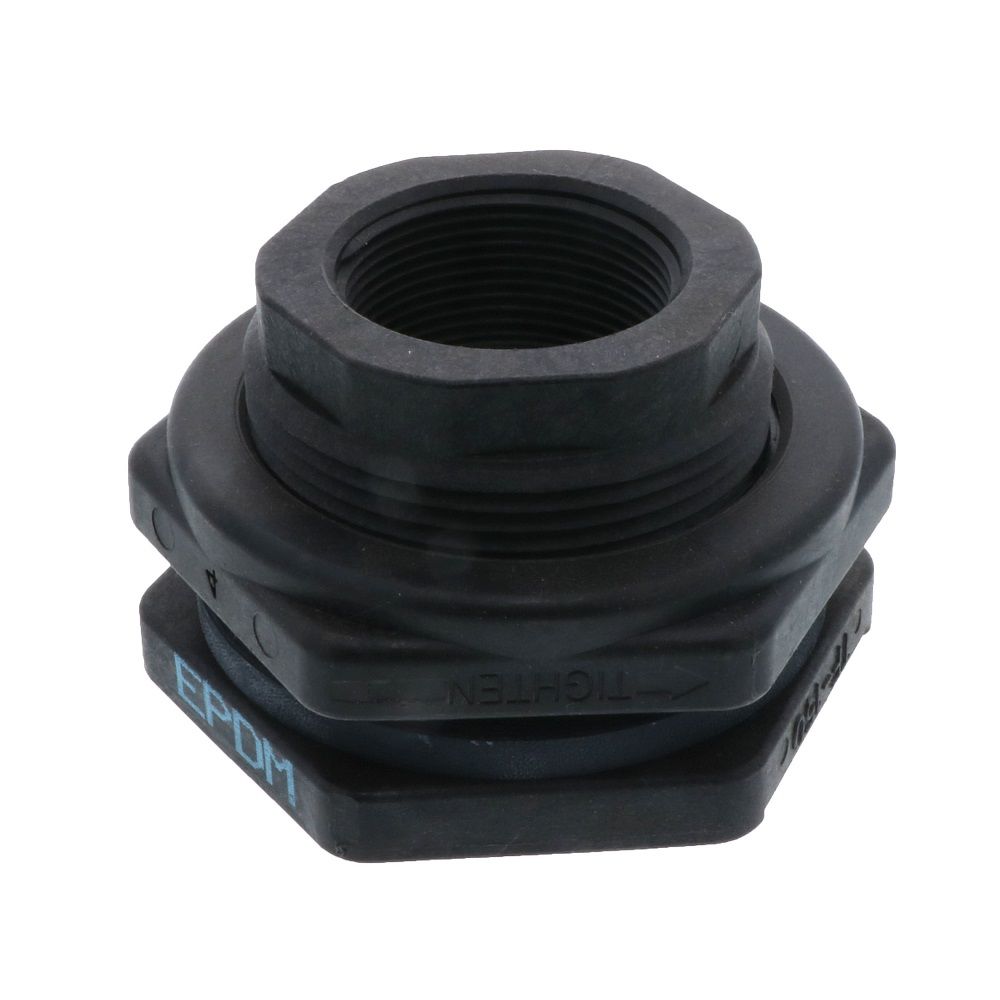

Banjo 1.50" Polypropylene Bulkhead Tank Fitting with EPDM Gaskets

Part Number: BHTF150-PP

Alt. Part Number: TF-150, TF150

The Banjo 1.50" Polypropylene Bulkhead Tank Fitting with EPDM gaskets and constructed of glass reinforced polypropylene which has superior chemical and corrosion resistance, rigidity, light weight, and stress cracking resistance. This bulkhead fitting includes a double sided female NPT thread. The EPDM gaskets are not FDA compliant, but the black polypropylene is FDA compliant material. The 1.50" Polypropylene Bulkhead Tank Fittings with EPDM gaskets can be used with our atmospheric vertical storage tanks.

Specifications:

Thread Size: 1.50"
Required Hole Size: 3"
Max Pressure: 150 psi
Temperature Range: -20 - 150º F
Connection: FNPT
Gasket Material: EPDM
Color: Black

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Polypropylene
Inlet Connection	1-1/2" FPT
Max Pressure (Psi)	150
Max Temp (°F)	150
Min Temp (°F)	-20
Outlet Connection	1-1/2" FPT
Size	1-1/2"
Color / Finish	BLACK
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Bulkhead
Product Weight & Dimensions
Product Weight (lbs)	0.25

Thread Size: 1.50"
Required Hole Size: 3"
Max Pressure: 150 psi
Temperature Range: -20 - 150º F
Connection: FNPT
Gasket Material: EPDM
Color: Black
